| Rated current(Amperes) | 175A |
| Voltage Ratings (Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
4-1/0AWG 21.1-53.5mm |
| Maximum Wire Insulation Diameter[inches] mm |
0.75inches 19.0mm |
| AVG Contact Resistance(micro-ohms) | 100 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force (Ibf) | 300lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @ 120V) |
To 10,000 75A |
| AVg.Connection/Disconnect(Ibf) |
(SE 2Pole)251bf\ (SE 3Pole)35lbf |
| operating Temperature Range℃ ℉ |
-20 °to 105° -4°to 221° |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

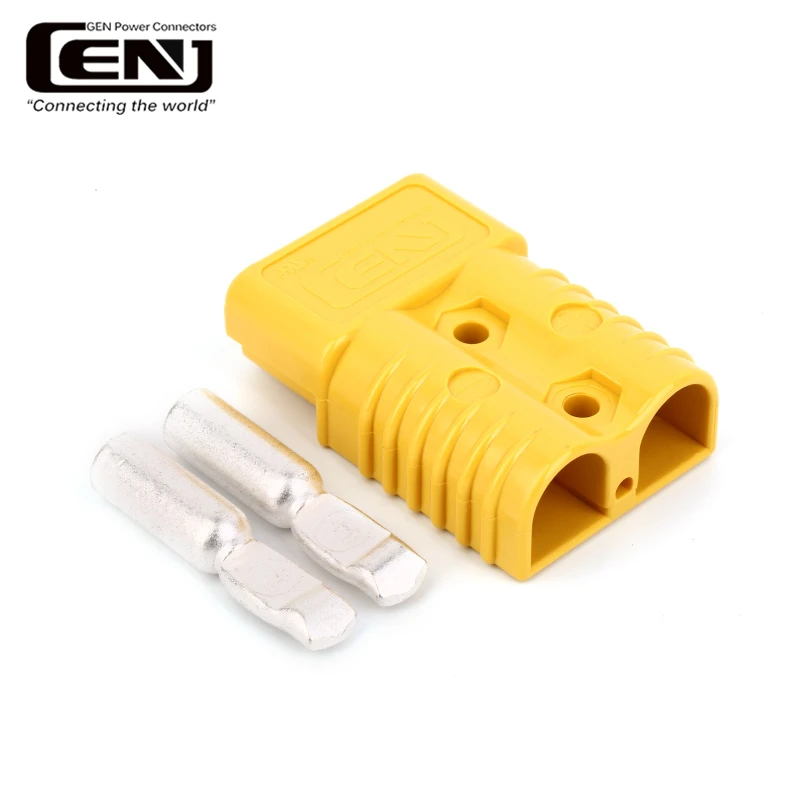

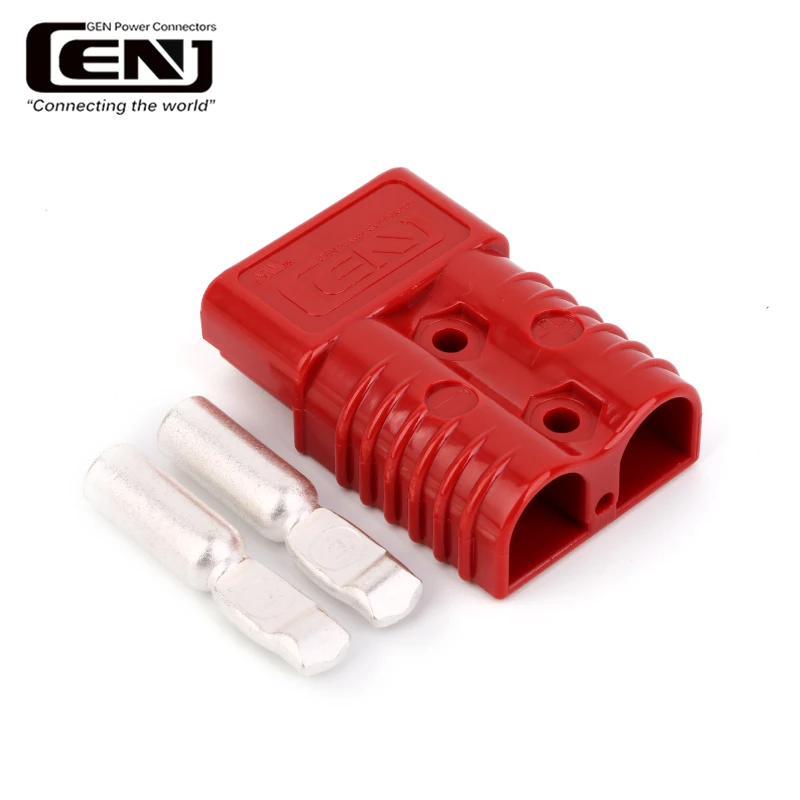

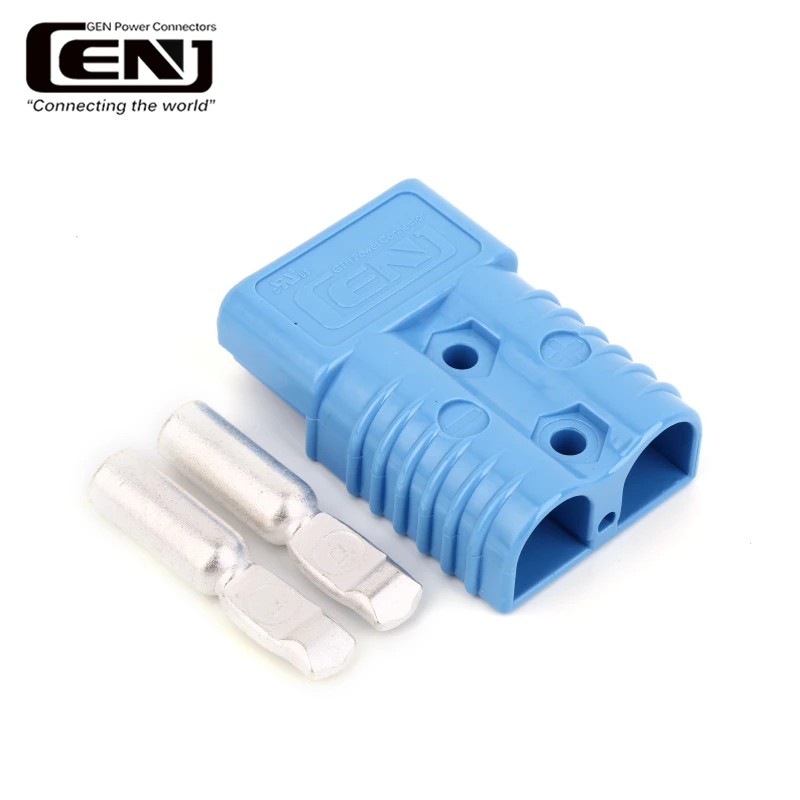

Introducing the Anderson Plug 175A Connector, the perfect solution for all your battery terminal connection needs. This high-quality DIN type electric connector is designed to provide a secure and reliable connection for your electronic devices.
Whether you're looking to power up your car, boat, RV, or any other electronic device, the Anderson Plug 175A Connector is the perfect choice. With its premium construction and durable design, you can trust that this connector will provide a secure and reliable connection every time.
One of the standout features of this connector is its 175A rating, which ensures that it can handle even the most power-hungry devices. This means that you can rely on this connector to provide a stable and consistent power supply, no matter what you're using it for.
In addition to its high amperage rating, the Anderson Plug 175A Connector also features a DIN type design, which allows for easy and secure connections. This design ensures that your devices are connected safely and securely, so you can have peace of mind knowing that your electronics are in good hands.
Another key feature of this connector is its premium construction. Made from high-quality materials, this connector is built to last. Whether you're using it in harsh weather conditions or rough terrain, you can trust that this connector will stand up to the elements and provide a reliable connection every time.
The Anderson Plug 175A Connector is a premium product that is perfect for anyone looking for a high-quality battery terminal connector. With its high amperage rating, secure DIN type design, and durable construction, you can trust that this connector will provide a reliable connection for all your electronic devices. Invest in the best with the Anderson Plug 175A Connector.
High quality din type electric battery terminal connector
| Application | Electric vehicles; Medical equipment; Power supply; Electric equipment; |
| Maximum wire insulation diameter | 0.75inches 19.0mm |
| Insulation withstanding test voltage | 2200v |
| Contact retention force | 300lbf |
| Avg. connection/disconnect | (SE 2Pole)25ibf\(SE 3Pole)35lbf |
| Operating temperature range |
-20°to105° -4°to221° |
| Flammability rating of housing material | UL94-VO |

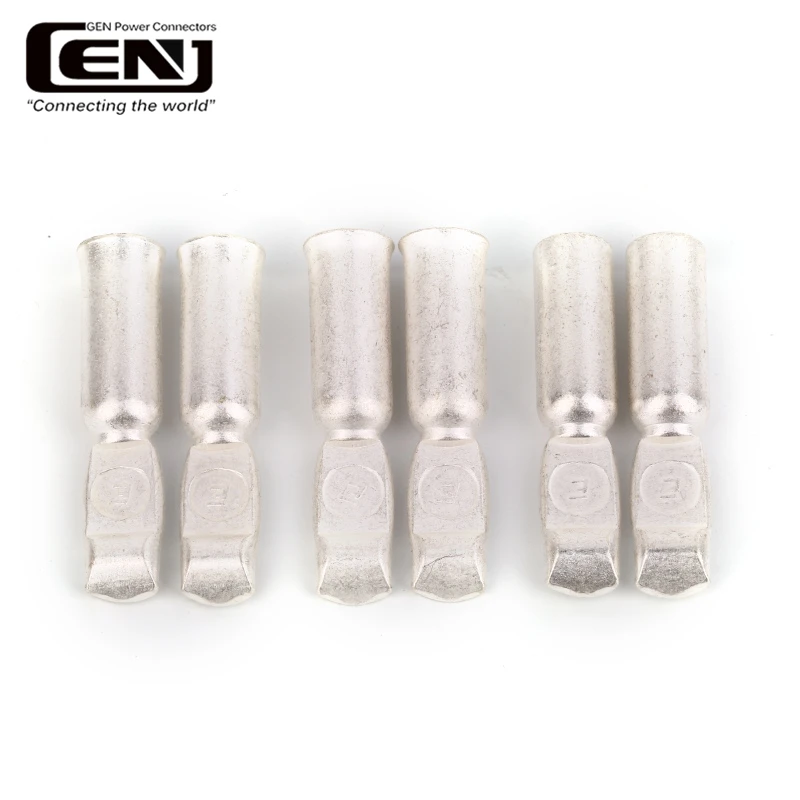

1. About selecting terminals
The terminals can be selected according to the wire size. Each terminal has different aperture, which is convenient for customers. For example, (50A600V plug terminals have three models, respectively, 5915 terminals can be connected to 10/12AWG wire, 5952 terminals can be connected to 8AWG wire, 5900 terminals can be connected to 6AWG wire

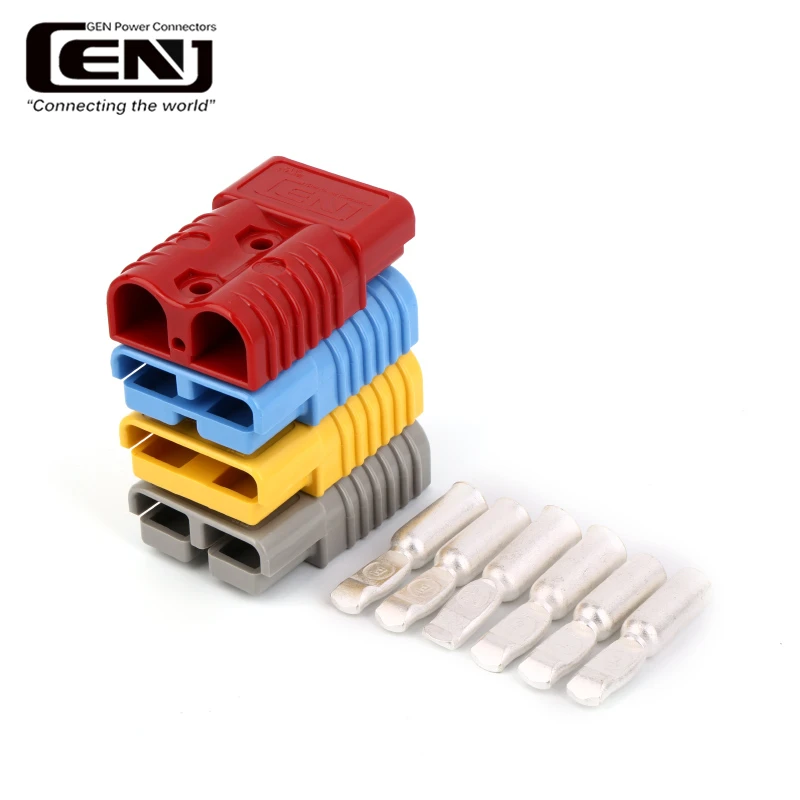

2. Plastic shell color selection
(Unipolar) color modular housing, providing intuitive identification of the correct matching connection; (bipolar) the same color can be inserted, while different color can not be inserted for the different interface design. Colored modular housings provides visual identification of proper mating connector. (Only Gray and Black can be matched
3. About wire processing OEM
According to customer samples, we can provide OEM wire processing
4. Plug working life
No load (terminal insertion and removal times 10000) with load (120V hot swap 250 times)
5. Plug operating temperature range
-20°C105°C If you have special requirements, we can customize according to customer requirement
