| Rated current(Amperes) | 15-45A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
20-10AWG 0.75-5.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.175inches 4.45mm |
| AVG Contact Resistance(micro-ohms) | <500 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 25lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 15-30A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

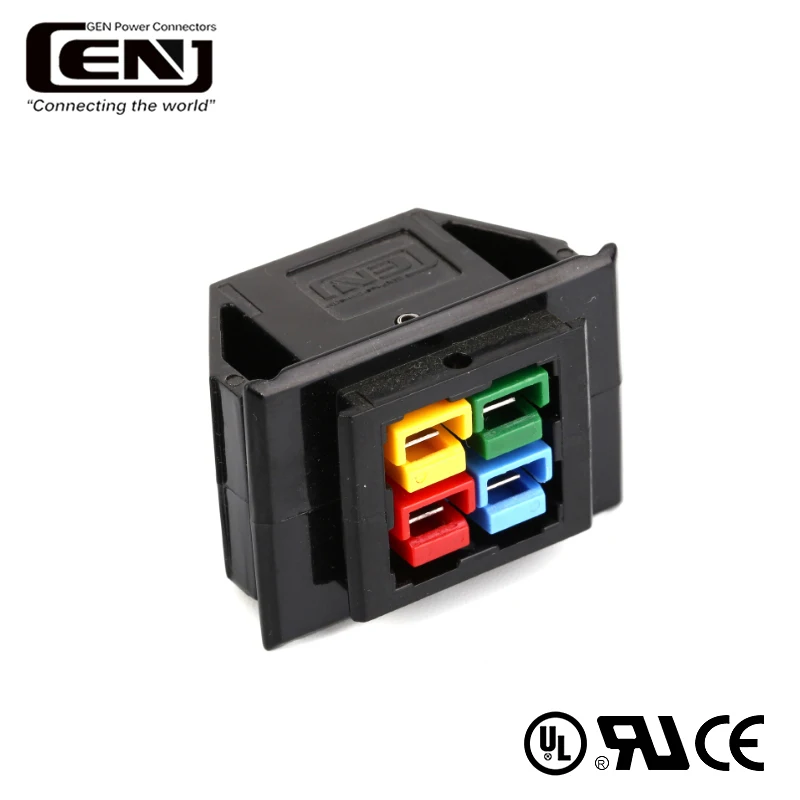

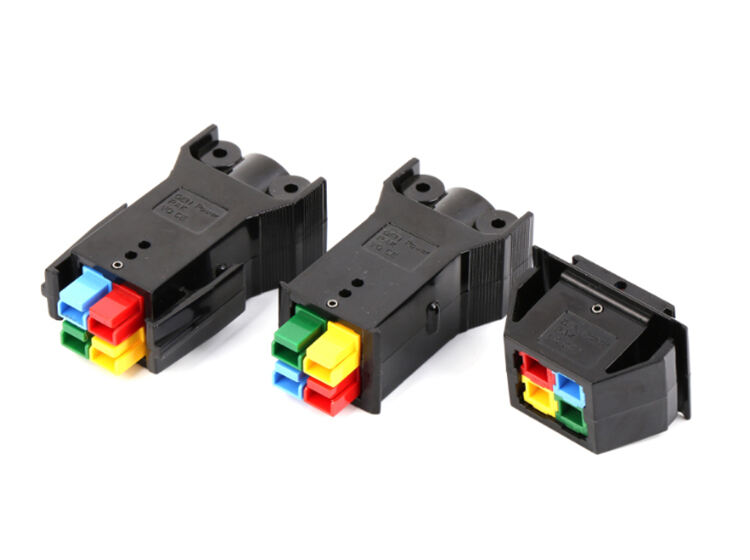

15-45A receptacle locked fixing base connector
| MOQ | 10 |
| Application | Connector |

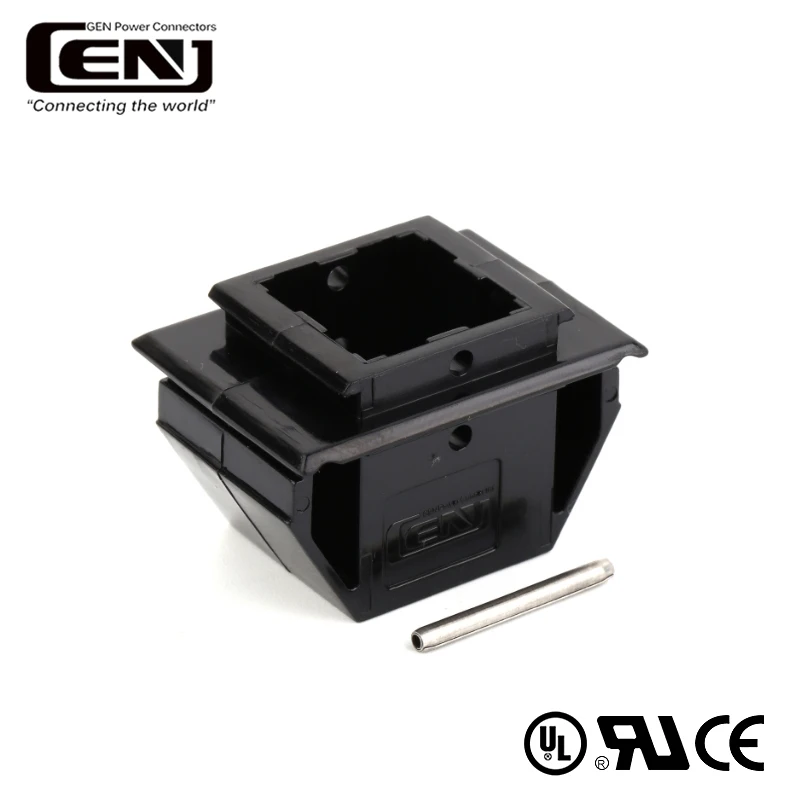

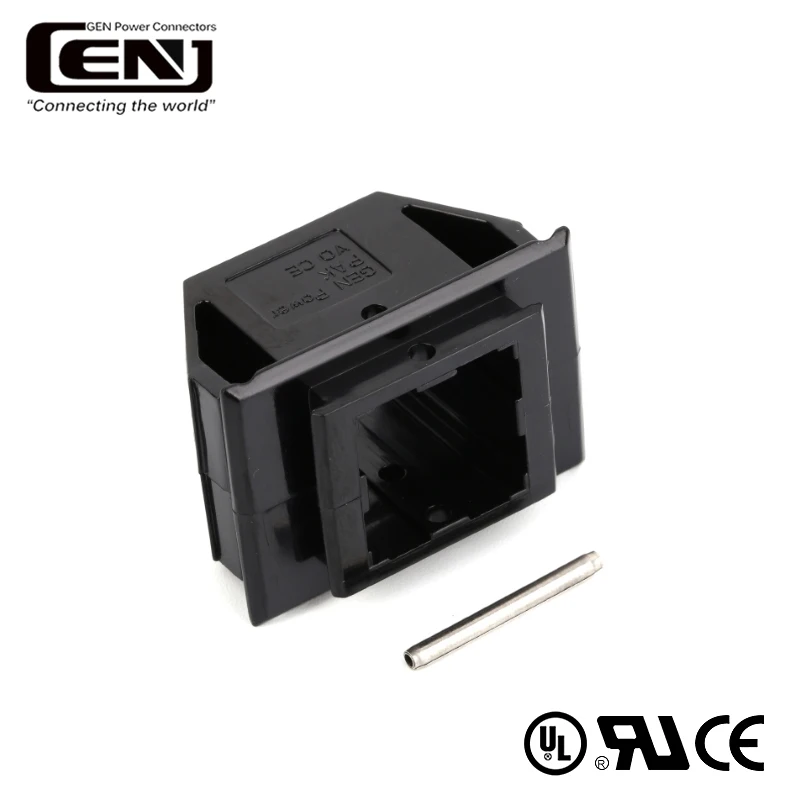

| Product name | Snap-in receptacle shell |
| Connector type | Adaptor |
| Color | Black |
