| Rated current(Amperes) | 15-45A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
20-10AWG 0.75-5.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.175inches 4.45mm |
| AVG Contact Resistance(micro-ohms) | <500 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 25lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 15-30A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |
Introducing the 15-45A waterproof power electrical battery connector, a reliable and high-quality solution for all your power needs. This durable and versatile connector is designed to provide a secure and stable connection for your electrical batteries, ensuring optimal performance and efficiency.
The 15-45A waterproof power electrical battery connector is built to last, with a rugged construction that can withstand even the most demanding environments. Whether you are using it in a marine setting, outdoor lighting application, or any other situation where water and debris may be present, this connector will keep your batteries safe and secure.
With a current rating of 15-45A, this connector is capable of handling high-power applications with ease. Whether you need to power a motor, lighting system, or any other electrical device, the connector will deliver the power you need reliably and consistently.
Installation is quick and easy, thanks to the simple and intuitive design of the connector. Just insert the wires into the appropriate terminals, tighten the screws to secure them in place, and you are ready to go. The waterproof design ensures that your connection will remain secure even in wet or damp conditions, giving you peace of mind and reliable performance.
The 15-45A waterproof power electrical battery connector is compatible with a wide range of batteries and electrical devices, making it a versatile and cost-effective solution for all your power needs. Whether you are a professional electrician or a DIY enthusiast, this connector will meet your needs and exceed your expectations.
Invest in the 15-45A waterproof power electrical battery connector today and experience the difference that quality and reliability can make in your electrical projects. With its durable construction, high power rating, and waterproof design, this connector is the perfect choice for anyone who needs a secure and reliable power connection. Order yours today and see for yourself why the connector is the preferred choice of professionals everywhere.

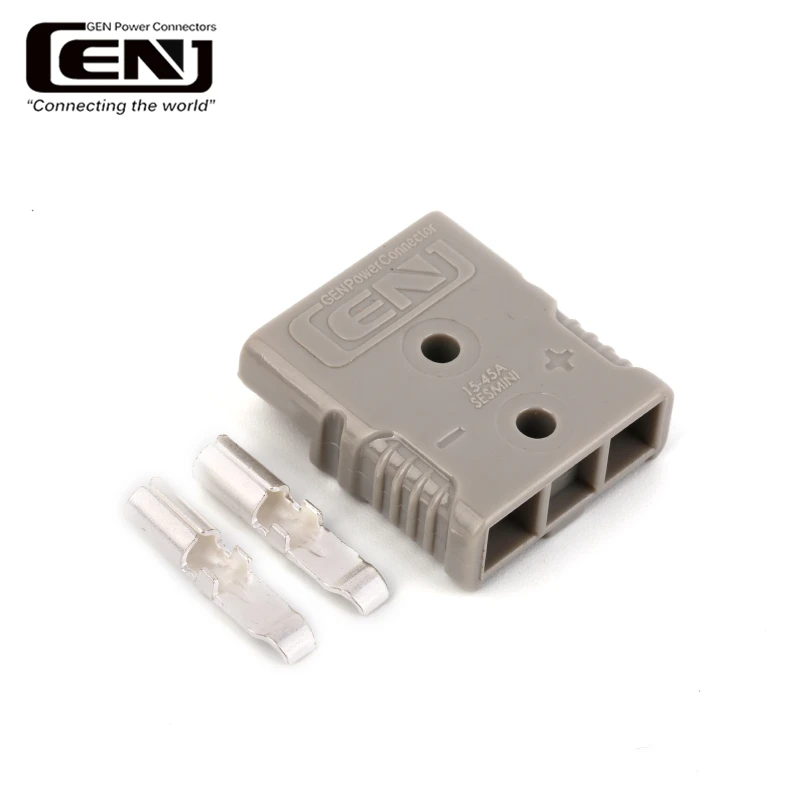

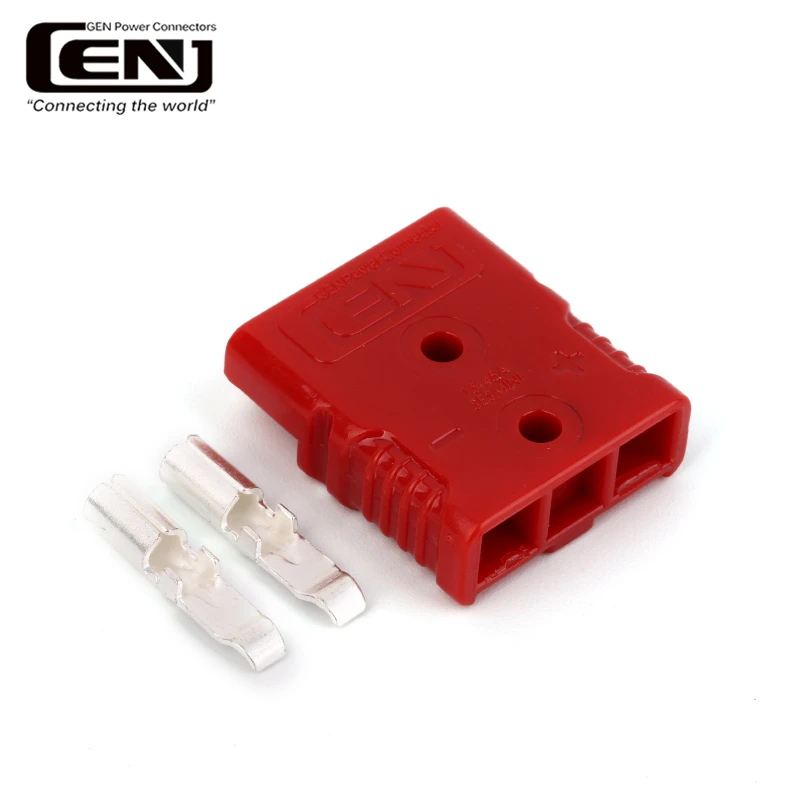

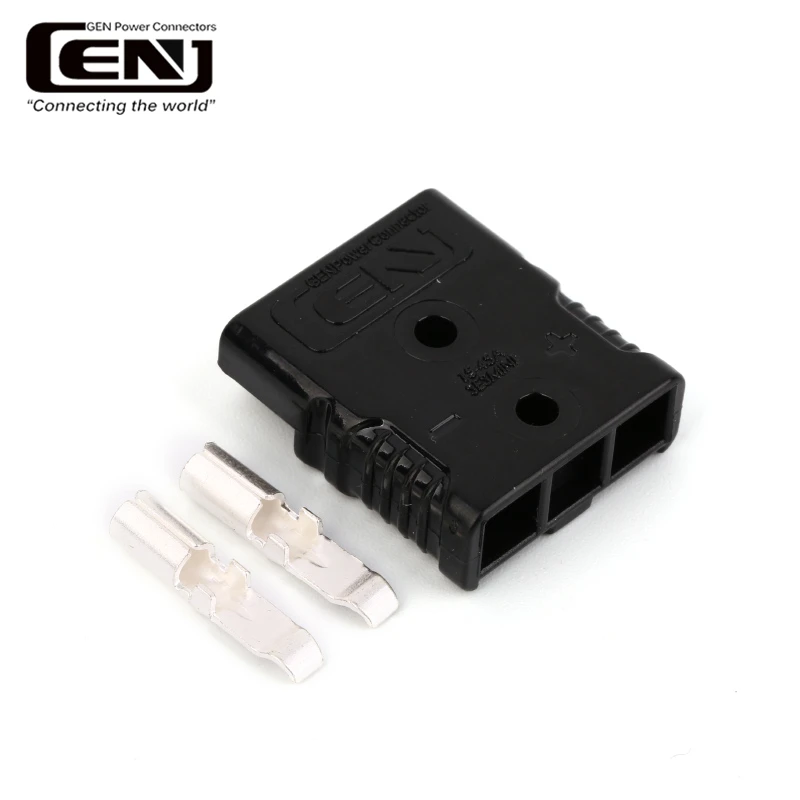

15-45A waterproof power electrical battery connector
| Application | Electric vehicles;Medical equipment;Power supply;Electric equipment; |
| Maximum wire insulation diameter | 0.175inches 4.45mm |
| Insulation withstanding test voltage | 2200v |
| Contact retention force | 25lbf |
| Avg. connection/disconnect | 10lbf |
| Operating temperature range |
-20°to105° -4°to221° |
| Flammability rating of housing material | UL94-VO |

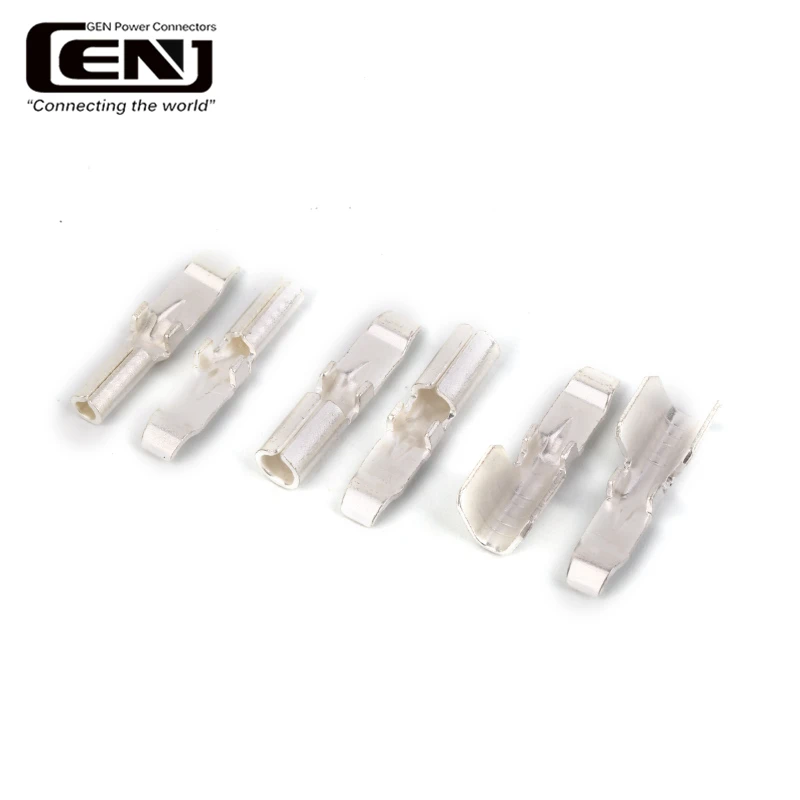

1. About selecting terminals
The terminals can be selected according to the wire size. Each terminal has different aperture, which is convenient for customers. For example, (50A600V plug terminals have three models, respectively, 5915 terminals can be connected to 10/12AWG wire, 5952 terminals can be connected to 8AWG wire, 5900 terminals can be connected to 6AWG wire

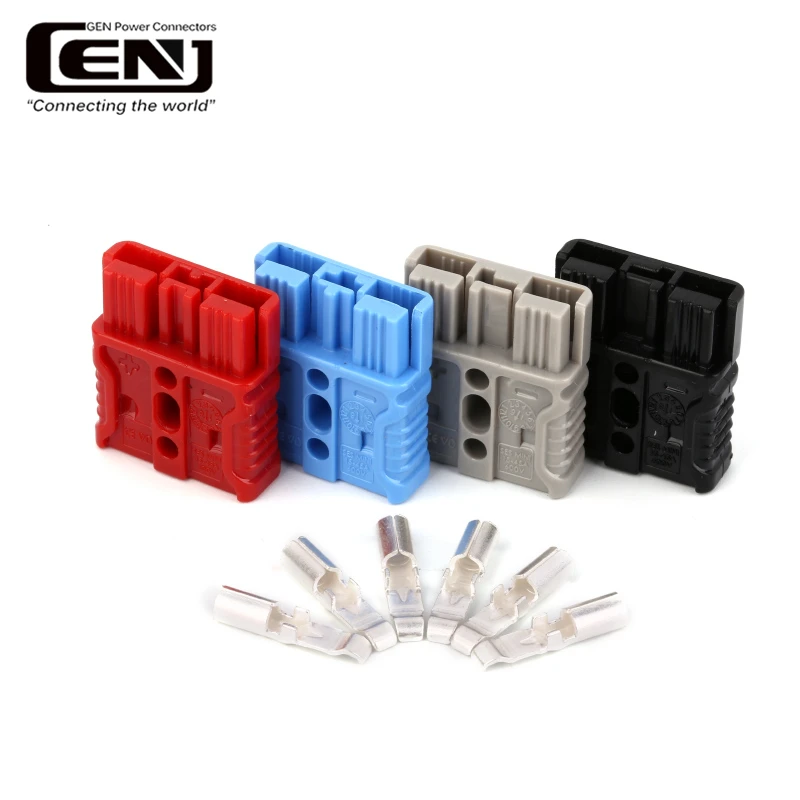

2. Plastic shell color selection
(Unipolar) color modular housing, providing intuitive identification of the correct matching connection; (bipolar) the same color can be inserted, while different color can not be inserted for the different interface design. Colored modular housings provides visual identification of proper mating connector. (Only Gray and Black can be matched
3. About wire processing OEM
According to customer samples, we can provide OEM wire processing
4. Plug working life
No load (terminal insertion and removal times 10000) with load 120V hot swap 250 times
5. Plug operating temperature range
-20°C105°C If you have special requirements, we can customize according to customer requirements
