| Rated current(Amperes) | 175A |
| Voltage Ratings (Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
4-1/0AWG 21.1-53.5mm |
| Maximum Wire Insulation Diameter[inches] mm |
0.75inches 19.0mm |
| AVG Contact Resistance(micro-ohms) | 100 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force (Ibf) | 300lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @ 120V) |
To 10,000 75A |
| AVg.Connection/Disconnect(Ibf) |
(SE 2Pole)251bf\ (SE 3Pole)35lbf |
| operating Temperature Range℃ ℉ |
-20 °to 105° -4°to 221° |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

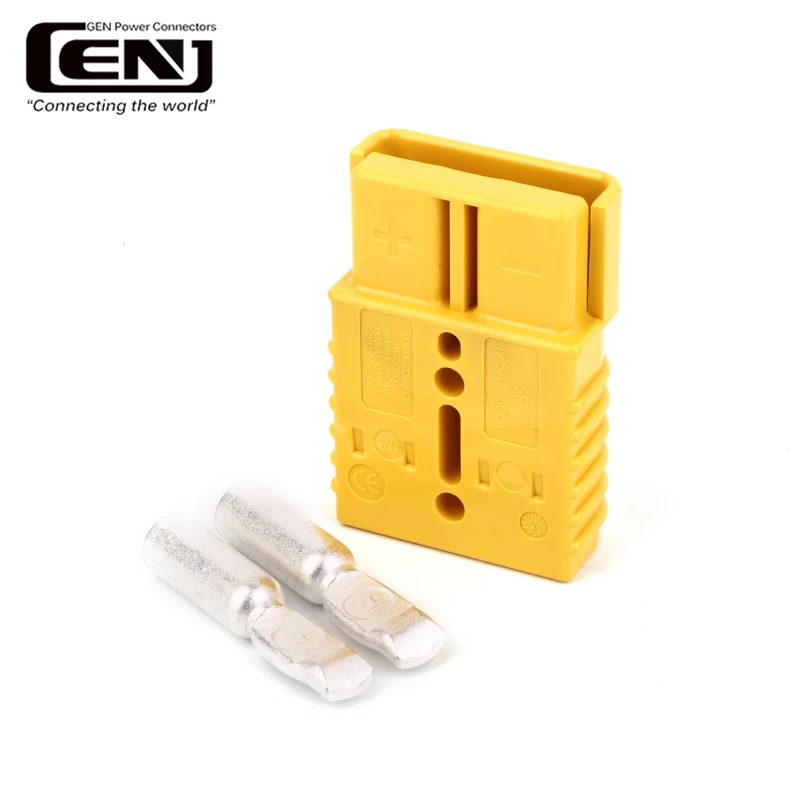

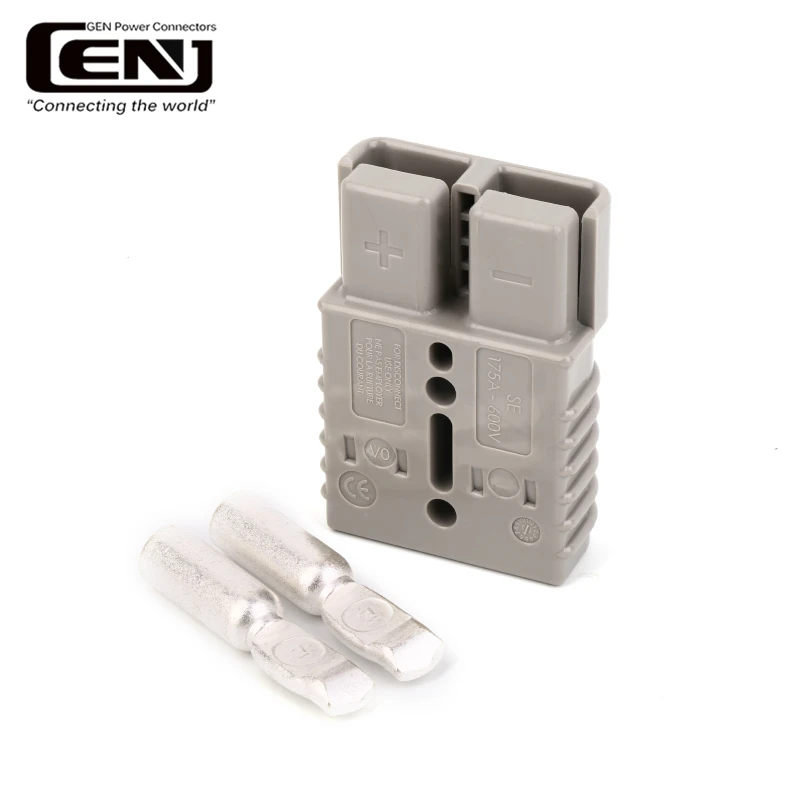

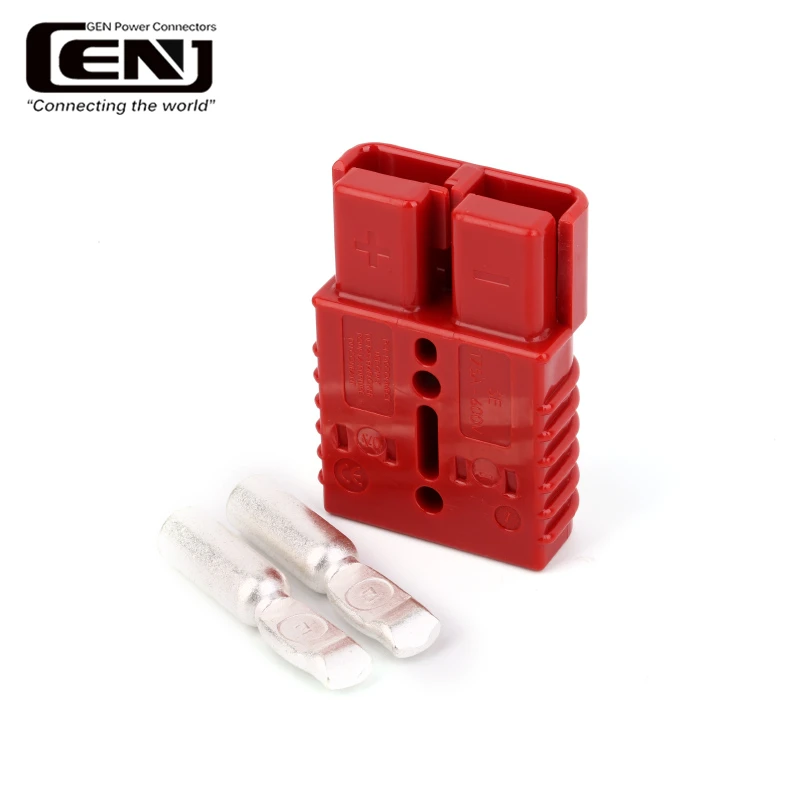

Introducing the 175A 2-Pin Battery Quick Release Connector - the perfect solution for all your electrical terminal wire harness needs. This premium product is designed to provide a reliable and secure connection for your electrical systems, ensuring optimal performance and safety.
The 175A 2-Pin Battery Quick Release Connector is made with high-quality materials, making it durable and long-lasting. The connector features a quick release design, allowing for easy and convenient installation and removal. This makes it ideal for applications where frequent connecting and disconnecting is required.
One of the key features of the 175A 2-Pin Battery Quick Release Connector is its high amperage rating of 175A, making it suitable for a wide range of electrical systems. Whether you are working on automotive, marine, or industrial applications, this connector can handle the power requirements with ease.
The two-pin design of the connector provides a secure connection, ensuring that your electrical systems operate smoothly and efficiently. The connector is also color-coded for easy identification, making installation a breeze.
Whether you are a professional electrician or a DIY enthusiast, the 175A 2-Pin Battery Quick Release Connector is a must-have for your toolkit. It is designed to meet the highest standards of quality and performance, providing you with peace of mind knowing that your electrical connections are secure.
In addition to its premium construction and high amperage rating, the 175A 2-Pin Battery Quick Release Connector is also competitively priced, making it a cost-effective solution for your electrical terminal wire harness needs.
Don't settle for subpar connectors that compromise the integrity of your electrical systems. Invest in the 175A 2-Pin Battery Quick Release Connector and experience the difference that quality and reliability can make. Upgrade your electrical connections today and see the difference that a premium product can make in your projects.
175A 2 pin electrical terminal wire harness quick release connector
| Application | Electric vehicles;Medical equipment;Power supply;Electric equipment; |
| Maximum wire insulation diameter | 0.75inches 19.0mm |
| Insulation withstanding test voltage | 2200v |
| Contact retention force | 300lbf |
| Avg. connection/disconnect | (SE 2Pole)25ibf\(SE 3Pole)35lbf |
| Operating temperature range |
-20°to105° -4°to221° |
| Flammability rating of housing material | UL94-VO |

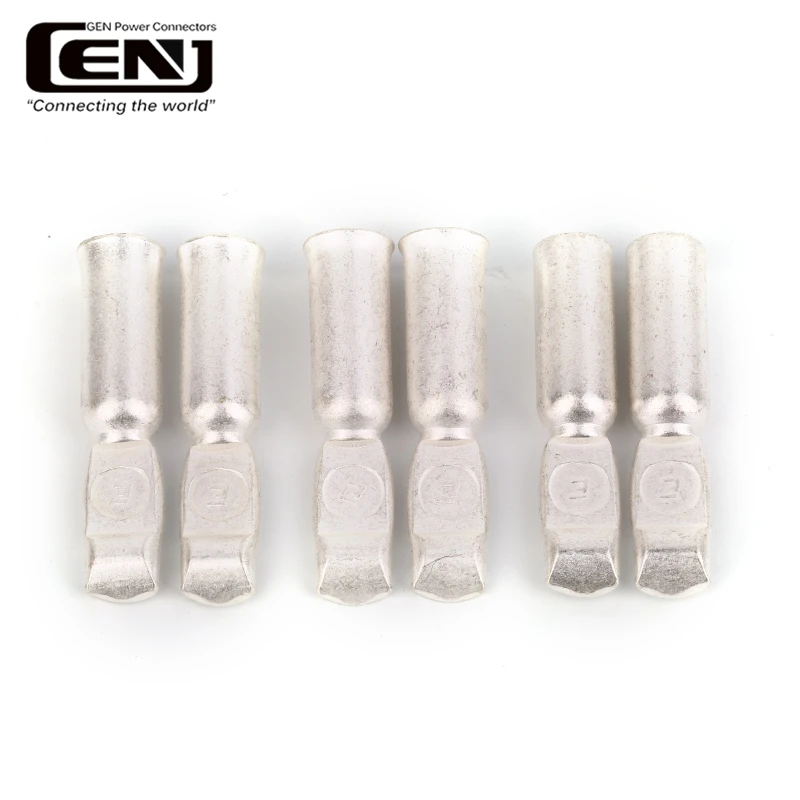

1. About selecting terminals
The terminals can be selected according to the wire size. Each terminal has different aperture, which is convenient for customers. For example, (50A600V plug terminals have three models, respectively, 5915 terminals can be connected to 10/12AWG wire, 5952 terminals can be connected to 8AWG wire, 5900 terminals can be connected to 6AWG wire

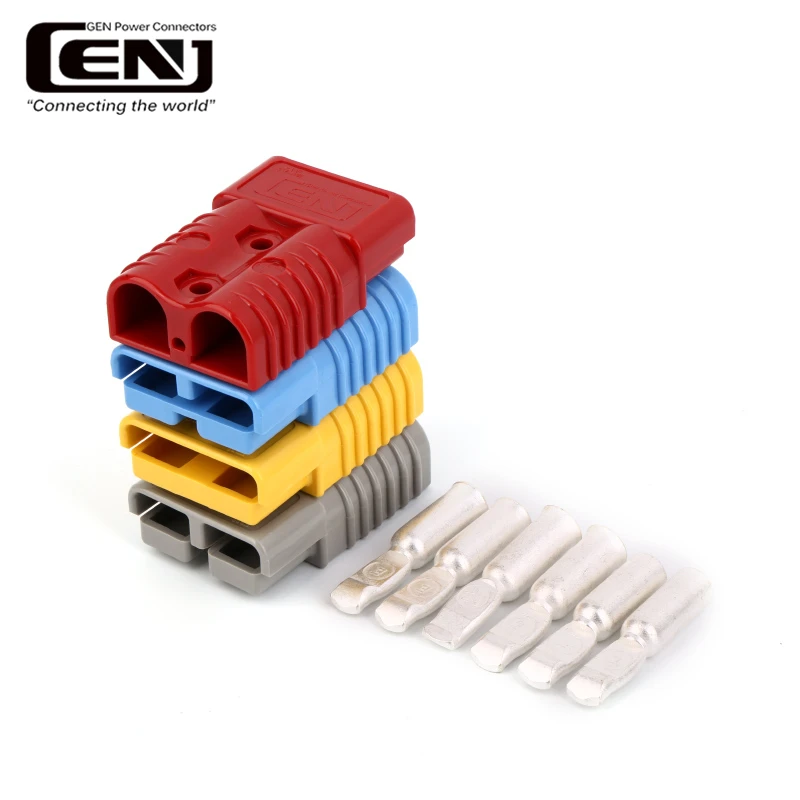

2. Plastic shell color selection
(Unipolar) color modular housing, providing intuitive identification of the correct matching connection; (bipolar) the same color can be inserted, while different color can not be inserted for the different interface design. Colored modular housings provides visual identification of proper mating connector
3. About wire processing OEM
According to customer samples, we can provide OEM wire processing
4. Plug working life
No load (terminal insertion and removal times 10000) with load (120V hot swap 250 times
5. Plug operating temperature range
-20°C105°C If you have special requirements, we can customize according to customer requirements
