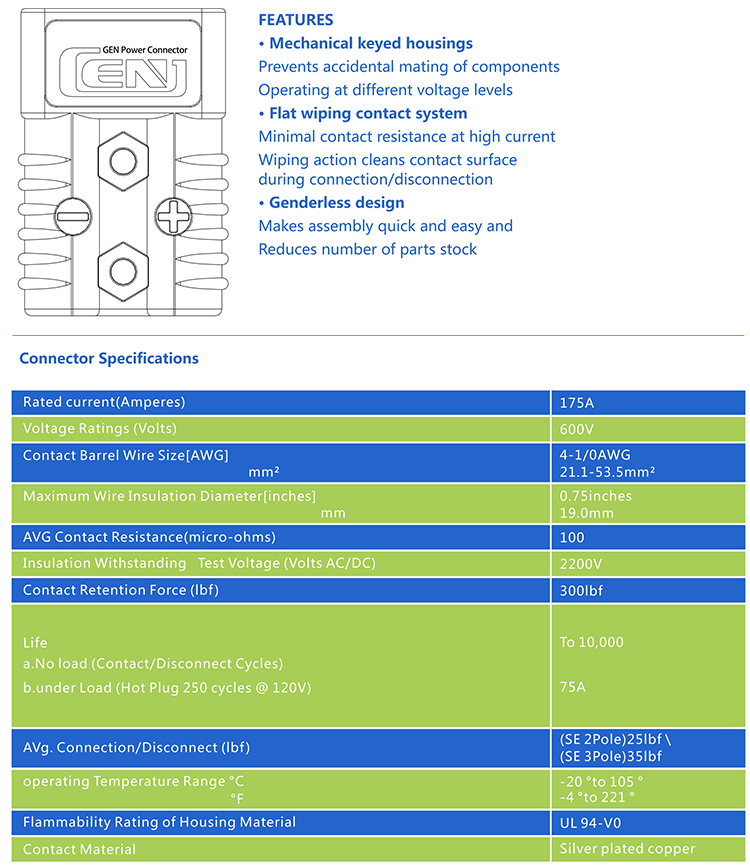

| Rated current(Amperes) | 175A |
| Voltage Ratings (Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
4-1/0AWG 21.1-53.5mm |
| Maximum Wire Insulation Diameter[inches] mm |
0.75inches 19.0mm |
| AVG Contact Resistance(micro-ohms) | 100 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force (Ibf) | 300lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @ 120V) |
To 10,000 75A |
| AVg.Connection/Disconnect(Ibf) |
(SE 2Pole)251bf\ (SE 3Pole)35lbf |
| operating Temperature Range℃ ℉ |
-20 °to 105° -4°to 221° |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |
Introducing, the 175A waterproof power electrical battery connector, the ultimate solution for all your power connectivity needs. This high-quality connector is designed to handle up to 175A of current, making it perfect for a wide range of applications. Whether you're powering your car audio system, connecting a solar panel setup, or wiring up a marine battery, the 175A connector has you covered.
What sets the 175A connector apart from the competition is its waterproof design. Engineered to withstand the elements, this connector is IP67 rated, meaning it can be fully submerged in water without compromising performance. This makes it ideal for outdoor use or any application where moisture is a concern. Say goodbye to flimsy, unreliable connectors that can't stand up to the demands of your project – the 175A connector is built to last.
Installation is a breeze with the 175A connector. Simply strip the wires, insert them into the connector, and tighten the screws for a secure, reliable connection. The connector features a clear housing that allows you to easily check for proper wire insertion, ensuring a hassle-free setup every time. Plus, with its compact size and simple design, the 175A connector is easy to incorporate into any wiring configuration.
Not only does the 175A connector offer superior performance and durability, but it also boasts the quality and reliability you can trust. Each connector is made from high-quality materials and undergoes rigorous testing to ensure it meets our strict standards for performance and safety. You can rest easy knowing that the 175A connector will provide you with years of reliable service.
Whether you're a DIY enthusiast, a professional installer, or anyone in between, the 175A waterproof power electrical battery connector is the perfect choice for your next project. With its high current capacity, waterproof design, easy installation, and unbeatable quality, this connector has everything you need to power up your devices with confidence. Don't settle for second best – choose the 175A connector and experience the difference for yourself.

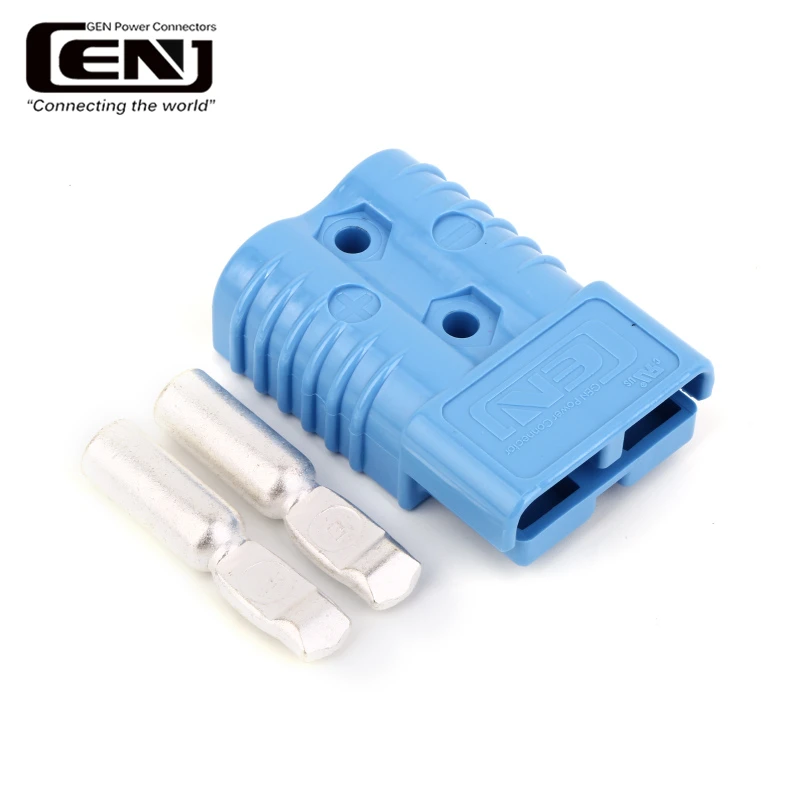

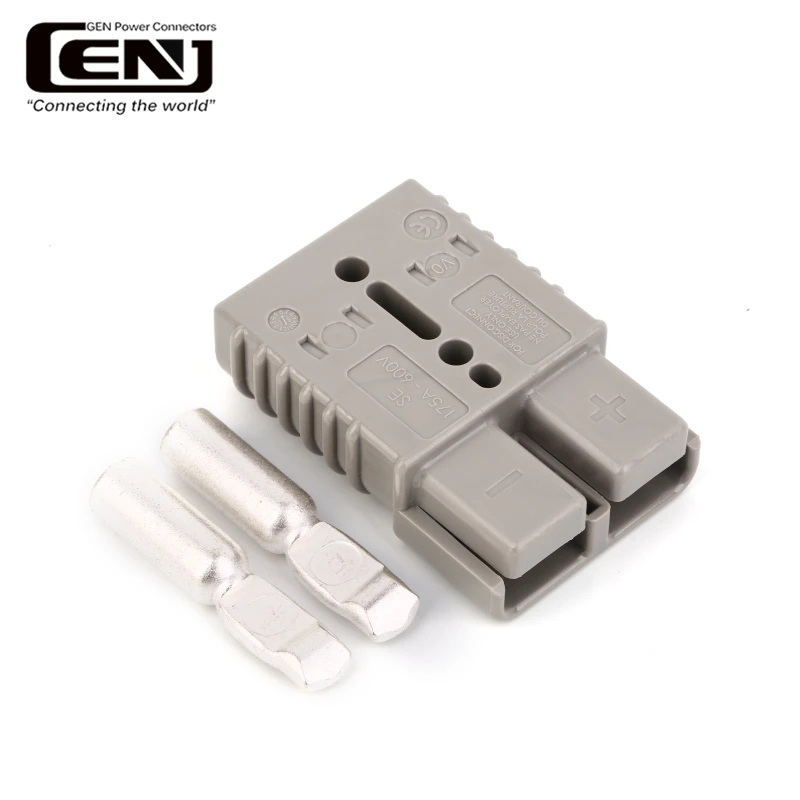

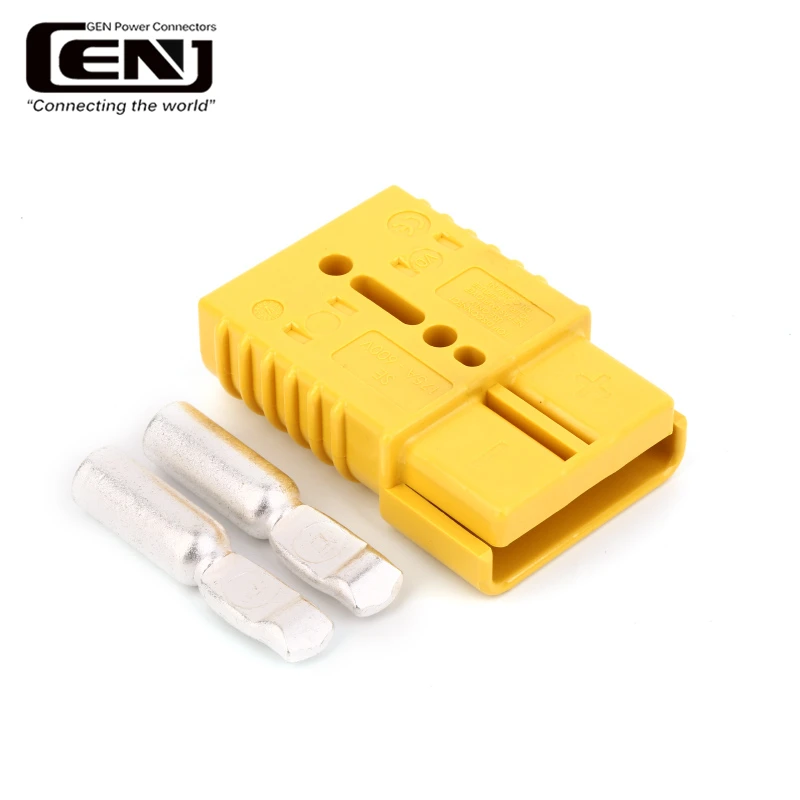

175A waterproof power electrical battery connector
| Application | Electric vehicles;Medical equipment;Power supply;Electric equipment; |
| Maximum wire insulation diameter | 0.75inches 19.0mm |
| Insulation withstanding test voltage | 2200v |
| Contact retention force | 300lbf |
| Avg. connection/disconnect | (SE 2Pole) 25ibf\ (SE 3Pole) 35lbf |
| Operating temperature range |
-20°to105° -4°to221° |
| Flammability rating of housing material | UL94-VO |

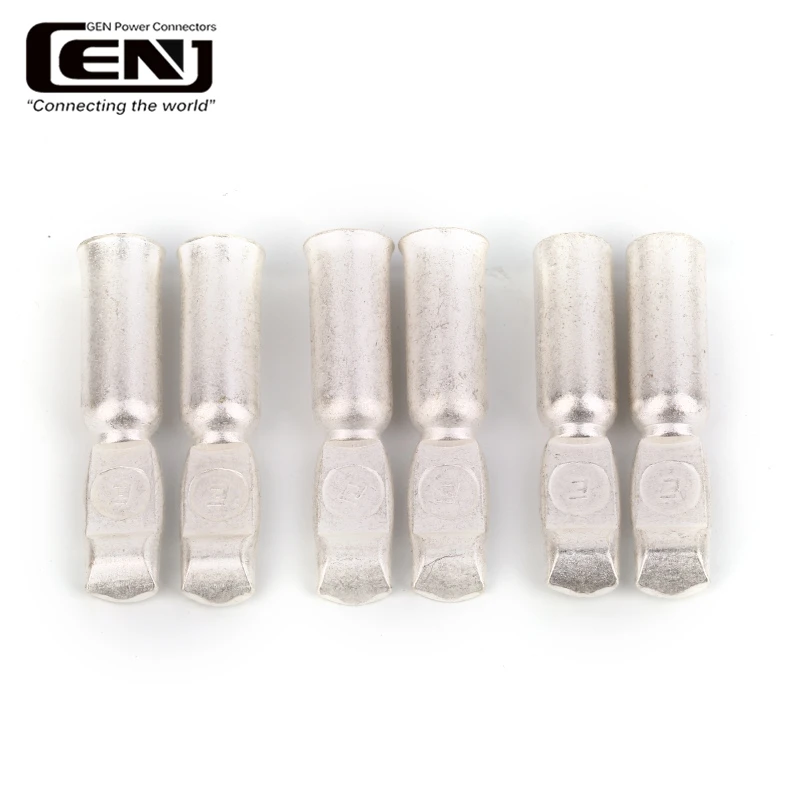

1. About selecting terminals

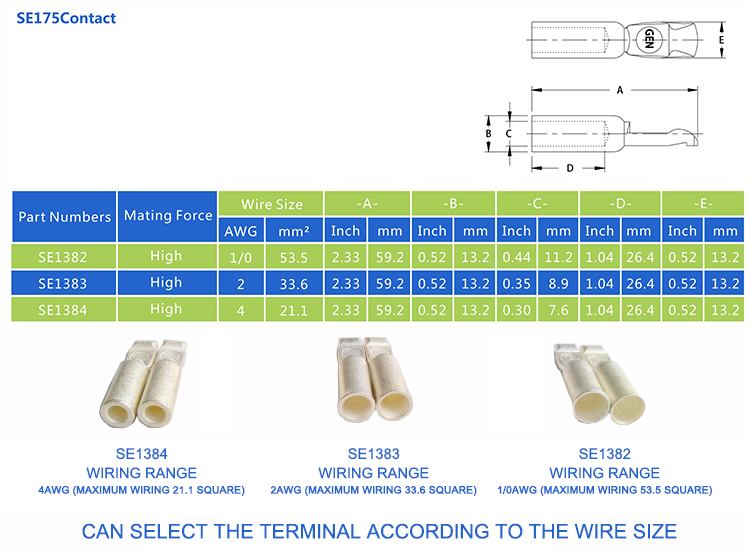

The terminals can be selected according to the wire size. Each terminal has different aperture, which is convenient for customers. For example, 50A600V plug terminals have three models, respectively, 5915 terminals can be connected to 10/12AWG wire, 5952 terminals can be connected to 8AWG wire, 5900 terminals can be connected to 6AWG wire.

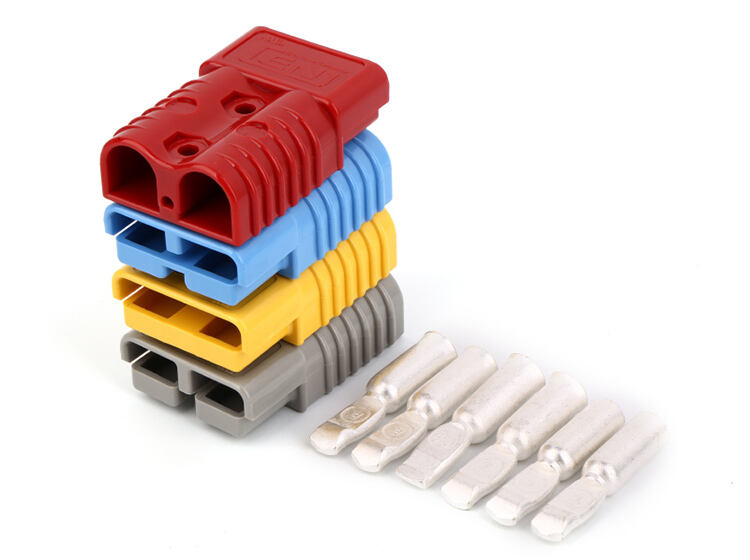

2. Plastic shell color selection

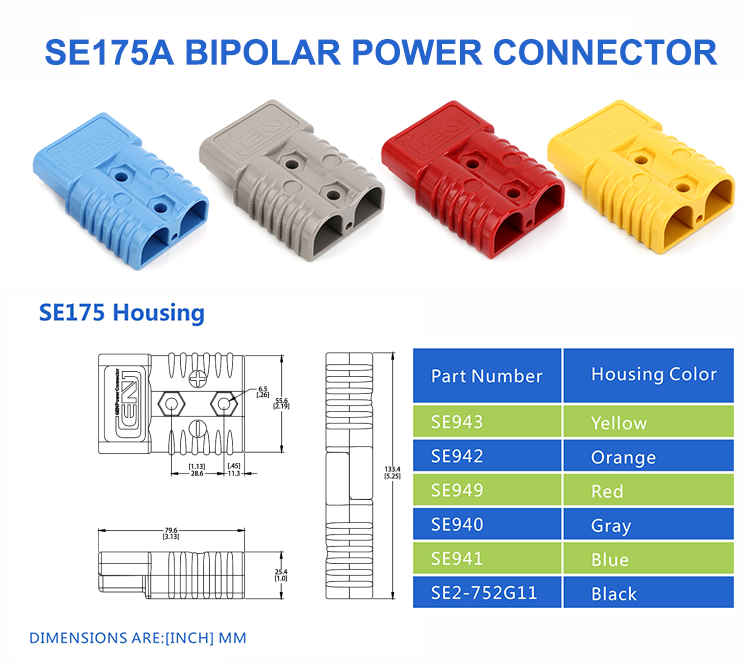

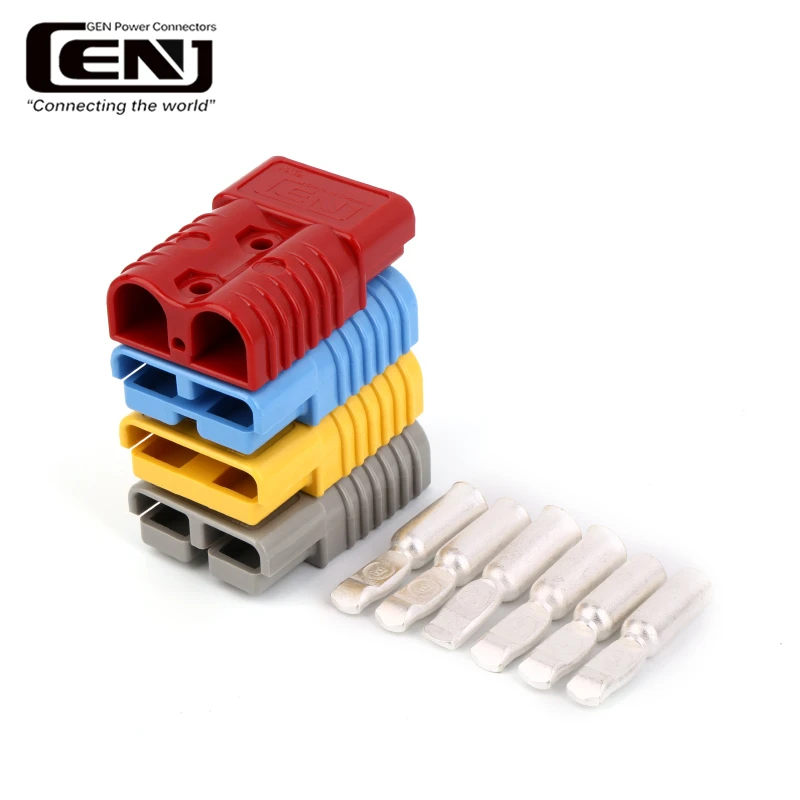

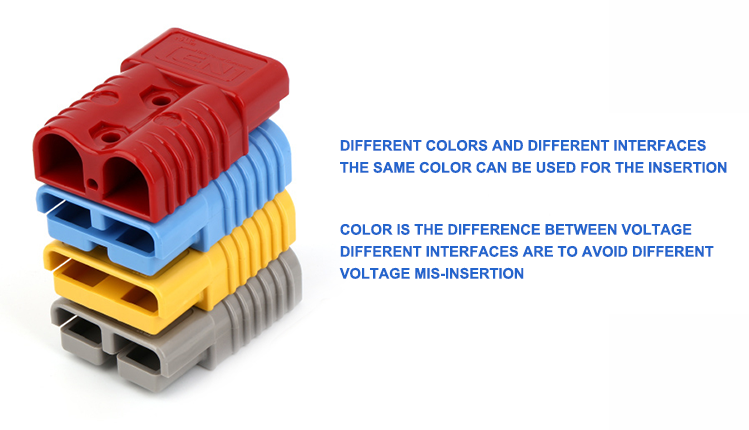

(Unipolar) color modular housing, providing intuitive identification of the correct matching connection; (bipolar) the same color can be inserted, while different color can not be inserted for the different interface design. Colored modular housings provides visual identification of proper mating connector. (Only Gray and Black can be matched).
3. About wire processing(OEM)
According to customer samples, we can provide OEM wire processing
4. Plug working life
No load (terminal insertion and removal times 10000) with load - 120V hot swap 250 times
5. Plug operating temperature range
-20°C105°C If you have special requirements, we can customize according to customer requirements
