| Rated current(Amperes) | 15-45A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
20-10AWG 0.75-5.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.175inches 4.45mm |
| AVG Contact Resistance(micro-ohms) | <500 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 25lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 15-30A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

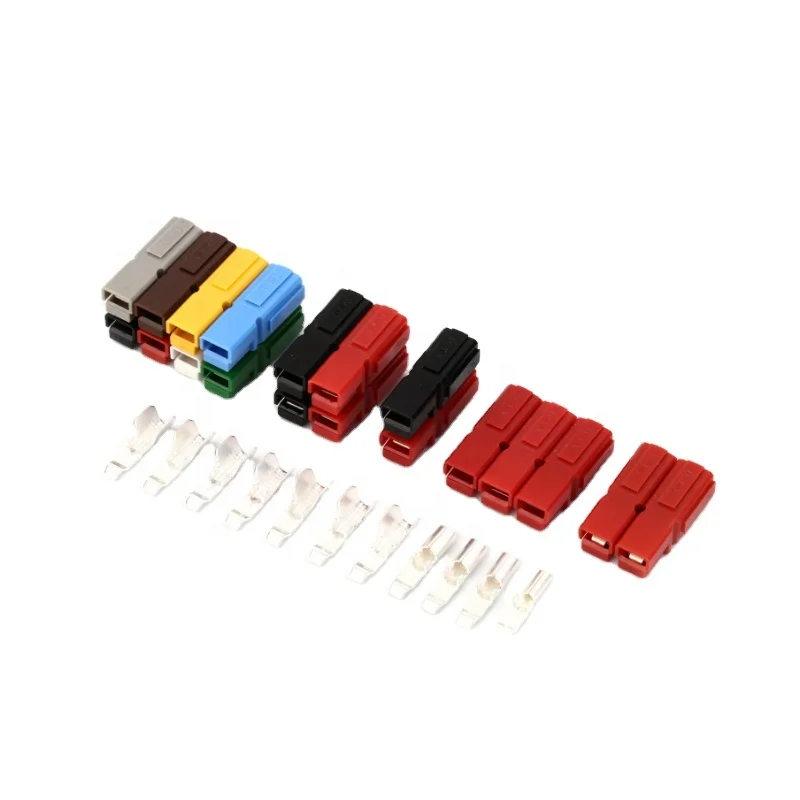

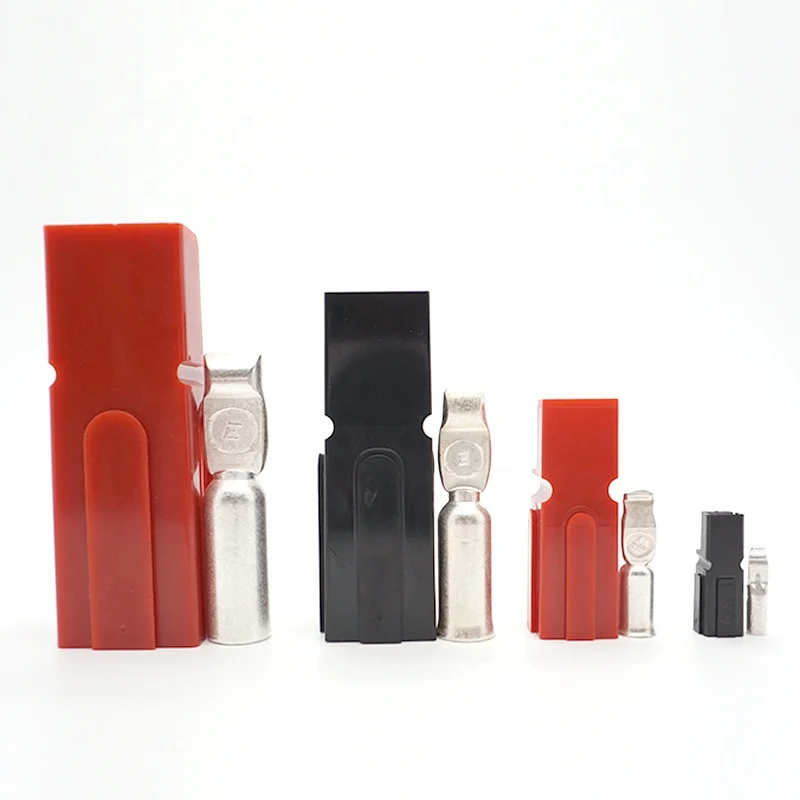

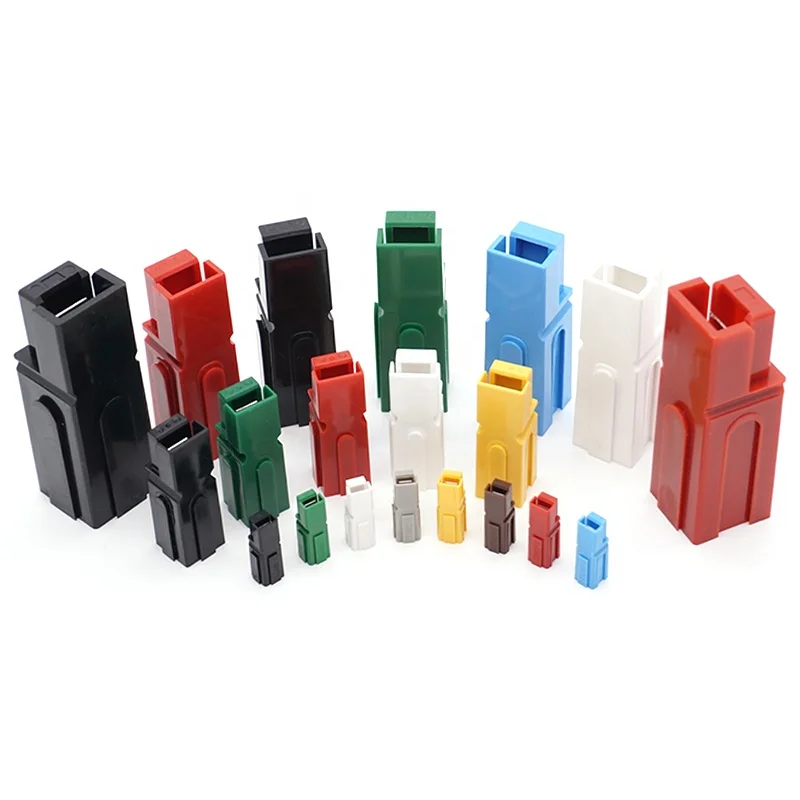

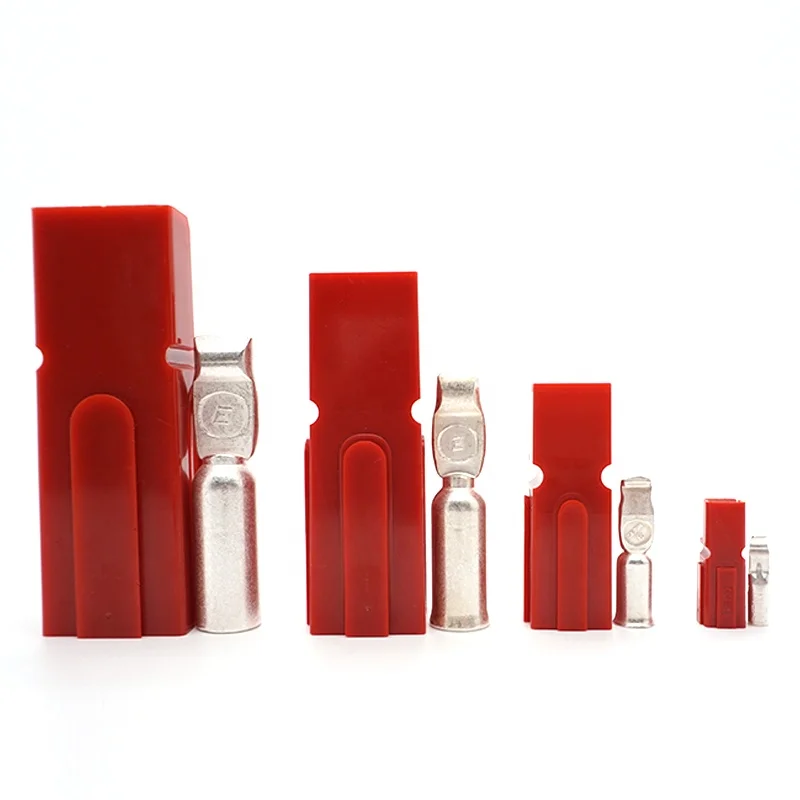

Introducing, the Single Pole Anderson style Plug Terminal, the perfect solution for all your power needs. Whether you're looking to connect your power car, solar battery, or forklift battery, this plug connector has got you covered. Made with high-quality materials, this plug terminal is designed to be durable and long-lasting. The Anderson style design ensures a secure and reliable connection, so you can rest assured that your devices will stay powered up when you need them most. With a 1P 15-45A rating, this plug terminal is capable of handling high power loads without any issues. Whether you're on the go or stationary, this plug terminal will provide a stable and efficient power connection every time. Installation is a breeze with the easy-to-use design of this plug terminal. Simply plug in the connector and you're good to go. The single pole design makes it easy to connect and disconnect, saving you time and effort. Whether you're using it for your power car, solar battery, or forklift battery, this plug terminal is versatile and can be used in a variety of situations. Its compact size makes it easy to transport and store, so you can always have power at your fingertips. Don't settle for unreliable or flimsy plug connectors. Upgrade to the Single Pole Anderson style Plug Terminal and experience the difference. With its sturdy construction and superior performance, this plug terminal is sure to exceed your expectations. Say goodbye to power interruptions and unreliable connections. Invest in the Single Pole Anderson style Plug Terminal and power up with confidence. Order yours today and never worry about losing power again.
* Products are widely used in: electric vehicles (electric buses. Forklift. Electric vehicles, tractors, golf cart, sightseeing car, battery), communication power supply (UPS). Dc regulated power supply, EPS, inverter power supply and the high frequency, high frequency module charger system), electric machinery, electric wheelchair. Electric washing machine. The lawn mower, vacuum cleaners, electric forklift), medical equipment (attract machine. Decompression machine. Electric bed). | ||||
* flat wiping contact system. minimal contact resistance at high current. the wiping action cleans the contact surface during connection/disconnection. Coloured Modular enclosures, provides a visual identification of compatible connectors | ||||
* Moulded dovetail tips. Keyed connectors. assembly to prevent connection errors. with similar configurations. Designed without gender, making for quick & easy assembly and reducing the number of pieces you have to store |
