3. We do not discount the materials we use, welcome to compare
----------------------------
4. All models are complete, one-stop purchasing can be realized
| Rated current(Amperes) | 15-45A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
20-10AWG 0.75-5.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.175inches 4.45mm |
| AVG Contact Resistance(micro-ohms) | <500 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 25lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 15-30A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

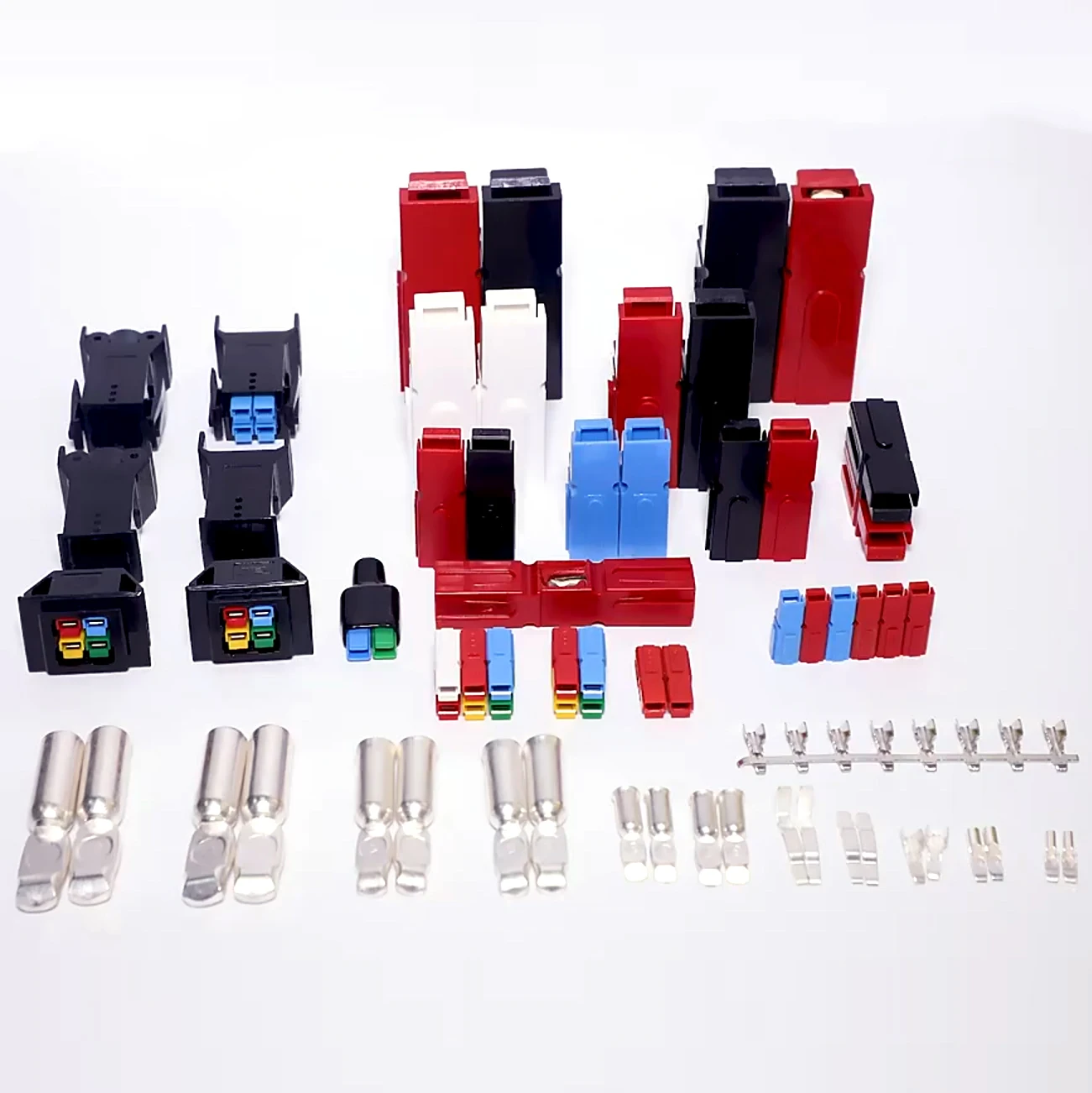

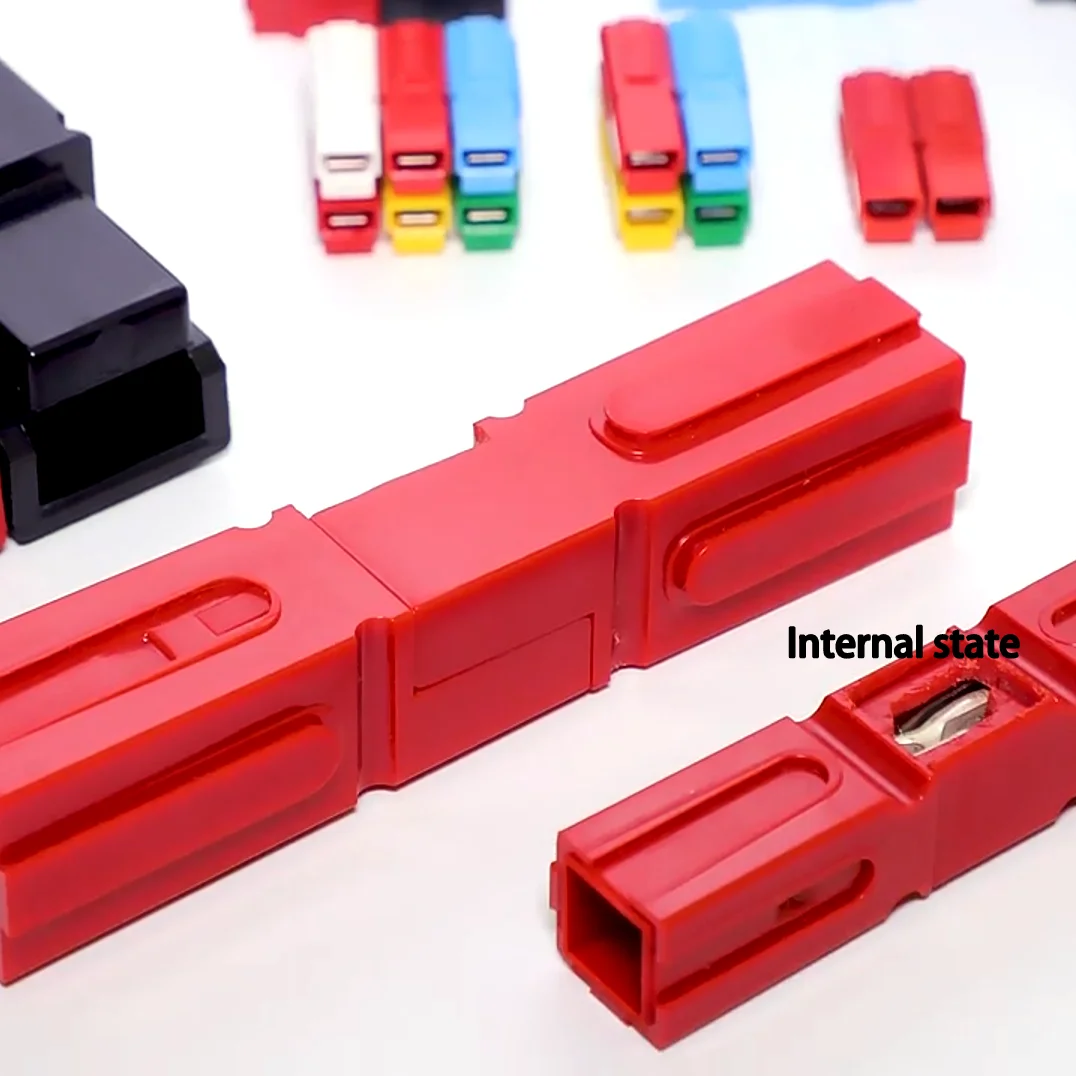

Introducing, the 1P 45A Single Pole Anderson style Plug Terminal, the perfect solution for all your power connection needs. This plug terminal is compatible with power cars, solar batteries, forklift batteries, and more, making it a versatile and reliable choice for any application. Designed with convenience and durability in mind, the plug terminal is constructed with high-quality materials that ensure a secure and stable connection every time. The Anderson style design allows for quick and easy installation, saving you time and effort when connecting your power source. With a 45A rating, this plug terminal is capable of handling high power loads with ease, making it ideal for heavy-duty applications. Whether you're powering a vehicle, equipment, or a solar system, you can trust the plug terminal to deliver consistent and reliable performance. What sets the plug terminal apart is its innovative single pole design, which allows for greater flexibility and efficiency when connecting multiple devices. This feature makes it easier to manage your power connections and reduces the risk of potential issues or malfunctions. In addition to its practical design, the plug terminal is also designed with safety in mind. The durable housing protects the terminal from damage and ensures that your connections are secure and protected from external elements. The 1P 45A Single Pole Anderson style Plug Terminal is a top-quality product that offers outstanding performance, reliability, and convenience. Whether you're a professional electrician or a DIY enthusiast, this plug terminal is a must-have for all your power connection needs. Don't settle for subpar connectors that can't handle the demands of your power sources. Upgrade to the plug terminal and experience the difference in quality and performance. Trust for all your power connection needs.
Contact barrel wire size |
20-10AWG 0.75-5.3mm² |
|||
Maximum wire insulation diameter |
0.175inches 4.45mm |
|||
Insulation withstanding test voltage |
2200v |
|||
Contact retention force |
25lbf |
|||
Avg. connection/disconnect |
3-5ibf |
|||
Operating temperature range |
-20°to105° -4°to221° |
|||
Flammability rating of housing material |
UL94-VO |
|||
