| Rated current(Amperes) | 350A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
2/0 to 300mcm 67.4to 152mm |
| Maximum Wire Insulation Diameter[inches]mm |
1.1inches 27.9mm |
| AVG Contact Resistance(micro-ohms) | 50 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 500lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 100A |
| AVg.Connection/Disconnect (lbf) | 30lbf |
| operating Temperature Range℃ ℉ |
-20 "to 105" -4 "to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

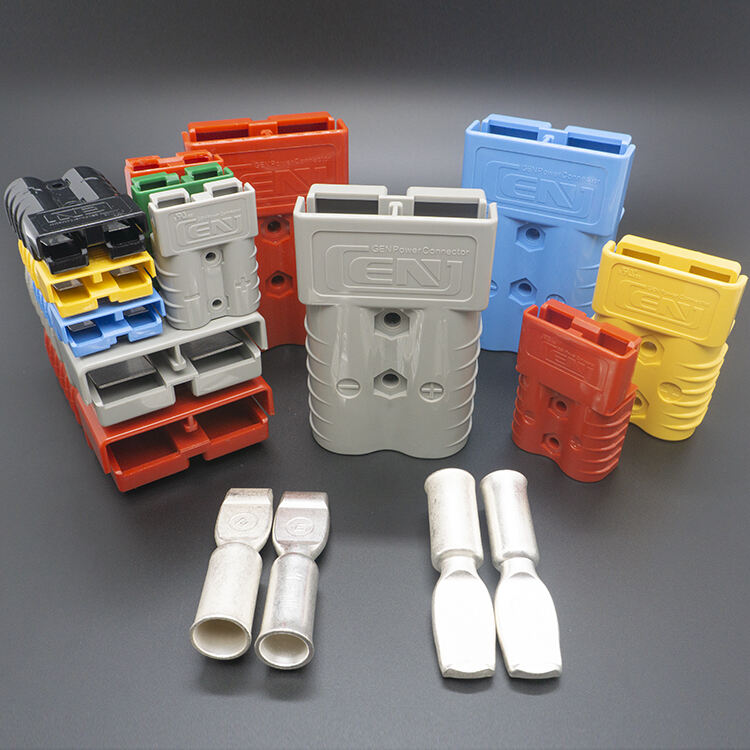

Introducing, the durable and reliable 2 Pin High Current Electric Power Quick Battery Connector Plug! This robust connector plug is designed for heavy-duty use, making it the perfect choice for forklifts and other high-powered equipment.With a maximum current rating of 350A and a voltage rating of 600V, this Anderson Battery Connector Plug is built to handle even the most demanding power requirements. Its quick-connect design allows for easy and fast battery connections, saving you time and effort on the job.The 2 Pin High Current Electric Power Quick Battery Connector Plug is made from high-quality materials, ensuring long-lasting performance in tough operating conditions. Its sturdy construction and secure connection make it a reliable choice for powering your forklifts and other machinery.Whether you are replacing an existing connector plug or upgrading to a more efficient option, the 2 Pin High Current Electric Power Quick Battery Connector Plug is a smart investment. Its high current capacity and durable design make it a versatile choice for a variety of applications.Don't settle for subpar connectors that may not be up to the task – choose the reliable and efficient 2 Pin High Current Electric Power Quick Battery Connector Plug for all your power needs. With its easy-to-use design and heavy-duty construction, this connector plug is sure to exceed your expectations.Upgrade your forklift or other equipment with the 2 Pin High Current Electric Power Quick Battery Connector Plug today and experience the difference that quality and reliability can make. Trust for all your power connection needs – order yours now and power up with confidence.
* Ratings: 350 amps, 600 Volts Maximum. Connector size is approx. 4.25"x2.75"x1.18", light and durable polycarbonate housing |
||||||||
* Silver plated contacts - offers greater longevity when using high power, elevated temperature applications. Terminals can either be crimped or soldered to the cables |
||||||||
* Mechanically keyed housings - (Interlocking pairs) prevents accidental component mating - each connector slots into the other - there is no male and female version |
||||||||
* Flat wiping contact system - wiping action cleans the contact surface during disconnection |
||||||||
1. Are you a manufacturer or a trading company
We are both an experienced manufacturer for over 10 years and a trading company. We supply for our clients over the world, including listed companies.
2. What’s your MOQ? Can I get samples first
Generally the MOQ is between 10-100 pieces, based on different products. Sure, sample order is welcome.
3. Can you provide OEM or customized services
Yes, we could provide customized services, such as wiring harness and packaging.
4. What’s the lead time
For most items, we have products in stock. We would deliver goods in 3 days. If you place a bulk order, we will advise the lead time to you.
5. How to place an order or know more about the products
You can contact us with online service, or sent an email to us, we will reply you ASAP.
