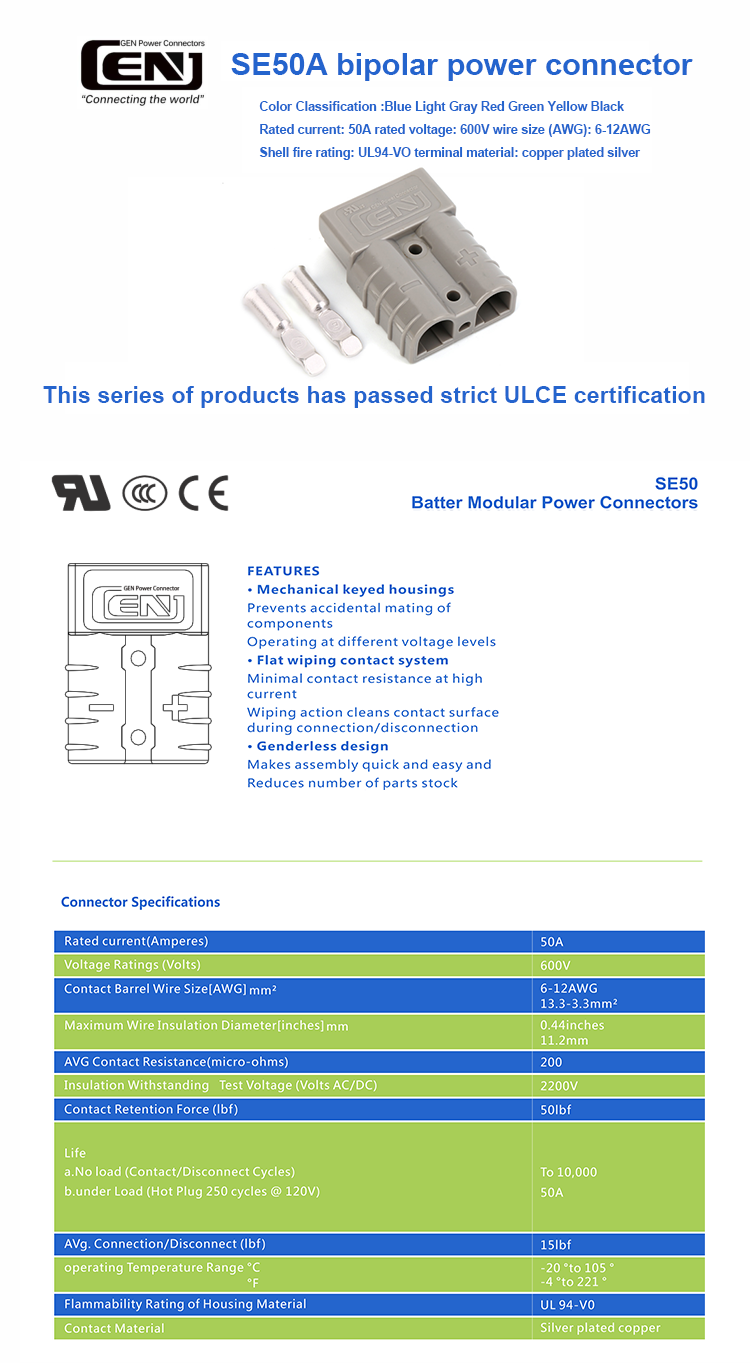

| Rated current(Amperes) | 50A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
6-12AWG 13.3-3.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.44inches 11.2mm |
| AVG Contact Resistance(micro-ohms) | 200 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 50lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 50A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

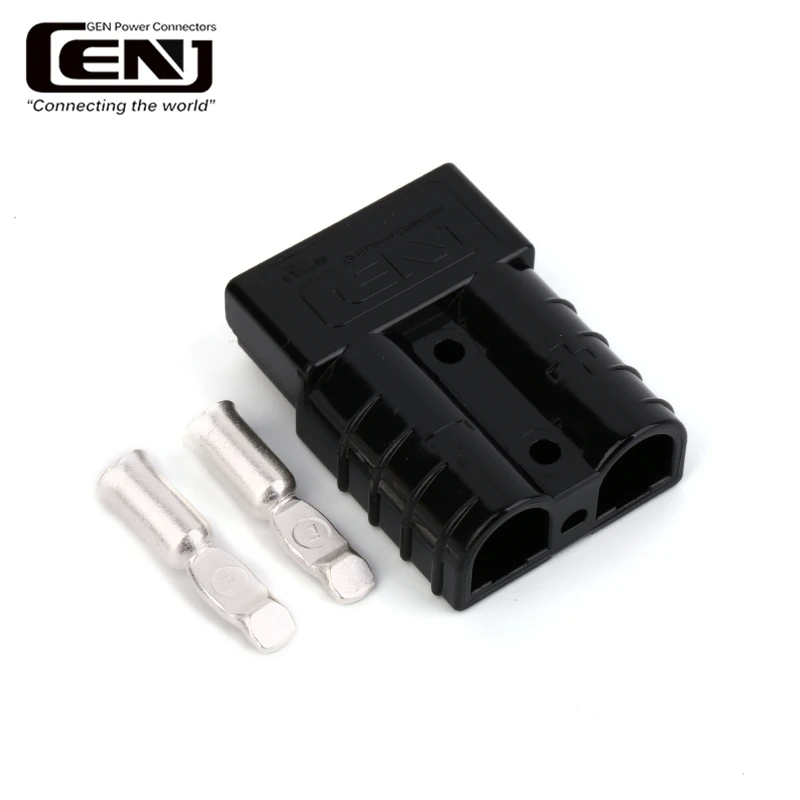

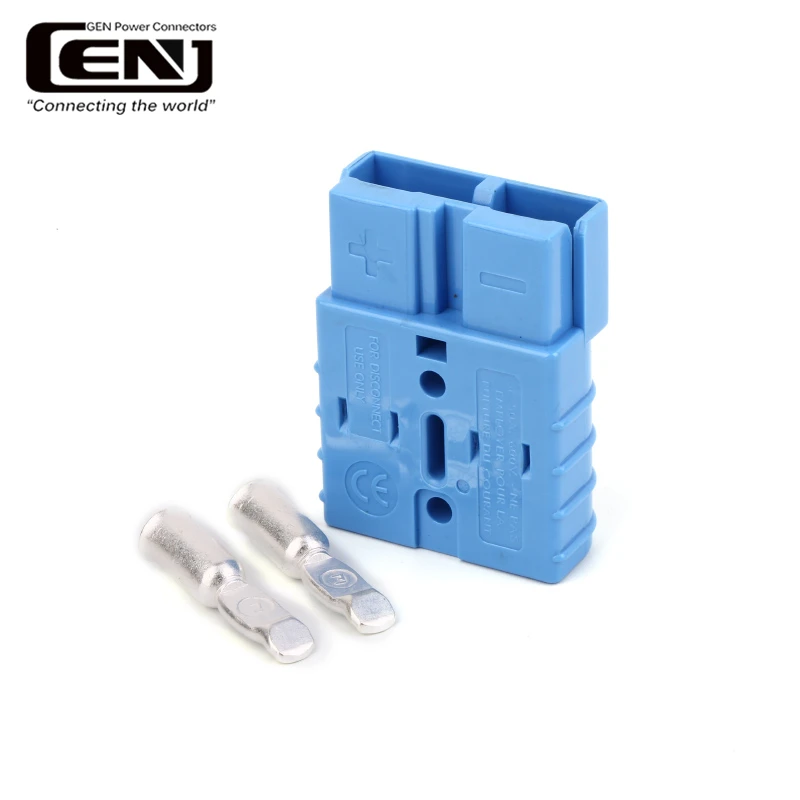

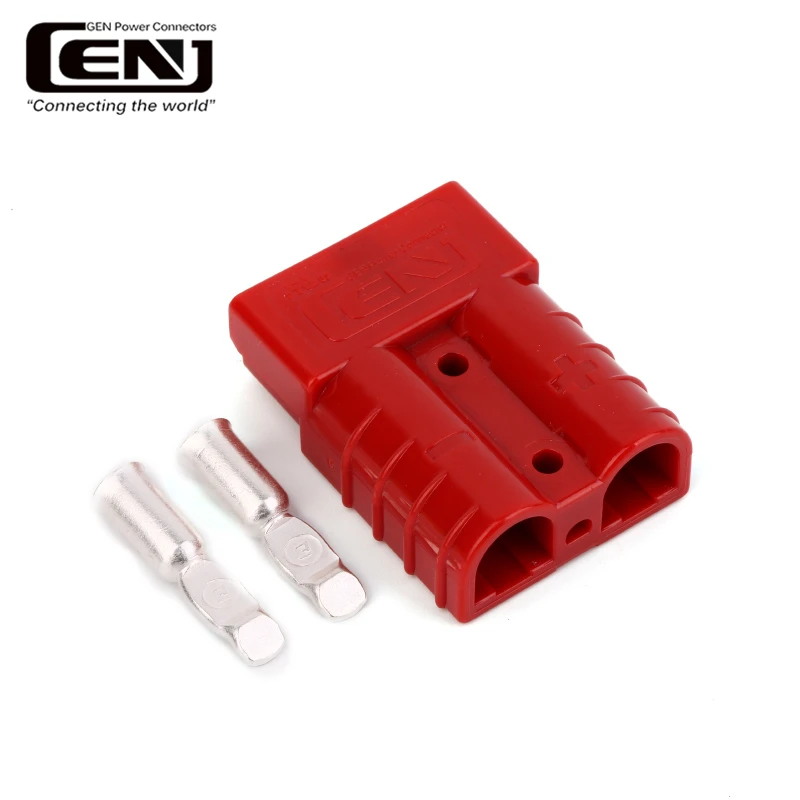

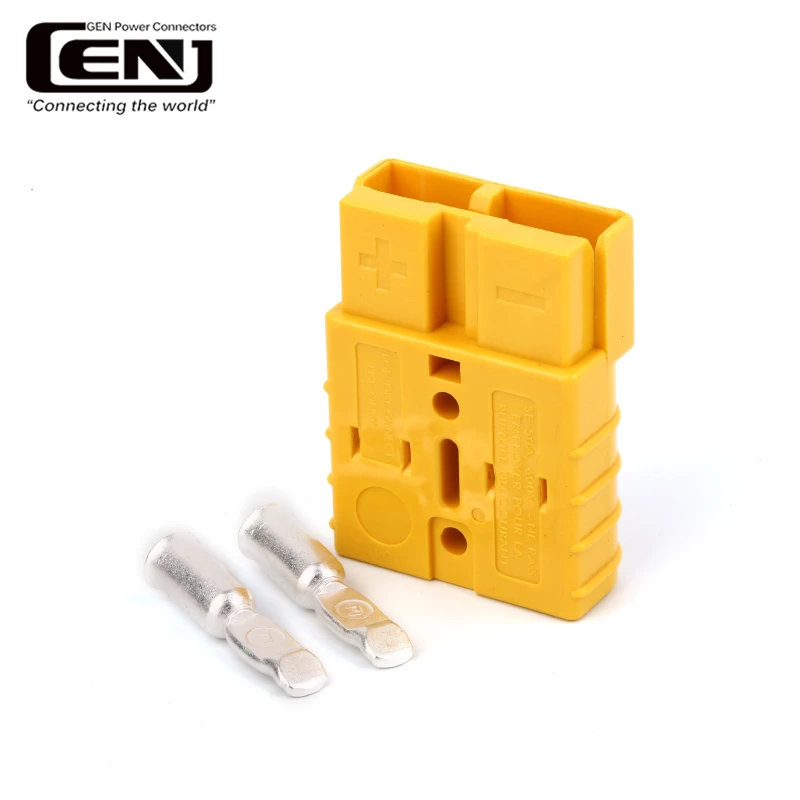

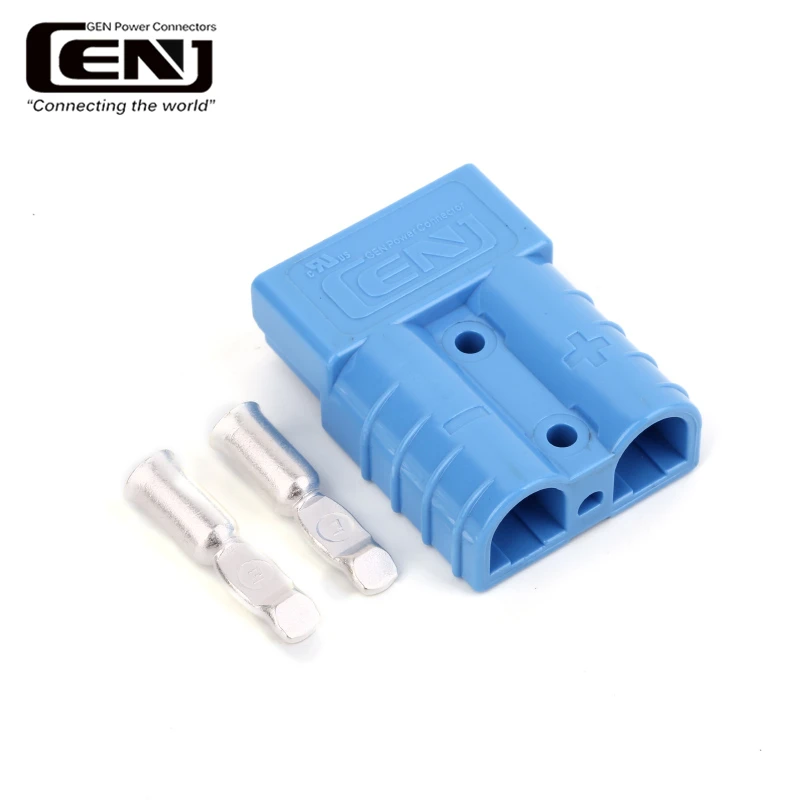

Introducing, the 2 Pin Molex Connector Male Female Battery Connectors End SE50A Power, the perfect solution for all your power connection needs! This high-quality product is designed to provide a secure and reliable connection for your batteries, ensuring that they stay powered up and ready to go whenever you need them.
The 2 Pin Molex Connector features a male and female end, allowing you to easily connect and disconnect your batteries with ease. The connectors are compatible with a wide range of devices, making them ideal for use in a variety of applications. Whether you are connecting batteries to a power source for your electronic devices or creating a custom power solution for your projects, these connectors are sure to meet your needs.
Constructed from durable materials, these connectors are built to last. The sturdy design ensures that your connections remain stable and secure, even in demanding conditions. The connectors are also easy to install, saving you time and hassle when setting up your power system.
Whether you are a hobbyist working on a DIY project or a professional in need of reliable power connections, the 2 Pin Molex Connector Male Female Battery Connectors End SE50A Power is the perfect choice. Trust in the quality and performance of products to keep your batteries powered up and running smoothly.
Don't let unreliable connections hold you back - choose the 2 Pin Molex Connector Male Female Battery Connectors End SE50A Power for all your power connection needs. With its durable construction, easy installation, and versatile compatibility, this connector is sure to become an essential part of your power system. Order yours today and experience the difference that quality can make in your projects.
| Application | Electric vehicles; Medical equipment; Power supply; Electric equipment; |
| Maximum wire insulation diameter | 0.44inches 11.2mm |
| Insulation withstanding test voltage | 2200v |
| Contact retention force | 50lbf |
| Avg. connection/disconnect | 15ibf |
| Operating temperature range |
-20°to105° -4°to221° |
| Flammability rating of housing material | UL94-VO |
1. About selecting terminals

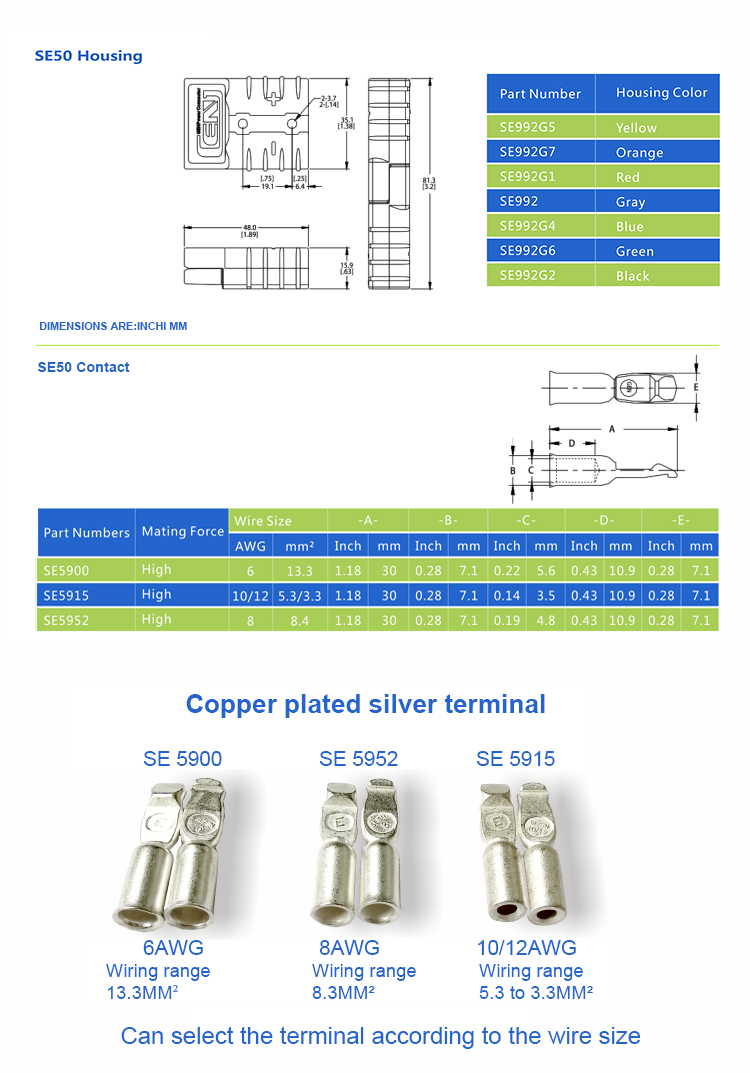

The terminals can be selected according to the wire size. Each terminal has different aperture, which is convenient for customers. For example, 50A600V plug terminals have three models, respectively, 5915 terminals can be connected to 10/12AWG wire, 5952 terminals can be connected to 8AWG wire, 5900 terminals can be connected to 6AWG wire.
2. Plastic shell color selection

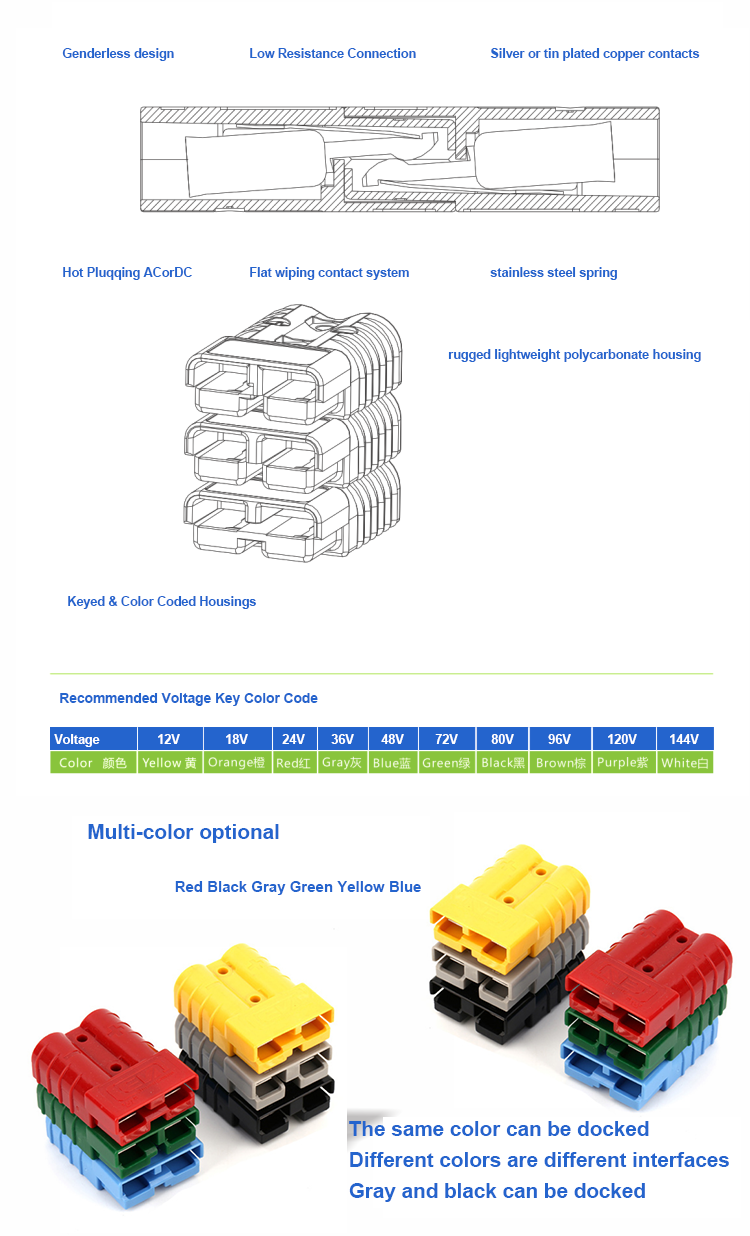

(Unipolar) color modular housing, providing intuitive identification of the correct matching connection; (bipolar) the same color can be inserted, while different color can not be inserted for the different interface design. Colored modular housings provides visual identification of proper mating connector. (Only Gray and Black can be matched).
3. About wire processing(OEM)
According to customer samples, we can provide OEM wire processing
4. Plug working life
No load (terminal insertion and removal times 10000) with load - 120V hot swap 250 times
5. Plug operating temperature range
-20°C105°C If you have special requirements, we can customize according to customer requirements
