SN 15-45A

Home /  Products /  GEN Single Pole Power Connectors /  SN 15-45A

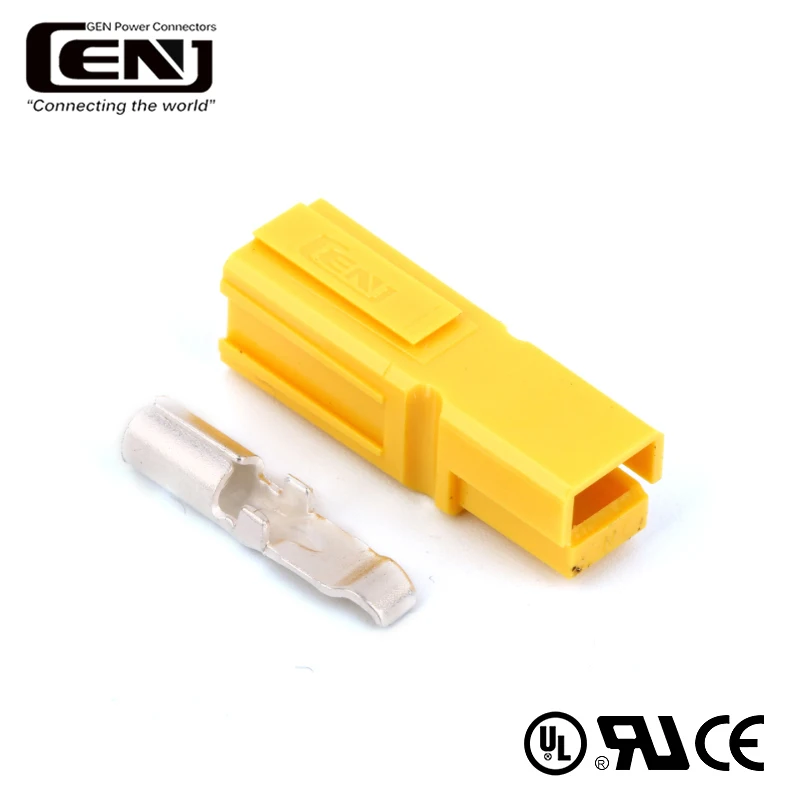

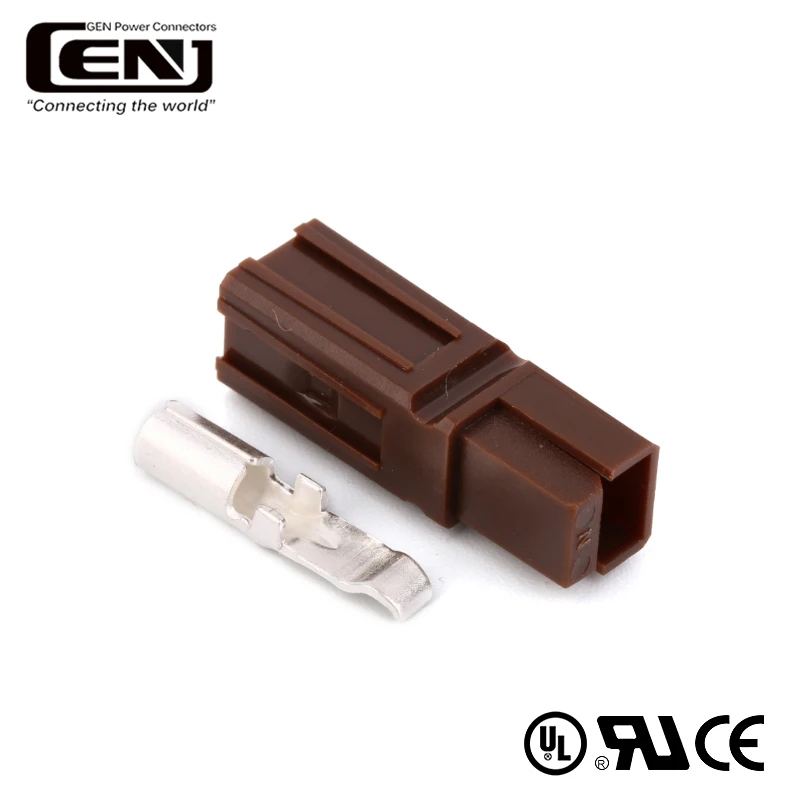

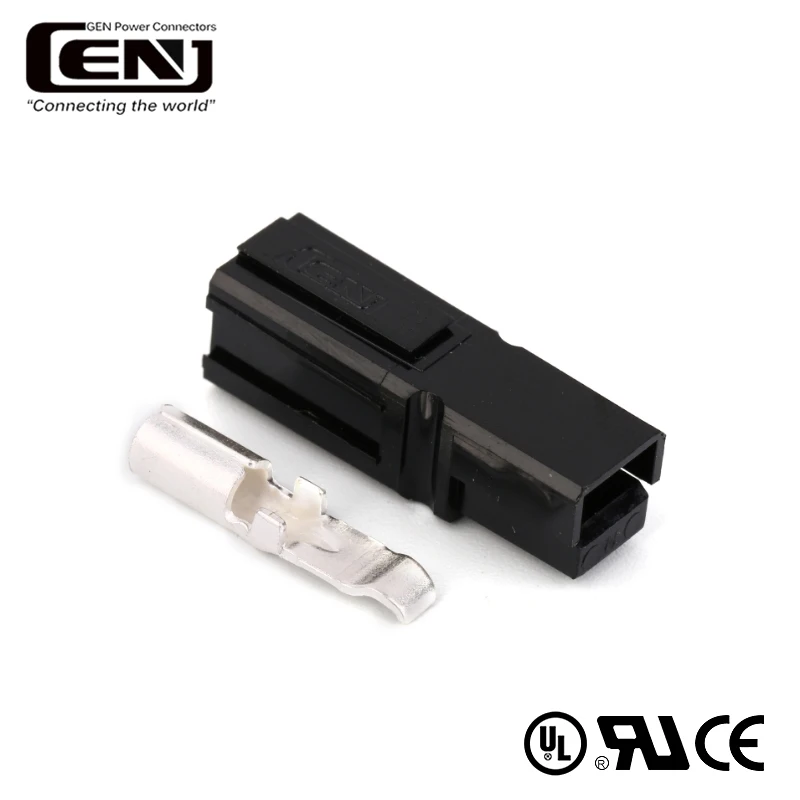

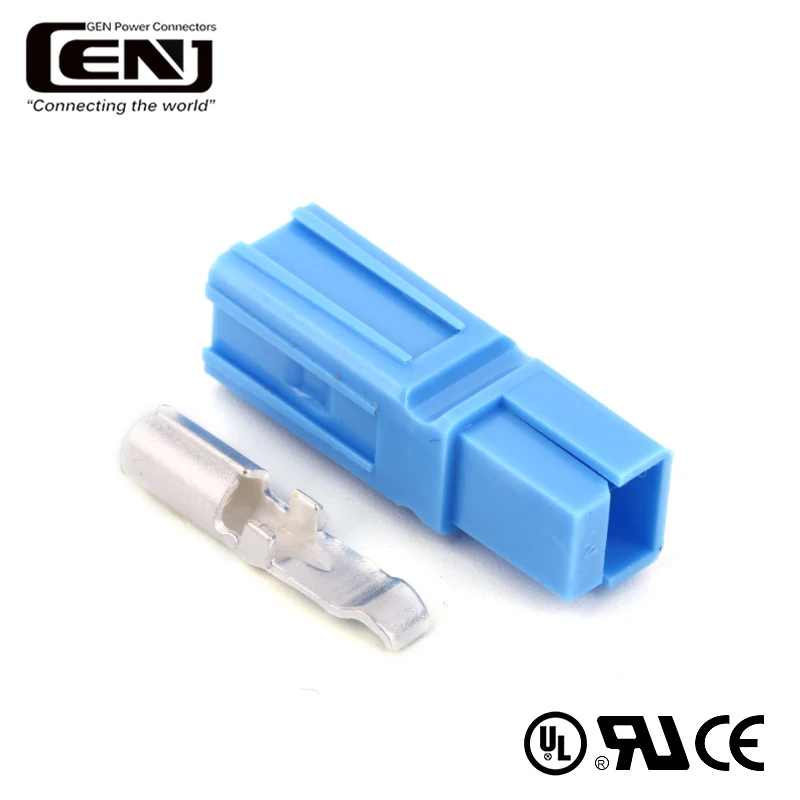

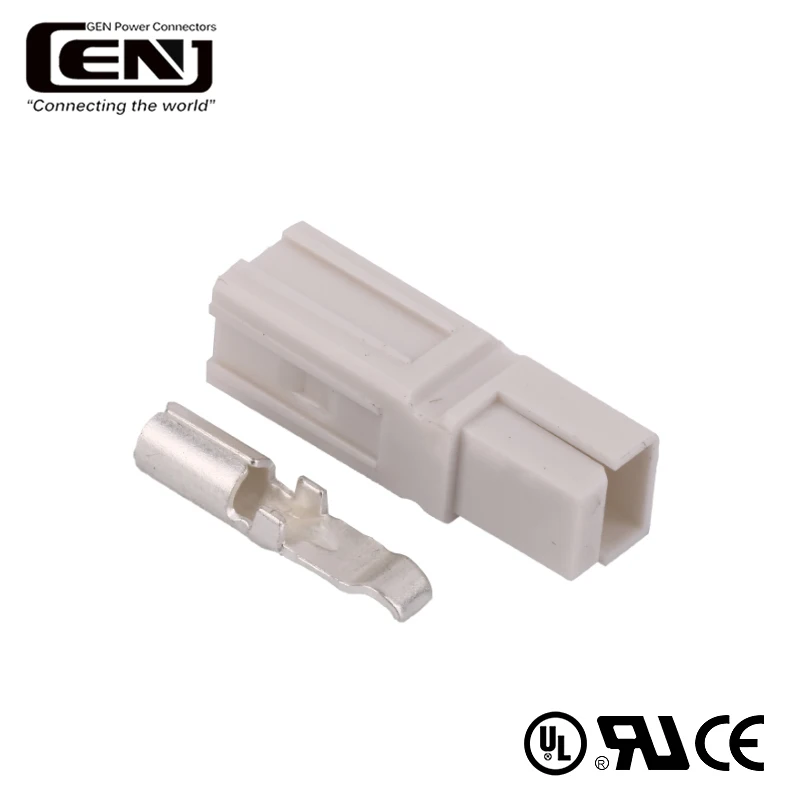

30A Electric Vehicle Battery Connector

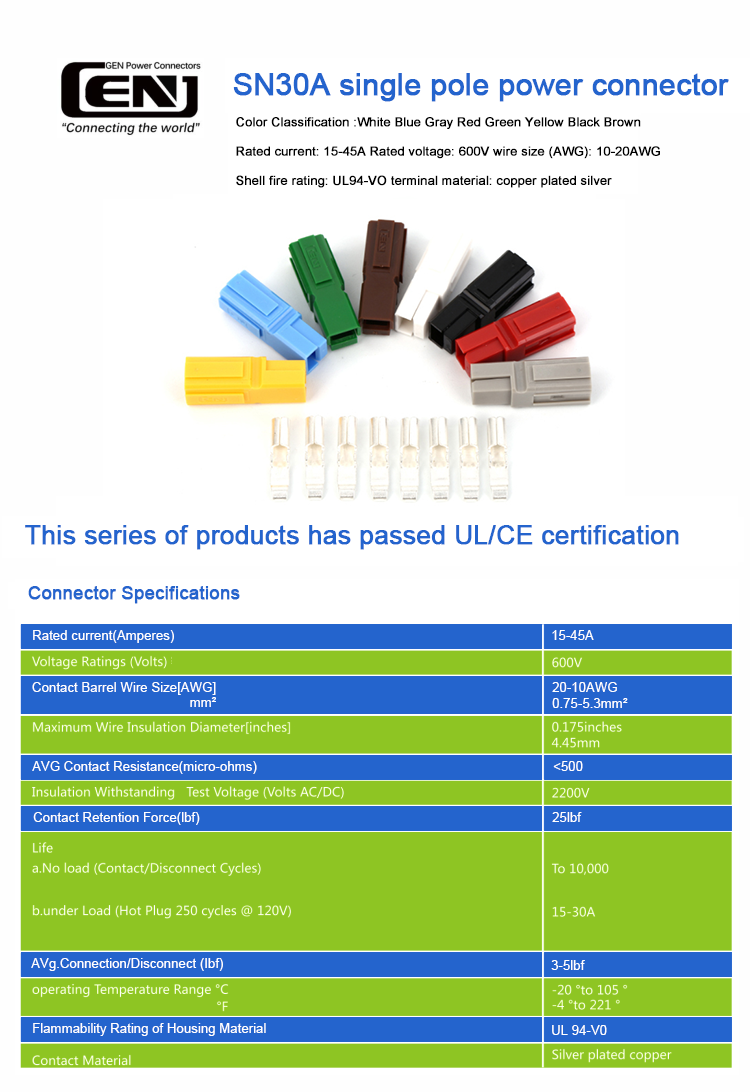

Product Description
Rated current(Amperes) 15-45A
Voltage Ratings(Volts) 600V
Contact Barrel Wire Size[AWG]mm

20-10AWG

0.75-5.3mm

Maximum Wire Insulation Diameter[inches]mm

0.175inches

4.45mm

AVG Contact Resistance(micro-ohms) <500
Insulation Withstanding Test Voltage(Volts AC/DC) 2200V
Contact Retention Force(lbf) 25lbf

Life

a.No load (Contact/Disconnect Cycles)

b.under Load (Hot Plug 250 cycles @120V)

To 10,000

15-30A

AVg.Connection/Disconnect (lbf) 3-5lbf
operating Temperature Range℃ ℉

-20"to 105°

-4"to 221"

Flammability Rating of Housing Material UL 94-V0
Contact Material Silver plated copper

 The 30A Electric Vehicle Battery Connector is a must-have accessory for anyone looking to power up their electric vehicle quickly and efficiently. This high-quality connector is designed to withstand the demands of charging electric vehicles, providing a secure and reliable connection every time.With a current rating of 30A, this electric vehicle battery connector is suitable for a wide range of electric vehicles, making it a versatile option for anyone in need of a reliable charging solution. Whether you drive a small electric car or a larger electric vehicle, this connector has the power to keep your battery charged and ready to go.The 30A Electric Vehicle Battery Connector is easy to install and use, making it a convenient option for anyone looking to charge their electric vehicle at home or on the go. Simply plug the connector into your electric vehicle's charging port and connect it to a power source to start charging your battery quickly and efficiently.This electric vehicle battery connector is designed to be durable and long-lasting, ensuring that you can rely on it to keep your electric vehicle powered up for years to come. Its sturdy construction and high-quality materials make it a reliable option for anyone looking for a dependable charging solution.In addition to its durability, the 30A Electric Vehicle Battery Connector is also designed with safety in mind. Its secure connection and built-in protections ensure that you can charge your electric vehicle with peace of mind, knowing that your battery is being charged safely and efficiently.The 30A Electric Vehicle Battery Connector is a top-quality accessory that is perfect for anyone looking to keep their electric vehicle charged and ready to go. Its reliable performance, durability, and safety features make it a great choice for anyone in need of a dependable charging solution for their electric vehicle.

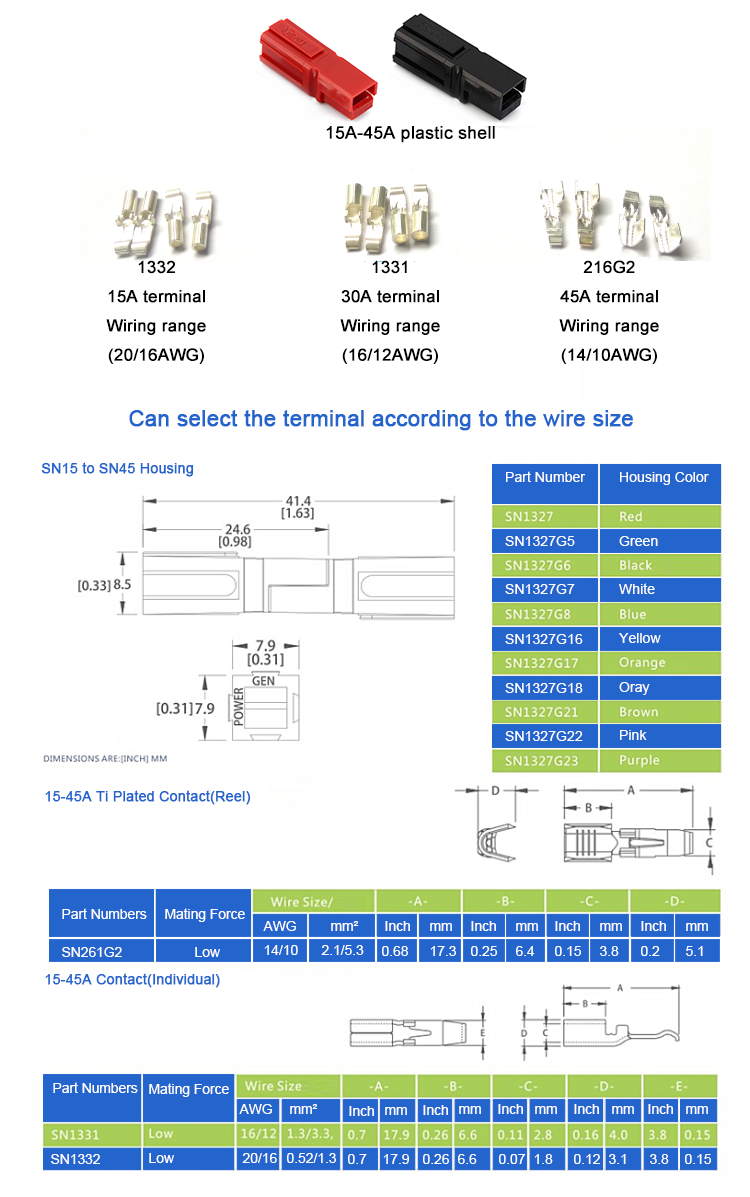

Contact barrel wire size
20-10AWG 0.75-5.3mm²
MQQ
100
Maximum wire insulation diameter
0.175inches 4.45mm
Insulation withstanding test voltage
2200v
Contact retention force
25lbf
Avg. connection/disconnect
3-5ibf
Operating temperature range
-20°to105°
-4°to221°
Flammability rating of housing material
UL94-VO

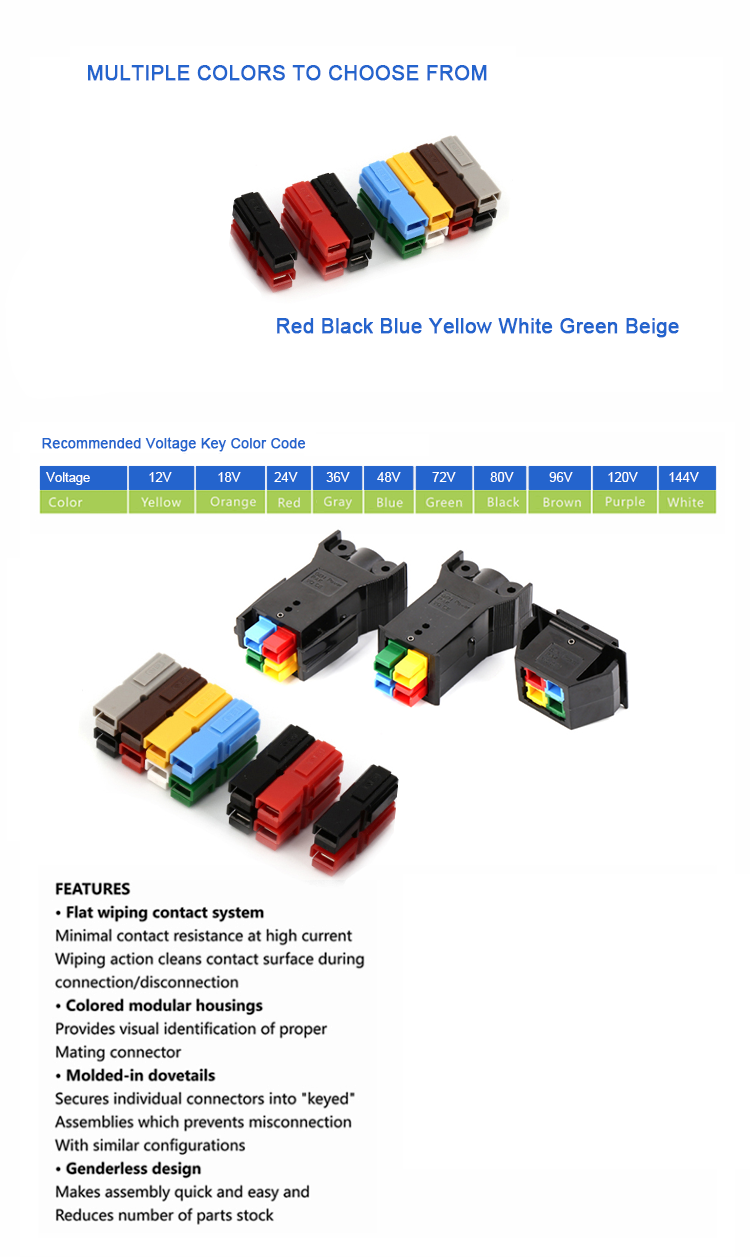

30A Electric Vehicle Battery Connector manufacture

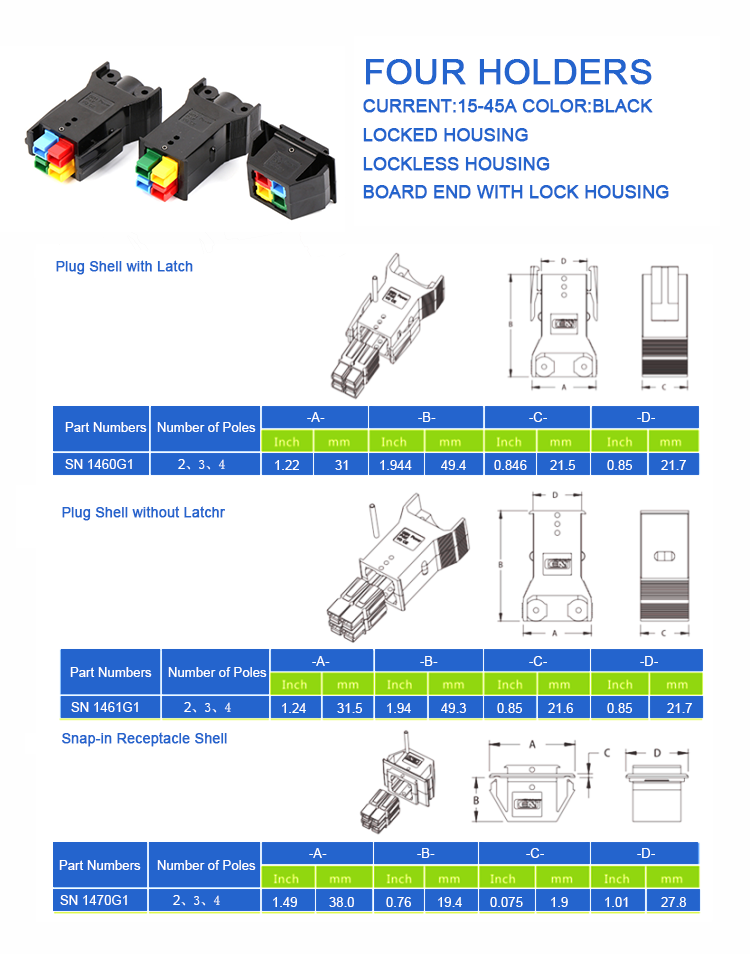

30A Electric Vehicle Battery Connector details
