| Rated current(Amperes) | 15-45A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
20-10AWG 0.75-5.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.175inches 4.45mm |
| AVG Contact Resistance(micro-ohms) | <500 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 25lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 15-30A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |
Introducing, the 50A Electrical Battery Charger Power Connector, the ultimate solution for industrial grade power connections. This high-quality connector is designed to provide a reliable and efficient power supply for a wide range of industrial applications, making it the perfect choice for professionals who demand the best.
The 50A Electrical Battery Charger Power Connector is built to last, with a durable construction that can withstand the rigors of daily use in industrial settings. Made from high-quality materials, this connector is designed to provide a secure and stable connection, ensuring that your power supply remains consistent and reliable at all times.
With a 50A capacity, this connector is capable of handling even the most demanding power requirements, making it ideal for a wide range of industrial equipment and machinery. Whether you are charging batteries, powering machinery, or providing backup power in an emercy situation, the 50A Electrical Battery Charger Power Connector has got you covered.
Installing the 50A Electrical Battery Charger Power Connector is quick and easy, thanks to its simple and intuitive design. The connector features easy-to-use connectors that can be securely fastened in place, ensuring a stable and reliable connection every time. Plus, with its industrial grade build and design, you can trust that this connector will provide years of reliable service.
When it comes to industrial grade connectors, the 50A Electrical Battery Charger Power Connector stands above the rest. With its durable construction, high capacity, and easy installation, this connector is the perfect choice for professionals who demand the best. So why settle for anything less? Upgrade to the 50A Electrical Battery Charger Power Connector today and experience the power of industrial grade quality.

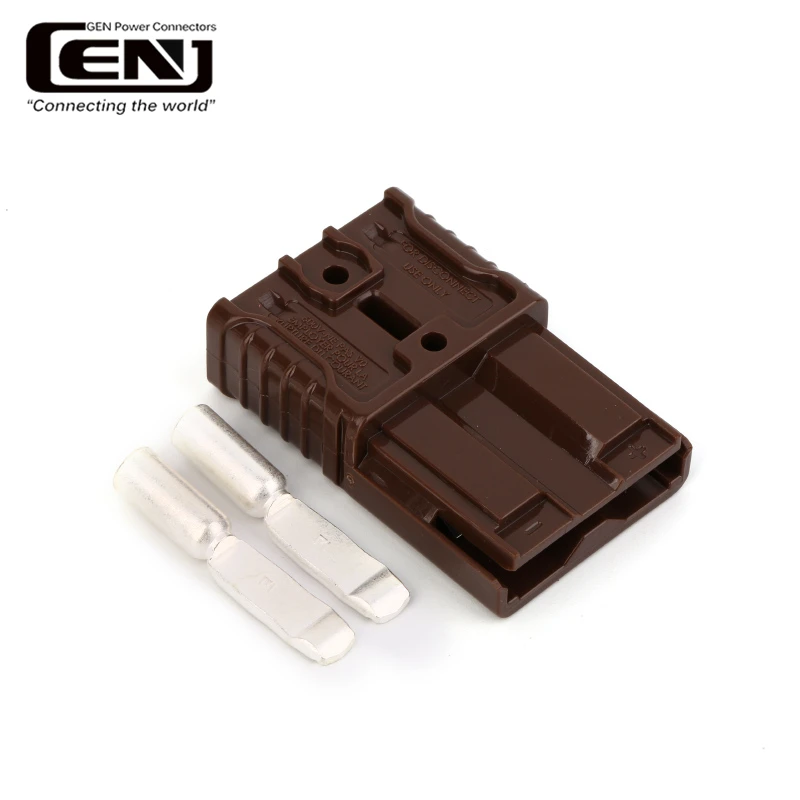

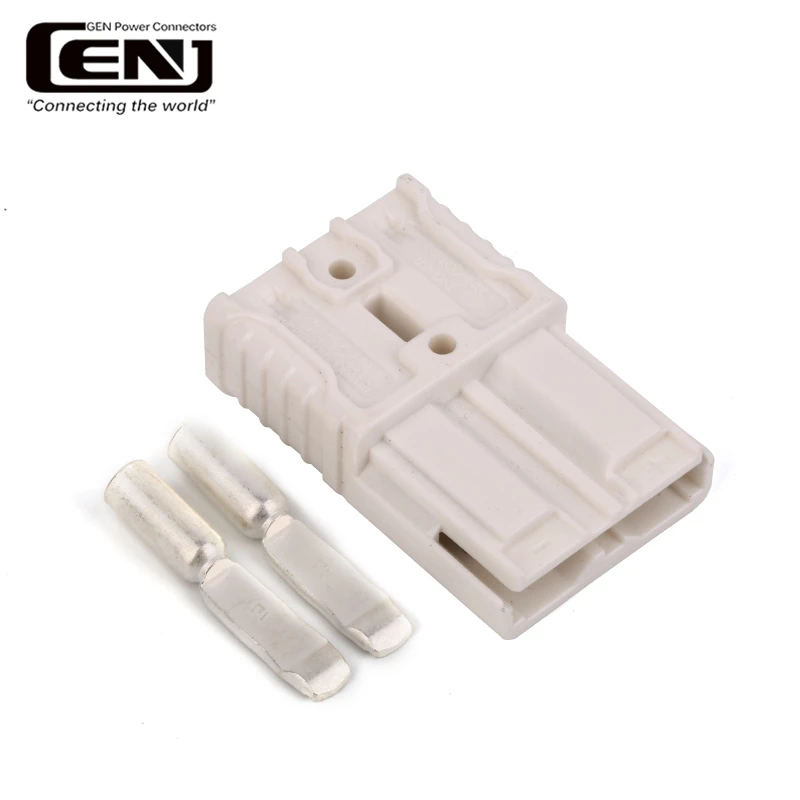

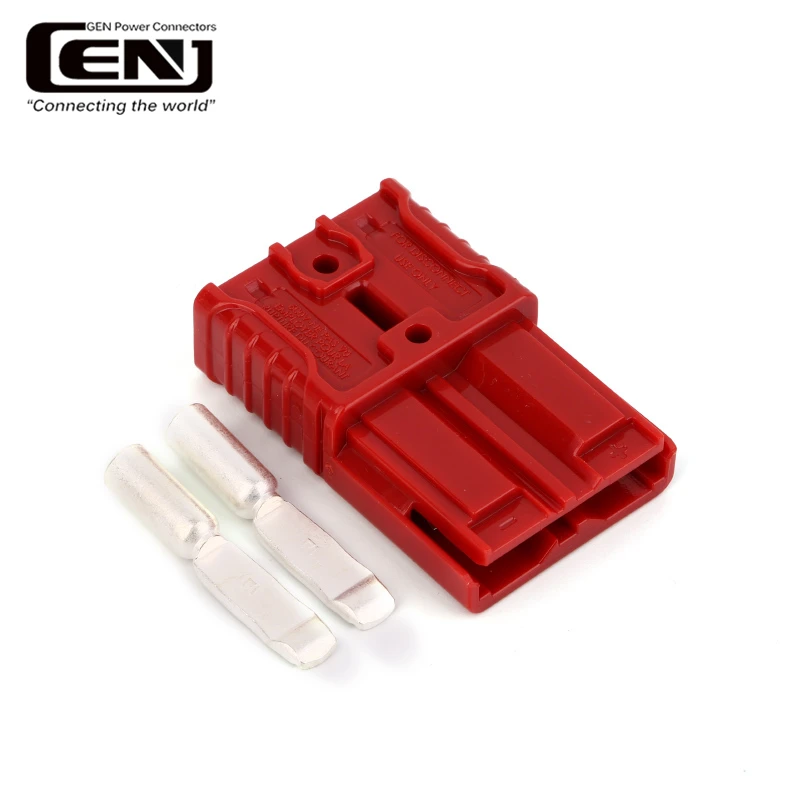

50A electrical battery charger ev connector
| Application | Electric vehicles; Medical equipment; Power supply ;Electric equipment; |
| Maximum wire insulation diameter | 0.44inches 11.2mm |
| Insulation withstanding test voltage | 2200v |
| Contact retention force | 50lbf |
| Avg. connection/disconnect | 15lbf |
| Operating temperature range |
-20°to105° -4°to221° |
| Flammability rating of housing material | UL94-VO |

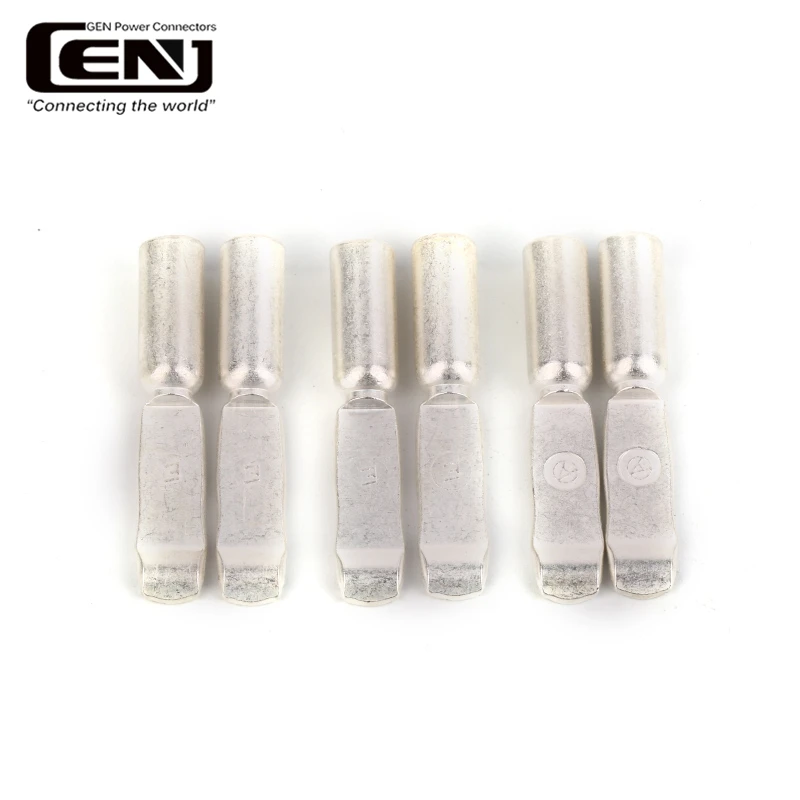

1. About selecting terminals
The terminals can be selected according to the wire size. Each terminal has different aperture, which is convenient for customers. For example, 50A600V plug terminals have three models, respectively, 5915 terminals can be connected to 10/12AWG wire, 5952 terminals can be connected to 8AWG wire, 5900 terminals can be connected to 6AWG wire.

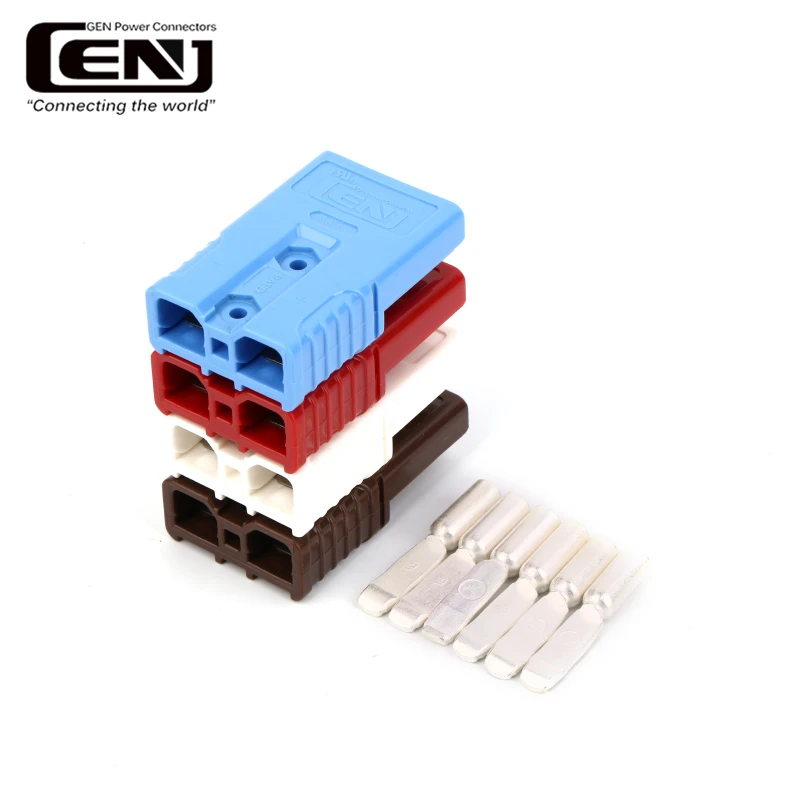

2. Plastic shell color selection
(Unipolar) color modular housing, providing intuitive identification of the correct matching connection; (bipolar) the same color can be inserted, while different color can not be inserted for the different interface design. Colored modular housings provides visual identification of proper mating connector. (Only Gray and Black can be matched).
3. About wire processing(OEM)
According to customer samples, we can provide OEM wire processing
4. Plug working life
No load (terminal insertion and removal times 10000) with load - 120V hot swap 250 times
5. Plug operating temperature range
-20°C105°C If you have special requirements, we can customize according to customer requirements
