| Rated current(Amperes) | 120A |
| Voltage Ratings (Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
2-8AWG 33.6-8.4mm |
| Maximum Wire Insulation Diameter[inches] mm |
0.60inches 15.2mm |
| AVG Contact Resistance(micro-ohms) | 140 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(Ibf) | 100lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 60A |
| AVg.Connection/Disconnect(lbf) | 8lbf |
| operating Temperature Range℃"℉ |
-20°to 105° -4 °to 221 |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

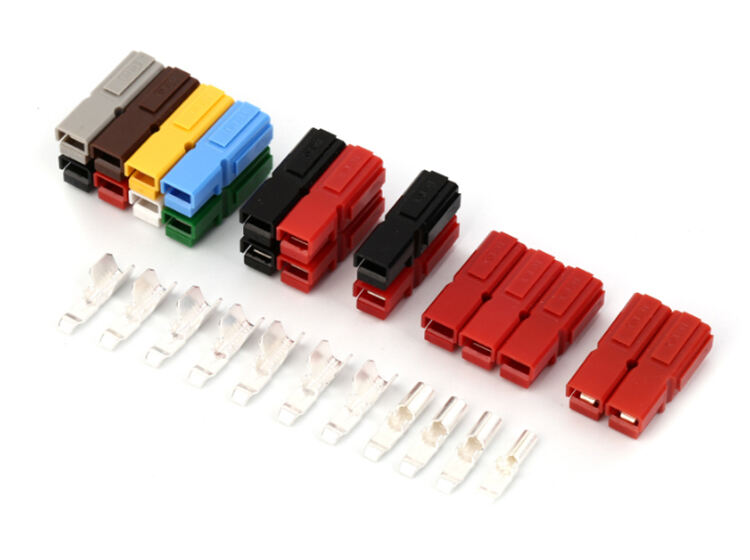

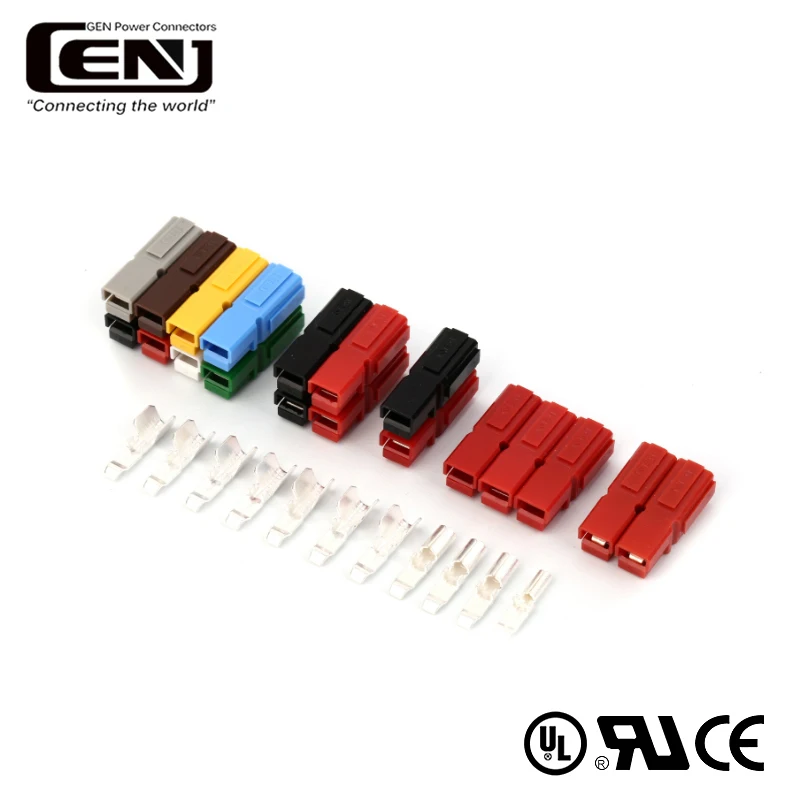

Introducing, the 600V DC Power Single Pole Connector, the perfect solution for all your forklift battery power needs. This high-quality connector is designed for easy and reliable connection between your lithium battery and forklift, ensuring efficient power transfer every time.
With a 30A, 75A, 120A, and 180A rating, this connector can handle a wide range of power requirements, making it suitable for a variety of applications. Whether you need to power your forklift during a busy workday or keep your equipment running smoothly during long shifts, the connector has got you covered.
The male and female Anderson-style plug ensures a secure connection that won't come loose during operation, giving you peace of mind that your power source is always reliable. The heavy-duty construction of the connector also ensures durability and longevity, so you can count on it to perform well for years to come.
Installation is quick and easy, thanks to the simple design of the connector. Just plug the male and female ends together, and you're ready to go. No need for complicated installation processes or additional tools – just a reliable connection that gets the job done.
Whether you're looking to replace an old connector or upgrade to a more efficient power solution, the 600V DC Power Single Pole Connector is the perfect choice. Trust in the quality and reliability of a product that is designed to meet your power needs with ease.
So, why settle for subpar connectors when you can have the best? Choose the 600V DC Power Single Pole Connector for all your forklift battery power requirements and experience the difference for yourself. Upgrade your power connection today and take your forklift performance to the next level.
| Contact barrel wire size | 20-10AWG 0.75-5.3mm² |
| AVG contact resistance | <500<> |
| Contact material | Silver plated copper |
| Voltage rating | 600V |
| Rated current | 15-45A |
| Feature | Makes assembly quick and easy |
| System | Flat wiping contact system |
| Color | Colored modular housings |
| Application | Electric vehicles; Medical equipment; Power supply; Electric equipment; |
| MQQ | 100 |
| Maximum wire insulation diameter | 0.175inches 4.45mm |
| Insulation withstanding test voltage | 2200v |
| Contact retention force | 25lbf |
| Avg.connection/disconnect | 3-5ibf |
| Operating temperature range |
-20°to105° -4°to221° |
| Flammability rating of housing material | UL94-VO |
1. About selecting terminals
The terminals can be selected according to the wire size. Each terminal has different aperture, which is convenient for customers. For example, 50A600V plug terminals have three models, respectively, 5915 terminals can be connected to 10/12AWG wire, 5952 terminals can be connected to 8AWG wire, 5900 terminals can be connected to 6AWG wire.
2. Plastic shell color selection

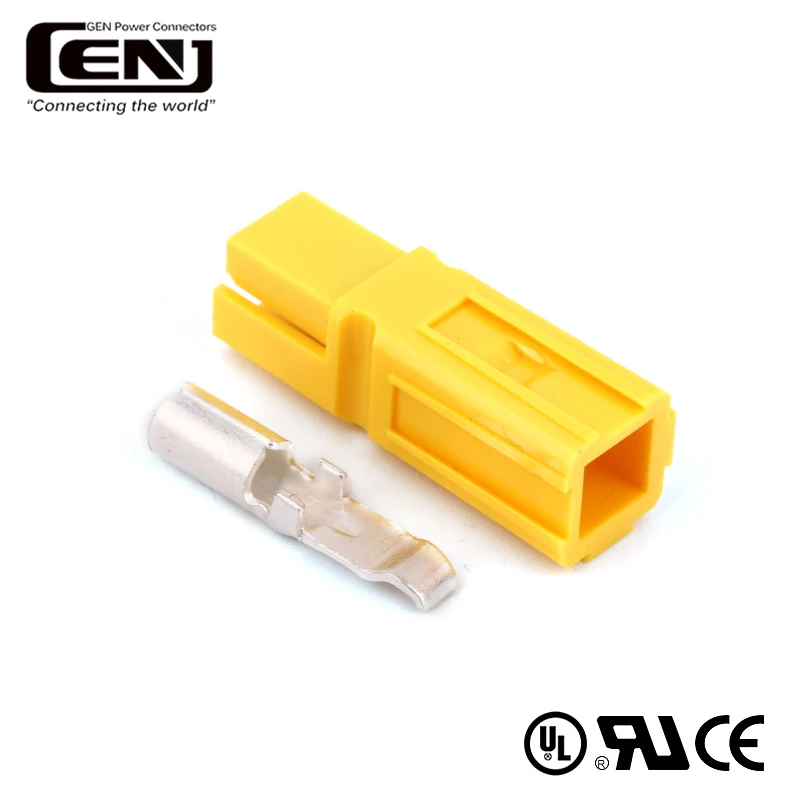

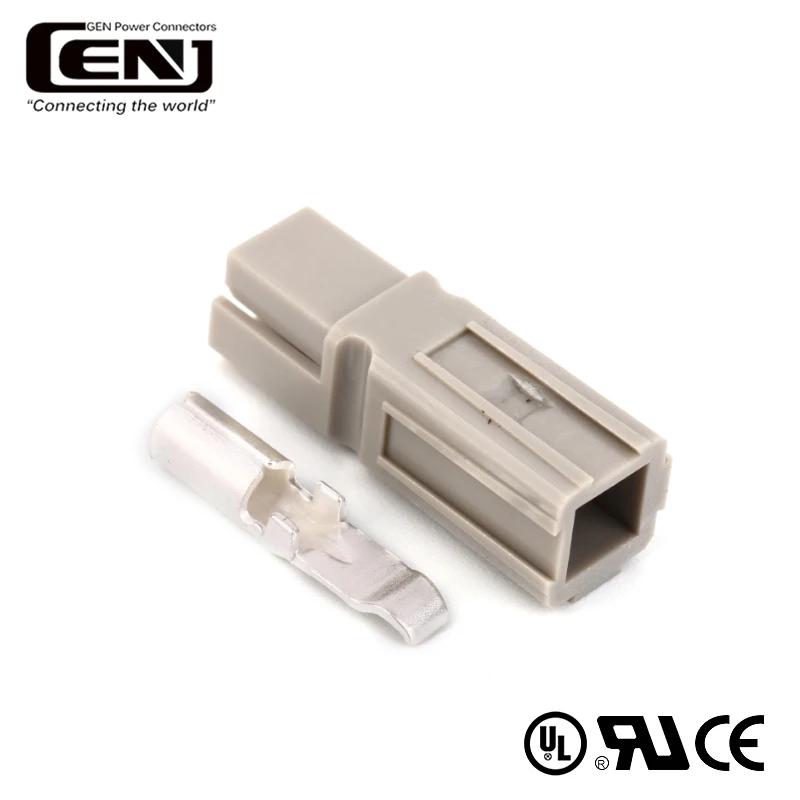

(Unipolar) color modular housing, providing intuitive identification of the correct matching connection; (bipolar) the same color can be inserted, while different color can not be inserted for the different interface design. Colored modular housings provides visual identification of proper mating connector. (Only Gray and Black can be matched).
3. About wire processing(OEM)
According to customer samples, we can provide OEM wire processing
4. Plug working life
No load (terminal insertion and removal times 10000) with load - 120V hot swap 250 times
5. Plug operating temperature range
-20°C105°C If you have special requirements, we can customize according to customer requirements
