| Rated current(Amperes) | 350A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
2/0 to 300mcm 67.4to 152mm |
| Maximum Wire Insulation Diameter[inches]mm |
1.1inches 27.9mm |
| AVG Contact Resistance(micro-ohms) | 50 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 500lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 100A |
| AVg.Connection/Disconnect (lbf) | 30lbf |
| operating Temperature Range℃ ℉ |
-20 "to 105" -4 "to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

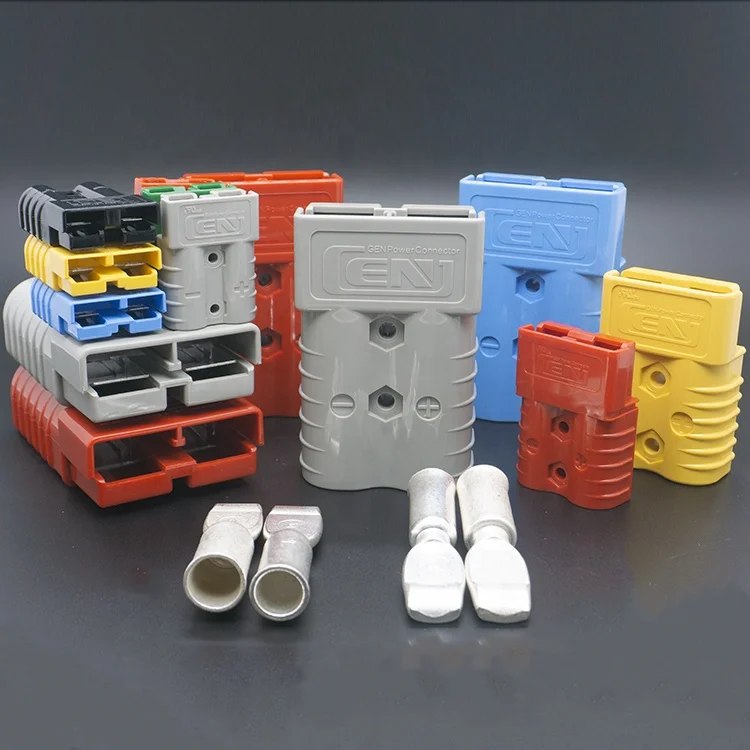

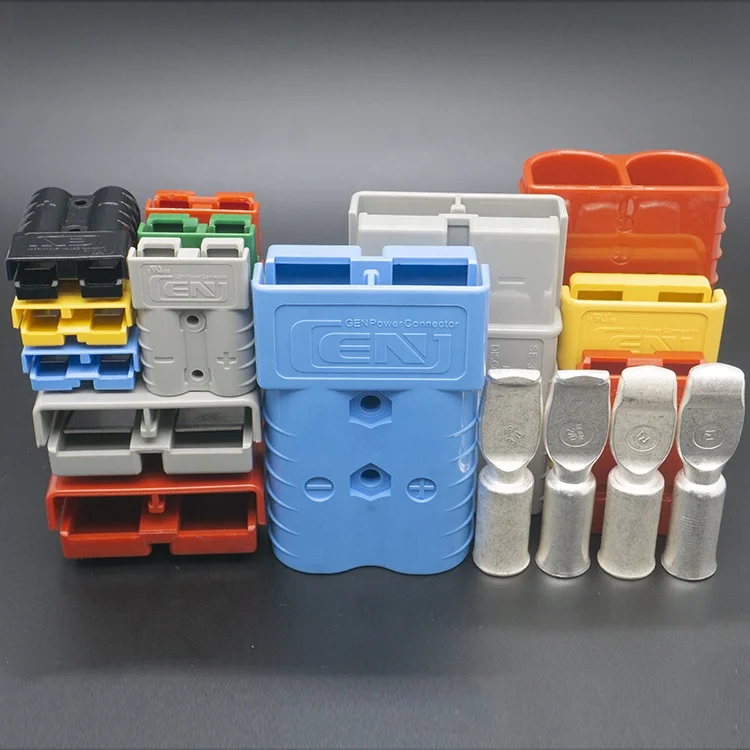

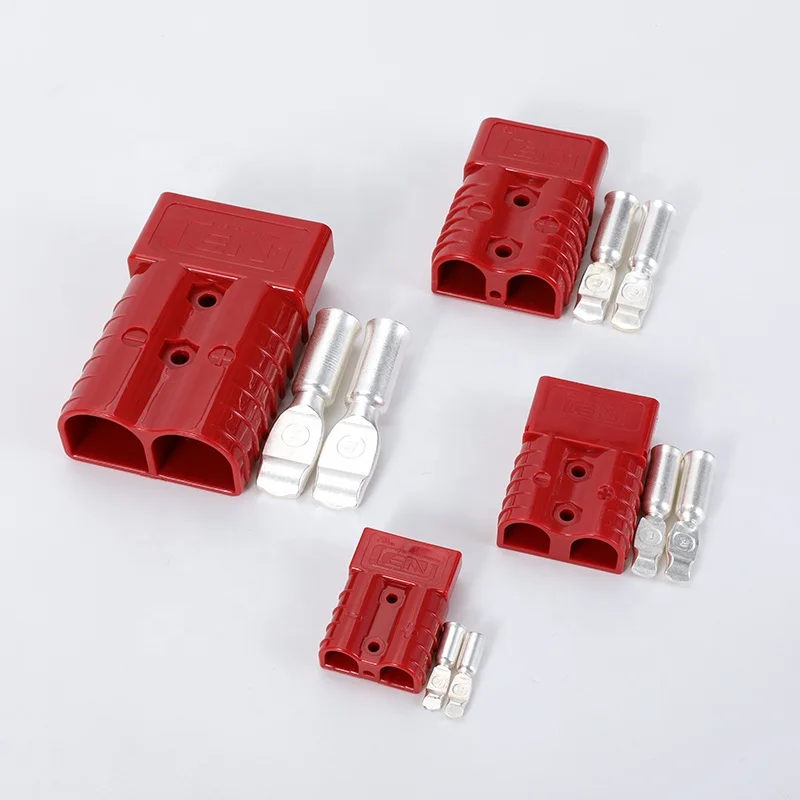

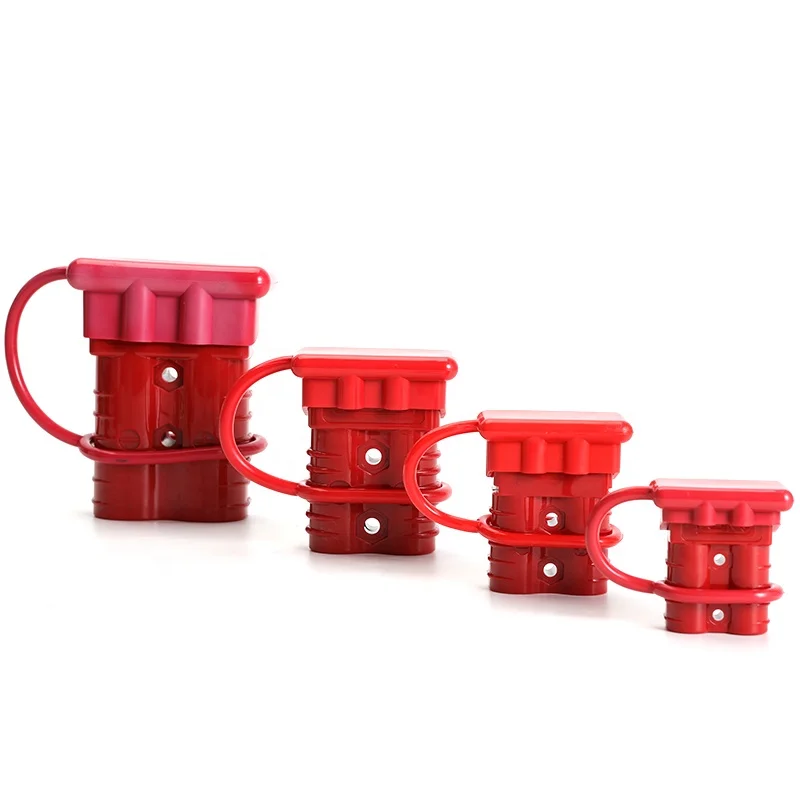

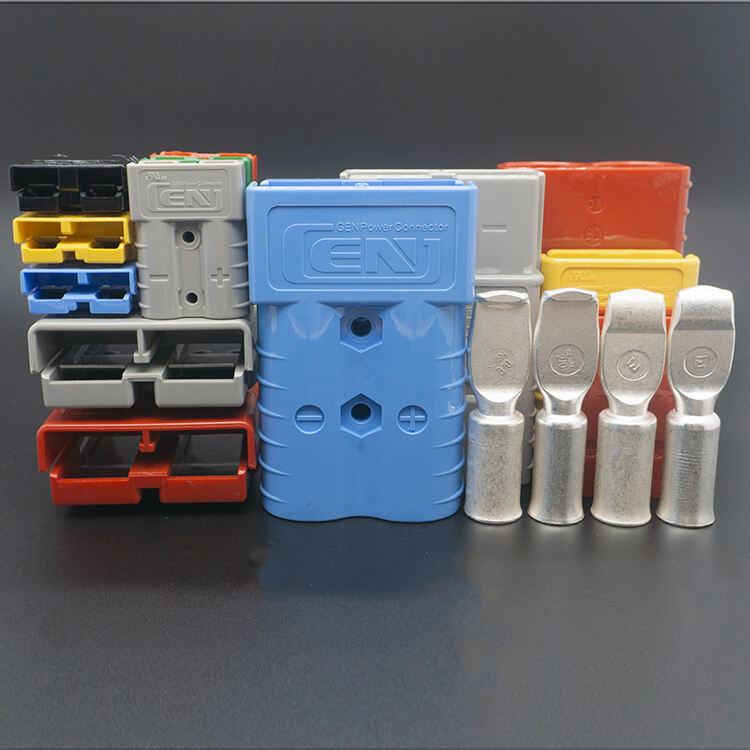

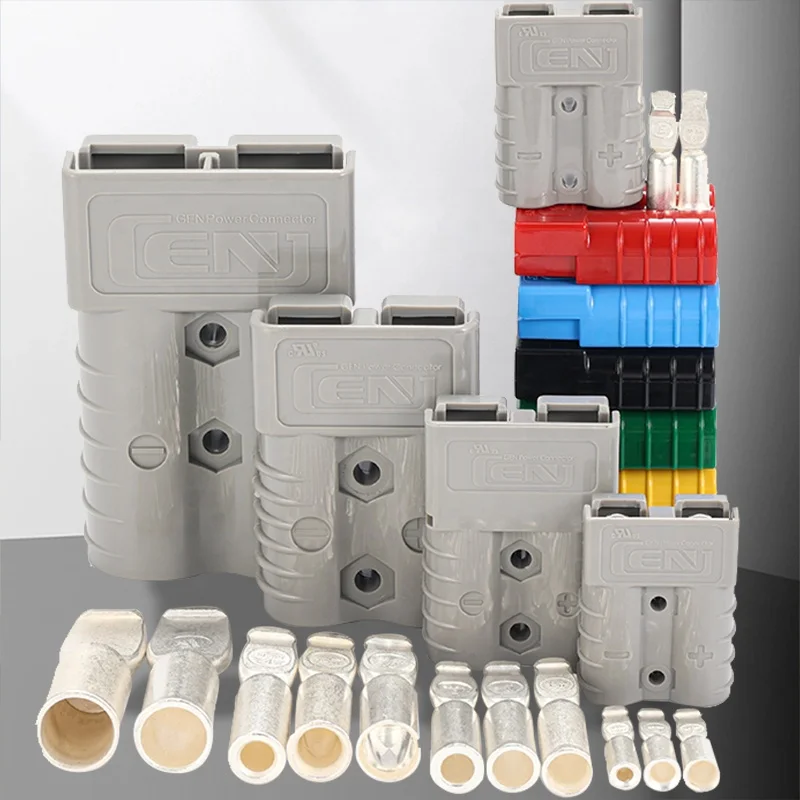

Introducing, the Anderson Battery Connector Plug 600v 350A 2 Pin High Current Electric Power Quick Battery Connector Plug! This top-of-the-line connector plug is designed to provide a reliable and efficient power solution for your forklift or other high-current electric power applications.With a rating of 600 volts and 350 amps, this Anderson Battery Connector Plug is built to handle even the toughest jobs. Its 2-pin design ensures a secure and stable connection, so you can trust that your equipment will receive the power it needs to operate smoothly and efficiently.The quick-connect feature of this battery connector plug makes it easy to install and remove, saving you time and effort on your projects. Plus, its durable construction ensures that it can withstand regular use and harsh working conditions without compromising performance.Whether you're working on a construction site, in a warehouse, or any other industrial setting, the Anderson Battery Connector Plug is the perfect accessory to keep your equipment running smoothly. Its high-current capabilities make it ideal for powering forklifts, electric vehicles, and other machinery that require a strong and reliable power source.is a trusted brand known for its high-quality products, and this Anderson Battery Connector Plug is no exception. You can count on to deliver a reliable and durable solution that will meet your power needs for years to come.Don't let power outages or unreliable connections slow you down – invest in the Anderson Battery Connector Plug 600v 350A 2 Pin High Current Electric Power Quick Battery Connector Plug today and experience the difference it can make for your equipment and productivity. With , you can trust that you're getting a product that is built to last and perform at the highest level.
* Ratings: 350 amps, 600 Volts Maximum. Connector size is approx. 4.25"x2.75"x1.18", light and durable polycarbonate housing. |
||||||||
* Silver plated contacts - offers greater longevity when using high power, elevated temperature applications. Terminals can either be crimped or soldered to the cables. |
||||||||
* Mechanically keyed housings - (Interlocking pairs) prevents accidental component mating (each connector slots into the other - there is no male and female version) |
||||||||
* Flat wiping contact system - wiping action cleans the contact surface during disconnection |
||||||||
1. Are you a manufacturer or a trading company
We are both an experienced manufacturer for over 10 years and a trading company. We supply for our clients over the world, including listed companies.
2. What’s your MOQ? Can I get samples first
Generally the MOQ is between 10-100 pieces, based on different products. Sure, sample order is welcome.
3. Can you provide OEM or customized services
Yes, we could provide customized services, such as wiring harness and packaging.
4. What’s the lead time
For most items, we have products in stock. We would deliver goods in 3 days. If you place a bulk order, we will advise the lead time to you.
5. How to place an order or know more about the products
You can contact us with online service, or sent an email to us, we will reply you ASAP.
