Andersons Connector 50A 120A 175A 350A 600V Battery Connector Andersons Plug Male Female

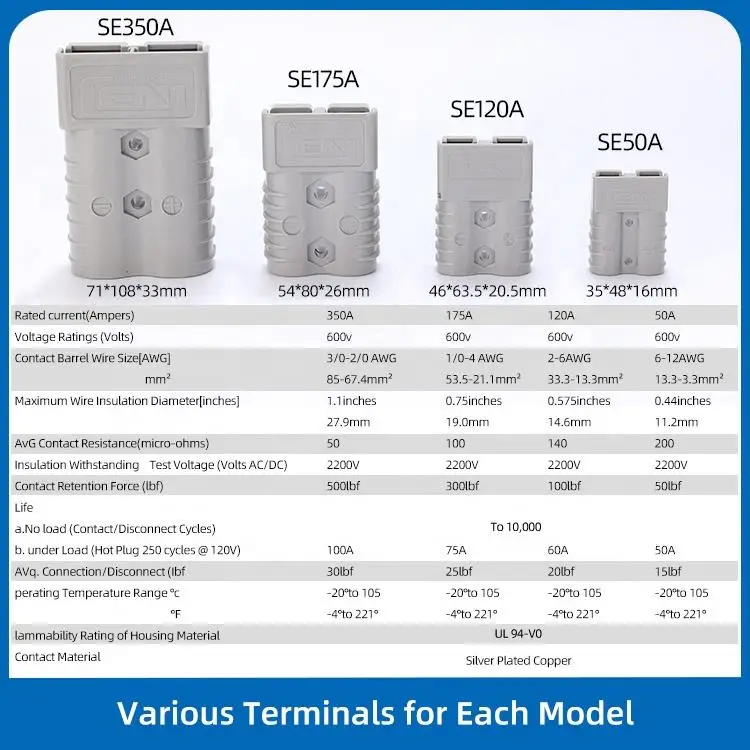

| Rated current(Amperes) | 50A |
| Voltage Ratings(Volts) | 600V |

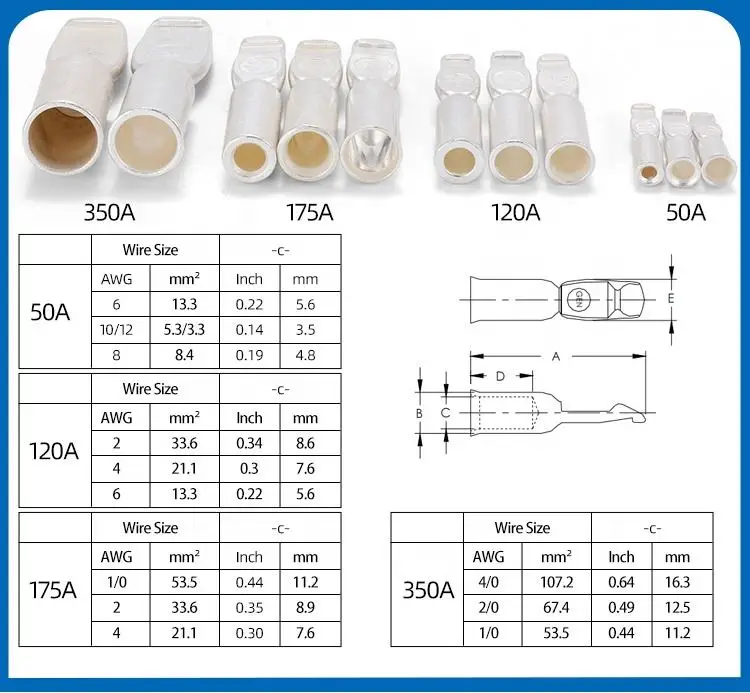

| Contact Barrel Wire Size[AWG]mm |
6-12AWG 13.3-3.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.44inches 11.2mm |
| AVG Contact Resistance(micro-ohms) | 200 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 50lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 50A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |
The Andersons Connector Battery Connector is a must-have for anyone looking for a reliable and high-quality electrical connection solution. With various amp ratings available, including 50A, 120A, 175A, 350A, and 600V, there is an Andersons Connector to suit your specific needs.This Andersons Connector is designed to provide a secure and efficient connection between batteries, chargers, inverters, and other electrical components. The plug and socket feature durable construction, ensuring a long-lasting and reliable performance. The male and female connectors are easy to assemble and disassemble, making it simple to connect and disconnect your power source.The Andersons Connector features a robust design that can withstand high levels of current and voltage, making it ideal for high-demand applications. The connectors are made from high-quality materials that are resistant to heat, chemicals, and corrosion, ensuring a safe and reliable connection every time.Whether you are working on a DIY project or a professional installation, the Andersons Connector is a versatile and dependable choice. The connectors are compatible with a wide range of devices and equipment, making them a versatile solution for a variety of applications.The Andersons Connector is available in 2-pin configurations, giving you the flexibility to create custom connections for your specific needs. The connectors are color-coded for easy identification and come with clear instructions for hassle-free installation.The Andersons Connector Battery Connector is a top-notch product that offers superior quality, durability, and reliability. With its various amp ratings and high-voltage capabilities, this Andersons Connector is a practical and cost-effective solution for all your electrical connection needs. Invest in the Andersons Connector today and experience the convenience and peace of mind of a secure and efficient electrical connection.
