| Rated current(Amperes) | 50A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
6-12AWG 13.3-3.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.44inches 11.2mm |
| AVG Contact Resistance(micro-ohms) | 200 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 50lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 50A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

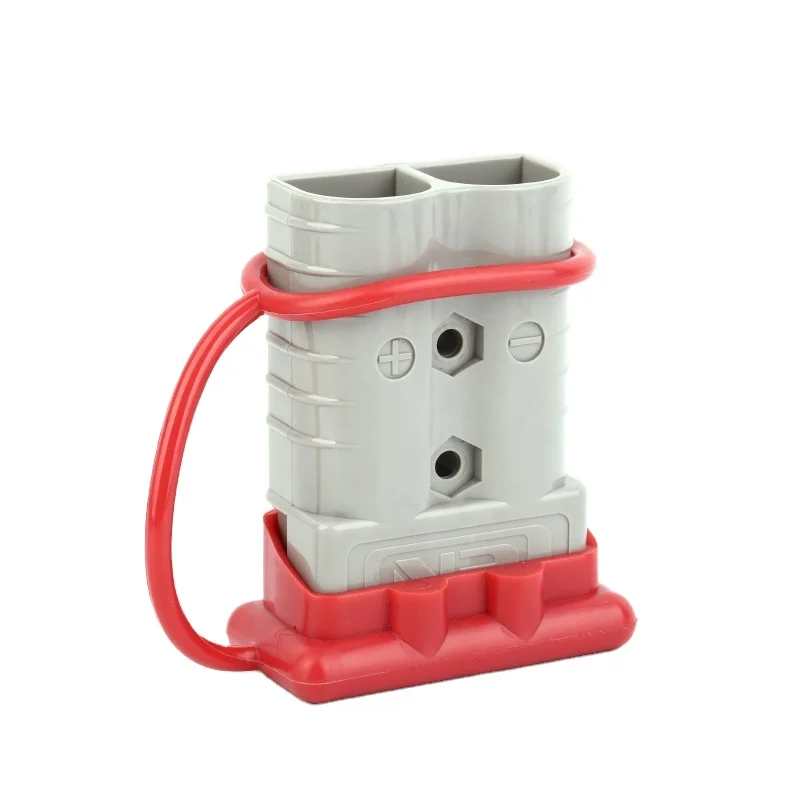

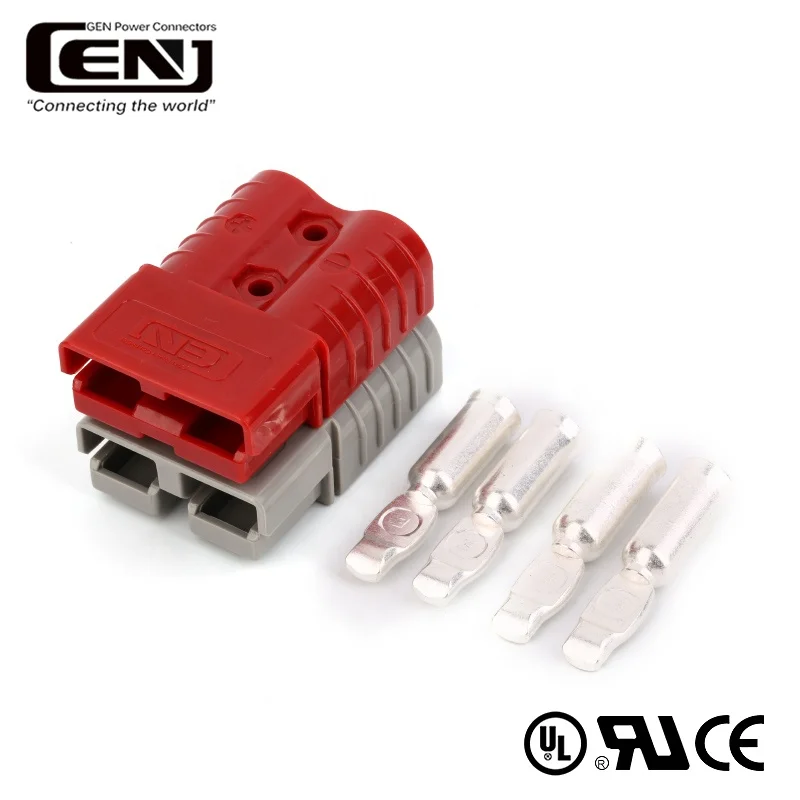

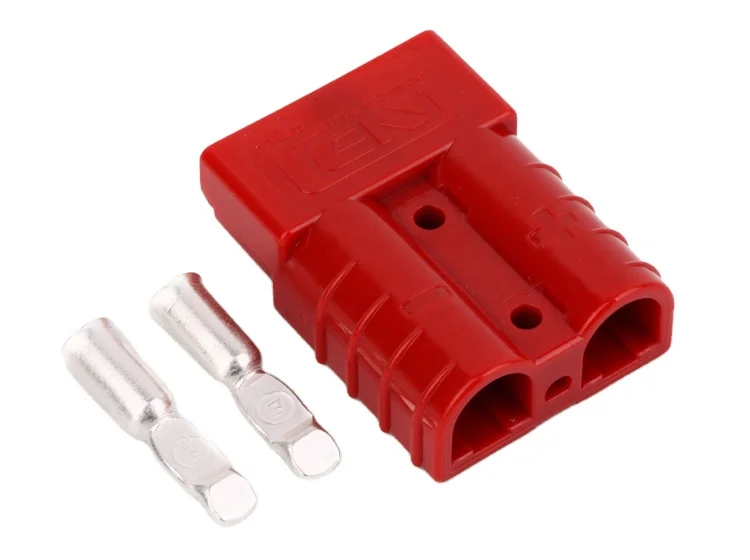

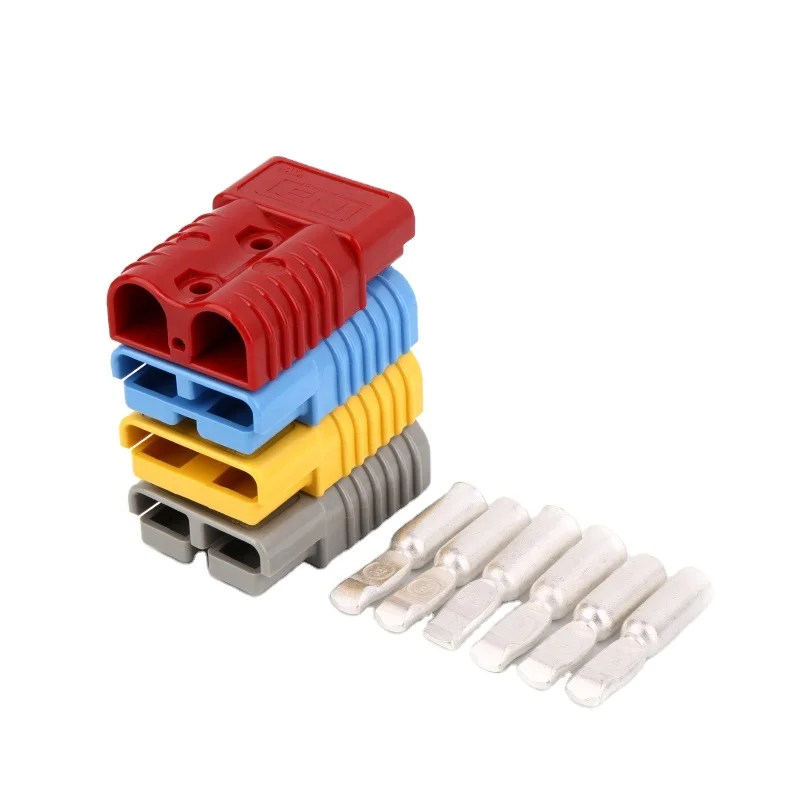

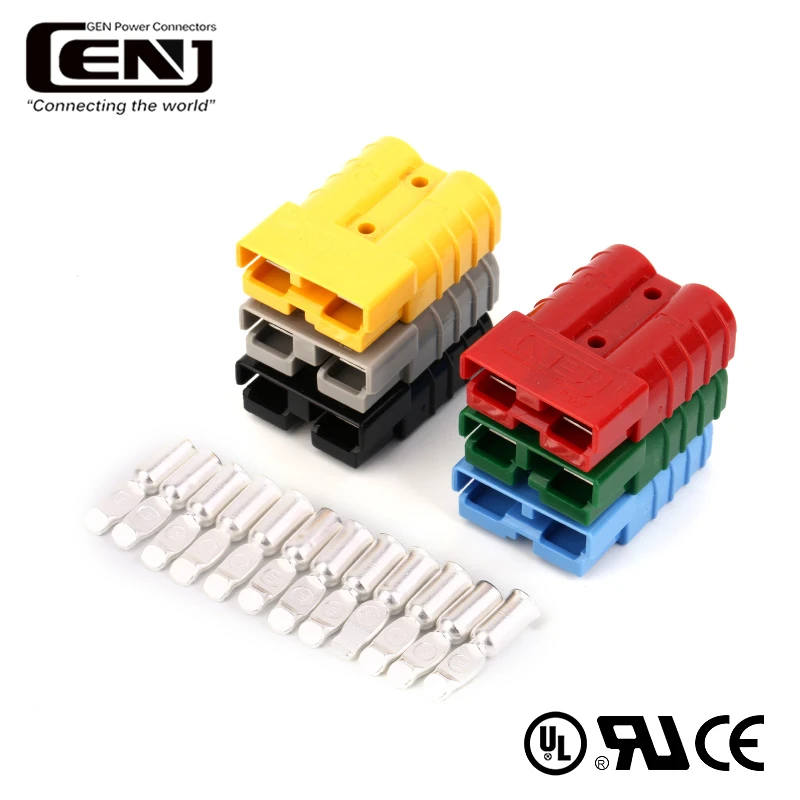

Introducing the latest innovation in battery connectors from - the Andersons Connector 50A 120A 175A 350A 600V Battery Connector Gray. This versatile connector set is designed to provide a secure and reliable connection for all your battery power needs.Whether you're working on a small DIY project or a large-scale industrial application, the Andersons Connector is up to the task. With options ranging from 50A to 600V, you can easily find the right connector size for your specific requirements. The gray color of the connectors adds a sleek and professional look to your battery setup.Constructed with high-quality materials, the Andersons Connector is built to last. The durable plugs are designed to withstand tough conditions, so you can count on them to deliver consistent performance over time. Plus, the connectors are easy to install and use, making them a convenient choice for any project.The Andersons Connector set includes both male and female plugs, providing you with all the components you need for a complete connection. With the SB50, SB120, SB175, and SB350 options, you can choose the right size for your power requirements. Plus, the connectors are compatible with a wide range of battery types and configurations, making them a versatile choice for any application.Whether you're using the Andersons Connector for automotive, marine, or industrial purposes, you can trust that you're getting a high-quality product from . Known for their reliable and innovative products, is a trusted name in the industry, and the Andersons Connector is no exception.The Andersons Connector 50A 120A 175A 350A 600V Battery Connector Gray is the perfect solution for all your battery connection needs. With its durable construction, easy installation, and reliable performance, this connector set is sure to meet your expectations. Upgrade your battery setup with the Andersons Connector from today.
1. Are you a manufacturer or a trading company
We are both an experienced manufacturer for over 10 years and a trading company. We supply for our clients over the world, including listed companies
2. What’s your MOQ? Can I get samples first
Generally the MOQ is between 10-100 pieces, based on different products. Sure, sample order is welcome.
3. Can you provide OEM or customized services
Yes, we could provide customized services, such as wiring harness and packaging
4. What’s the lead time
For most items, we have products in stock. We would deliver goods in 3 days. If you place a bulk order, we will advise the lead time to you
5. How to place an order or know more about the products
You can contact us with online service, or sent an email to us, we will reply you ASAP
