SE 50A

Home /  Products /  GEN Multipole Power Connectors /  SE 50A

Andersons connector 50A 120A 175A 350A 600V Battery Connector Gray andersons plug no male female SB50 SB120 SB175 SB350

Product Description

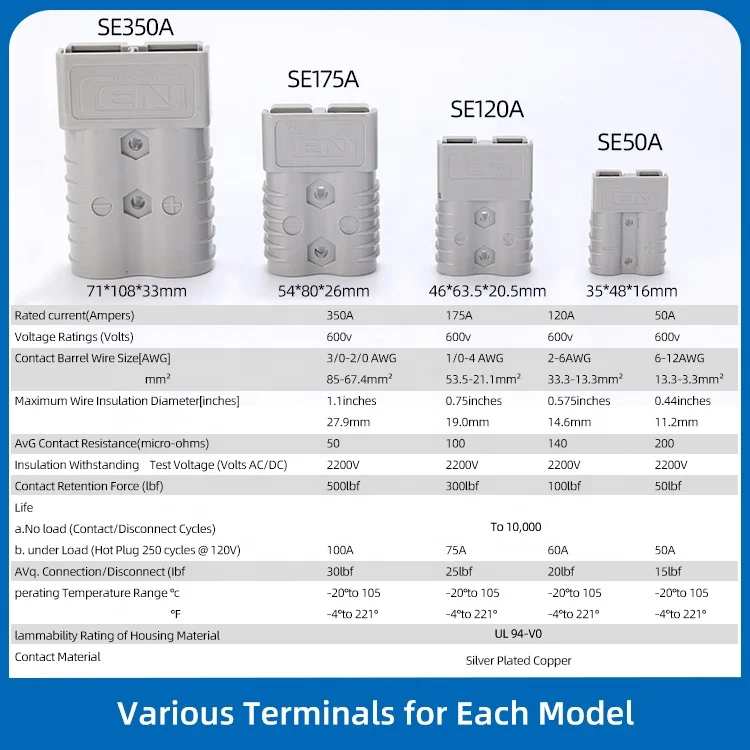

Rated current(Amperes) 50A
Voltage Ratings(Volts) 600V

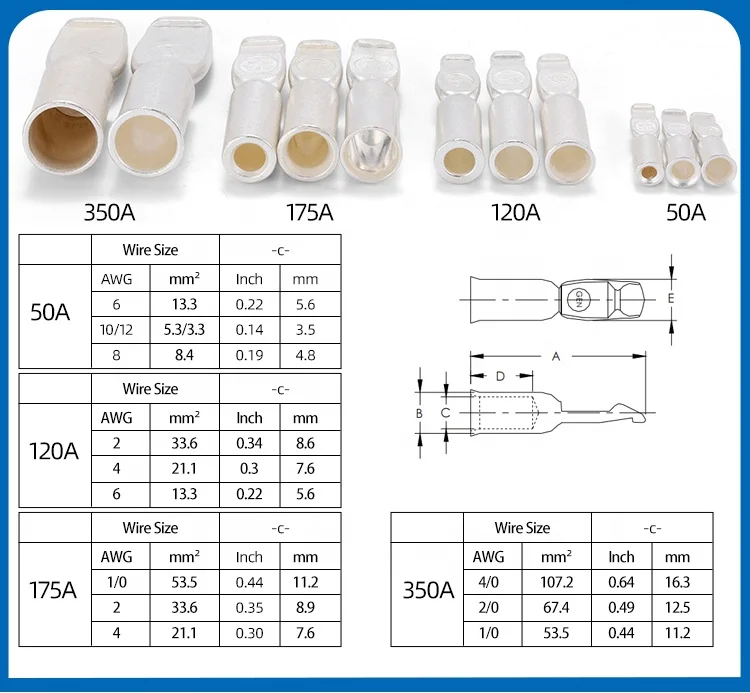

Contact Barrel Wire Size[AWG]mm

6-12AWG

13.3-3.3mm

Maximum Wire Insulation Diameter[inches]mm

0.44inches

11.2mm

AVG Contact Resistance(micro-ohms) 200
Insulation Withstanding Test Voltage(Volts AC/DC) 2200V
Contact Retention Force(lbf) 50lbf

Life

a.No load (Contact/Disconnect Cycles)

b.under Load (Hot Plug 250 cycles @120V)

To 10,000

50A

AVg.Connection/Disconnect (lbf) 3-5lbf
operating Temperature Range℃ ℉

-20"to 105°

-4"to 221"

Flammability Rating of Housing Material UL 94-V0
Contact Material Silver plated copper

 Introducing the GEN Andersons Connectors, the perfect solution for all your battery connection needs. These connectors come in a variety of sizes ranging from 50A to 600V, ensuring that you have the right connector for any application. The color gray makes them easy to identify and adds a sleek and professional look to your setup.Whether you need to connect a small battery with the 50A connector or a larger one with the 350A connector, GEN Andersons Connectors have you covered. The 120A, 175A, and 600V options provide even more versatility, allowing you to easily connect different types of batteries with ease.The no male female design of these connectors makes them simple to use and eliminates the hassle of trying to match up male and female ends. This saves you time and frustration, allowing you to quickly and easily connect your batteries without any hassle.The SB50, SB120, SB175, SB350 connectors are known for their quality and reliability, making them a popular choice among professionals and hobbyists alike. With the GEN brand, you can trust that you are getting a top-of-the-line product that will deliver consistent performance every time.GEN Andersons Connectors are designed to withstand the rigors of daily use, ensuring that they will last for years to come. The durable construction and high-quality materials used in these connectors make them resistant to wear and tear, ensuring that they will continue to perform flawlessly even in the most demanding environments.So whether you need to connect batteries for industrial equipment, automotive applications, or any other use, GEN Andersons Connectors are the perfect choice. With their range of sizes, easy-to-use design, and reliable performance, these connectors are sure to meet all of your battery connection needs. Don't settle for inferior connectors – choose GEN Andersons Connectors for unmatched quality and performance.

Andersons connector 50A 120A 175A 350A 600V Battery Connector Gray andersons plug no male female SB50 SB120 SB175 SB350 manufacture
Andersons connector 50A 120A 175A 350A 600V Battery Connector Gray andersons plug no male female SB50 SB120 SB175 SB350 details
Andersons connector 50A 120A 175A 350A 600V Battery Connector Gray andersons plug no male female SB50 SB120 SB175 SB350 factory
Andersons connector 50A 120A 175A 350A 600V Battery Connector Gray andersons plug no male female SB50 SB120 SB175 SB350 supplier
Andersons connector 50A 120A 175A 350A 600V Battery Connector Gray andersons plug no male female SB50 SB120 SB175 SB350 factory
Andersons connector 50A 120A 175A 350A 600V Battery Connector Gray andersons plug no male female SB50 SB120 SB175 SB350 factory
Andersons connector 50A 120A 175A 350A 600V Battery Connector Gray andersons plug no male female SB50 SB120 SB175 SB350 manufacture
Andersons connector 50A 120A 175A 350A 600V Battery Connector Gray andersons plug no male female SB50 SB120 SB175 SB350 factory
Andersons connector 50A 120A 175A 350A 600V Battery Connector Gray andersons plug no male female SB50 SB120 SB175 SB350 supplier
Andersons connector 50A 120A 175A 350A 600V Battery Connector Gray andersons plug no male female SB50 SB120 SB175 SB350 factory
Andersons connector 50A 120A 175A 350A 600V Battery Connector Gray andersons plug no male female SB50 SB120 SB175 SB350 details
Andersons connector 50A 120A 175A 350A 600V Battery Connector Gray andersons plug no male female SB50 SB120 SB175 SB350 factory
Andersons connector 50A 120A 175A 350A 600V Battery Connector Gray andersons plug no male female SB50 SB120 SB175 SB350 factory
Andersons connector 50A 120A 175A 350A 600V Battery Connector Gray andersons plug no male female SB50 SB120 SB175 SB350 supplier
Andersons connector 50A 120A 175A 350A 600V Battery Connector Gray andersons plug no male female SB50 SB120 SB175 SB350 factory
Andersons connector 50A 120A 175A 350A 600V Battery Connector Gray andersons plug no male female SB50 SB120 SB175 SB350 details

FAQ

1. Are you a manufacturer or a trading company

We are both an experienced manufacturer for over 10 years and a trading company. We supply for our clients over the world, including listed companies

2. What’s your MOQ? Can I get samples first

Generally the MOQ is between 10-100 pieces, based on different products. Sure, sample order is welcome.

3. Can you provide OEM or customized services

Yes, we could provide customized services, such as wiring harness and packaging

4. What’s the lead time

For most items, we have products in stock. We would deliver goods in 3 days. If you place a bulk order, we will advise the lead time to you

5. How to place an order or know more about the products

You can contact us with online service, or sent an email to us, we will reply you ASAP
