| Rated current(Amperes) | 15-45A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
20-10AWG 0.75-5.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.175inches 4.45mm |
| AVG Contact Resistance(micro-ohms) | <500 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 25lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 15-30A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

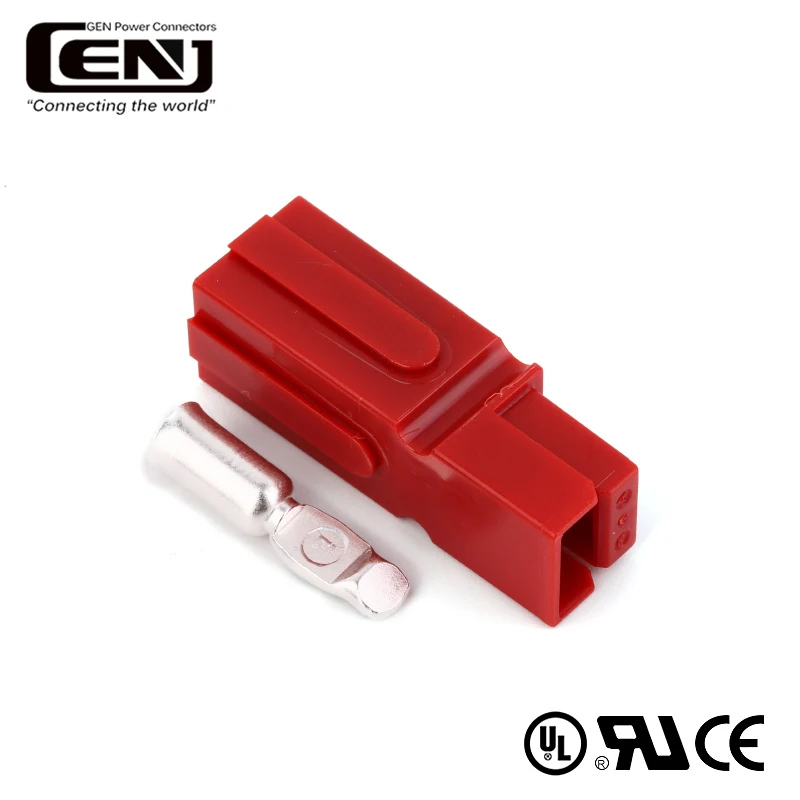

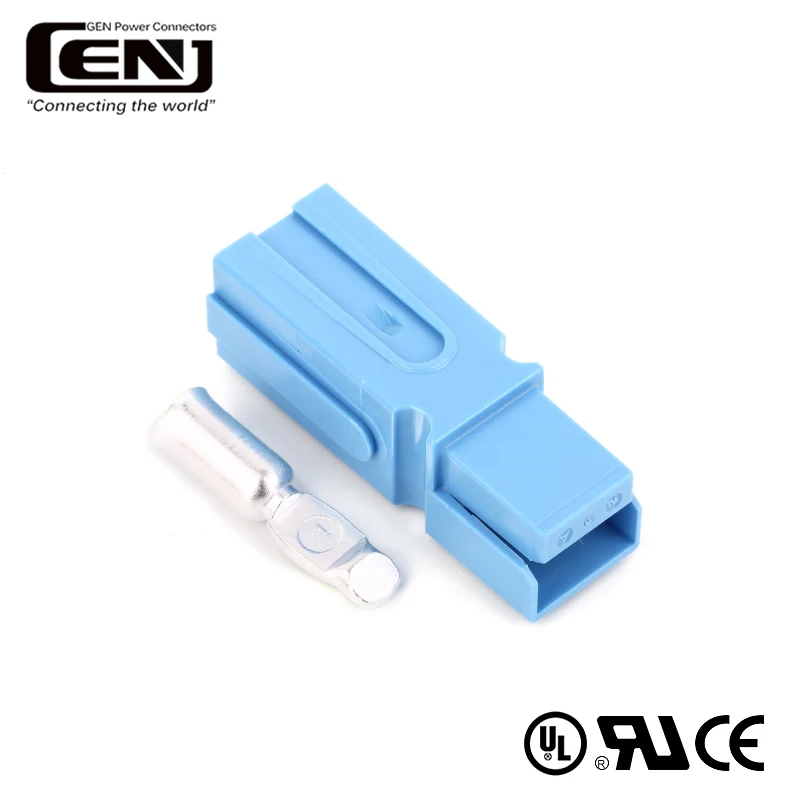

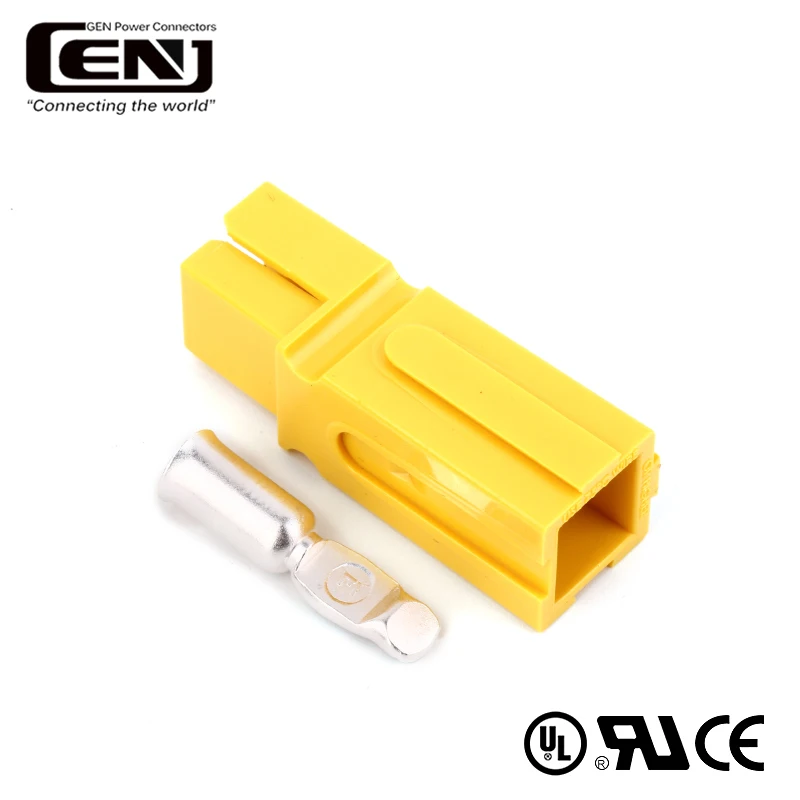

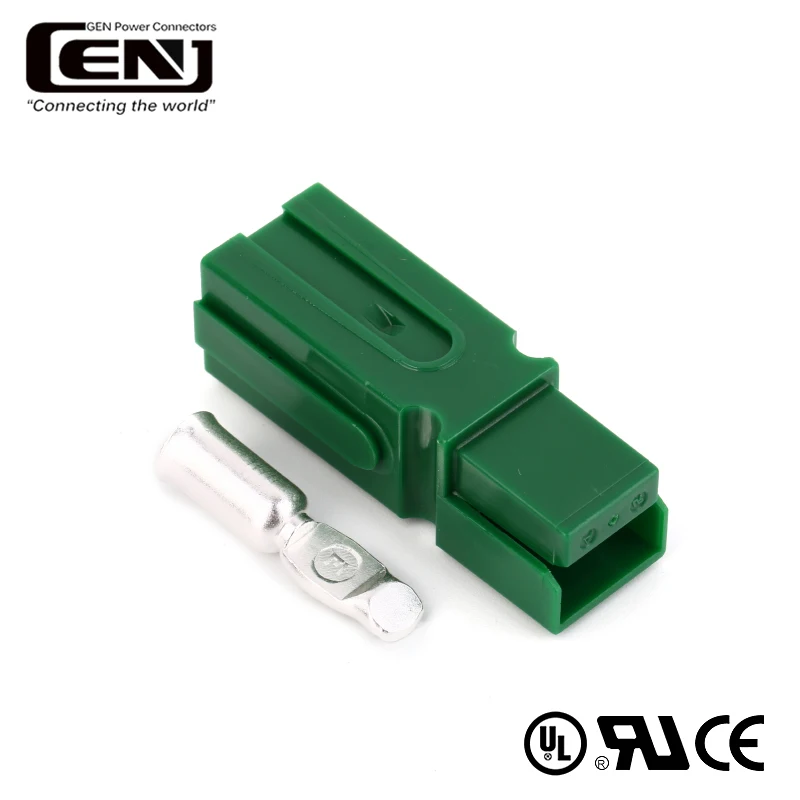

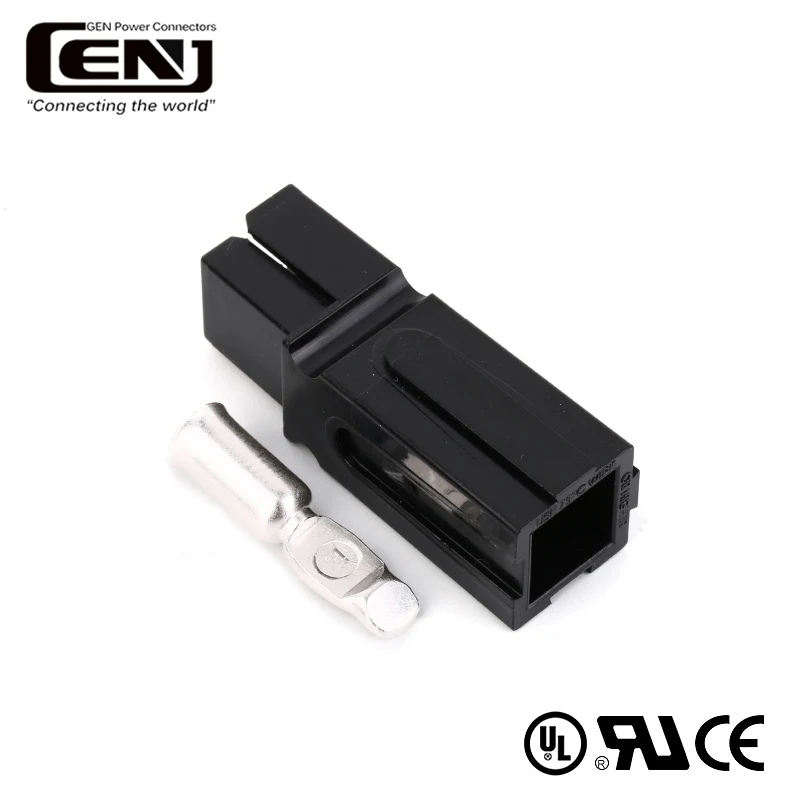

Introducing, the Anderson Style 15a/30a/75a/120a 600v Unipolar Power Battery Connector Single 1pole Pa45 Terminal High Current Connector Plug. This versatile connector is the perfect solution for all of your power connection needs.
With a rugged construction and high-quality materials, this connector is built to last. It can handle up to 600 volts of power, making it ideal for a wide range of applications. Whether you are connecting batteries, solar panels, or other power sources, this connector will provide a reliable and secure connection every time.
The Anderson Style 15a/30a/75a/120a connector features a single 1pole Pa45 terminal design, making it easy to connect and disconnect as needed. The high current capacity of up to 120 amps ensures that your power source will deliver the maximum amount of power to your devices.
This connector plug is designed for unipolar power applications, meaning that it is ideal for use with batteries and other power sources that deliver power in only one direction. This makes it perfect for use in electric vehicles, renewable energy systems, and more.
Is a trusted brand known for its high-quality products and innovative designs. The Anderson Style 15a/30a/75a/120a connector is no exception. It has been thoroughly tested to ensure that it meets the highest standards of quality and performance.
Whether you are a DIY enthusiast, a professional electrician, or a hobbyist looking for a reliable power connector, the Anderson Style 15a/30a/75a/120a 600v Unipolar Power Battery Connector Single 1pole Pa45 Terminal High Current Connector Plug is the perfect choice. Trust to deliver the power and performance you need for all of your power connection needs
High quality dc power jack plug magnetic power connector
| Contact barrel wire size | 6-12AWG 13.3-3.3mm² |
| AVG contact resistance | <200 |
| Contact material | Silver plated copper |
| Voltage rating | 600V |
| Rated current | 75A |
| Feature | Makes assembly quick and easy |
| System | Flat wiping contact system |
| Color | Colored modular housings |
| Application | Electric vehicles; Medical equipment; Power supply; Electric equipment; |
| MQQ | 100 |
| Maximum wire insulation diameter | 0.44inches 11.2mm |
| Insulation withstanding test voltage | 2200v |
| Contact retention force | 50lbf |
| Avg. connection/disconnect | 7ibf |
| Operating temperature range |
-20°to105° -4°to221° |
| Flammability rating of housing material | UL94-VO |
