| Rated current(Amperes) | 50A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
6-12AWG 13.3-3.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.44inches 11.2mm |
| AVG Contact Resistance(micro-ohms) | 200 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 50lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 50A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

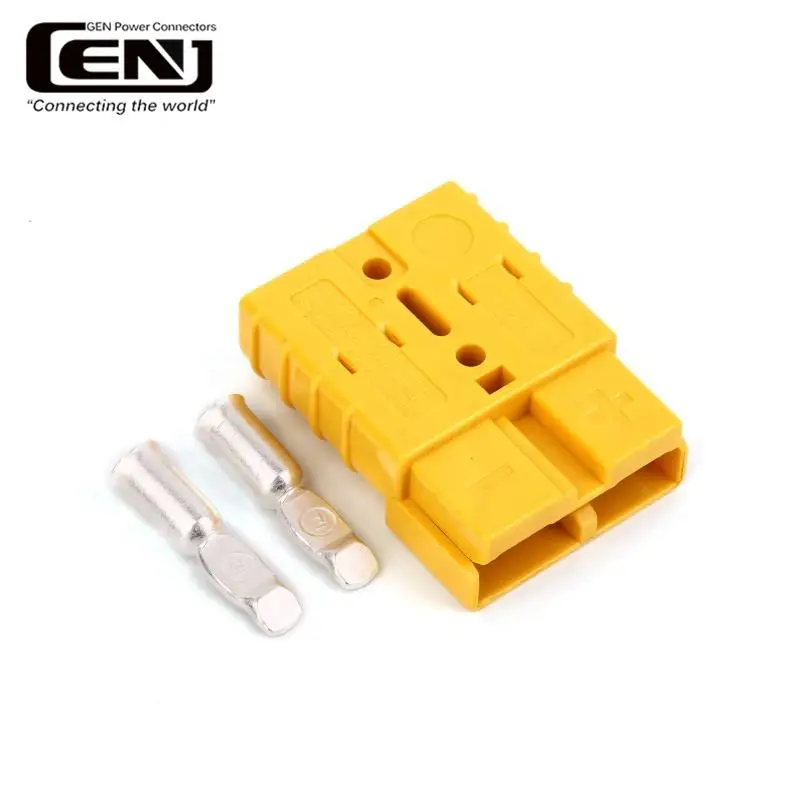

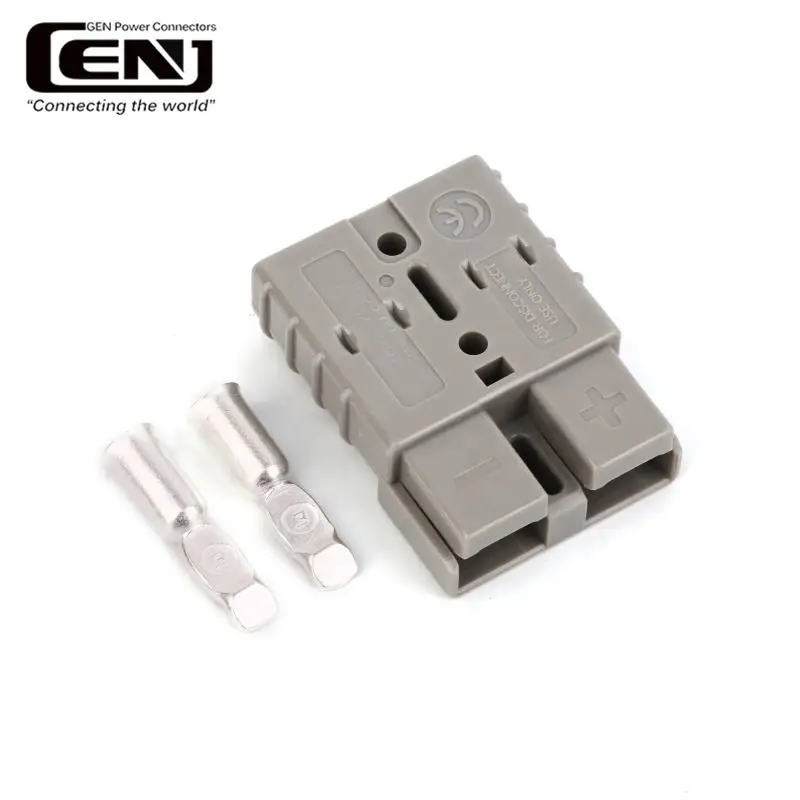

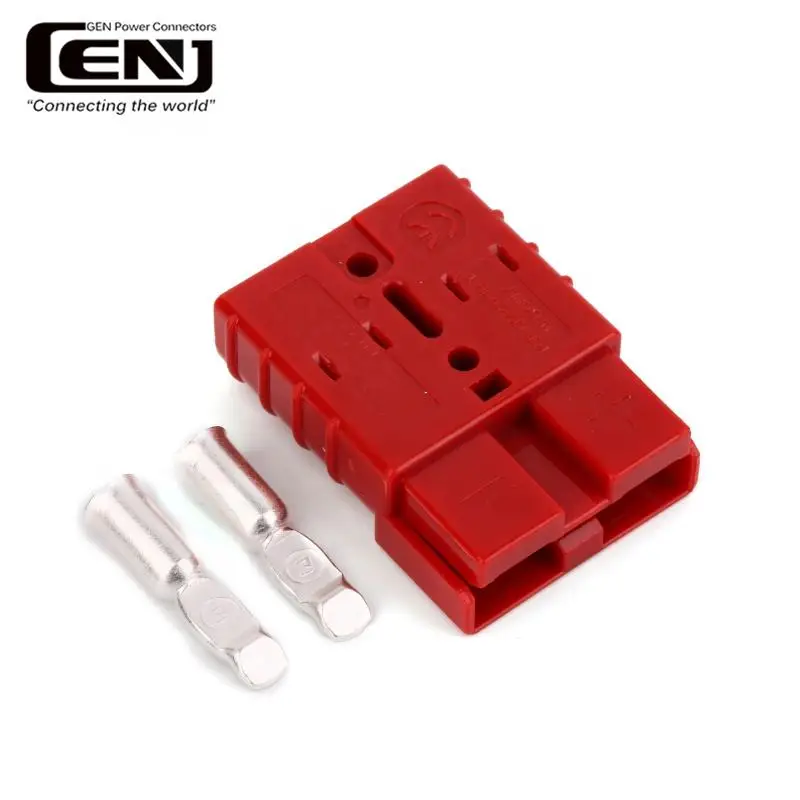

Introducing the AndersonStyle High Quality 50A 600V Power Voltage Battery Terminal Connector, brought to you by the trusted brand . This innovative connector is designed to provide a reliable and secure connection for all your power voltage needs.Constructed with high quality materials, this battery terminal connector is built to last. With a 50A maximum current rating and a 600V voltage rating, you can trust that this connector will provide a safe and stable connection for your power applications. Whether you are using it for automotive, marine, industrial, or recreational purposes, the AndersonStyle High Quality Connector is up to the task.The connector features a unique AndersonStyle design that allows for quick and easy installation. Simply strip the wires, insert them into the connector, and secure them in place with the included screws. No special tools or expertise are required, making it a convenient choice for both professionals and DIY enthusiasts.In addition to its easy installation, the AndersonStyle Connector also offers excellent performance. The high quality construction ensures a low resistance connection, which means less energy loss and more efficient power transfer. This can help extend the life of your batteries and improve the overall performance of your electrical system.Safety is also a top priority with the AndersonStyle High Quality Connector. The durable housing and secure locking mechanism protect against accidental disconnections and ensure a reliable connection in all conditions. This connector is also resistant to corrosion and UV damage, making it suitable for both indoor and outdoor use.Whether you are upgrading an existing power system or building a new one from scratch, the AndersonStyle High Quality 50A 600V Power Voltage Battery Terminal Connector from is the perfect choice. With its reliable performance, easy installation, and durable construction, you can trust that this connector will provide the power and efficiency you need for all your electrical applications. Upgrade to the AndersonStyle Connector today and experience the difference in quality and performance.
