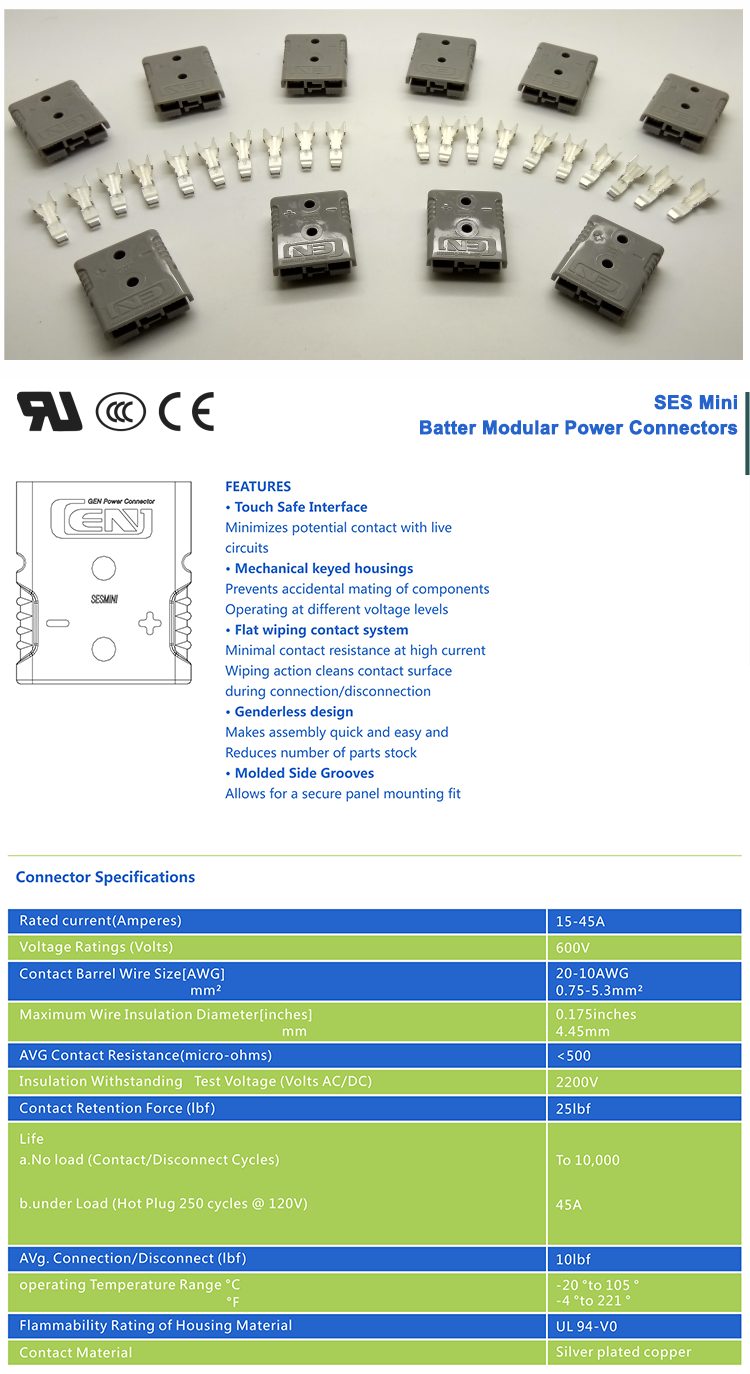

| Rated current(Amperes) | 15-45A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
20-10AWG 0.75-5.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.175inches 4.45mm |
| AVG Contact Resistance(micro-ohms) | <500 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 25lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 15-30A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |
The GEN Durable 2-Pin Connectivity Battery Power Connector is a reliable and sturdy solution for your power connection needs. Designed to handle 15-45A of current, this connector is perfect for a wide range of applications.
Whether you are looking to connect batteries in a power system, or need a reliable connection for your electronic devices, the GEN Battery Power Connector has got you covered. The 2-pin design makes it easy to connect and disconnect, saving you time and effort.
Made with high-quality materials, this connector is built to last. The durable construction ensures that it can withstand the rigors of daily use, making it an ideal choice for both professional and DIY projects. You can trust that your power connection will remain secure and reliable with the GEN Battery Power Connector.
With a sleek and compact design, this connector is easy to install and use. Simply plug in the two pins and you are ready to go. The compact size also makes it easy to transport and store, so you can take it with you wherever you go.
Whether you are working on a project at home, in the workshop, or out in the field, the GEN Battery Power Connector is a versatile and dependable choice. It is compatible with a wide range of devices and power sources, making it the perfect solution for all your power connection needs.
Invest in the GEN Durable 2-Pin Connectivity Battery Power Connector and experience the difference in quality and performance. Say goodbye to unreliable connections and invest in a connector that you can trust. Order yours today and enjoy the peace of mind that comes with a reliable power connection

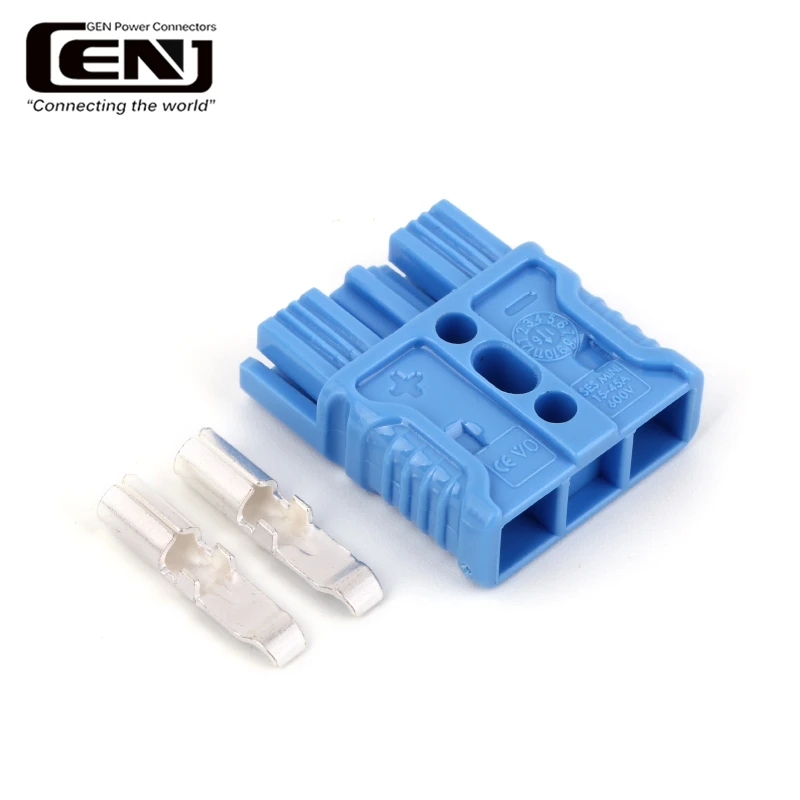

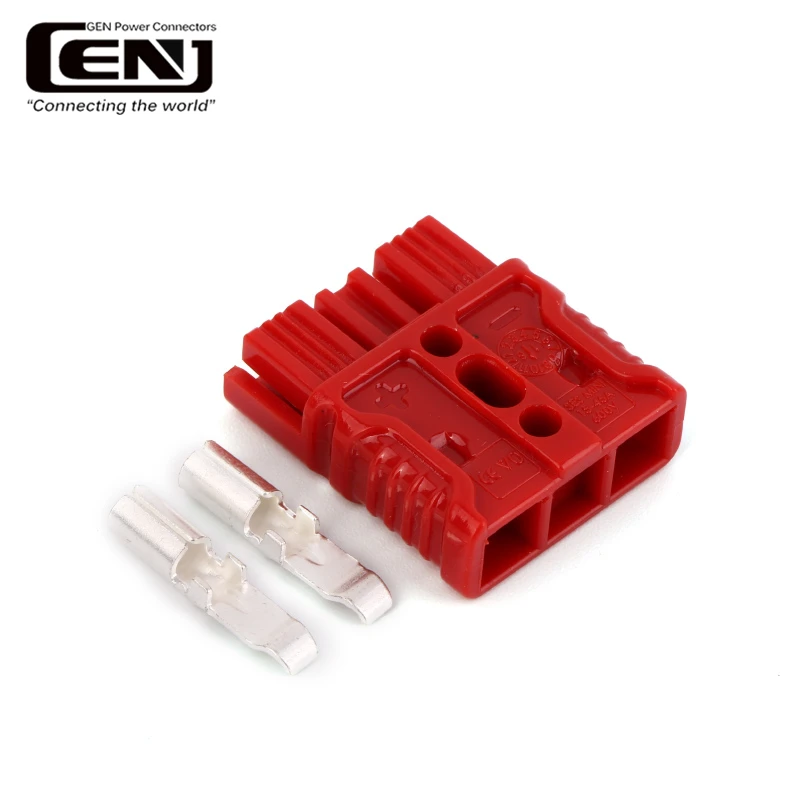

2 pin 15-45A battery power connector
| Application | Electric vehicles; Medical equipment; Power supply; Electric equipment; |
| Maximum wire insulation diameter | 0.175inches 4.45mm |
| Insulation withstanding test voltage | 2200v |
| Contact retention force | 25lbf |
| Avg. connection/disconnect | 10lbf |
| Operating temperature range |
-20°to105° -4°to221° |
| Flammability rating of housing material | UL94-VO |

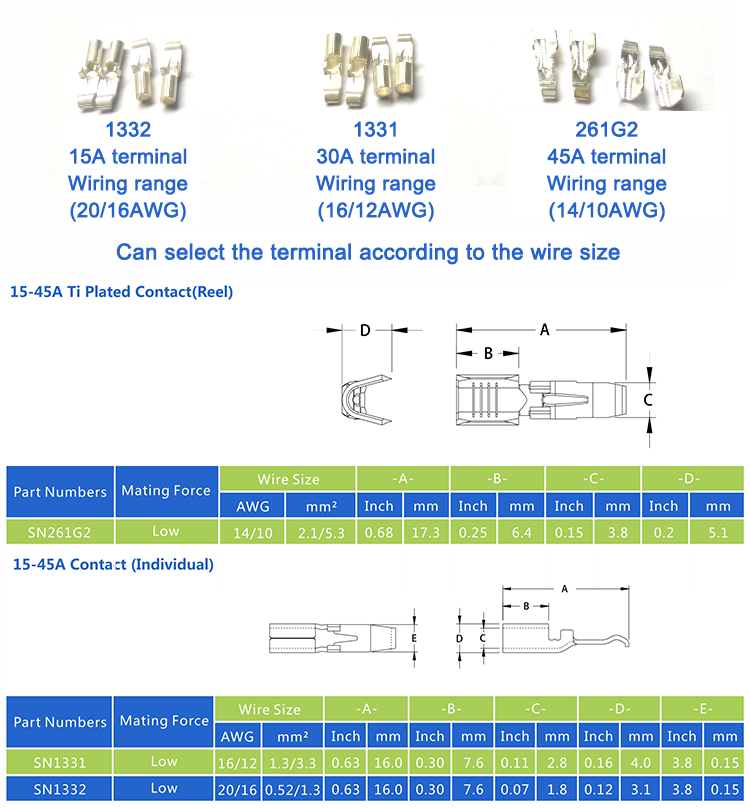

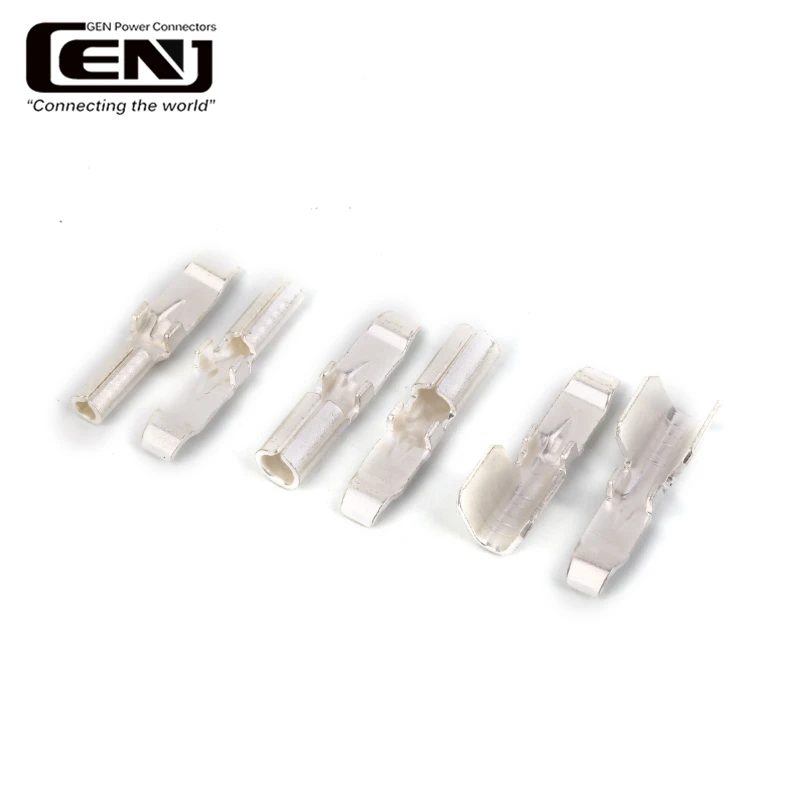

1. About selecting terminals
The terminals can be selected according to the wire size. Each terminal has different aperture, which is convenient for customers. For example, 50A600V plug terminals have three models, respectively, 5915 terminals can be connected to 10/12AWG wire, 5952 terminals can be connected to 8AWG wire, 5900 terminals can be connected to 6AWG wire.

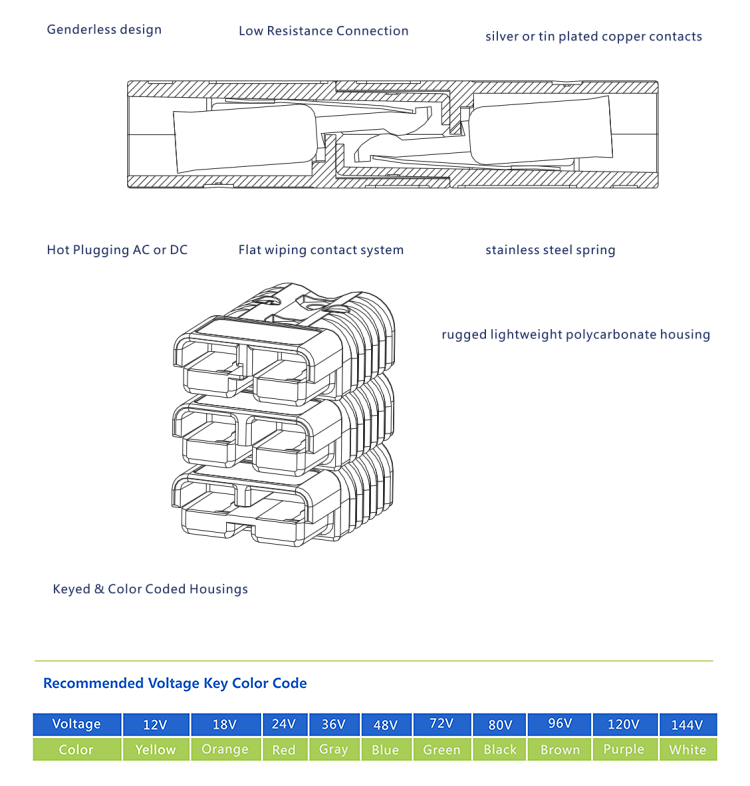

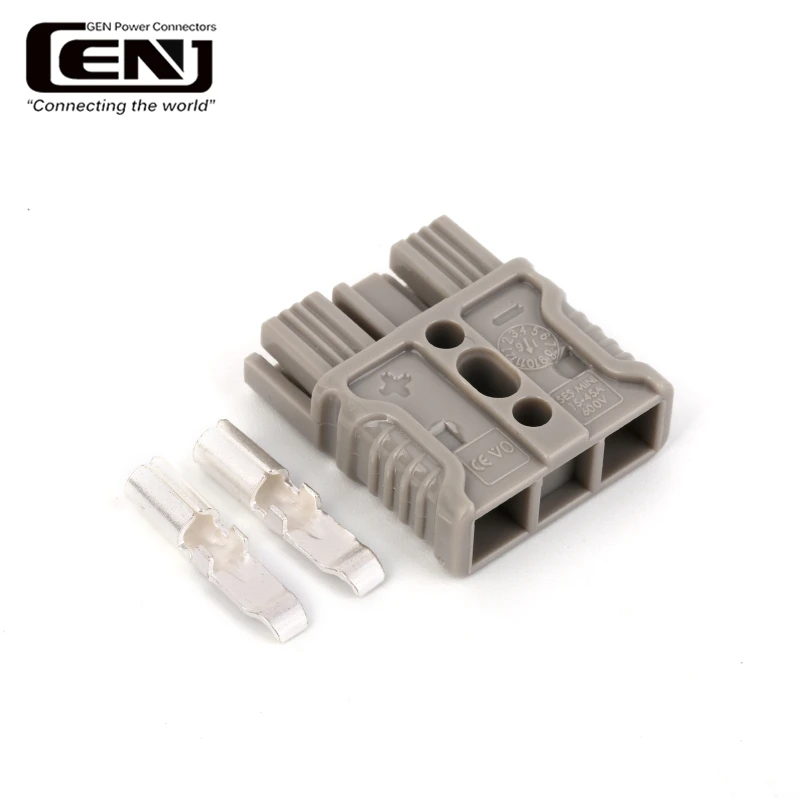

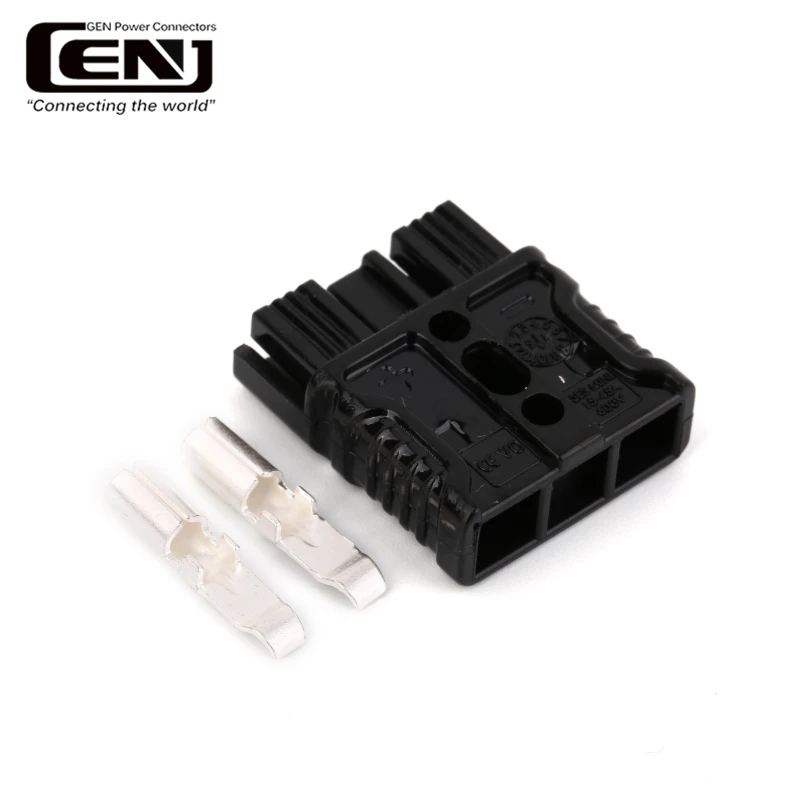

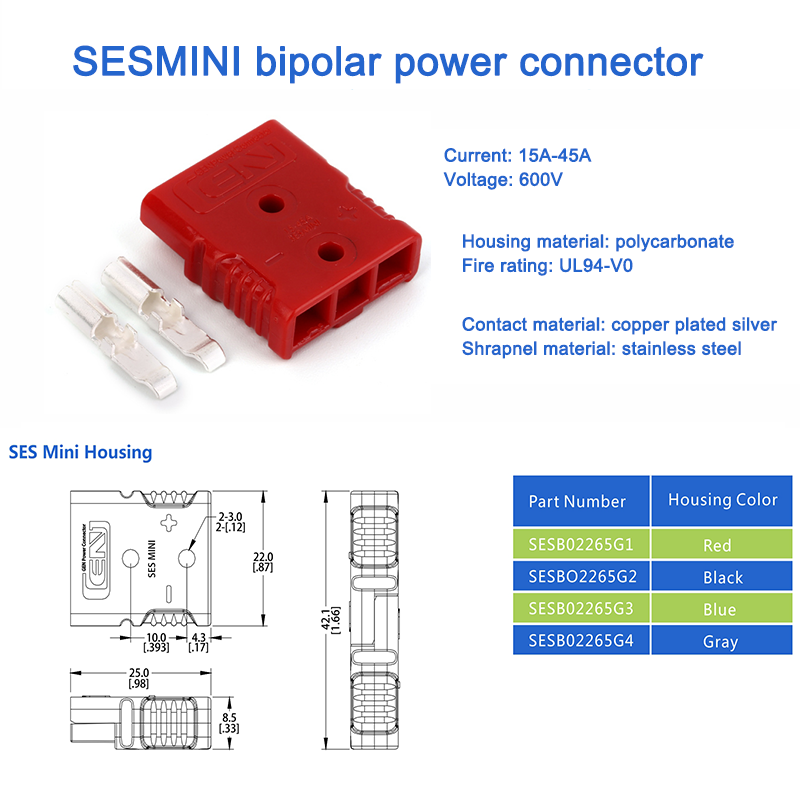

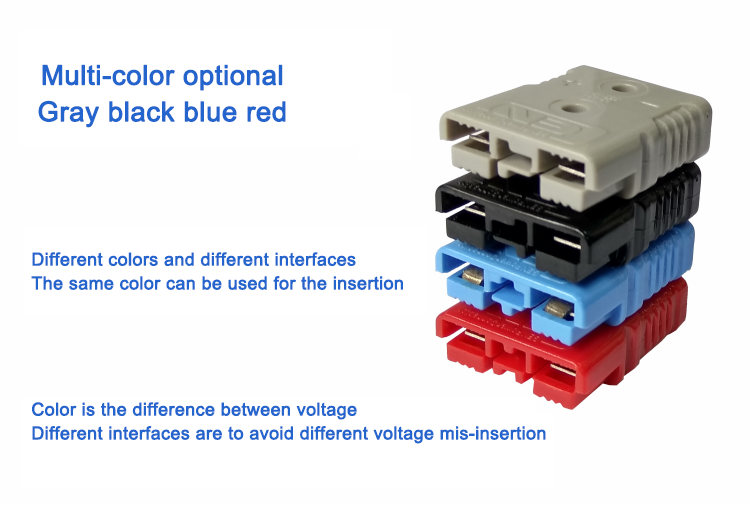

2. Plastic shell color selection
(Unipolar) color modular housing, providing intuitive identification of the correct matching connection; (bipolar) the same color can be inserted, while different color can not be inserted for the different interface design. Colored modular housings provides visual identification of proper mating connector. (Only Gray and Black can be matched).
3. About wire processing(OEM)
According to customer samples, we can provide OEM wire processing
4. Plug working life
No load (terminal insertion and removal times 10000) with load - 120V hot swap 250 times
5. Plug operating temperature range
-20°C105°C If you have special requirements, we can customize according to customer requirements
