| Rated current(Amperes) | 15-45A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
20-10AWG 0.75-5.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.175inches 4.45mm |
| AVG Contact Resistance(micro-ohms) | <500 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 25lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 15-30A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

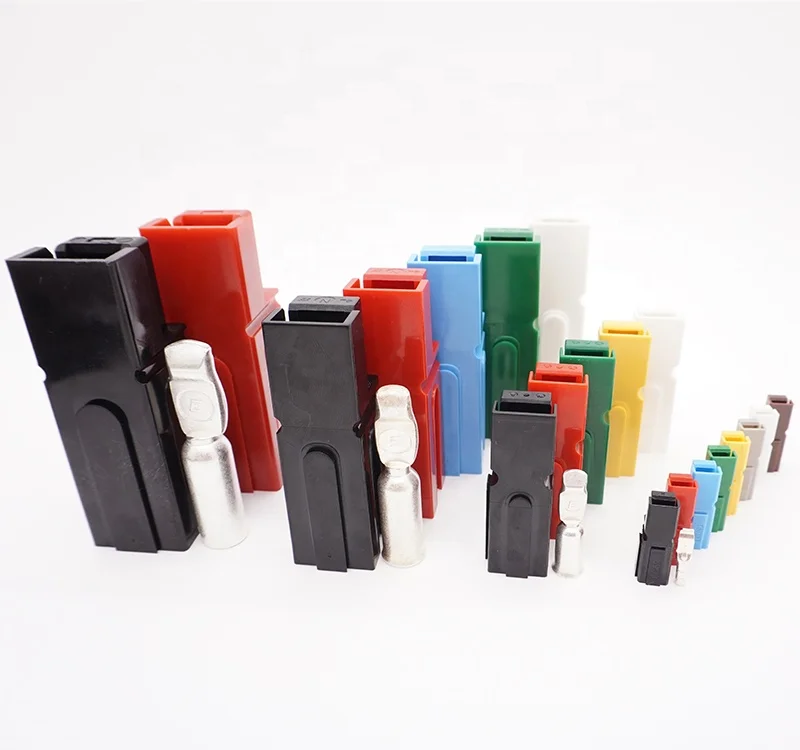

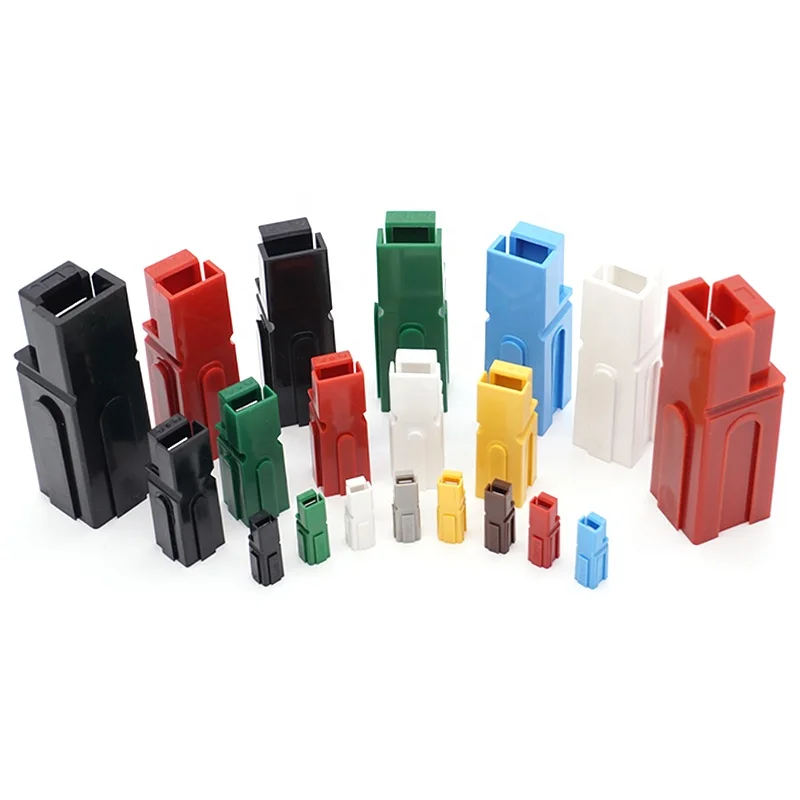

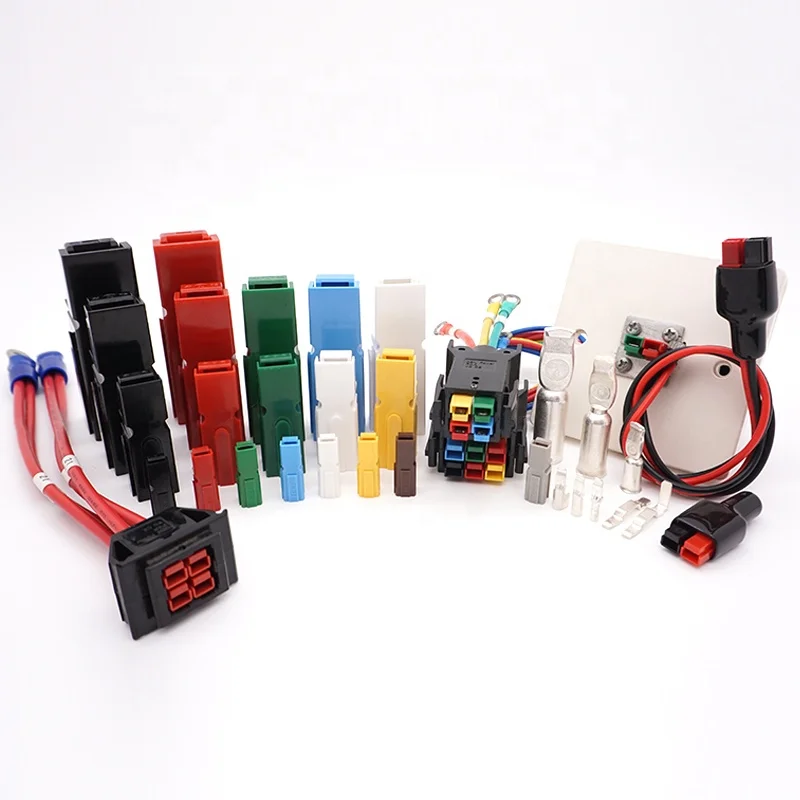

Introducing, the Electric Batteries Solar Electric Wire Connector, a reliable and efficient solution for all your power needs. This product is designed to easily connect and disconnect electrical wires, making it ideal for a variety of applications including solar panels, electric batteries, UPS power systems, and more. With a 15A, 30A, or 45A capacity and a maximum voltage rating of 600V, this single pole connector is capable of handling a wide range of power requirements. Whether you are looking to connect a small solar panel setup or a larger battery bank, the Electric Wire Connector has you covered. One of the key features of this product is its quick disconnect design, which allows for easy installation and removal of wires without the need for special tools. This makes it ideal for situations where quick and easy access to power connections is essential, such as in emergency power situations or for regular maintenance tasks. The Electric Wire Connector is also designed with durability and safety in mind. It is constructed from high-quality materials that are built to last, ensuring that your power connections remain secure and reliable over time. Additionally, this connector is rated for use in a wide range of temperatures, making it suitable for both indoor and outdoor installations. Whether you are a professional installer or a DIY enthusiast, the Electric Batteries Solar Electric Wire Connector is a must-have tool for your power needs. Its user-friendly design, high-quality construction, and versatile capacity make it a top choice for a wide range of applications. The Electric Batteries Solar Electric Wire Connector is a dependable and practical solution for all your power connection needs. With its quick disconnect design, durable construction, and versatile capacity, this product is sure to make your electrical projects easier and more efficient. Upgrade to the Electric Wire Connector today and experience the difference it can make in your power systems.
* Products are widely used in: electric vehicles (electric buses. Forklift. Electric vehicles, tractors, golf cart, sightseeing car, battery), communication power supply (UPS). Dc regulated power supply, EPS, inverter power supply and the high frequency, high frequency module charger system), electric machinery, electric wheelchair. Electric washing machine. The lawn mower, vacuum cleaners, electric forklift), medical equipment (attract machine. Decompression machine. Electric bed). | ||||
* flat wiping contact system. minimal contact resistance at high current. the wiping action cleans the contact surface during connection/disconnection. Coloured Modular enclosures, provides a visual identification of compatible connectors | ||||
* Moulded dovetail tips. Keyed connectors. assembly to prevent connection errors. with similar configurations. Designed without gender, making for quick & easy assembly and reducing the number of pieces you have to store |
1. Are you a manufacturer or a trading company
We are both an experienced manufacturer for over 10 years and a trading company. We supply for our clients over the world, including listed companies.
2. What’s your MOQ? Can I get samples first
Generally the MOQ is between 10-100 pieces, based on different products. Sure, sample order is welcome.
3. Can you provide OEM or customized services
Yes, we could provide customized services, such as wiring harness and packaging.
4. What’s the lead time
For most items, we have products in stock. We would deliver goods in 3 days. If you place a bulk order, we will advise the lead time to you.
5. How to place an order or know more about the products
You can contact us with online service, or sent an email to us, we will reply you ASAP.
