| Rated current(Amperes) | 15-45A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
20-10AWG 0.75-5.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.175inches 4.45mm |
| AVG Contact Resistance(micro-ohms) | <500 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 25lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 15-30A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |
Introducing, the Flat Wiping Contact System Ups Power Battery Connector, a reliable and efficient solution for all your power needs. This innovative connector is designed to provide a secure and stable connection between your UPS power system and battery, ensuring seamless power delivery and optimal performance.
The Flat Wiping Contact System features a flat design that allows for easy installation and removal, making it the perfect choice for quick and hassle-free maintenance. The wiping contact technology ensures a tight and corrosion-resistant connection, minimizing the risk of power interruptions and downtime.
With a durable construction and high-quality materials, this battery connector is built to last and withstand the rigors of daily use. Whether you're powering a home office, commercial facility, or industrial equipment, you can trust the Flat Wiping Contact System to deliver reliable and consistent power supply.
This battery connector is compatible with a wide range of UPS power systems and battery types, making it a versatile and cost-effective solution for any application. Whether you're replacing an existing connector or upgrading to a more reliable option, the Flat Wiping Contact System is the perfect choice.
Experience the peace of mind that comes with knowing your power supply is secure and dependable with the Flat Wiping Contact System. Say goodbye to unreliable connections and frequent maintenance issues - with this battery connector, you can trust that your power source will always be ready when you need it most.
Don't let power interruptions and unreliable connections slow you down. Invest in the Flat Wiping Contact System Ups Power Battery Connector today and enjoy the benefits of a secure and efficient power supply for years to come. Trust in the brand for quality, reliability, and performance.

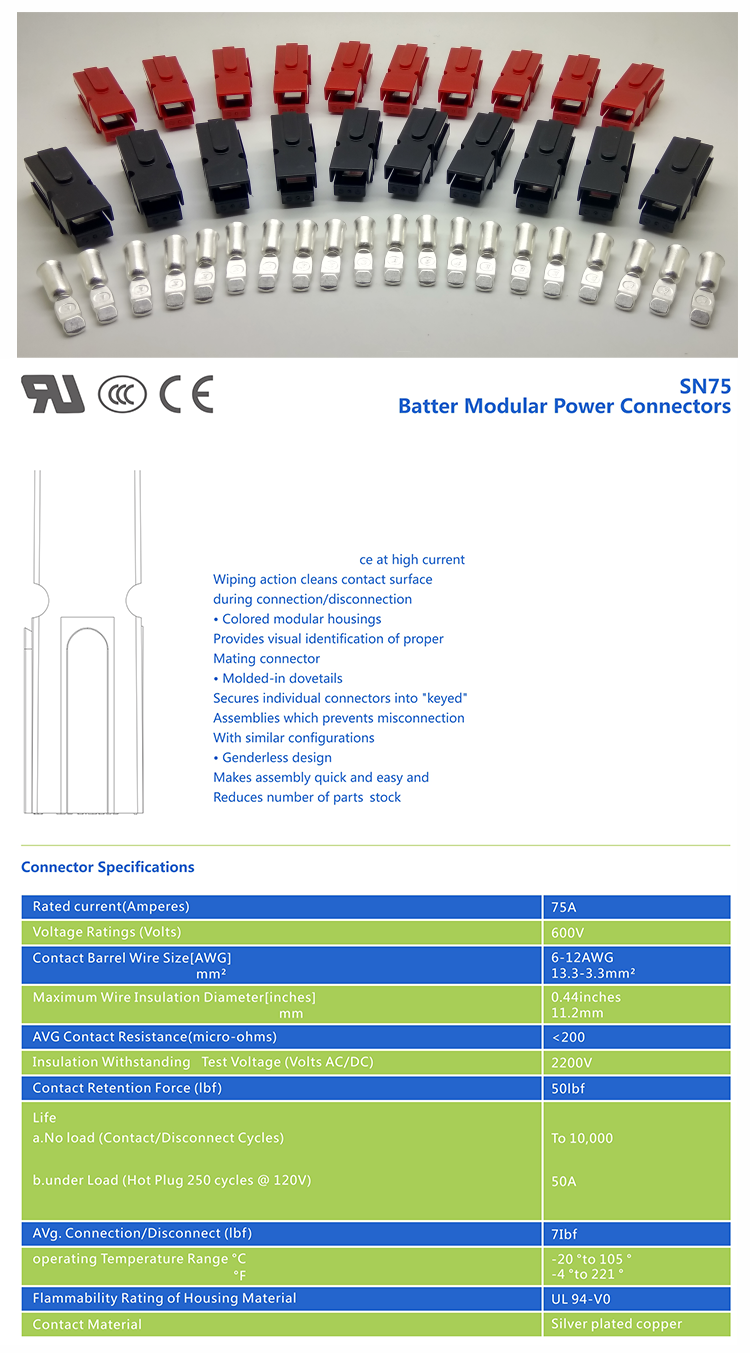

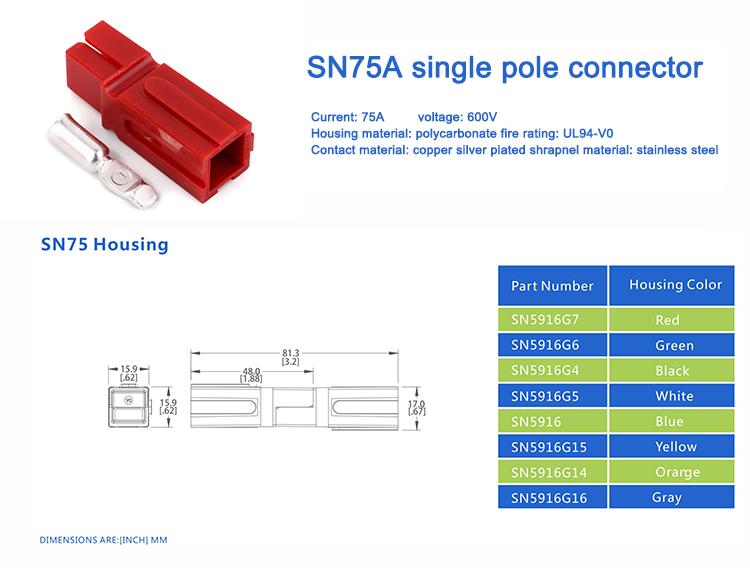

Flat wiping contact system ups power battery connector
| Contact barrel wire size | 6-12AWG 13.3-3.3mm² |
| AVG contact resistance | <200 |
| Contact material | Silver plated copper |
| Voltage rating | 600V |
| Rated current | 75A |
| Feature | makes assembly quick and easy |
| system | Flat wiping contact system |
| Color | Colored modular housings |
| Application | Electric vehicles; Medical equipment; Power supply; Electric equipment; |
| MQQ | 100 |
| Maximum wire insulation diameter | 0.44inches 11.2mm |
| Insulation withstanding test voltage | 2200v |
| Contact retention force | 50lbf |
| Avg.connection/disconnect | 7ibf |
| Operating temperature range |
-20°to105° -4°to221° |
| Flammability rating of housing material | UL94-VO |

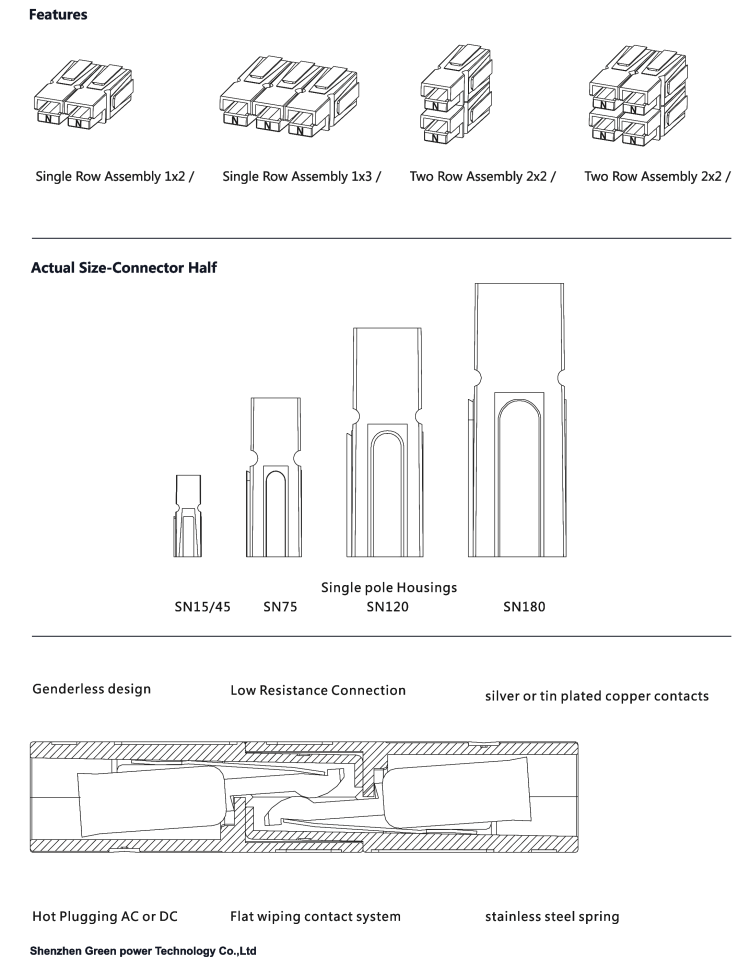

1. About selecting terminals

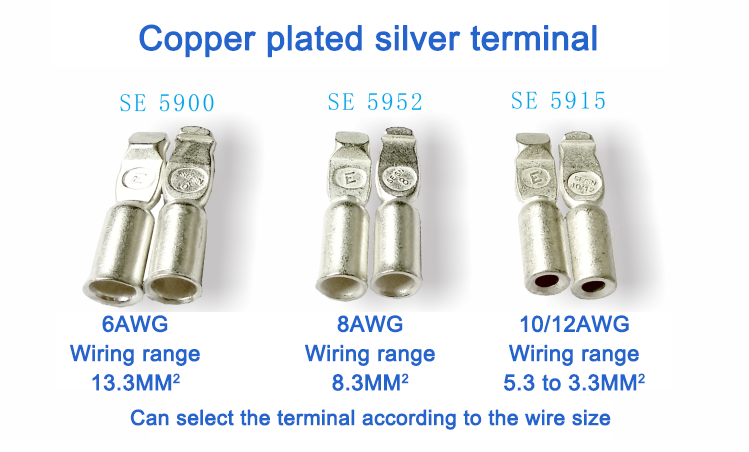

The terminals can be selected according to the wire size. Each terminal has different aperture, which is convenient for customers. For example, 50A600V plug terminals have three models, respectively, 5915 terminals can be connected to 10/12AWG wire, 5952 terminals can be connected to 8AWG wire, 5900 terminals can be connected to 6AWG wire.

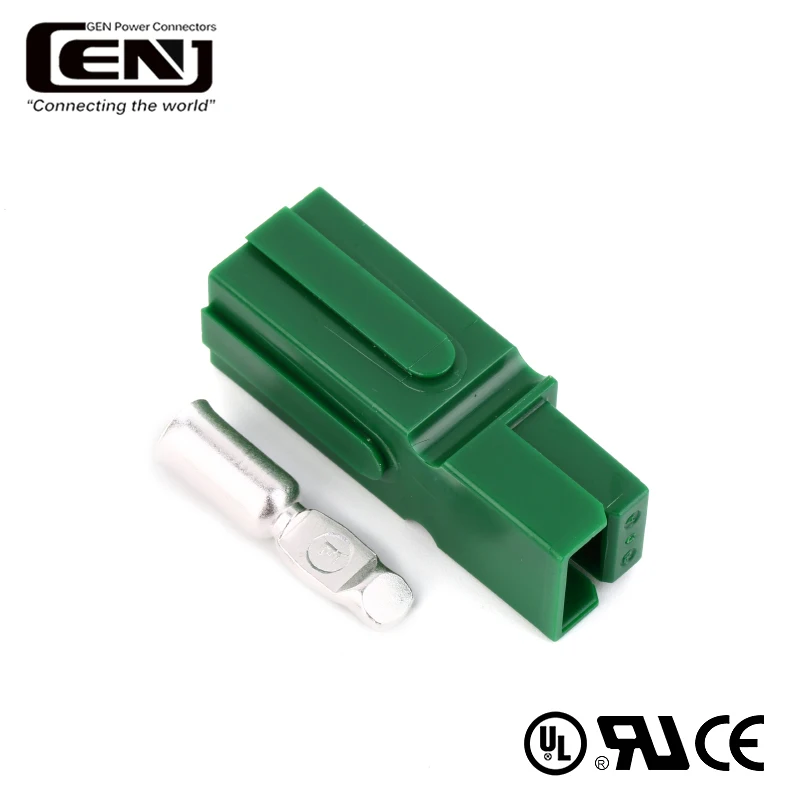

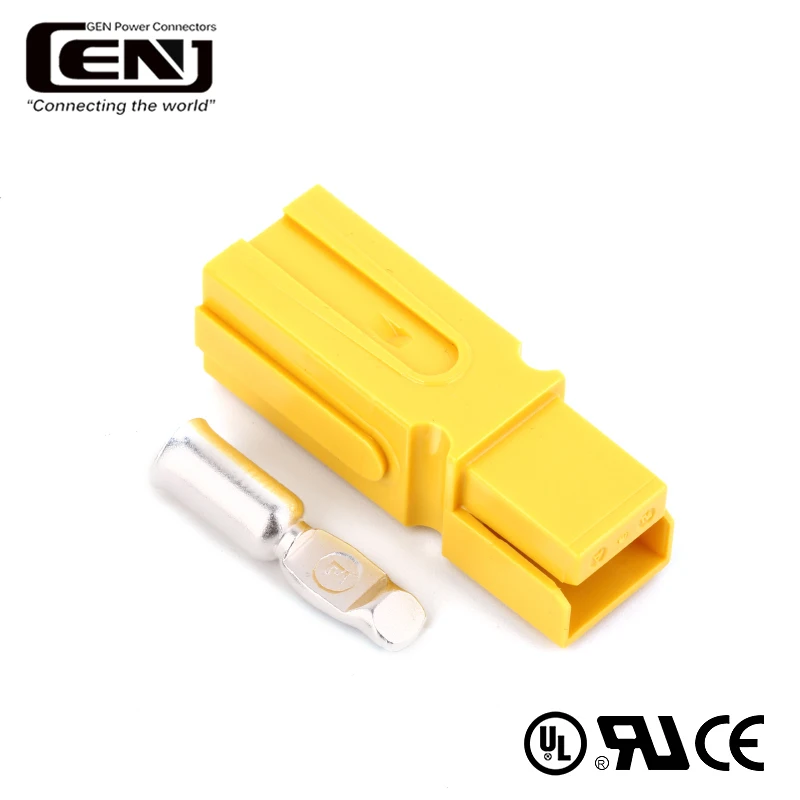

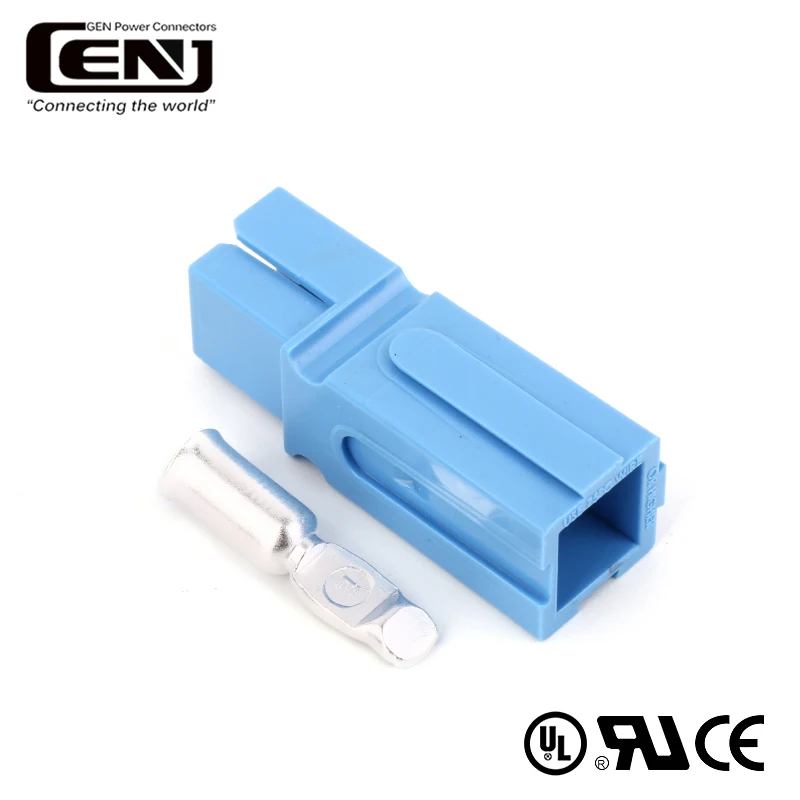

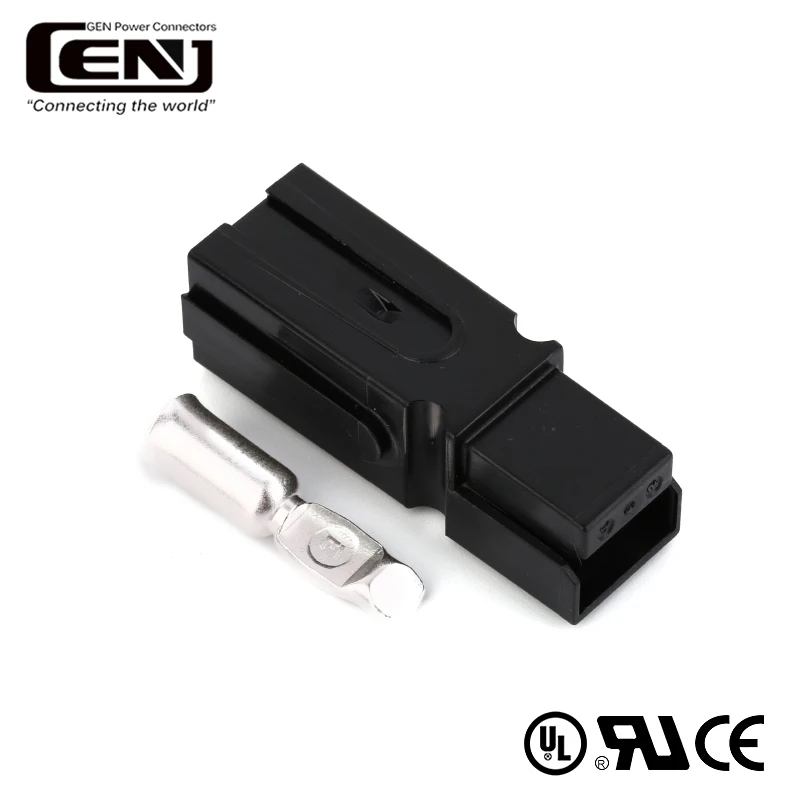

2. Plastic shell color selection

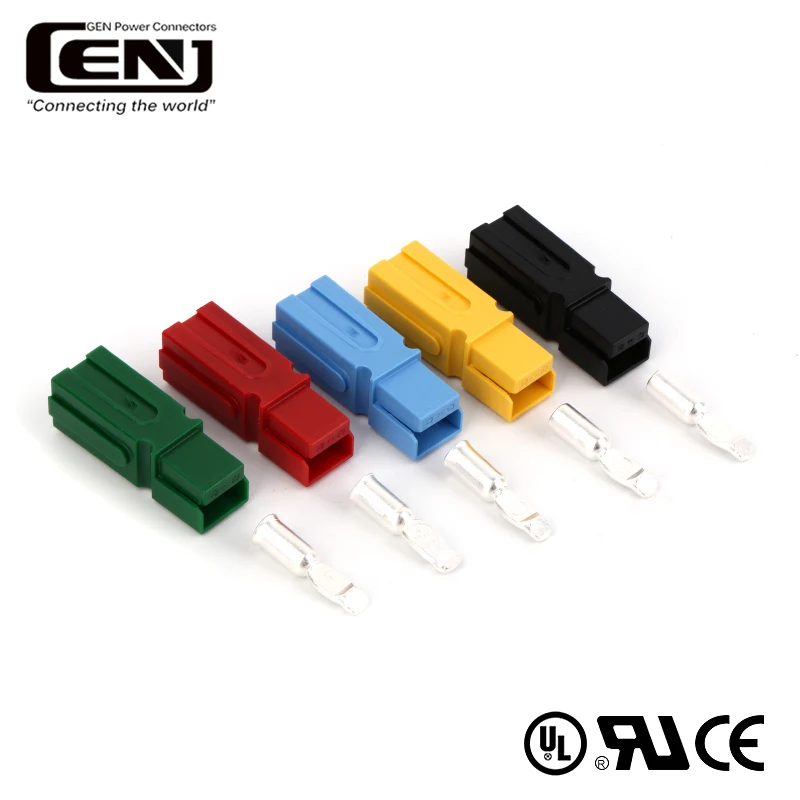

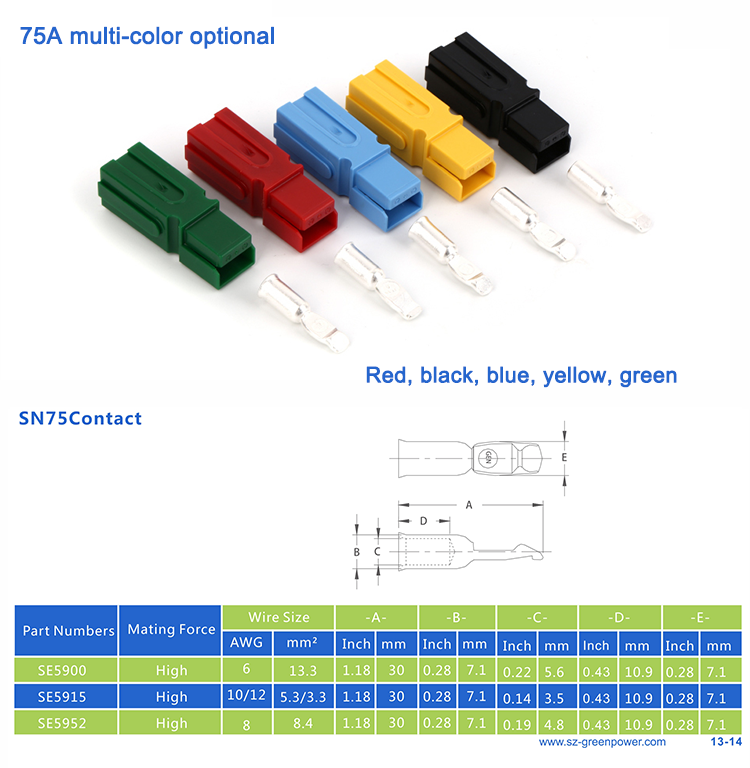

(Unipolar) color modular housing, providing intuitive identification of the correct matching connection; (bipolar) the same color can be inserted, while different color can not be inserted for the different interface design. Colored modular housings provides visual identification of proper mating connector. (Only Gray and Black can be matched).
3. About wire processing(OEM)
According to customer samples, we can provide OEM wire processing
4. Plug working life
No load (terminal insertion and removal times 10000) with load - 120V hot swap 250 times
5. Plug operating temperature range
-20°C105°C If you have special requirements, we can customize according to customer requirements
