| Rated current(Amperes) | 50A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
6-12AWG 13.3-3.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.44inches 11.2mm |
| AVG Contact Resistance(micro-ohms) | 200 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 50lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 50A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

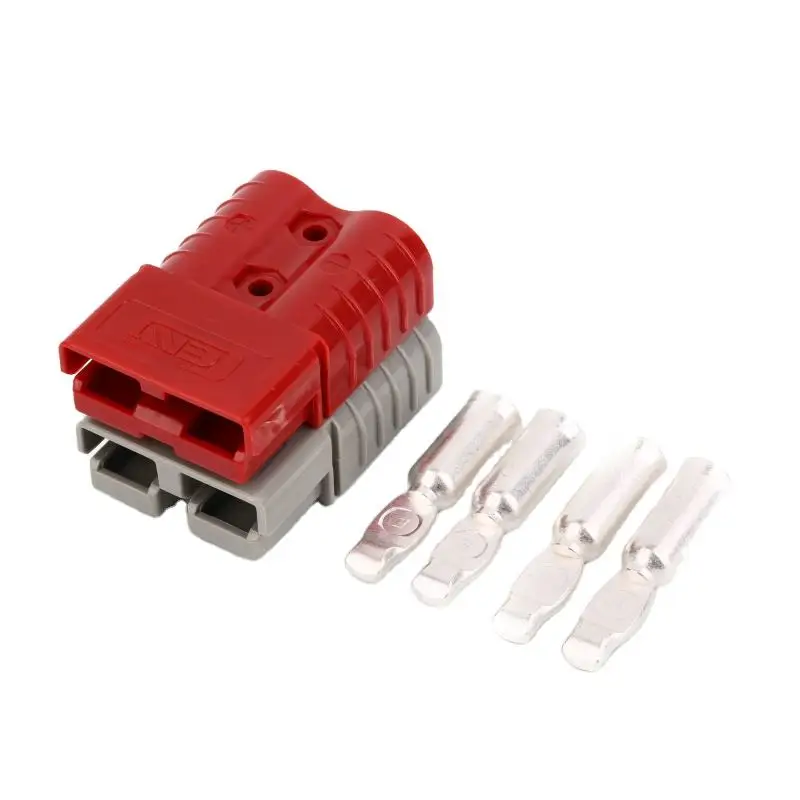

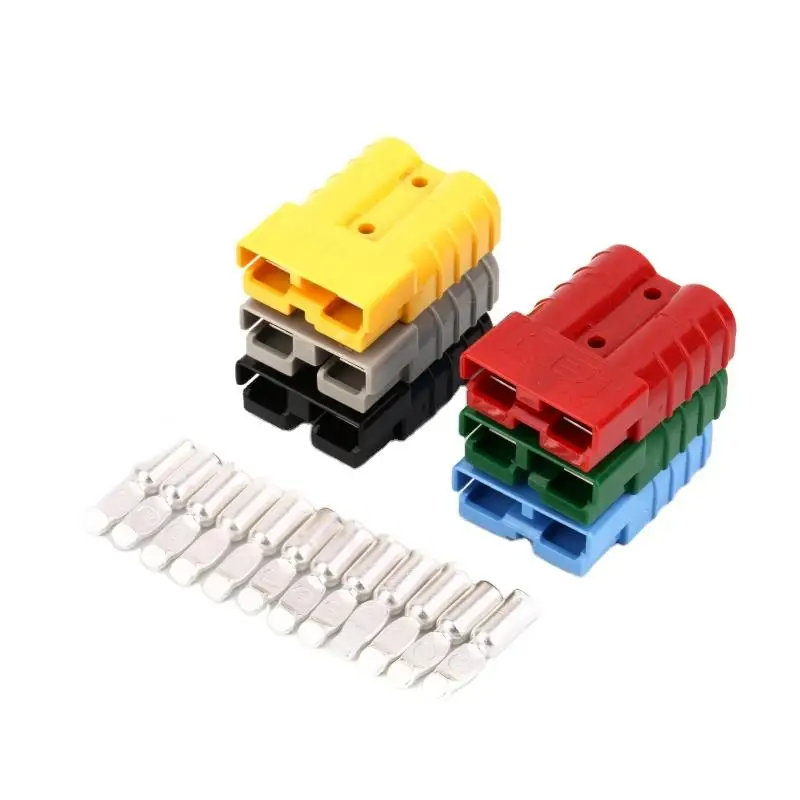

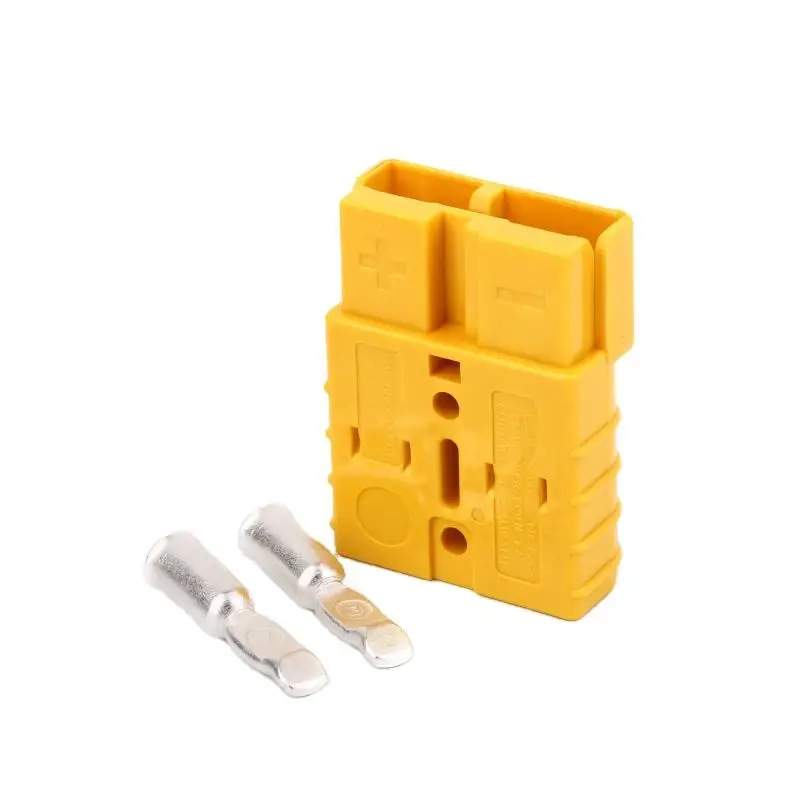

The Battery Connector is a high-quality, reliable option for anyone in need of a durable battery charging connector plug. Suitable for use with 14-6AWG wire sizes, this connector can handle high current levels of 50A, 120A, 175A, and 350A, making it versatile enough for a range of applicationsCrafted from durable materials, this Andersons gray connector plug is built to last with a 600V rating that ensures safe and efficient power transfer. Whether you're using it for automotive purposes, marine applications, or any other electrical project, you can trust that the Battery Connector will deliver consistent performance.Installation is quick and easy, thanks to the user-friendly design of this connector plug. Simply strip the wire, insert it into the appropriate slot, and secure it in place for a reliable connection. The color-coded design helps to prevent confusion and ensures that you're always connecting the right wires.With the Battery Connector, you can rest assured that your electrical connections are secure and reliable. This plug is designed to withstand the rigors of regular use, making it a durable choice for all of your power transfer needs. Whether you're charging batteries, powering electrical components, or any other task that requires a secure connection, this connector plug has you covered.The brand is known for producing high-quality electrical components that deliver exceptional performance and reliability. When you choose the Battery Connector, you're choosing a trusted name in the industry that you can rely on for all of your power transfer needs.The Battery Connector 14-6AWG 50A/120A/175A/350A 600V High Current Andersons Gray Battery Charging Connector Plug is a top-notch option for anyone in need of a durable, reliable connector plug. With its high current capabilities, durable construction, and user-friendly design, this connector plug is sure to meet all of your electrical connection needs with ease. Choose the Battery Connector for power transfer you can trust.
1. Are you a manufacturer or a trading company
We are both an experienced manufacturer for over 10 years and a trading company. We supply for our clients over the world, including listed companies
2. What’s your MOQ, Can I get samples first
Generally the MOQ is between 10-100 pieces, based on different products. Sure, sample order is welcome.
3. Can you provide OEM or customized services
Yes, we could provide customized services, such as wiring harness and packaging
4. What’s the lead tim
For most items, we have products in stock. We would deliver goods in 3 days. If you place a bulk order, we will advise the lead time to you
5. How to place an order or know more about the products
You can contact us with online service, or sent an email to us, we will reply you ASAP
