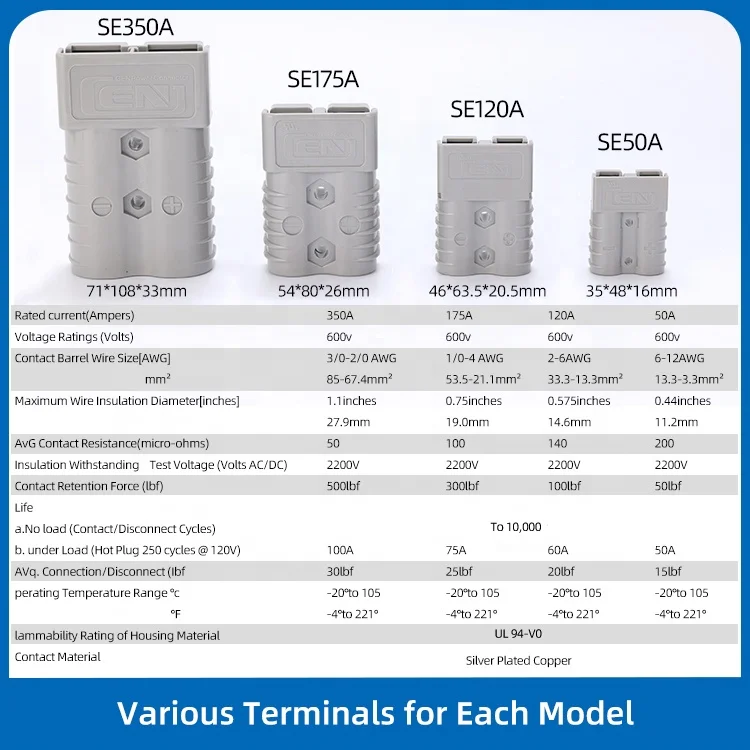

| Rated current(Amperes) | 50A |
| Voltage Ratings(Volts) | 600V |

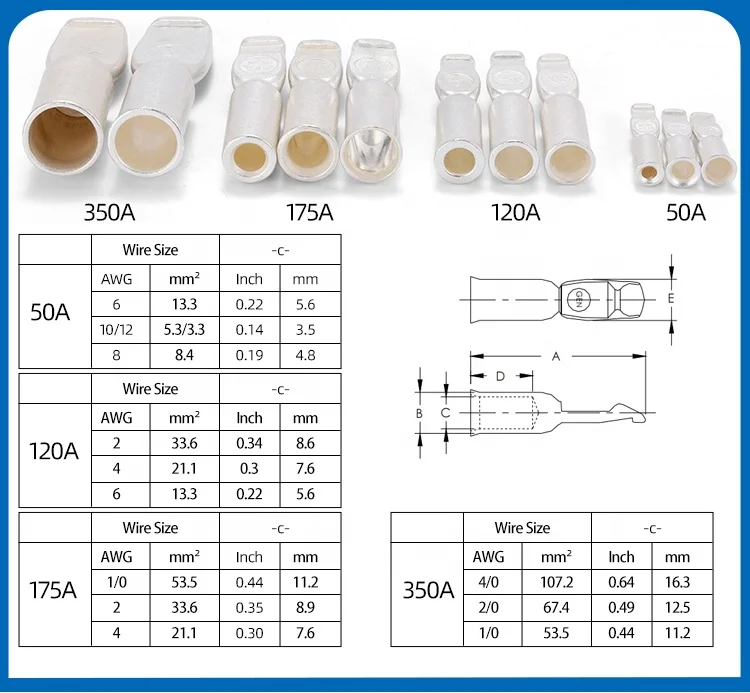

| Contact Barrel Wire Size[AWG]mm |
6-12AWG 13.3-3.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.44inches 11.2mm |
| AVG Contact Resistance(micro-ohms) | 200 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 50lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 50A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

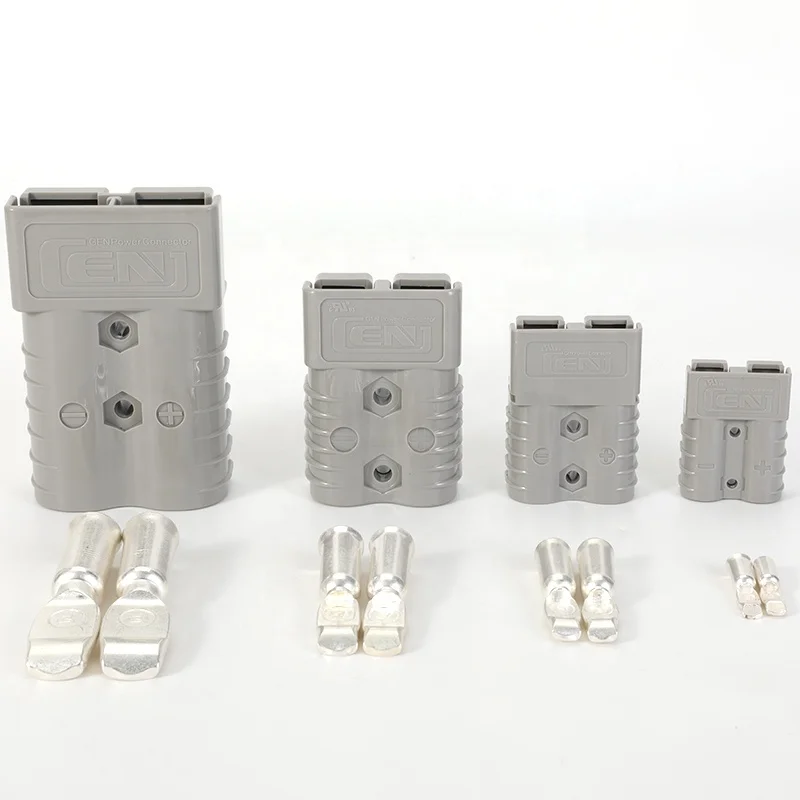

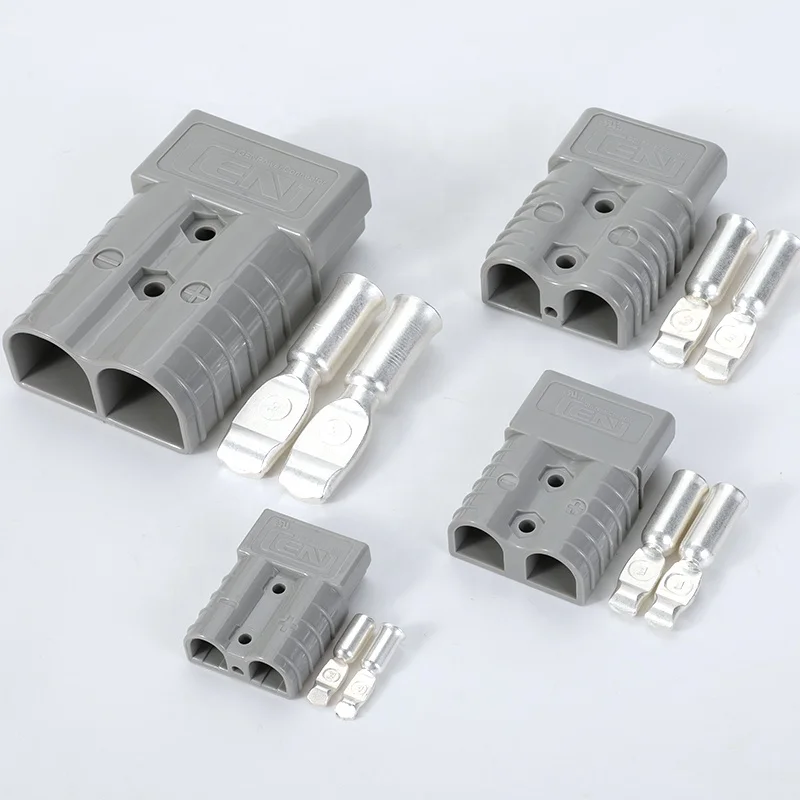

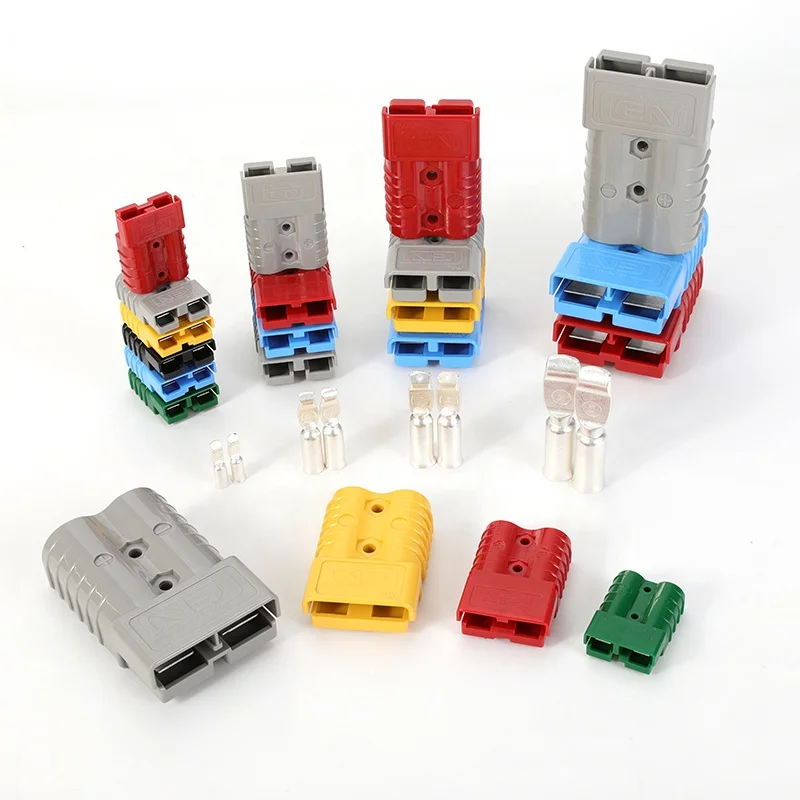

Introducing, the Customizable Red Grey Colors 600v 350A 175A 120A 50A 40A 2pin Power Supply Electrical Auto Battery Plugs Socket Connectors. This top-of-the-line product from is designed to provide reliable and efficient power supply for a variety of automotive applications.Made with high-quality materials, this power supply connector is built to last and withstand the rigors of daily use. The customizable red and grey colors give you the flexibility to match your vehicle's color scheme or personal preferences. Whether you need to power your car audio system, lights, or other accessories, these connectors are up to the task.With a maximum voltage rating of 600v and current ratings ranging from 40A to 350A, this power supply connector is suitable for a wide range of power needs. The 2pin design makes it easy to connect and disconnect, providing a secure and reliable connection every time.Whether you're a DIY enthusiast or a professional mechanic, these socket connectors are easy to install and use. Simply follow the included instructions and you'll have your power supply up and running in no time. The durable construction ensures that these connectors will provide long-lasting performance for years to come.Don't settle for subpar power supply connectors that can't handle the demands of your vehicle. Choose the Customizable Red Grey Colors 600v 350A 175A 120A 50A 40A 2pin Power Supply Electrical Auto Battery Plugs Socket Connectors for reliable and efficient power supply in any automotive application. Upgrade your power supply system today and experience the difference that quality connectors can make.
1. Are you a manufacturer or a trading company
We are both an experienced manufacturer for over 10 years and a trading company. We supply for our clients over the world, including listed companies.
2. What’s your MOQ? Can I get samples first
Generally the MOQ is between 10-100 pieces, based on different products. Sure, sample order is welcome.
3. Can you provide OEM or customized services
Yes, we could provide customized services, such as wiring harness and packaging.
4. What’s the lead time
For most items, we have products in stock. We would deliver goods in 3 days. If you place a bulk order, we will advise the lead time to you.
5. How to place an order or know more about the products
You can contact us with online service, or sent an email to us, we will reply you ASAP.
