| Rated current(Amperes) | 50A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
6-12AWG 13.3-3.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.44inches 11.2mm |
| AVG Contact Resistance(micro-ohms) | 200 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 50lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 50A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

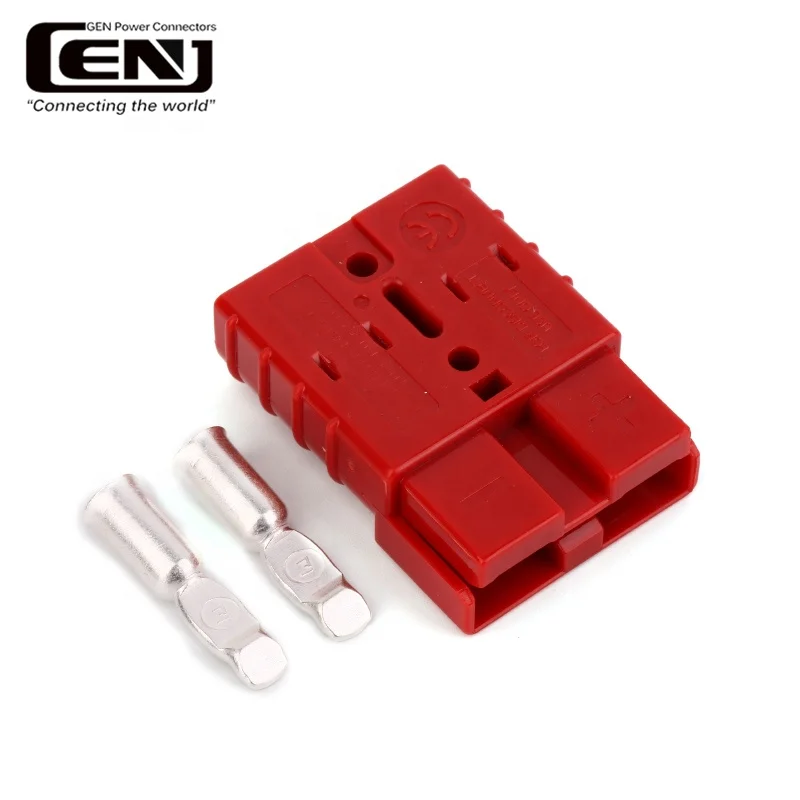

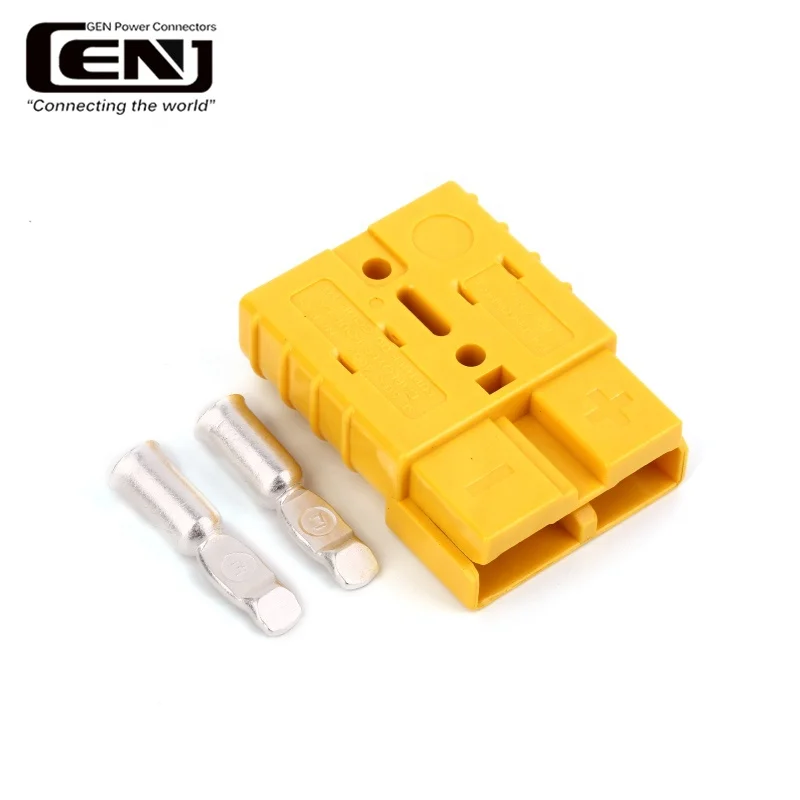

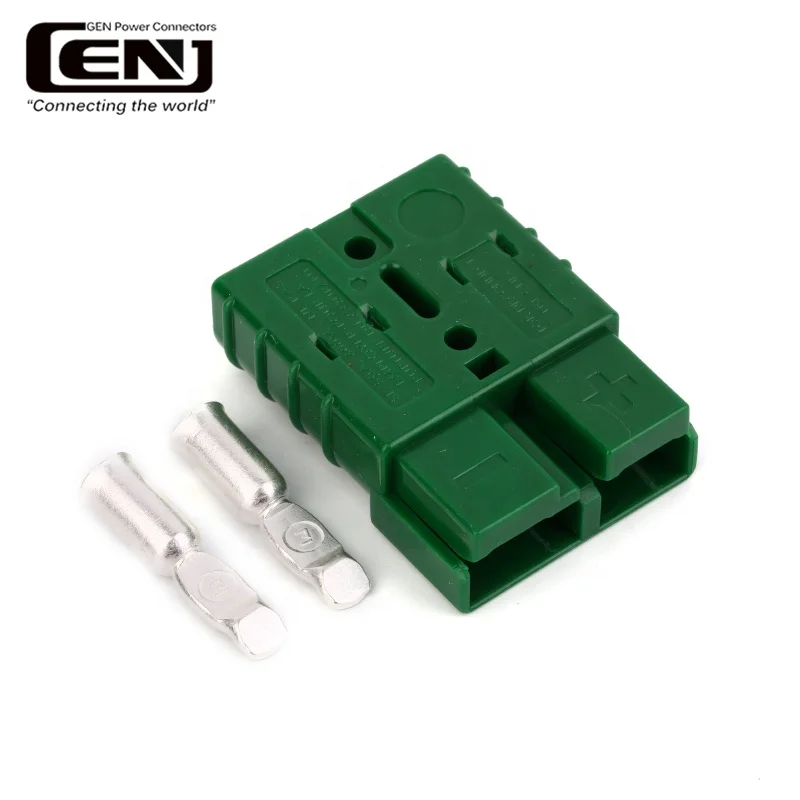

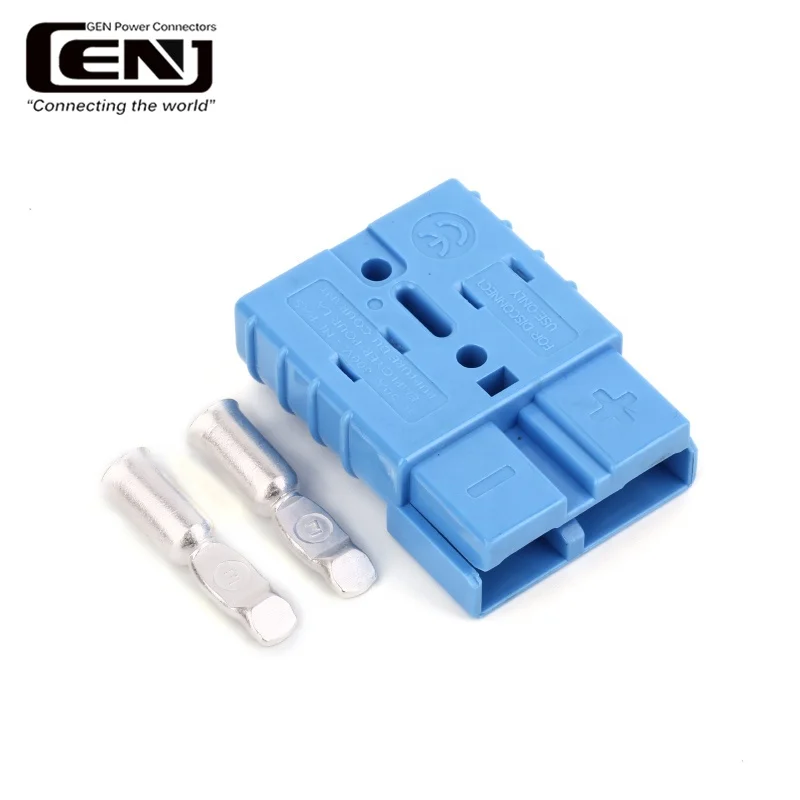

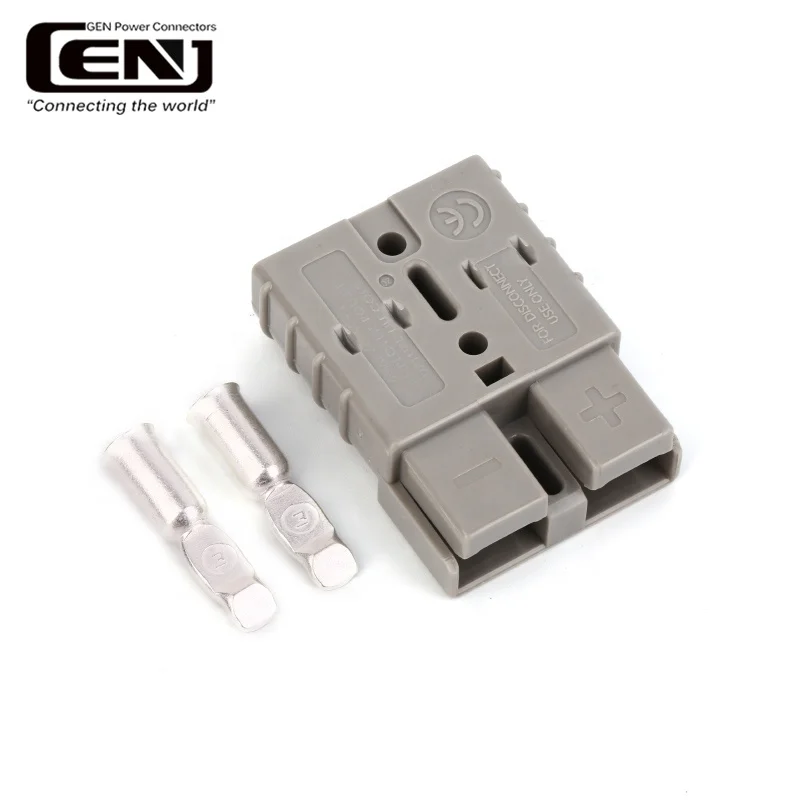

Introducing, the High Quality 50A 600V Power Voltage Battery Terminal Connector, the perfect solution for all your power connection needs. Whether you're working on a car, boat, RV, or any other electrical system, this connector will provide a secure and reliable link between your battery and your device.Rated for up to 50 amps and 600 volts, this connector is built to handle even the most demanding power requirements. Its durable construction ensures that it can withstand the rigors of daily use, while its high-quality materials ensure reliable performance over the long haul.The Battery Terminal Connector features a secure screw-on design that ensures a tight and secure connection every time. This eliminates the risk of loose connections or electrical arcing, providing peace of mind and ensuring a safe and stable power supply for your devices.Installing the Battery Terminal Connector is quick and easy, thanks to its user-friendly design. Simply strip the ends of your wires, insert them into the connector, and tighten the screws for a secure and reliable connection. No special tools or equipment are required, making installation a breeze for even the most novice users.In addition to its exceptional performance, the Battery Terminal Connector also boasts a sleek and professional appearance. Its clean and modern design will complement any installation, whether you're working on a vehicle, a boat, or an industrial machine.With the High Quality 50A 600V Power Voltage Battery Terminal Connector, you can rest assured that your power connection needs are taken care of. Its durable construction, reliable performance, and easy installation make it a must-have for any electrical system.Don't settle for subpar connectors that could put your devices at risk. Upgrade to the Battery Terminal Connector and enjoy peace of mind knowing that your power supply is secure and reliable. Get yours today and experience the difference that quality makes.
1. Are you a manufacturer or a trading company
We are both an experienced manufacturer for over 10 years and a trading company. We supply for our clients over the world, including listed companies.
2. What’s your MOQ? Can I get samples first
Generally the MOQ is between 10-100 pieces, based on different products. Sure, sample order is welcome.
3. Can you provide OEM or customized services
Yes, we could provide customized services, such as wiring harness and packaging.
4. What’s the lead time
For most items, we have products in stock. We would deliver goods in 3 days. If you place a bulk order, we will advise the lead time to you.
5. How to place an order or know more about the products
You can contact us with online service, or sent an email to us, we will reply you ASAP.
