| Rated current(Amperes) | 120A |
| Voltage Ratings (Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
2-8AWG 33.6-8.4mm |
| Maximum Wire Insulation Diameter[inches] mm |
0.60inches 15.2mm |
| AVG Contact Resistance(micro-ohms) | 140 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(Ibf) | 100lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 60A |
| AVg.Connection/Disconnect(lbf) | 8lbf |
| operating Temperature Range℃"℉ |
-20°to 105° -4 °to 221 |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

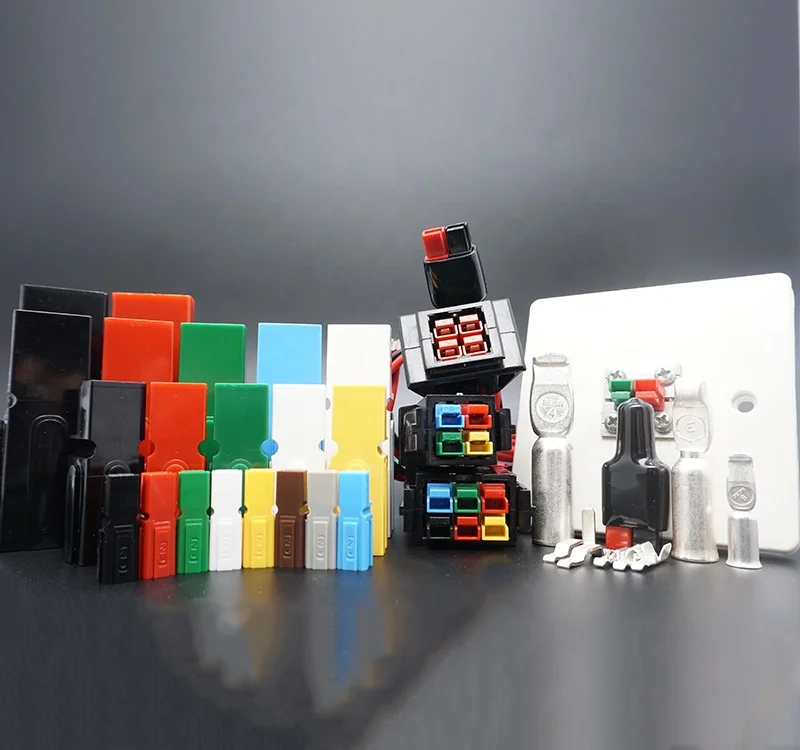

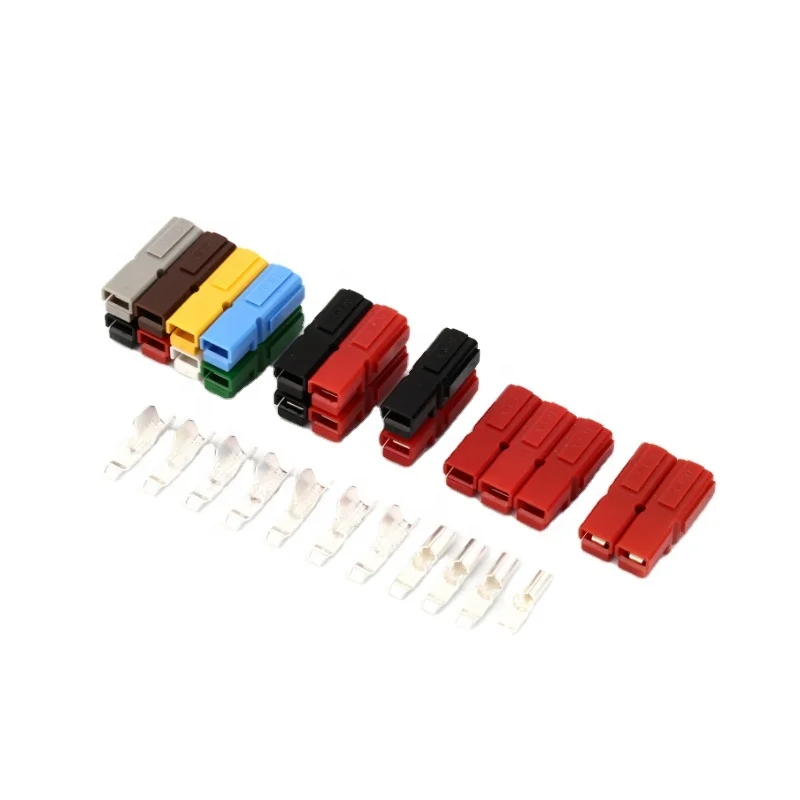

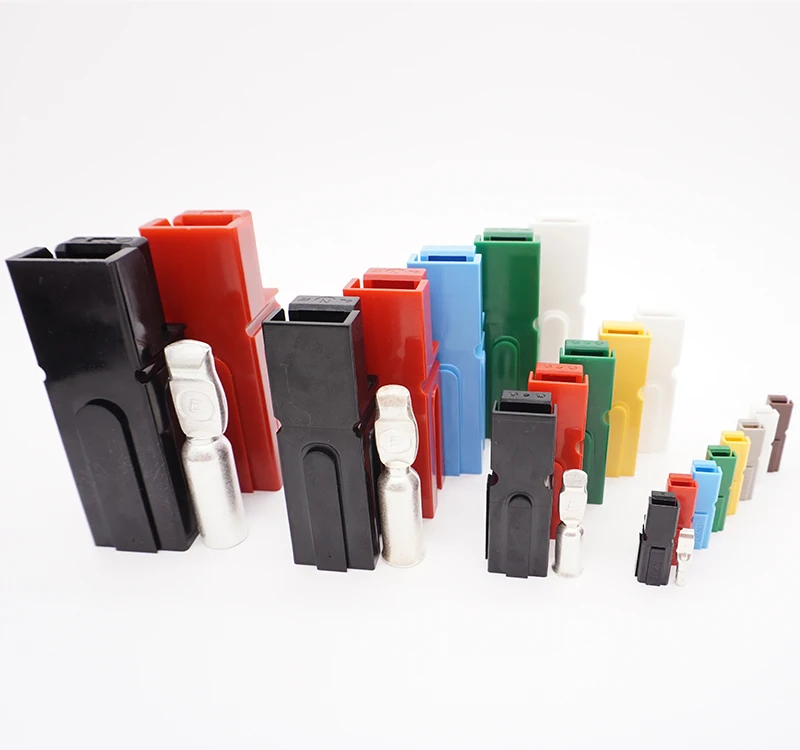

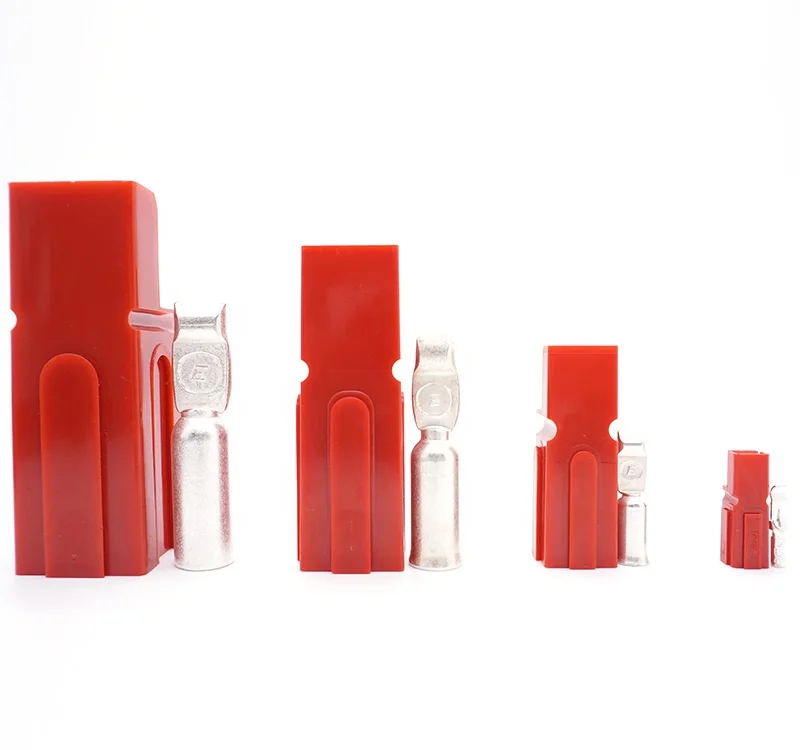

Introducing, the Anderson PP style High Current Power Battery Terminal Connector, the perfect solution for all your power needs. Whether you are using it in a forklift, drone, car, or any other high current application, this connector is designed to handle the job with ease. With a voltage rating of 600v and amperage options of 15a, 30a, 45a, 75a, and 120a, this connector is built to deliver reliable and efficient power transfer. Made with high-quality materials and precision engineering, it ensures stable and secure connections for your electrical systems. The Anderson PP style design allows for easy and quick installation, saving you time and hassle. The terminals are color-coded for easy identification and are made to withstand high temperatures and harsh environments. They are also designed to prevent accidental disconnection, providing a secure and dependable power source. Whether you are a professional in the automotive industry or a DIY enthusiast, these connectors are versatile and can be used in a wide range of applications. From powering up your forklift on the job site to keeping your drone in the air, the Anderson PP style High Current Power Battery Terminal Connector is the ultimate choice for reliable power connections. Don't settle for mediocre connectors that can't handle the load. Trust in the quality and performance of the Anderson PP style High Current Power Battery Terminal Connector for all your power needs. With its durable construction and efficient design, you can count on it to deliver consistent power whenever you need it. Upgrade your power connections today with the Anderson PP style High Current Power Battery Terminal Connector. Experience the difference in quality and performance that only a premium connector can provide. Order yours now and take your power supply to the next level.
* Products are widely used in: electric vehicles (electric buses. Forklift. Electric vehicles, tractors, golf cart, sightseeing car, battery), communication power supply (UPS). Dc regulated power supply, EPS, inverter power supply and the high frequency, high frequency module charger system), electric machinery, electric wheelchair. Electric washing machine. The lawn mower, vacuum cleaners, electric forklift), medical equipment (attract machine. Decompression machine. Electric bed). | ||||
* flat wiping contact system. minimal contact resistance at high current. the wiping action cleans the contact surface during connection/disconnection. Coloured Modular enclosures, provides a visual identification of compatible connectors | ||||
* Moulded dovetail tips. Keyed connectors. assembly to prevent connection errors. with similar configurations. Designed without gender, making for quick & easy assembly and reducing the number of pieces you have to store |
