| Rated current(Amperes) | 15-45A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
20-10AWG 0.75-5.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.175inches 4.45mm |
| AVG Contact Resistance(micro-ohms) | <500 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 25lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 15-30A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |
Introducing, the High Quality Export Power Pin Connector, the solution for all your power connection needs. Made with premium quality materials, this bipolar battery connector is designed to provide a secure and reliable connection for high power applications.
With a current rating of 15-45A, this connector is perfect for use in a wide range of electronic devices, from industrial equipment to automotive applications. Whether you need to power up your machinery or charge your electric vehicle, the Power Pin Connector is up to the task.
The connector features a sleek and durable design, with a compact size that makes it easy to install in tight spaces. Its high quality construction ensures a stable and low resistance connection, reducing the risk of power loss and ensuring maximum efficiency.
What sets the Power Pin Connector apart from other connectors on the market is its export-grade quality. Built to meet international standards, this connector is designed to withstand the rigors of heavy duty use, making it the ideal choice for industrial and commercial applications.
Whether you are looking to replace a worn out connector or upgrade to a more reliable option, the Power Pin Connector is the perfect solution. Its versatility and quality make it a must-have for any business or individual looking for a high quality power connector.
The High Quality Export Power Pin Connector is the ultimate choice for all your power connection needs. With its premium quality construction, high current rating, and export-grade durability, this connector is sure to provide a reliable and stable connection for years to come. Upgrade to the Connector today and experience the difference in quality and performance.

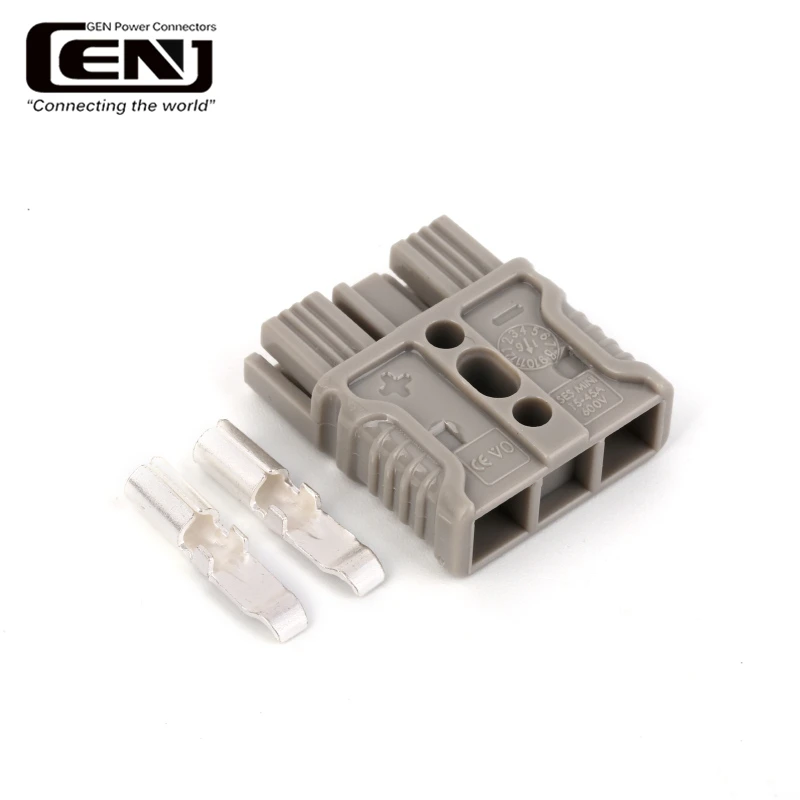

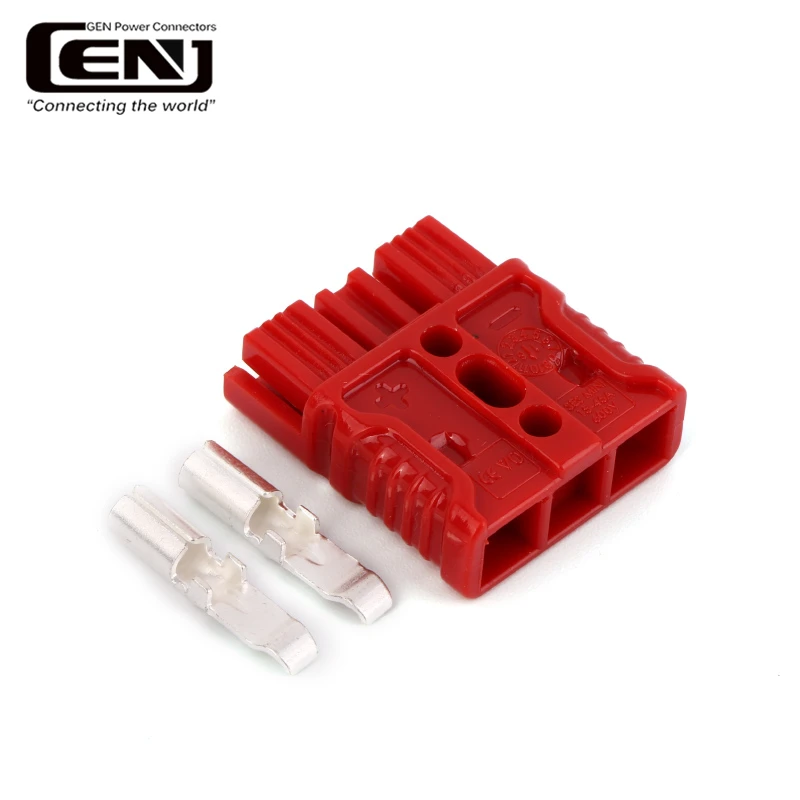

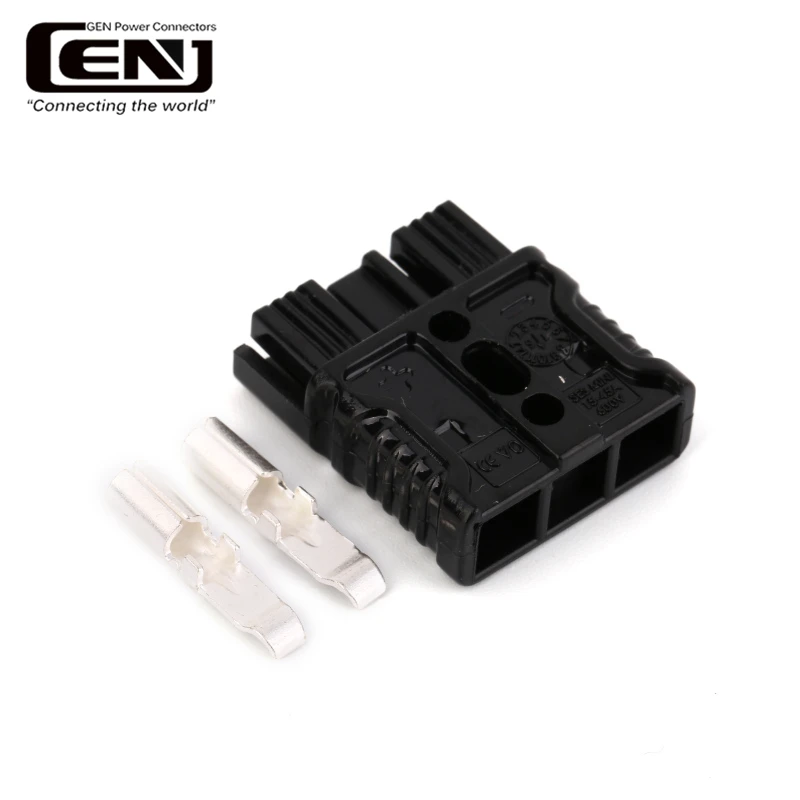

Export quality bipolar 15-45A power pin connector
| Application | Electric vehicles;Medical equipment;Power supply;Electric equipment; |
| Maximum wire insulation diameter | 0.175inches 4.45mm |
| Insulation withstanding test voltage | 2200v |
| Contact retention force | 25lbf |
| Avg. connection/disconnect | 10lbf |
| Operating temperature range |
-20°to105° -4°to221° |
| Flammability rating of housing material | UL94-VO |

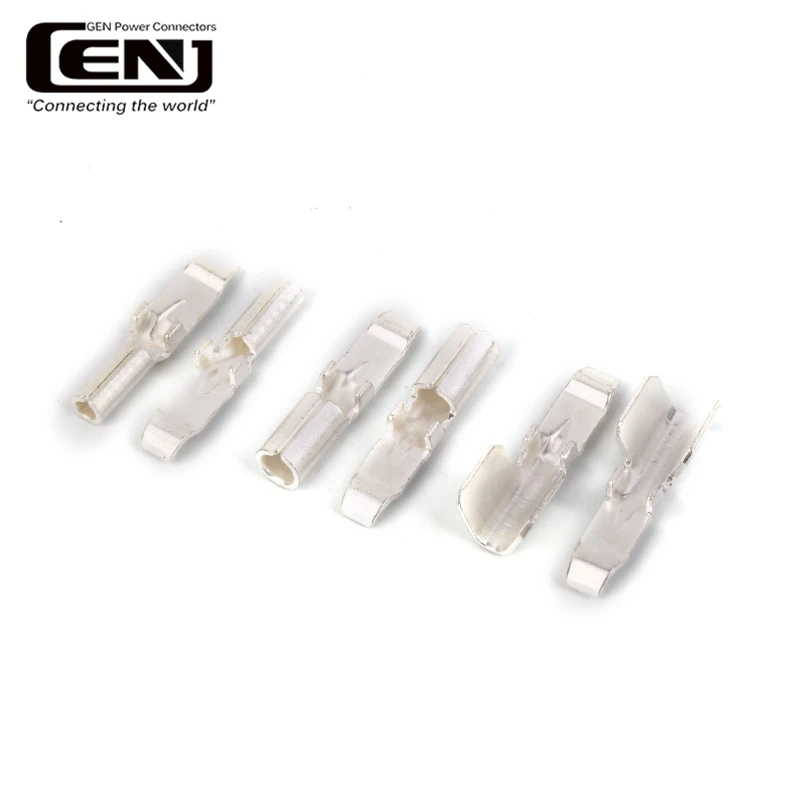

1. About selecting terminals
The terminals can be selected according to the wire size. Each terminal has different aperture, which is convenient for customers. For example, 50A600V plug terminals have three models, respectively, 5915 terminals can be connected to 10/12AWG wire, 5952 terminals can be connected to 8AWG wire, 5900 terminals can be connected to 6AWG wire.
2. Plastic shell color selection

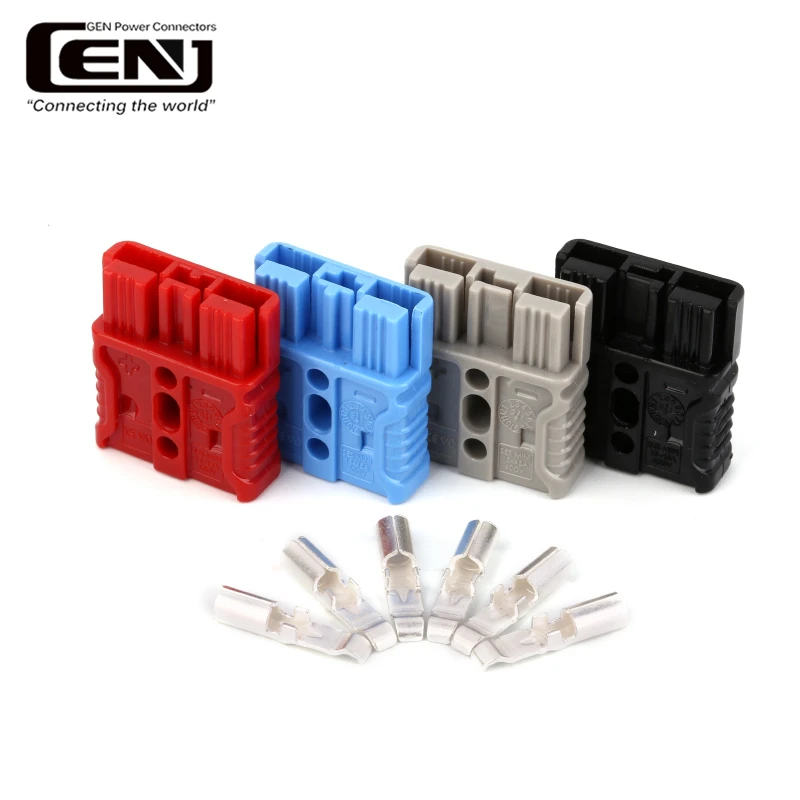

(Unipolar) color modular housing, providing intuitive identification of the correct matching connection; (bipolar) the same color can be inserted, while different color can not be inserted for the different interface design. Colored modular housings provides visual identification of proper mating connector. (Only Gray and Black can be matched).
3. About wire processing(OEM)
According to customer samples, we can provide OEM wire processing
4. Plug working life
No load (terminal insertion and removal times 10000) with load - 120V hot swap 250 times
5. Plug operating temperature range
-20°C105°C If you have special requirements, we can customize according to customer requirements
