| Rated current(Amperes) | 50A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
6-12AWG 13.3-3.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.44inches 11.2mm |
| AVG Contact Resistance(micro-ohms) | 200 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 50lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 50A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

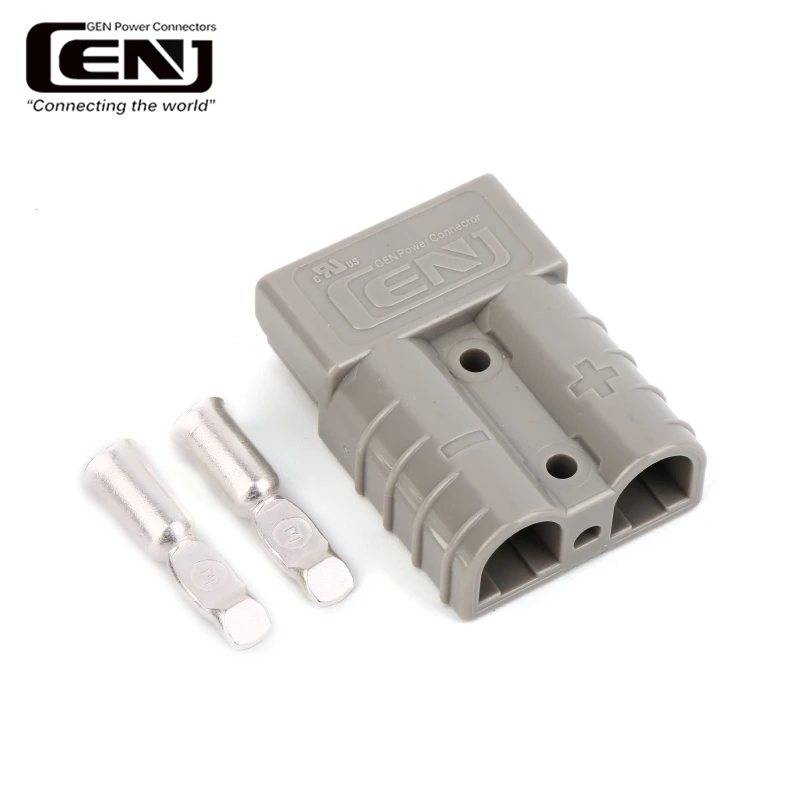

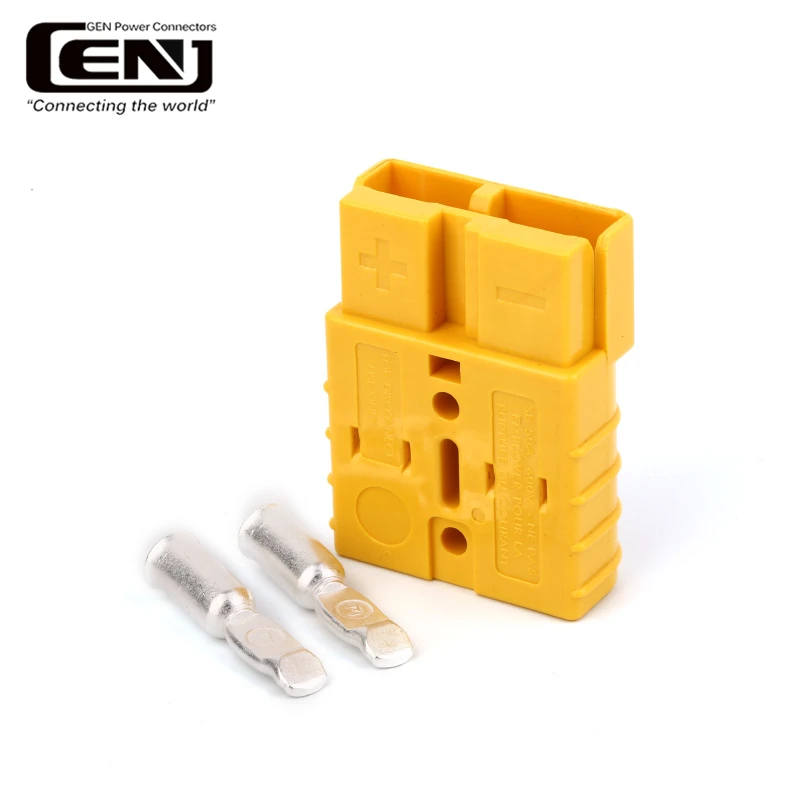

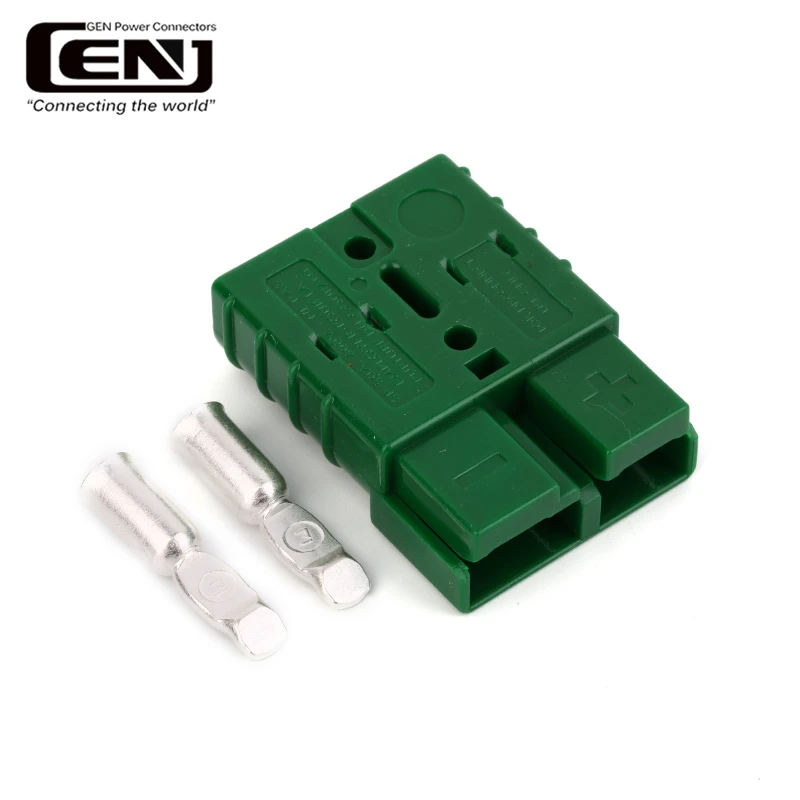

Introducing, the High Quality SE50A 600V Power Connector, the ideal choice for all your battery connection needs. This 2-pin terminal is designed to handle up to 50A of current, making it perfect for a wide range of applications.
Manufactured by a leading factory supplier, you can trust in the durability and reliability of this power connector. The SE50A is built to last, with high-quality materials and precision engineering ensuring a long lifespan and reliable performance.
Whether you're connecting batteries in a vehicle, powering up a solar system, or any other electrical application, the SE50A is up to the task. Its 600V rating means you can rely on it to handle high voltages without any issues, providing a safe and secure connection every time.
Installation is quick and easy, thanks to the user-friendly design of the SE50A. Simply insert the wires into the terminal, tighten the screws, and you're good to go. The solid construction of the connector ensures a tight and secure connection, reducing the risk of any loose or faulty connections.
With the brand behind it, you can be confident in the quality and performance of this power connector. Known for their reliability and innovation, products are trusted by professionals around the world. When you choose the SE50A, you're choosing a product that meets the highest standards of quality and performance.
Don't settle for inferior power connectors that can't handle the demands of your application. Trust in the High Quality SE50A 600V Power Connector to deliver the reliable and efficient connection you need. Whether you're a professional electrician, hobbyist, or DIY enthusiast, this connector is the perfect choice for all your battery wiring needs.
Experience the difference that a high-quality power connector can make in your electrical systems. Choose the SE50A for a reliable, durable, and easy-to-use solution that won't let you down. Invest in the best with , and ensure that your electrical connections are safe, secure, and efficient.
| Application | Electric vehicles; Medical equipment; Power supply; Electric equipment; |
| Maximum wire insulation diameter | 0.44inches 11.2mm |
| Insulation withstanding test voltage | 2200v |
| Contact retention force | 50lbf |
| Avg. connection/disconnect | 15ibf |
| Operating temperature range |
-20°to105° -4°to221° |
| Flammability rating of housing material | UL94-VO |
