| Rated current(Amperes) | 15-45A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
20-10AWG 0.75-5.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.175inches 4.45mm |
| AVG Contact Resistance(micro-ohms) | <500 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 25lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 15-30A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |
Introducing, the UPS Power Cord Battery Connector, the must-have accessory for anyone using a UPS system. This premium quality connector is designed to make sure your power supply remains uninterrupted and your devices stay protected during power outages.
The UPS Power Cord Battery Connector is compatible with UPS systems ranging from 15-45A, making it a versatile and practical choice for a wide range of applications. Whether you're using a UPS system for your home office, business, or data center, this connector ensures a reliable and secure connection.
Crafted with precision and durability in mind, the UPS Power Cord Battery Connector features high-quality materials that guarantee long-lasting performance. The connectors are designed to withstand everyday wear and tear, ensuring that your power supply remains stable and efficient at all times.
One of the key features of the UPS Power Cord Battery Connector is its ease of use. The connectors are designed for quick and hassle-free installation, making it easy for anyone to set up their UPS system with confidence. Simply plug in the connector and enjoy uninterrupted power whenever you need it.
In addition to its practicality and durability, the UPS Power Cord Battery Connector also boasts a sleek and modern design. The connectors are compact and lightweight, making them easy to transport and store when not in use. The black color scheme and smooth finish add a touch of elegance to your power setup.
The UPS Power Cord Battery Connector is a hot-selling product for a reason. Its superior quality, compatibility, and ease of use make it a top choice for anyone looking to protect their devices and maintain a reliable power supply. Don't settle for subpar connectors that could compromise your power system – choose the UPS Power Cord Battery Connector for premium performance and peace of mind.

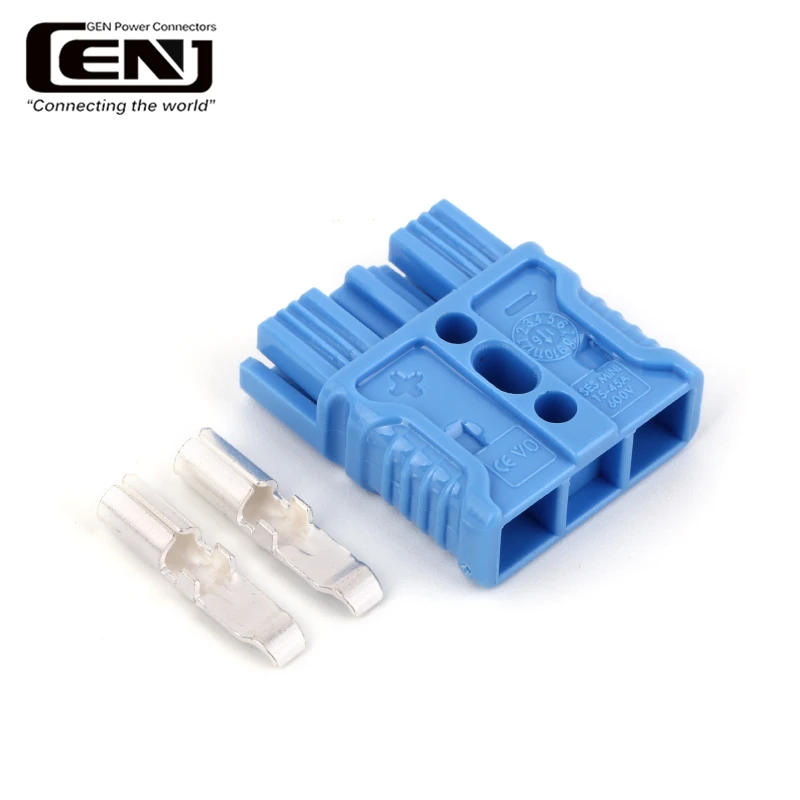

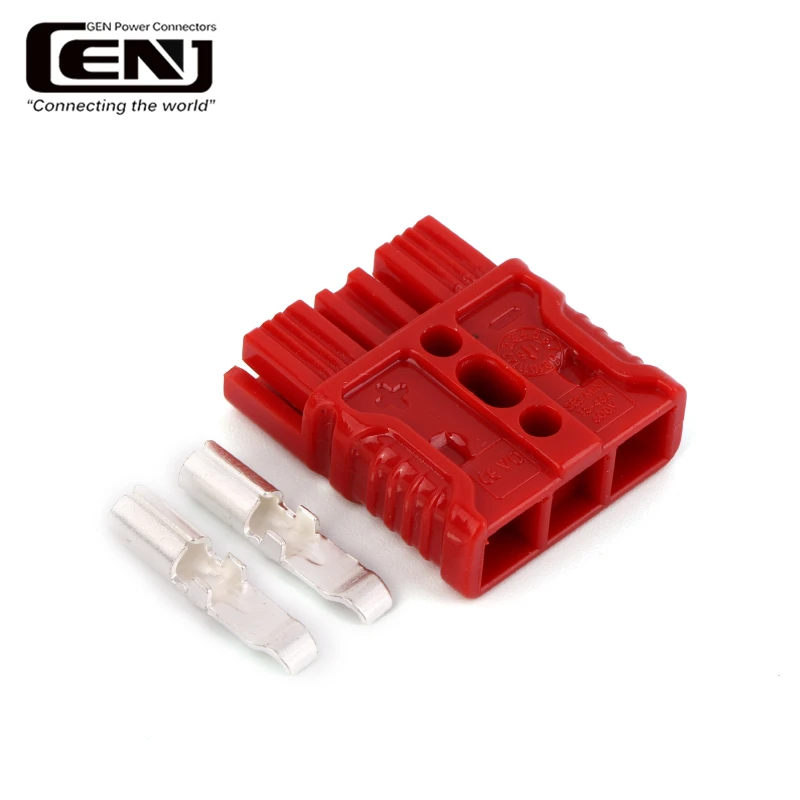

Hot Selling 15-45A ups power cord battery connector
| Application | Electric vehicles; Medical equipment; Power supply; Electric equipment; |
| Maximum wire insulation diameter | 0.175inches 4.45mm |
| Insulation withstanding test voltage | 2200v |
| Contact retention force | 25lbf |
| Avg. connection/disconnect | 10lbf |
| Operating temperature range |
-20°to105° -4°to221° |
| Flammability rating of housing material | UL94-VO |

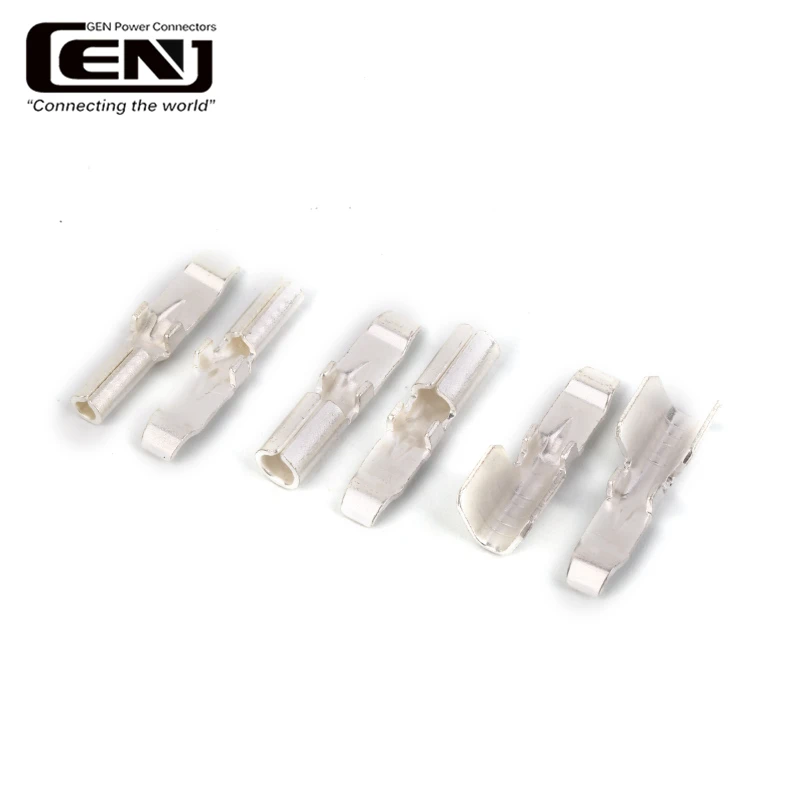

1. About selecting terminals
The terminals can be selected according to the wire size. Each terminal has different aperture, which is convenient for customers. For example, 50A600V plug terminals have three models, respectively, 5915 terminals can be connected to 10/12AWG wire, 5952 terminals can be connected to 8AWG wire, 5900 terminals can be connected to 6AWG wire.
2. Plastic shell color selection

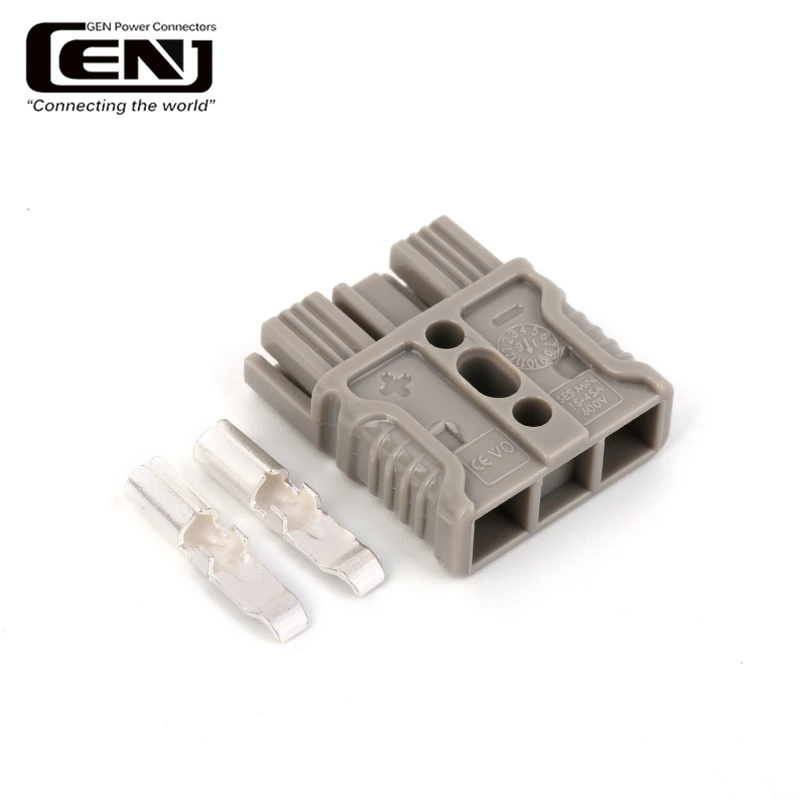

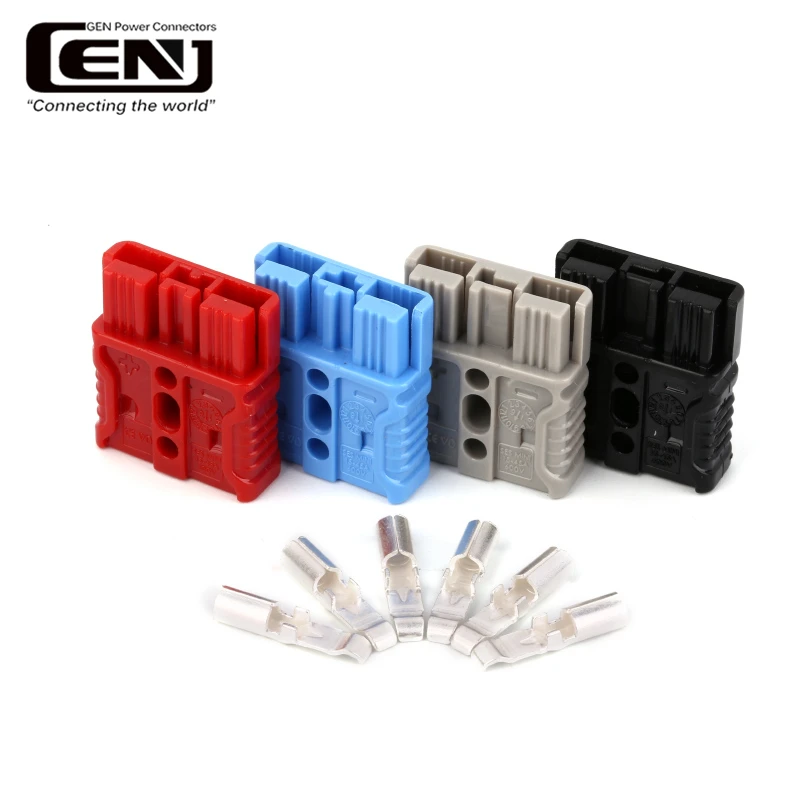

(Unipolar) color modular housing, providing intuitive identification of the correct matching connection; (bipolar) the same color can be inserted, while different color can not be inserted for the different interface design. Colored modular housings provides visual identification of proper mating connector. (Only Gray and Black can be matched).
3. About wire processing(OEM)
According to customer samples, we can provide OEM wire processing
4. Plug working life
No load (terminal insertion and removal times 10000) with load - 120V hot swap 250 times
5. Plug operating temperature range
-20°C105°C If you have special requirements, we can customize according to customer requirements
