Manufacturer Supplying Single Pole Connector 15A 30A 45A Red Black Blue Yellow Green Color 600V DC Power 1 Pole Connector

Product Description

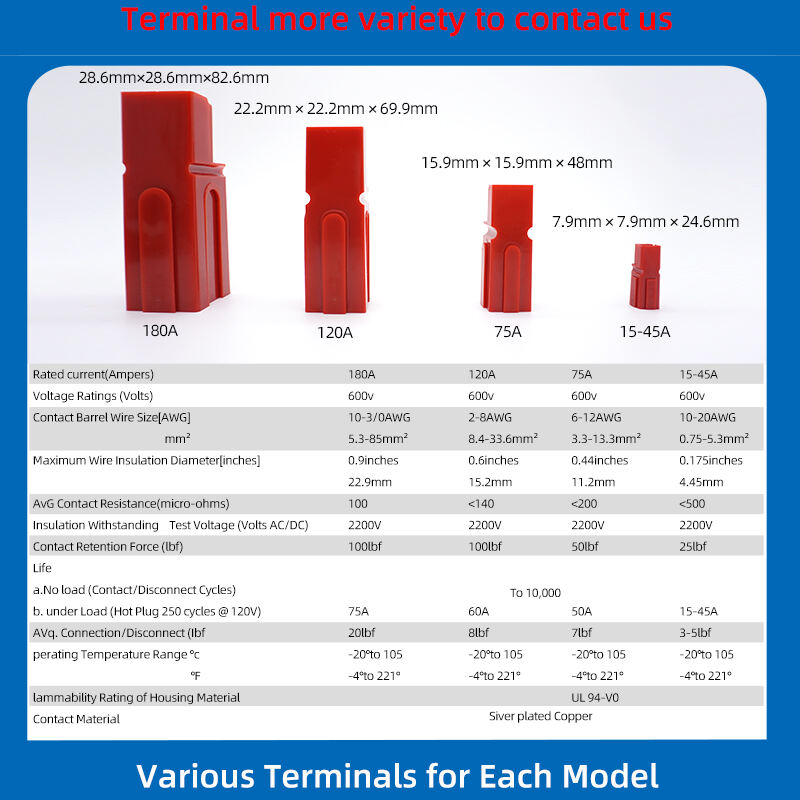

Rated current(Amperes) 15-45A
Voltage Ratings(Volts) 600V
Contact Barrel Wire Size[AWG]mm

20-10AWG

0.75-5.3mm

Maximum Wire Insulation Diameter[inches]mm

0.175inches

4.45mm

AVG Contact Resistance(micro-ohms) <500
Insulation Withstanding Test Voltage(Volts AC/DC) 2200V
Contact Retention Force(lbf) 25lbf

Life

a.No load (Contact/Disconnect Cycles)

b.under Load (Hot Plug 250 cycles @120V)

To 10,000

15-30A

AVg.Connection/Disconnect (lbf) 3-5lbf
operating Temperature Range℃ ℉

-20"to 105°

-4"to 221"

Flammability Rating of Housing Material UL 94-V0
Contact Material Silver plated copper

 Introducing, the Single Pole Connector, the perfect solution for all your power connection needs. Whether you're working on a DIY project or a professional industrial application, our single pole connectors are designed to deliver reliable and secure power connections every time.Manufactured with the highest quality materials, our single pole connectors are built to last. With a maximum voltage rating of 600V DC, you can trust that your power connections are safe and secure. Available in 15A, 30A, and 45A options, you can choose the connector that best suits your power requirements.The single pole connector is designed for easy and convenient installation. The color-coded connectors in red, black, blue, yellow, and green make it simple to match and connect the wires. With a single pole design, you can quickly and easily make your power connections without any hassle.Our connectors are perfect for a wide range of applications, including solar panels, battery connections, automotive projects, and more. Whether you're a professional electrician or a DIY enthusiast, the single pole connector is the ideal choice for all your power connection needs.As a leading manufacturer in the industry, we take pride in providing high-quality products that you can trust. With our single pole connectors, you can have peace of mind knowing that your power connections are reliable and secure.Don't settle for inferior connectors that can jeopardize the safety and performance of your electrical systems. Choose the single pole connector for a high-quality, dependable connection every time. Order yours today and experience the difference that our connectors can make in your projects.

Manufacturer Supplying Single Pole Connector 15A 30A 45A Red Black Blue Yellow Green Color 600V DC Power 1 Pole Connector supplier
Manufacturer Supplying Single Pole Connector 15A 30A 45A Red Black Blue Yellow Green Color 600V DC Power 1 Pole Connector manufacture
Manufacturer Supplying Single Pole Connector 15A 30A 45A Red Black Blue Yellow Green Color 600V DC Power 1 Pole Connector supplier
Manufacturer Supplying Single Pole Connector 15A 30A 45A Red Black Blue Yellow Green Color 600V DC Power 1 Pole Connector factory
 * Products are widely used in: electric vehicles (electric buses. Forklift. Electric vehicles, tractors, golf cart, sightseeing car, battery), communication power supply (UPS). Dc regulated power supply, EPS, inverter power supply and the high frequency, high frequency module charger system), electric machinery, electric wheelchair. Electric washing machine. The lawn mower, vacuum cleaners, electric forklift), medical equipment (attract machine. Decompression machine. Electric bed).
 * flat wiping contact system. minimal contact resistance at high current. the wiping action cleans the contact surface during connection/disconnection. Coloured Modular enclosures, provides a visual identification of compatible connectors
 * Moulded dovetail tips. Keyed connectors. assembly to prevent connection errors. with similar configurations. Designed without gender, making for quick & easy assembly and reducing the number of pieces you have to store
Manufacturer Supplying Single Pole Connector 15A 30A 45A Red Black Blue Yellow Green Color 600V DC Power 1 Pole Connector factory
Manufacturer Supplying Single Pole Connector 15A 30A 45A Red Black Blue Yellow Green Color 600V DC Power 1 Pole Connector supplier
Manufacturer Supplying Single Pole Connector 15A 30A 45A Red Black Blue Yellow Green Color 600V DC Power 1 Pole Connector factory
Manufacturer Supplying Single Pole Connector 15A 30A 45A Red Black Blue Yellow Green Color 600V DC Power 1 Pole Connector manufacture
Manufacturer Supplying Single Pole Connector 15A 30A 45A Red Black Blue Yellow Green Color 600V DC Power 1 Pole Connector details
Manufacturer Supplying Single Pole Connector 15A 30A 45A Red Black Blue Yellow Green Color 600V DC Power 1 Pole Connector manufacture
Manufacturer Supplying Single Pole Connector 15A 30A 45A Red Black Blue Yellow Green Color 600V DC Power 1 Pole Connector manufacture
Manufacturer Supplying Single Pole Connector 15A 30A 45A Red Black Blue Yellow Green Color 600V DC Power 1 Pole Connector details
Manufacturer Supplying Single Pole Connector 15A 30A 45A Red Black Blue Yellow Green Color 600V DC Power 1 Pole Connector factory
Manufacturer Supplying Single Pole Connector 15A 30A 45A Red Black Blue Yellow Green Color 600V DC Power 1 Pole Connector details

FAQ

1. Are you a manufacturer or a trading company

We are both an experienced manufacturer for over 10 years and a trading company. We supply for our clients over the world, including listed companies.

2. What’s your MOQ? Can I get samples first

Generally the MOQ is between 10-100 pieces, based on different products. Sure, sample order is welcome.

3. Can you provide OEM or customized services

Yes, we could provide customized services, such as wiring harness and packaging.

4. What’s the lead time

For most items, we have products in stock. We would deliver goods in 3 days. If you place a bulk order, we will advise the lead time to you.

5. How to place an order or know more about the products

You can contact us with online service, or sent an email to us, we will reply you ASAP.
