| Rated current(Amperes) | 50A |
| Voltage Ratings (Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
6-16AWG 13.3-1.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.44inches 11.2mm |
| AVG Contact Resistance(micro-ohms) | 200 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force (Ibf) | 50lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @ 120V) |
To 10,000 50A |
| AVg.Connection/Disconnect (lbf) | 15lbf |
| operating Temperature Range℃ *F |
-20"to 105° -4°to 221* |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

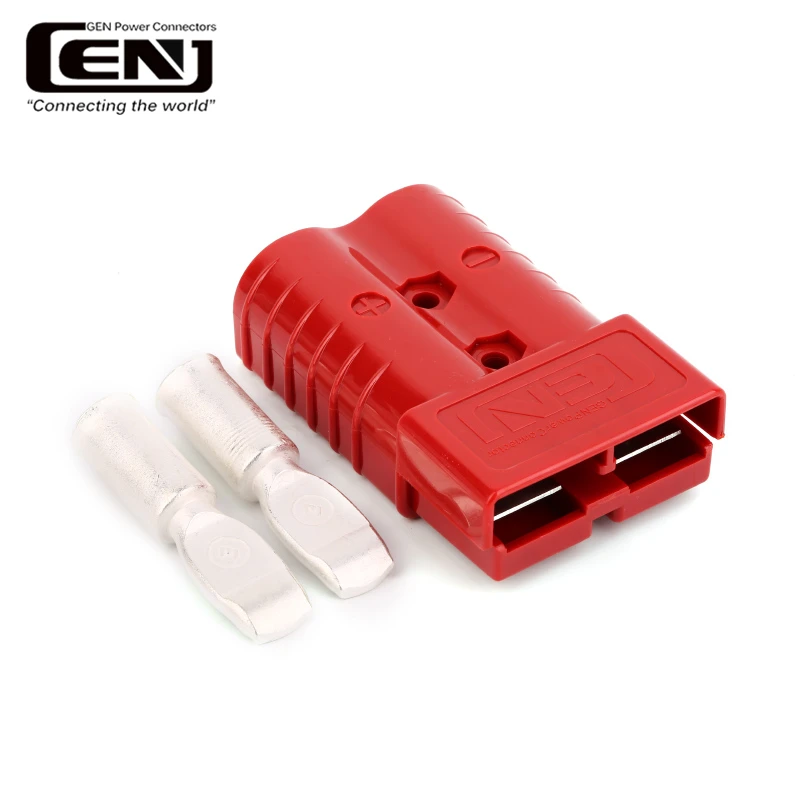

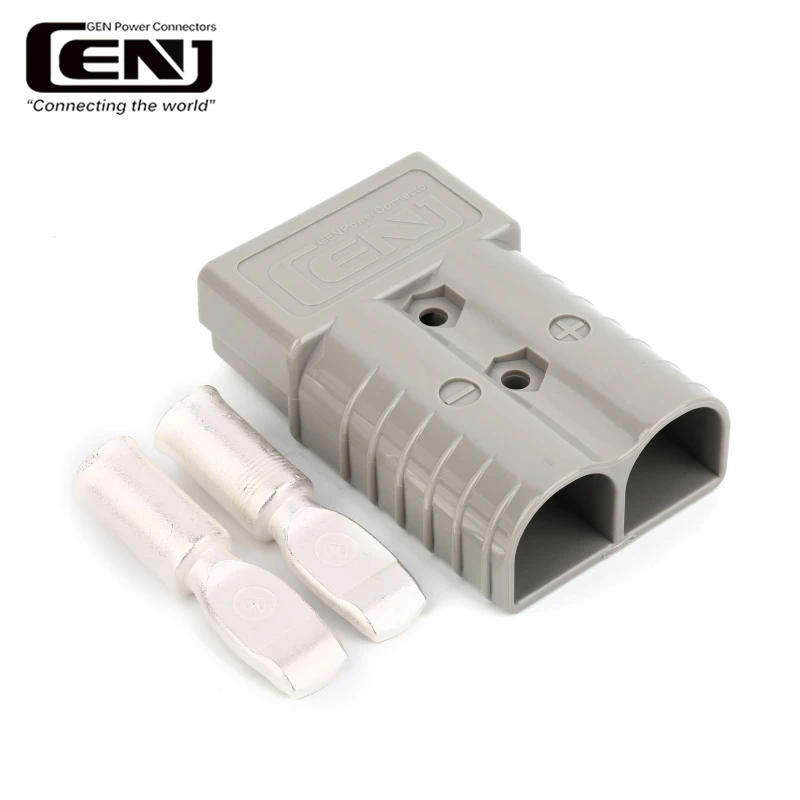

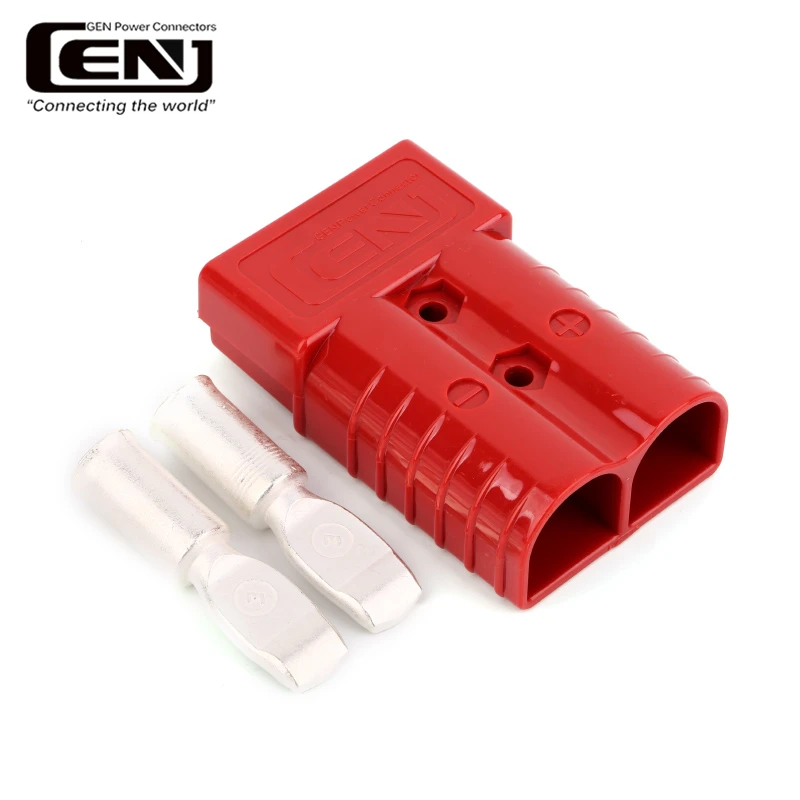

Introducing, the Motor Controller Connector SE50 Connector, brought to you by the trusted brand . This high-quality connector is designed to provide reliable and secure connections for your motor controller, ensuring smooth and efficient operation.
The Motor Controller Connector SE50 Connector features a durable construction that can withstand the rigors of daily use. Its compact size makes it easy to install and fits seamlessly into your existing setup. With its sturdy design, you can trust that this connector will hold up to the demands of your motor controller.
This connector is easy to use, with a simple plug-and-play design that allows for quick and hassle-free installation. Simply connect the SE50 Connector to your motor controller, and you're ready to go. No need for complicated wiring or confusing instructions – this connector is designed for simplicity and ease of use.
Not only does the Motor Controller Connector SE50 Connector offer reliable connections, but it also provides optimal performance. With its high-quality materials and precision engineering, this connector delivers consistent power delivery to your motor controller, ensuring smooth and efficient operation. You can trust that your motor controller will perform at its best with the SE50 Connector.
Whether you're a professional mechanic or a DIY enthusiast, the Motor Controller Connector SE50 Connector is a must-have for your toolkit. Its versatility and reliability make it ideal for a wide range of applications, from automotive repair to industrial machinery. With the brand behind it, you can trust that this connector will deliver the quality and performance you need.
Don't settle for subpar connectors that compromise the performance of your motor controller. Invest in the Motor Controller Connector SE50 Connector from and experience the difference that quality and reliability can make. Trust in a brand that has a reputation for excellence and choose the SE50 Connector for all your motor controller needs. Upgrade your equipment with the best – choose.
Motor Controller Connector SB50 Connector
| Application | Electric vehicles; Medical equipment; Power supply; Electric equipment; |
| Maximum wire insulation diameter | 0.44inches 11.2mm |
| Insulation withstanding test voltage | 2200v |
| Contact retention force | 50lbf |
| Avg. connection/disconnect | 15ibf |
| Operating temperature range |
-20°to105° -4°to221° |
| Flammability rating of housing material | UL94-VO |

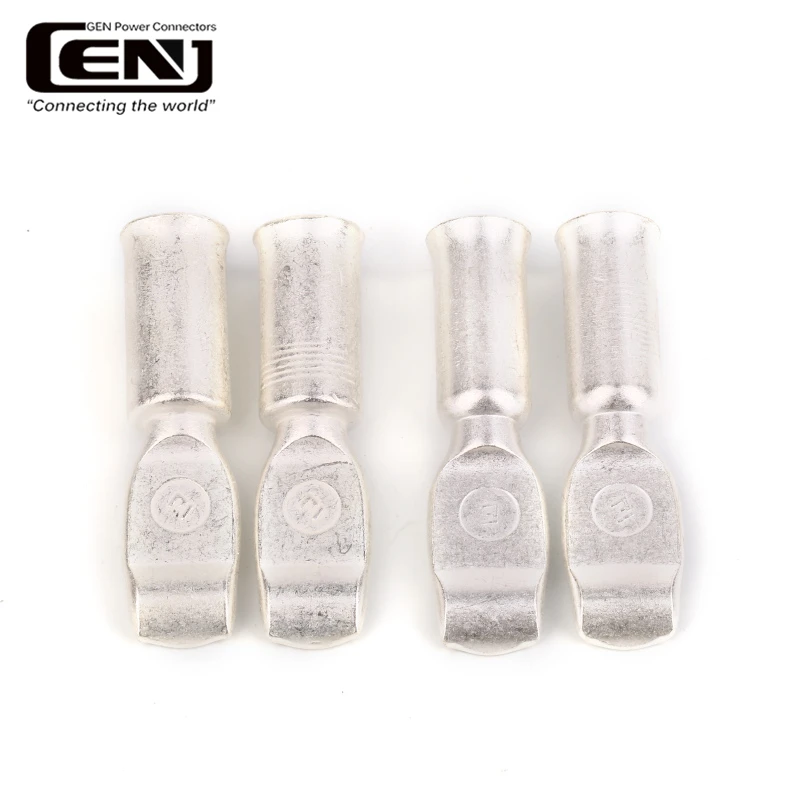

1. About selecting terminals
The terminals can be selected according to the wire size. Each terminal has different aperture, which is convenient for customers. For example, 50A600V plug terminals have three models, respectively, 5915 terminals can be connected to 10/12AWG wire, 5952 terminals can be connected to 8AWG wire, 5900 terminals can be connected to 6AWG wire.

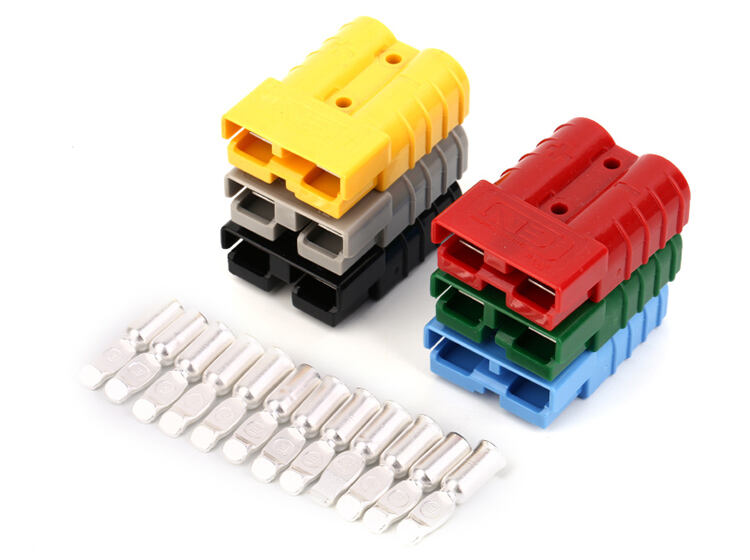

2. Plastic shell color selection

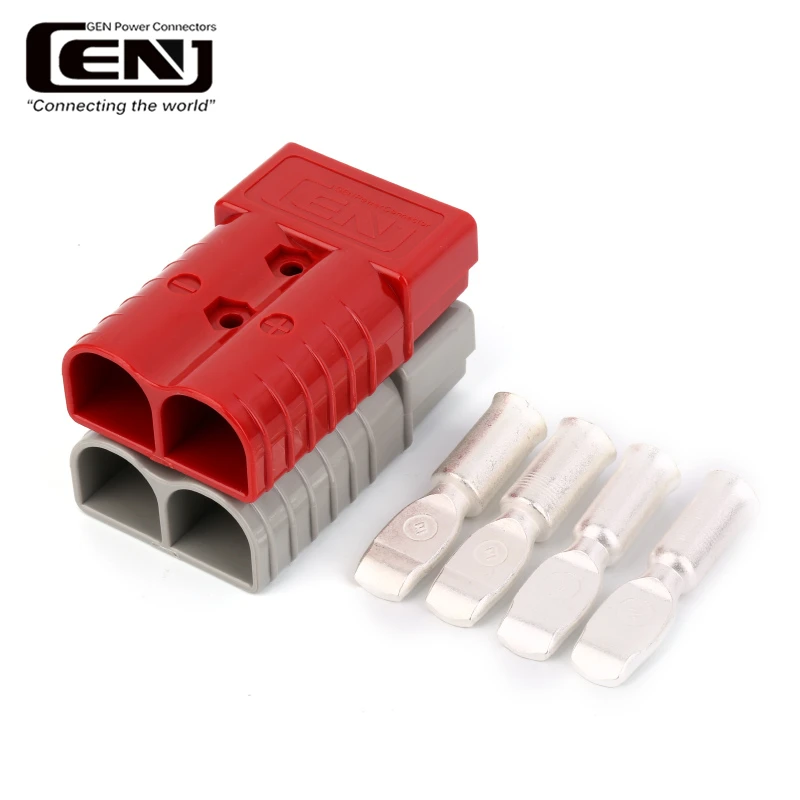

(Unipolar) color modular housing, providing intuitive identification of the correct matching connection; (bipolar) the same color can be inserted, while different color can not be inserted for the different interface design. Colored modular housings provides visual identification of proper mating connector. (Only Gray and Black can be matched).
3. About wire processing(OEM)
According to customer samples, we can provide OEM wire processing
4. Plug working life
No load (terminal insertion and removal times 10000) with load - 120V hot swap 250 times
5. Plug operating temperature range
-20°C105°C If you have special requirements, we can customize according to customer requirements
