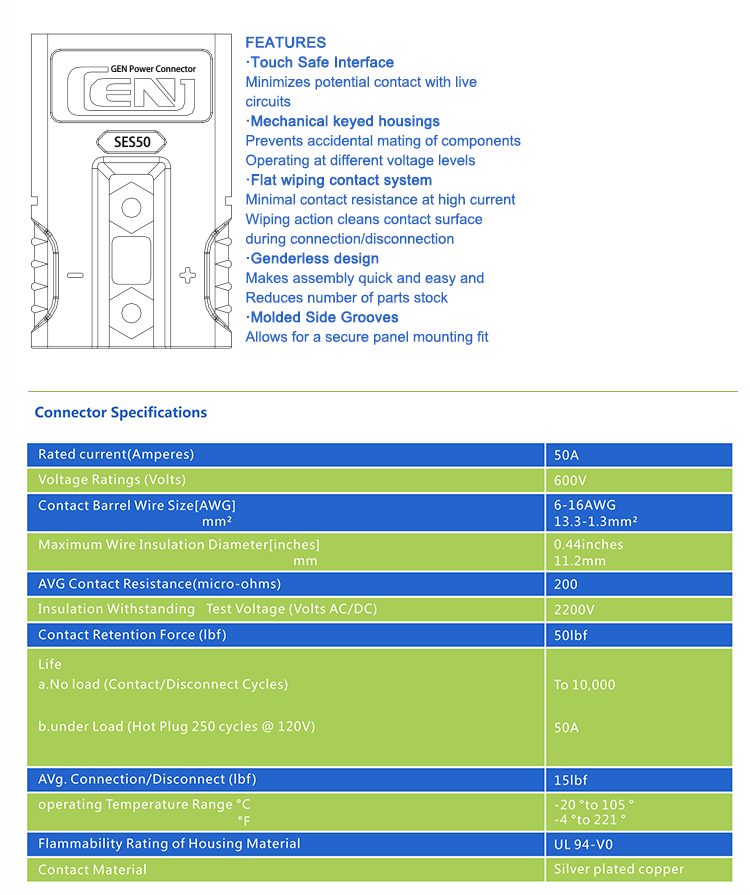

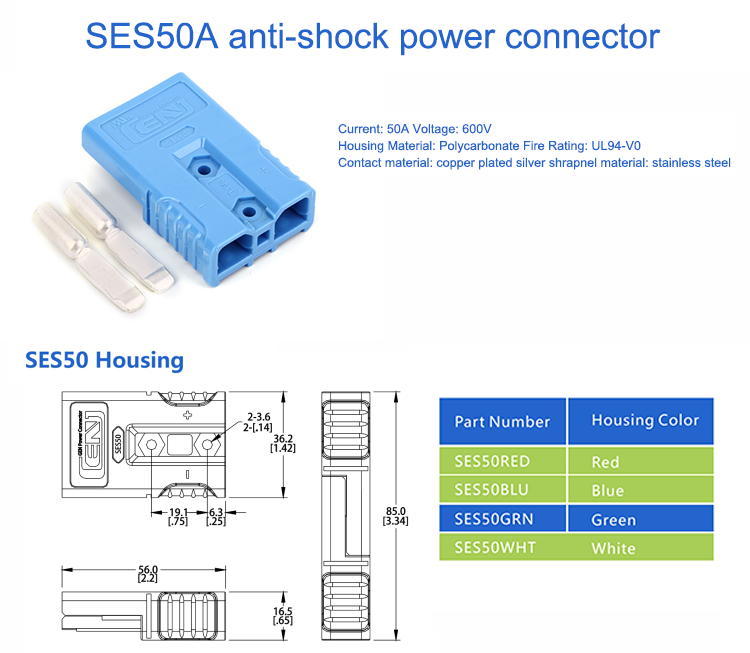

| Rated current(Amperes) | 50A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
6-12AWG 13.3-3.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.44inches 11.2mm |
| AVG Contact Resistance(micro-ohms) | 200 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 50lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 50A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

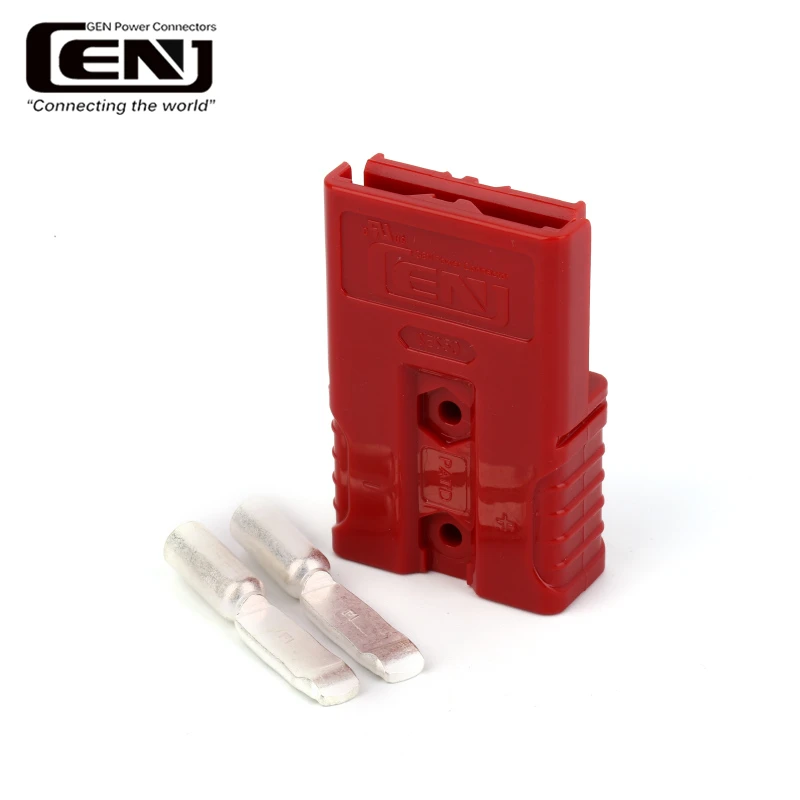

The Quick Connect 50A Uchen 2pin Power Forklift Connector by is a must-have accessory for anyone using forklifts in their daily operations. This durable and reliable connector is designed to make connecting and disconnecting power sources quick and easy, saving you time and effort on the job.
This forklift connector is rated at 50A, making it suitable for heavy-duty applications and ensuring a steady flow of power to your equipment. The 2-pin design is simple and user-friendly, allowing you to easily plug and unplug the connector without any hassle. With a quick connect feature, you can securely attach the connector in seconds, preventing any downtime in your operations.
The Uchen 2pin Power Forklift Connector is built to withstand tough working conditions, with a rugged construction that can handle the demands of a busy warehouse or construction site. The high-quality materials used in its construction ensure that this connector will last for years to come, providing you with a reliable power source wherever you need it.
Whether you are a warehouse manager, construction worker, or industrial operator, the Quick Connect 50A Uchen 2pin Power Forklift Connector is a versatile and essential tool for your daily operations. With its compact size and lightweight design, it is easy to carry and store, making it convenient to have on hand whenever you need it.
Invest in the brand to ensure you are getting a high-quality product that is built to last. is a trusted name in the industry, known for their durable and dependable products that are designed to meet the needs of professionals in various fields.
Make your life easier and your work more efficient with the Quick Connect 50A Uchen 2pin Power Forklift Connector by . With its quick and easy connect feature, durable construction, and reliable performance, this connector will quickly become an essential part of your everyday workflow.
Quick connect 50A uchen 2pin power forklift connector
| Application | Electric vehicles;Medical equipment;Power supply;Electric equipment; |
| Maximum wire insulation diameter | 0.44inches 11.2mm |
| Insulation withstanding test voltage | 2200v |
| Contact retention force | 50lbf |
| Avg. connection/disconnect | 15lbf |
| Operating temperature range |
-20°to105° -4°to221° |
| Flammability rating of housing material | UL94-VO |
1. About selecting terminals

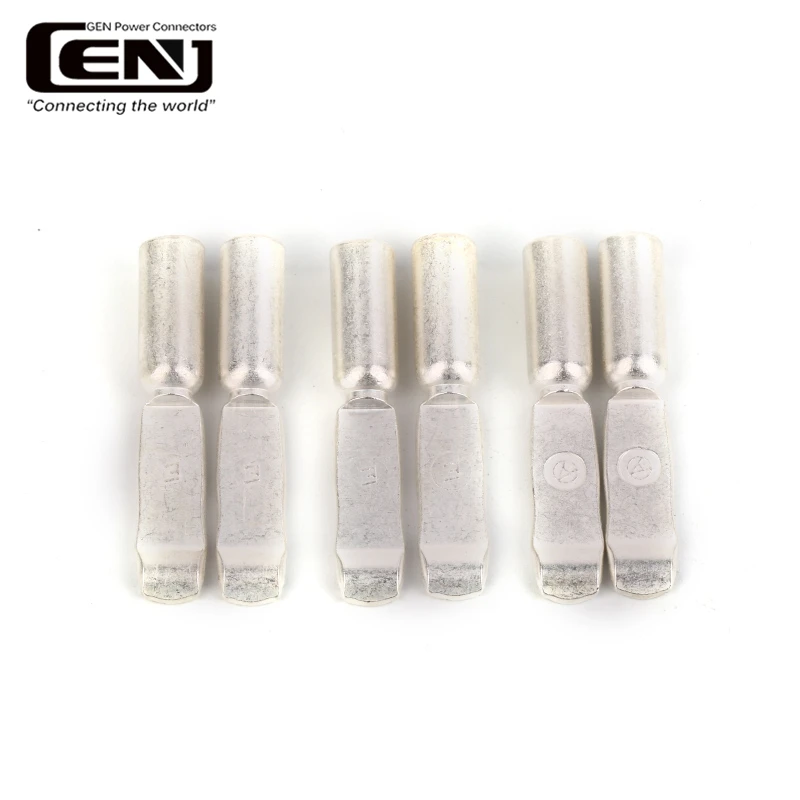

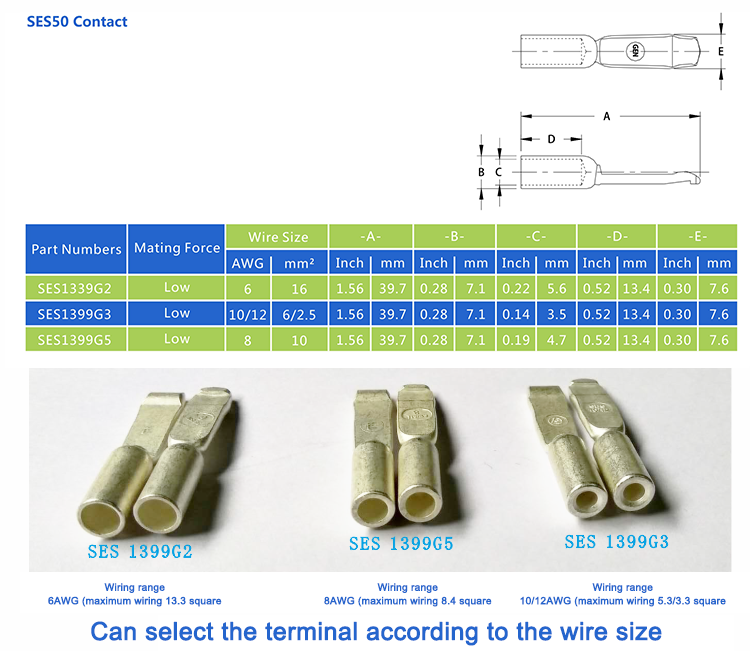

The terminals can be selected according to the wire size. Each terminal has different aperture, which is convenient for customers. For example, 50A600V plug terminals have three models, respectively, 5915 terminals can be connected to 10/12AWG wire, 5952 terminals can be connected to 8AWG wire, 5900 terminals can be connected to 6AWG wire.
2. Plastic shell color selection

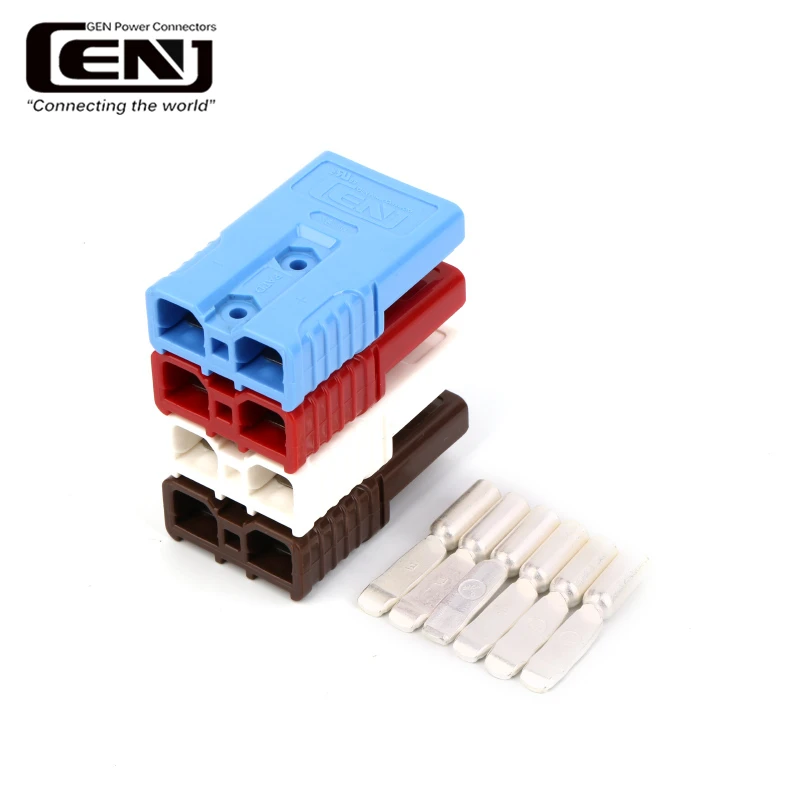

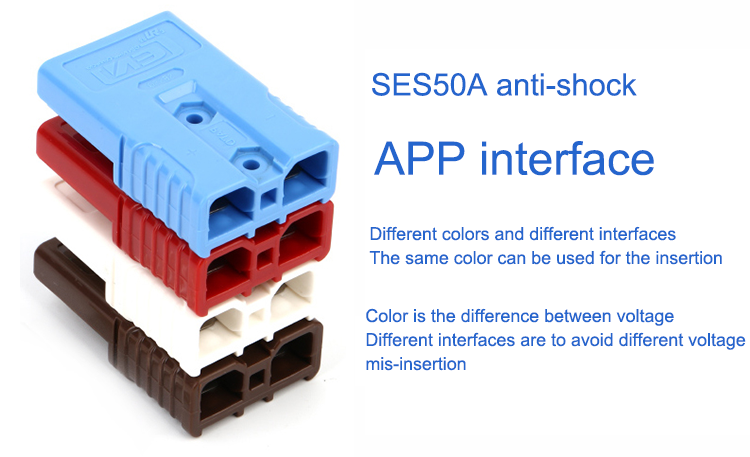

(Unipolar) color modular housing, providing intuitive identification of the correct matching connection; (bipolar) the same color can be inserted, while different color can not be inserted for the different interface design. Colored modular housings provides visual identification of proper mating connector. (Only Gray and Black can be matched).
3. About wire processing(OEM)
According to customer samples, we can provide OEM wire processing
4. Plug working life
No load (terminal insertion and removal times 10000) with load - 120V hot swap 250 times
5. Plug operating temperature range
-20°C105°C If you have special requirements, we can customize according to customer requirements
