| Rated current(Amperes) | 15-45A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
20-10AWG 0.75-5.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.175inches 4.45mm |
| AVG Contact Resistance(micro-ohms) | <500 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 25lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 15-30A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |

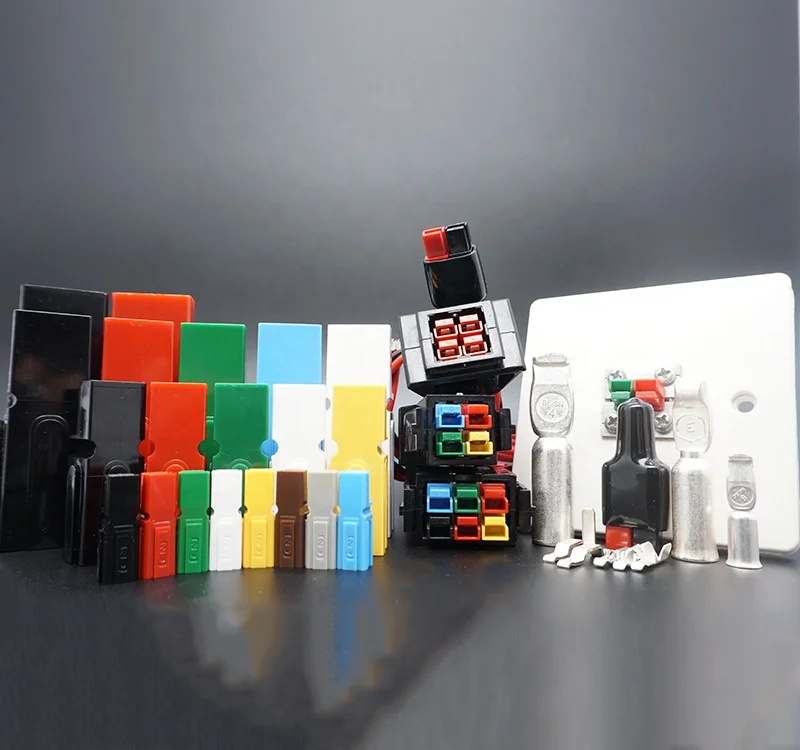

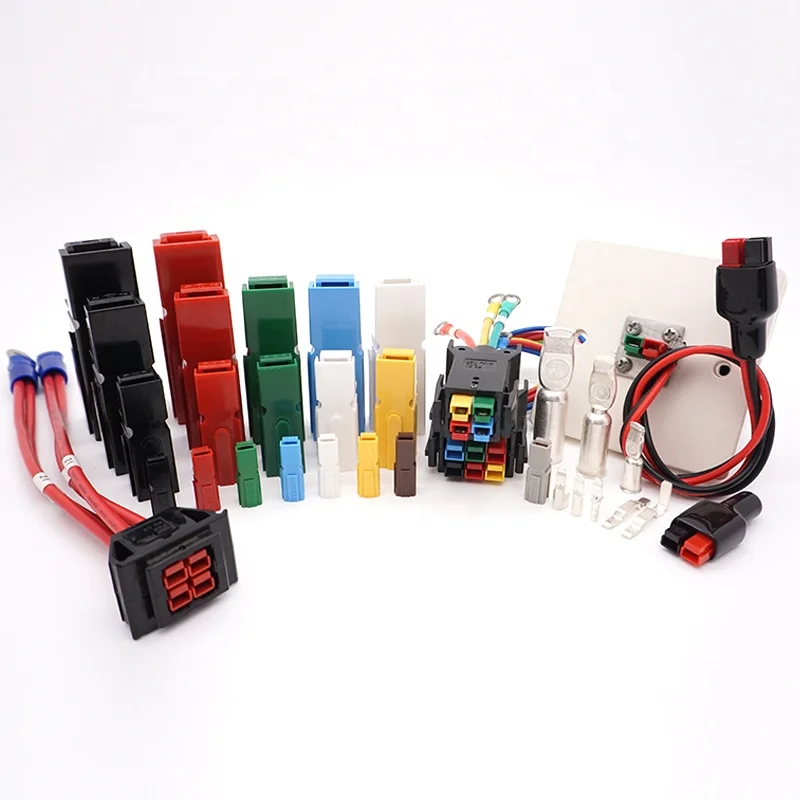

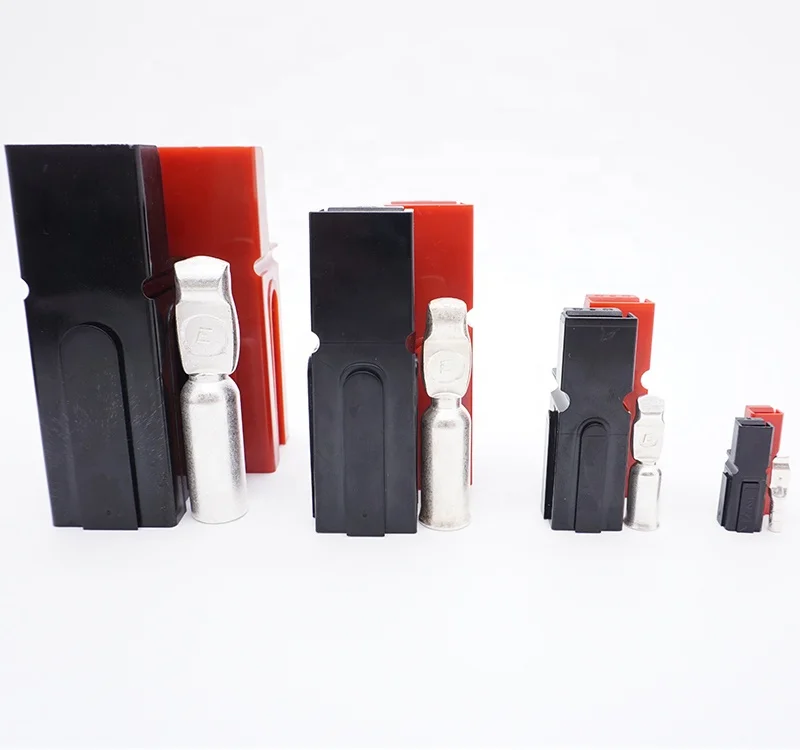

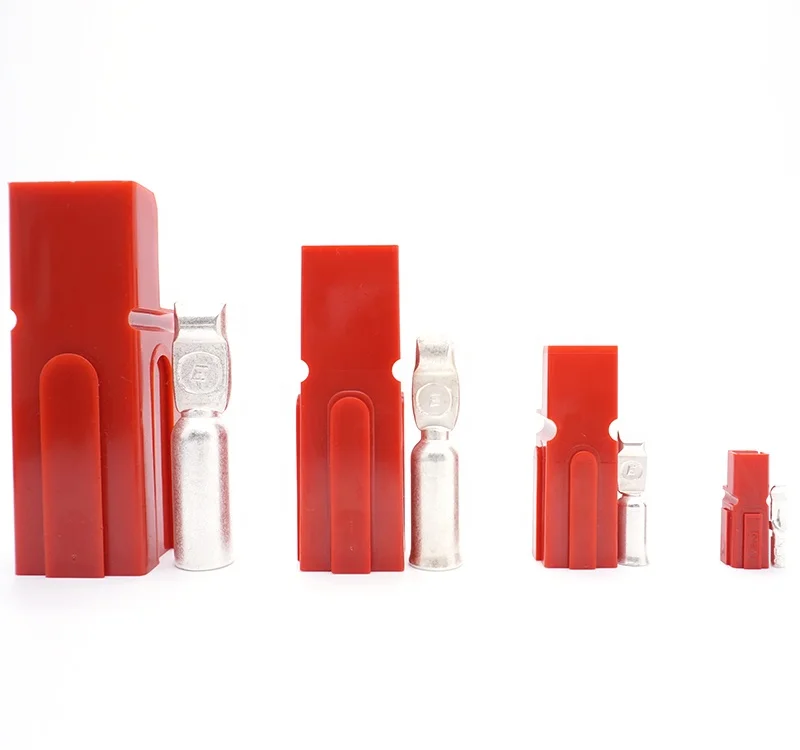

Introducing, the Quick Connectors Single Pole 45A 1pin from, the perfect solution for all your electrical power connection needs. These connectors are designed for both convenience and durability, making them the ideal choice for a wide range of applications. With a single pole design and a 45A rating, these connectors are capable of handling high power loads with ease. Whether you're looking to connect batteries, power sources, or other electrical devices, these connectors are up to the task. The 1pin design ensures a secure and reliable connection every time, so you can trust that your equipment will stay powered up when you need it most. The housing of these connectors is made from high-quality materials that are built to last. The durable construction ensures that these connectors can withstand the rigors of daily use, making them a reliable choice for both professionals and DIY enthusiasts alike. Additionally, the housing is designed to be easy to grip and install, so you can quickly and effortlessly make connections whenever you need to. These connectors come with terminals that are easy to insert and secure, ensuring a stable connection that won't come loose over time. The terminals are rated for 35A and 15A, giving you the flexibility to use a wide range of devices with these connectors. With a maximum voltage rating of 600V, you can trust that these connectors will safely and reliably power your equipment without any issues. Whether you're working on a home project or a professional job, these connectors are the perfect choice for all your electrical power needs. Trust to provide you with high-quality products that deliver outstanding performance and reliability. Upgrade your power connections with the Quick Connectors Single Pole 45A 1pin from today
* Products are widely used in: electric vehicles (electric buses. Forklift. Electric vehicles, tractors, golf cart, sightseeing car, battery), communication power supply (UPS). Dc regulated power supply, EPS, inverter power supply and the high frequency, high frequency module charger system), electric machinery, electric wheelchair. Electric washing machine. The lawn mower, vacuum cleaners, electric forklift), medical equipment (attract machine. Decompression machine. Electric bed). | ||||
* flat wiping contact system. minimal contact resistance at high current. the wiping action cleans the contact surface during connection/disconnection. Coloured Modular enclosures, provides a visual identification of compatible connectors | ||||
* Moulded dovetail tips. Keyed connectors. assembly to prevent connection errors. with similar configurations. Designed without gender, making for quick & easy assembly and reducing the number of pieces you have to store |
1. Are you a manufacturer or a trading company
We are both an experienced manufacturer for over 10 years and a trading company. We supply for our clients over the world, including listed companies.
2. What’s your MOQ? Can I get samples first
Generally the MOQ is between 10-100 pieces, based on different products. Sure, sample order is welcome.
3. Can you provide OEM or customized services
Yes, we could provide customized services, such as wiring harness and packaging.
4. What’s the lead time
For most items, we have products in stock. We would deliver goods in 3 days. If you place a bulk order, we will advise the lead time to you.
5. How to place an order or know more about the products
You can contact us with online service, or sent an email to us, we will reply you ASAP.
