SE 175A

Home /  Products /  GEN Multipole Power Connectors /  SE 175A

Red Andersons175 Amp 600V Power Connectors SupportsAnderson SB175 Battery Connector

Product Description

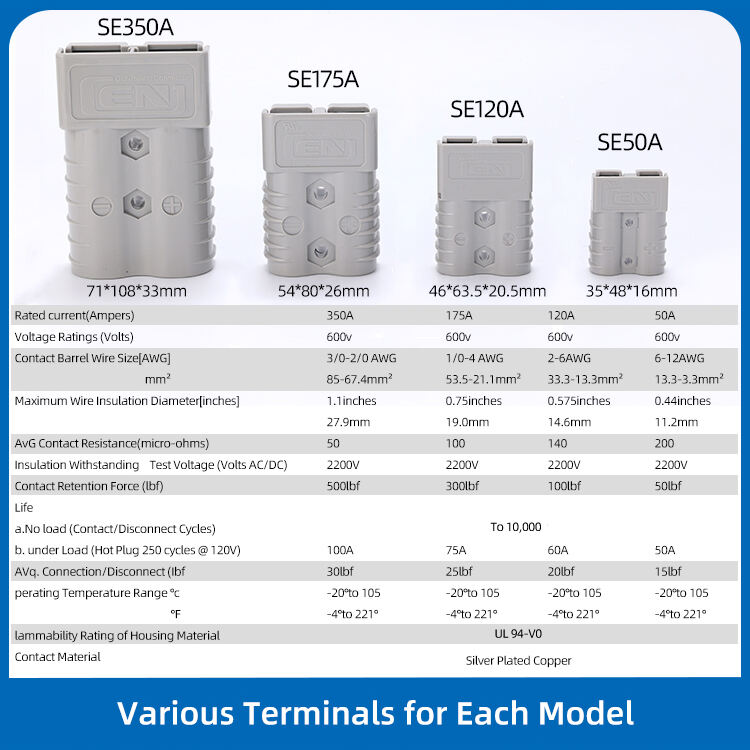

Rated current(Amperes) 175A
Voltage Ratings (Volts) 600V

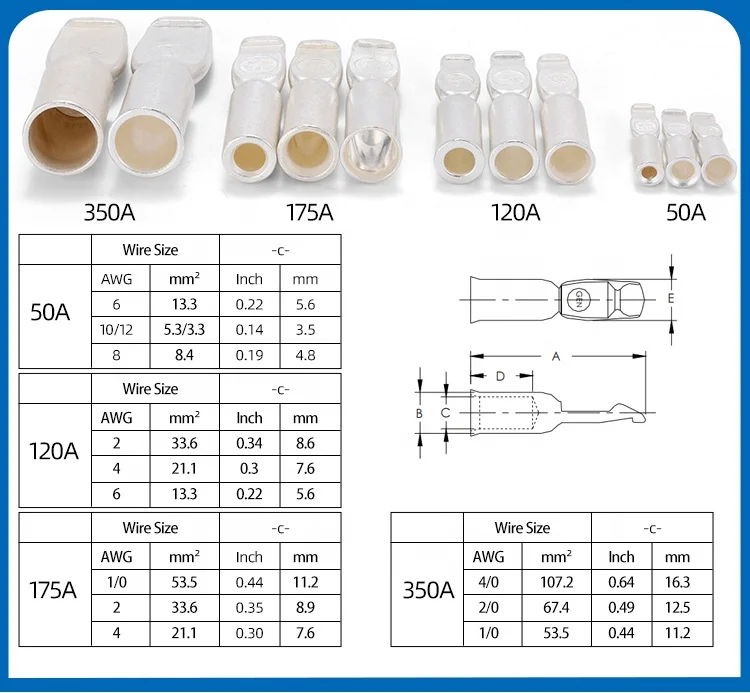

Contact Barrel Wire Size[AWG]mm

4-1/0AWG

21.1-53.5mm

Maximum Wire Insulation Diameter[inches] mm

0.75inches

19.0mm

AVG Contact Resistance(micro-ohms) 100
Insulation Withstanding Test Voltage(Volts AC/DC) 2200V
Contact Retention Force (Ibf) 300lbf

Life

a.No load (Contact/Disconnect Cycles)

b.under Load (Hot Plug 250 cycles @ 120V)

To 10,000

75A

AVg.Connection/Disconnect(Ibf)

(SE 2Pole)251bf\

(SE 3Pole)35lbf

operating Temperature Range℃  ℉

-20 °to 105°

-4°to 221°

Flammability Rating of Housing Material UL 94-V0
Contact Material Silver plated copper

 Looking for a reliable and durable power connector for your battery? Look no further than the Red Andersons 175 Amp 600V Power Connectors from .These Anderson SB175 battery connectors are designed to support high-powered electrical applications with ease. With a maximum voltage of 600V and a current rating of 175 Amps, these connectors are perfect for use in a wide range of industrial and automotive settings.Made from high-quality materials, the Red Andersons 175 Amp Power Connectors are built to last. The durable housing is designed to withstand rugged conditions and provide a secure connection every time. The connectors are color-coded red for easy identification and feature a simple and intuitive design for quick and easy installation.Whether you’re working on a DIY project or need to replace a damaged connector, these Anderson SB175 connectors are the perfect choice. The compact size makes them easy to transport and store, while the ergonomic design ensures a comfortable grip during use.In addition to their durability and ease of use, these connectors are also incredibly versatile. They can be used in a wide range of applications, from connecting batteries in electric vehicles to powering erators in emercy situations.When it comes to reliability and performance, the Red Andersons 175 Amp 600V Power Connectors from are the top choice. Trust in the quality and durability of these connectors to keep your electrical systems running smoothly and efficiently.Make sure you have the best in power connectivity for your battery with the Red Andersons 175 Amp Power Connectors from . Upgrade your electrical system today and experience the difference that quality connectors can make.

Red Andersons175 Amp 600V Power Connectors SupportsAnderson SB175 Battery Connector factory
Red Andersons175 Amp 600V Power Connectors SupportsAnderson SB175 Battery Connector supplier
Red Andersons175 Amp 600V Power Connectors SupportsAnderson SB175 Battery Connector manufacture
Red Andersons175 Amp 600V Power Connectors SupportsAnderson SB175 Battery Connector details
Red Andersons175 Amp 600V Power Connectors SupportsAnderson SB175 Battery Connector supplier
Red Andersons175 Amp 600V Power Connectors SupportsAnderson SB175 Battery Connector supplier
Red Andersons175 Amp 600V Power Connectors SupportsAnderson SB175 Battery Connector supplier
Red Andersons175 Amp 600V Power Connectors SupportsAnderson SB175 Battery Connector supplier
Red Andersons175 Amp 600V Power Connectors SupportsAnderson SB175 Battery Connector manufacture
Red Andersons175 Amp 600V Power Connectors SupportsAnderson SB175 Battery Connector factory
Red Andersons175 Amp 600V Power Connectors SupportsAnderson SB175 Battery Connector supplier
Red Andersons175 Amp 600V Power Connectors SupportsAnderson SB175 Battery Connector details
Red Andersons175 Amp 600V Power Connectors SupportsAnderson SB175 Battery Connector supplier
Red Andersons175 Amp 600V Power Connectors SupportsAnderson SB175 Battery Connector supplier
Red Andersons175 Amp 600V Power Connectors SupportsAnderson SB175 Battery Connector manufacture
Red Andersons175 Amp 600V Power Connectors SupportsAnderson SB175 Battery Connector factory

FAQ

1. Are you a manufacturer or a trading company

We are both an experienced manufacturer for over 10 years and a trading company. We supply for our clients over the world, including listed companies

2. What’s your MOQ, Can I get samples first

Generally the MOQ is between 10-100 pieces, based on different products. Sure, sample order is welcome

3. Can you provide OEM or customized services

Yes, we could provide customized services, such as wiring harness and packaging

4. What’s the lead time

For most items, we have products in stock. We would deliver goods in 3 days. If you place a bulk order, we will advise the lead time to you.

5. How to place an order or know more about the products

You can contact us with online service, or sent an email to us, we will reply you ASAP
