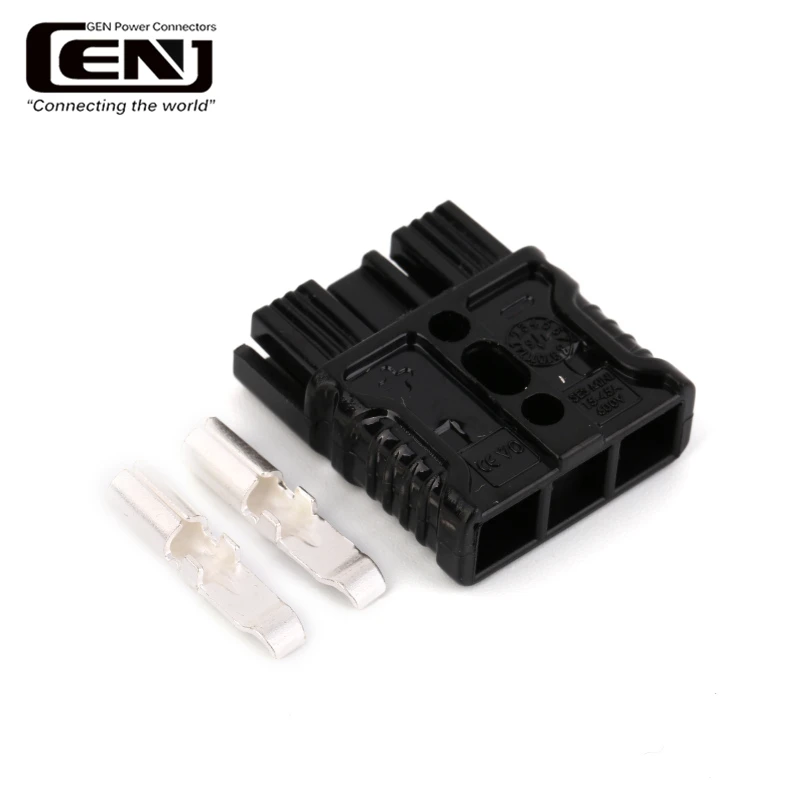

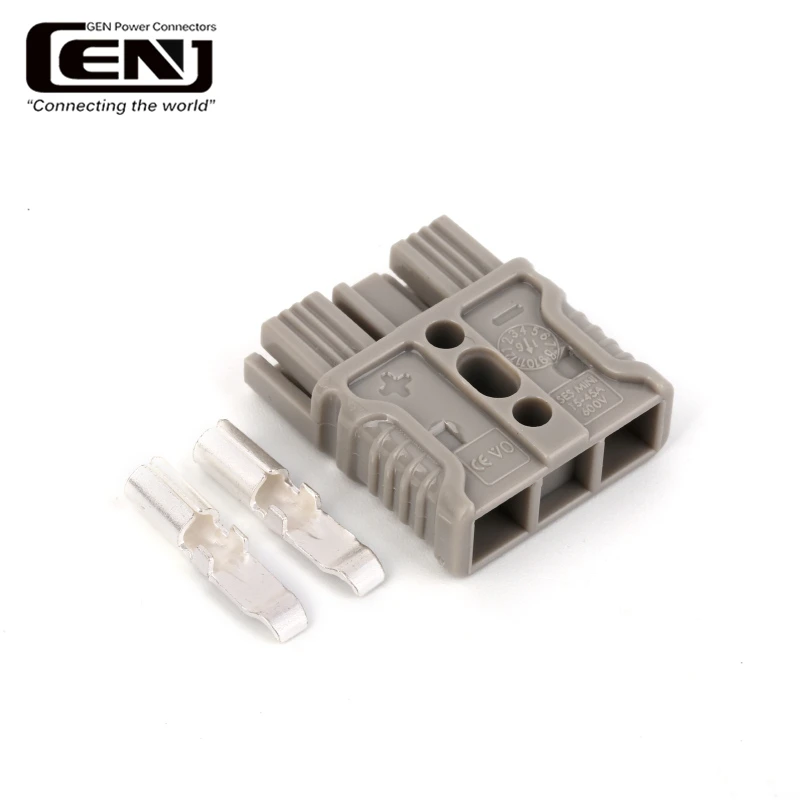

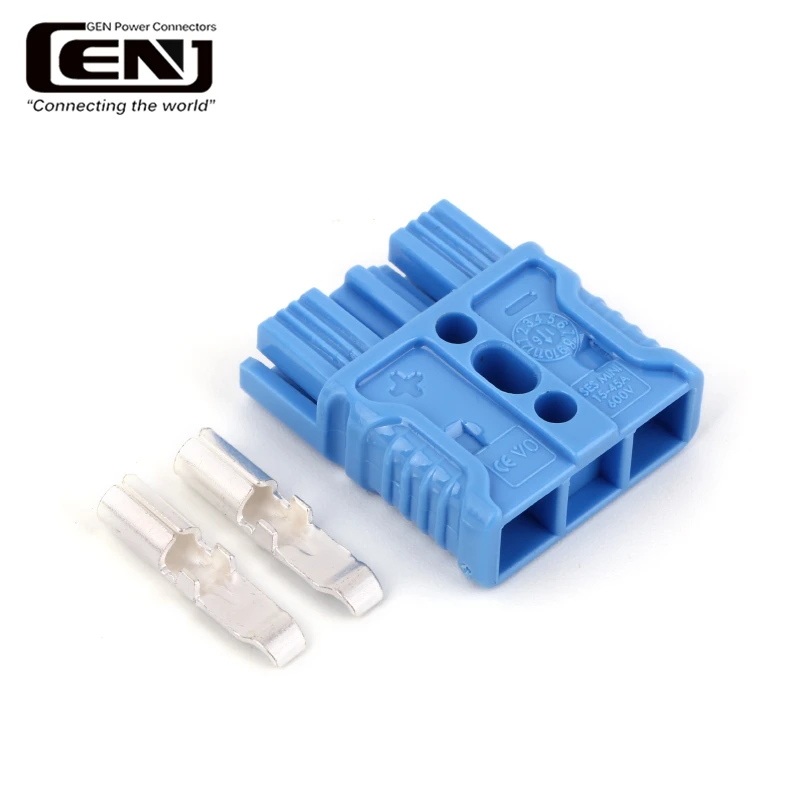

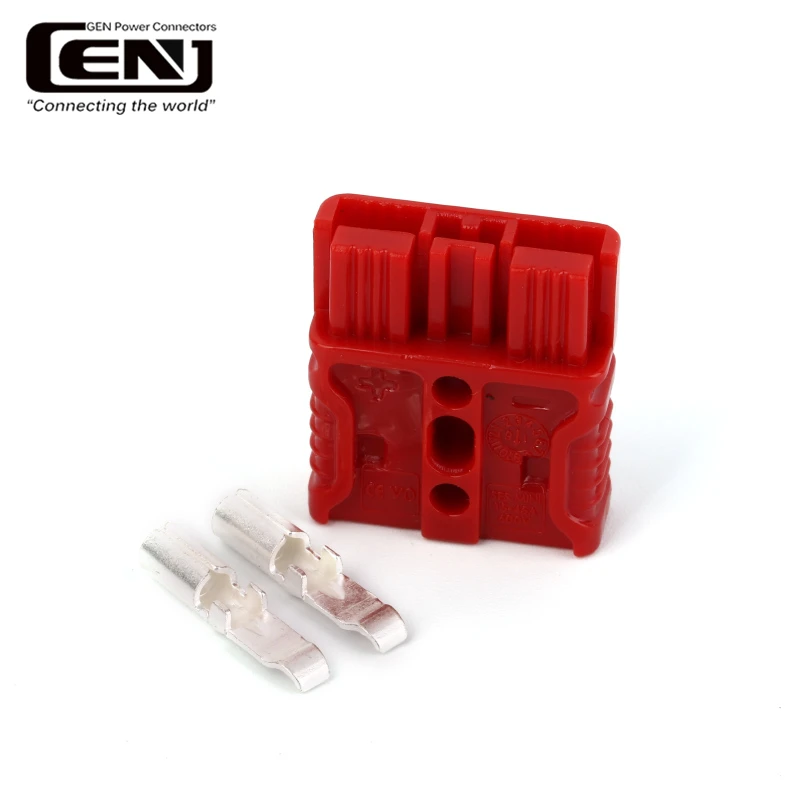

SES Mini 2-Pin Battery Power Connector 15-45A Modular Power Adaptor Male/Female Copper Contact & PC Housing

Product Description
Rated current(Amperes) 15-45A
Voltage Ratings (Volts) 600V
Contact Barrel Wire Size[AWG]mm

20-10AWG

0.75-5.3m㎡

Maximum Wire Insulation Diameter[inches]mm

0.175inches

4.45mm

AVG Contact Resistance(micro-ohms) <500
Insulation Withstanding Test Voltage(Volts AC/DC) 2200V
Contact Retention Force (Ibf) 25lbf

Life

a.No load (Contact/Disconnect Cycles)

b.under Load (Hot Plug 250 cycles @ 120V)

To 10,000

45A

AVg.Connection/Disconnect (lbf) 10lbf
operating Temperature Range℃ *F

-20°to 105°

-4°to 221

Flammability Rating of Housing Material UL 94-V0

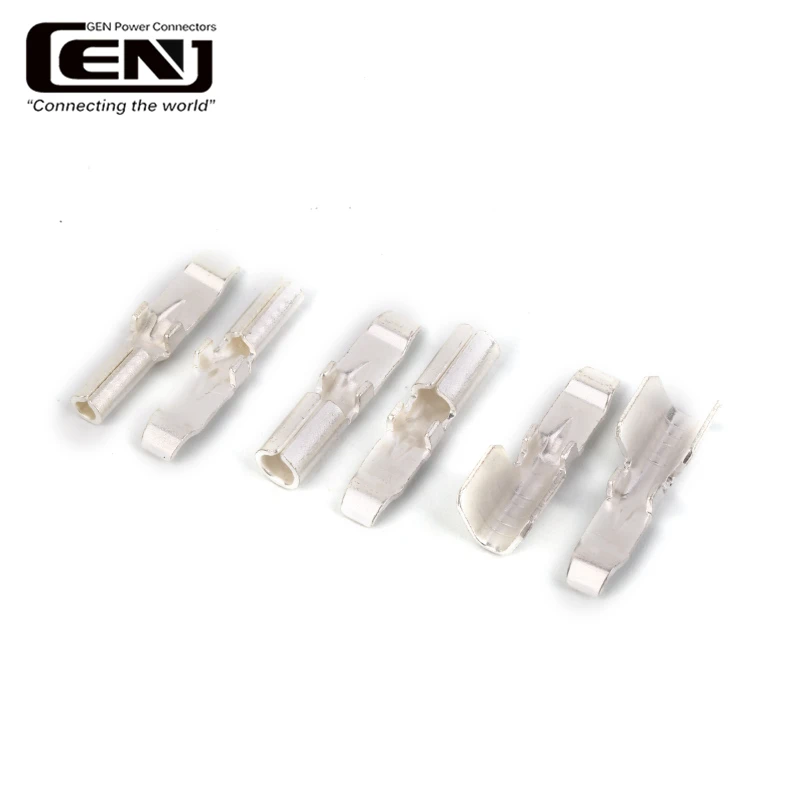

Contact Material Silver plated copper

 The SES Mini 2-Pin Battery Power Connector is a versatile and reliable modular power adaptor designed for a wide range of applications. With a solid construction featuring copper contacts and a durable PC housing, this connector is built to last and withstand daily use.The 2-pin design allows for easy and secure connections, making it ideal for powering various devices such as LED lighting systems, security cameras, and electronic gadgets. With a current rating of 15-45A, this power connector provides a stable and efficient power supply for your devices.Featuring a male and female connector, the SES Mini 2-Pin Battery Power Connector offers flexibility and compatibility with different devices and equipment. The modular design makes it easy to connect and disconnect, while the copper contacts ensure a reliable and low-resistance connection for optimal performance.Whether you are a professional electrician or a DIY enthusiast, the SES Mini 2-Pin Battery Power Connector is easy to install and use. Simply plug in the male and female connectors, and you are ready to power up your devices with confidence.In addition to its practical design and solid construction, this power connector is also compact and lightweight, making it easy to transport and store when not in use. The SES Mini 2-Pin Battery Power Connector is a cost-effective and reliable solution for all your power connection needs.The SES Mini 2-Pin Battery Power Connector is a high-quality and versatile modular power adaptor that offers a secure and efficient power supply for your devices. With its durable construction, copper contacts, and PC housing, this connector is designed to last and provide reliable performance for years to come. So why settle for a subpar power connector when you can trust the quality and reliability of the SES Mini 2-Pin Battery Power Connector.

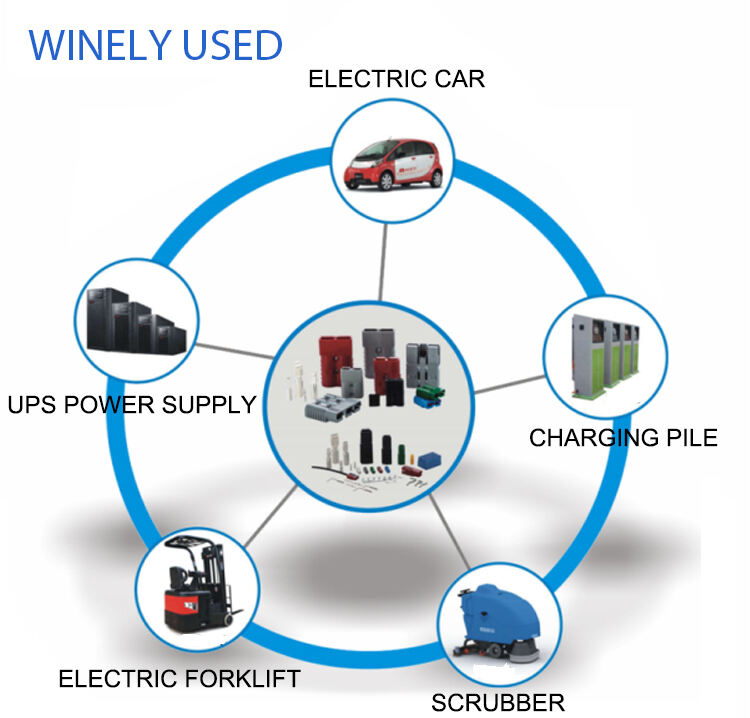

Application
Electric vehicles; Medical equipment; Power supply; Electric equipment;
Maximum wire insulation diameter
0.175inches 4.45mm
Insulation withstanding test voltage
2200v
Contact retention force
25lbf
Avg. connection/disconnect
10lbf
Operating temperature range
-20°to105°
-4°to221°
Flammability rating of housing material
UL94-VO
