| Rated current(Amperes) | 75A |
| Voltage Ratings (Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
6-12AWG 13.3-3.3mm |
| Maximum Wire Insulation Diameter[inches] mm |
0.44inches 11.2mm |
| AVG Contact Resistance(micro-ohms) | <200 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(Ibf) | 50lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 50A |
| AVg.Connection/Disconnect(lbf) | 71bf |
| operating Temperature Range℃" ℉ |
-20"to 105° -4 °to 221* |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |
Introducing, the SN75A Power Power Battery Connector, a reliable and efficient solution for all your power needs. This innovative connector is designed to provide a secure and durable connection for your electronic devices, ensuring that your batteries remain powered and ready for use at all times.
The SN75A Power Power Battery Connector is engineered with high-quality materials to deliver exceptional performance and longevity. Its sleek and compact design makes it easy to install and use, while its robust construction ensures maximum durability and reliability. Whether you are using it for small electronic devices or larger power applications, this connector is built to handle all your power needs with ease.
With a simple and user-friendly design, the SN75A Power Power Battery Connector is easy to install and provides a secure and stable connection for your batteries. Its low-profile design allows for easy access to your devices, while its sturdy construction ensures that your batteries stay connected and powered up for extended periods of time.
This versatile connector is perfect for a wide range of applications, from portable electronic devices to industrial power systems. Its high-quality construction and reliable performance make it a popular choice among professionals and hobbyists alike. Whether you are looking for a reliable power solution for your next project or simply need a replacement connector for your existing equipment, the SN75A Power Power Battery Connector has got you covered.
Trust in the quality and performance of the brand, known for delivering top-notch products that meet the highest standards of reliability and durability. With the SN75A Power Power Battery Connector, you can rest assured that your power needs are always taken care of, allowing you to focus on what matters most – getting the job done.
Don't settle for subpar connectors that may compromise the performance of your devices. Choose the SN75A Power Power Battery Connector for a reliable and efficient power solution that will keep your batteries charged and ready to go whenever you need them. Invest in quality, invest in the brand.

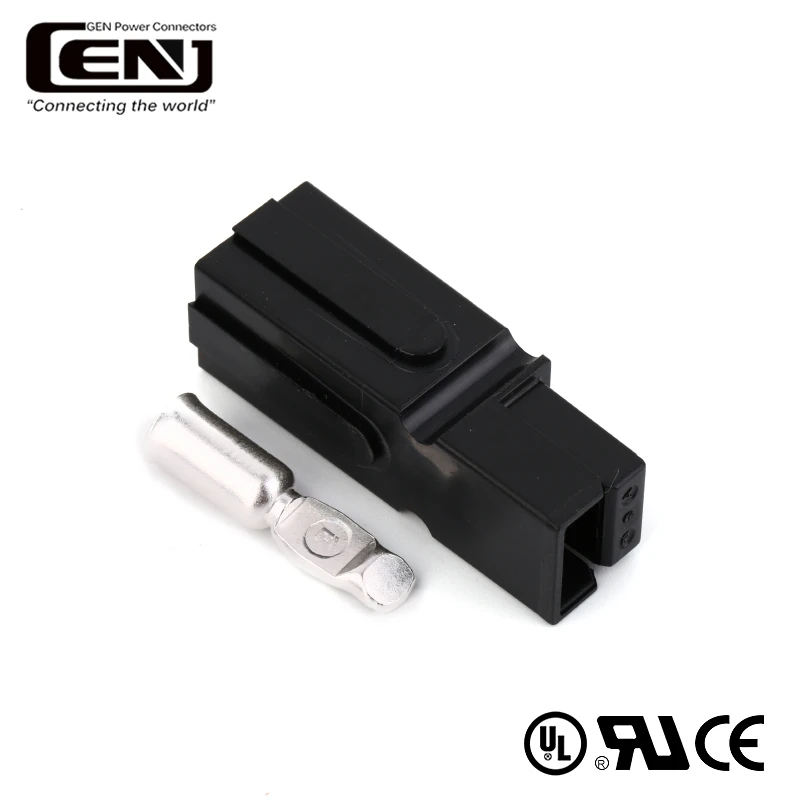

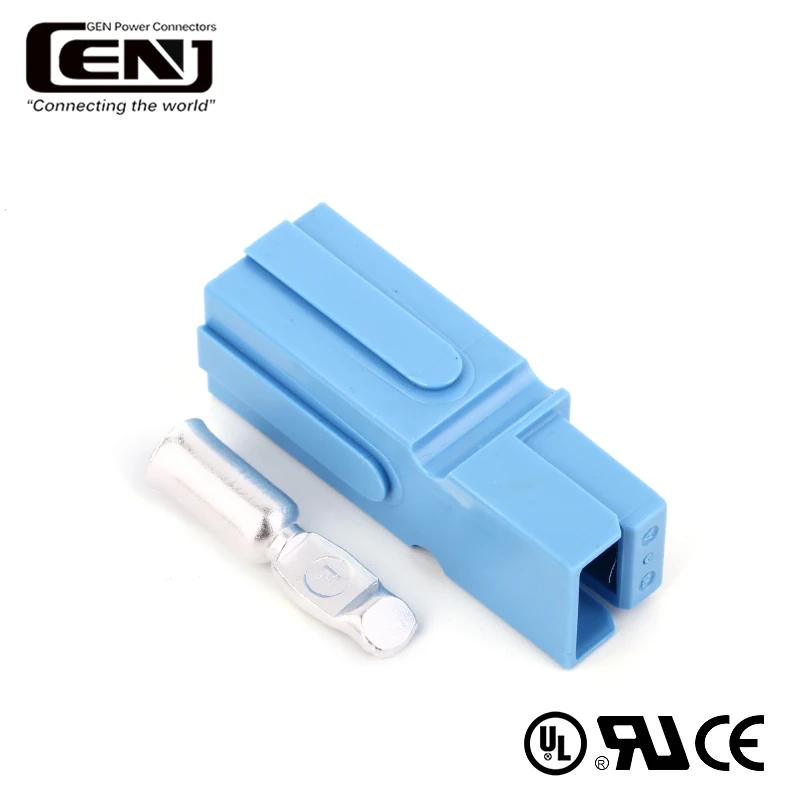

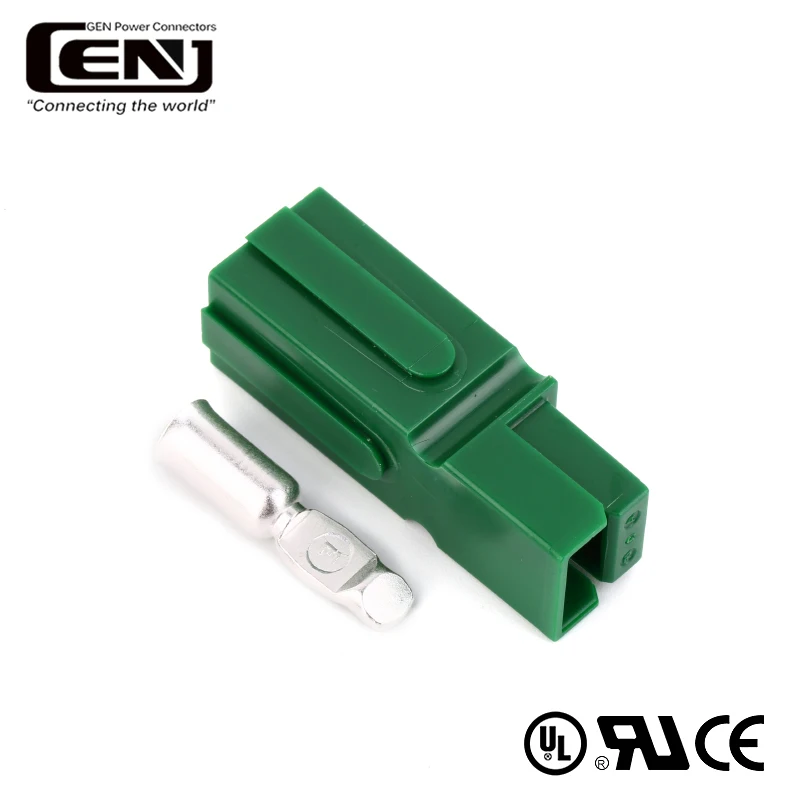

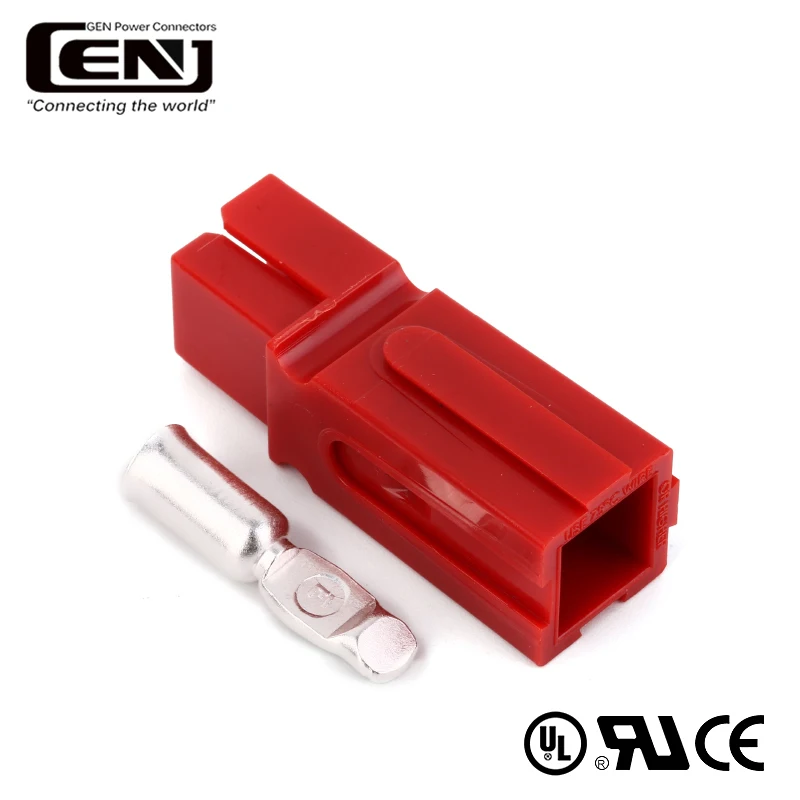

SN75A power power battery connector
| Contact barrel wire size | 6-12AWG 13.3-3.3mm² |
| AVG contact resistance | <200 |
| Contact material | Silver plated copper |
| Voltage rating | 600V |
| Rated current | 75A |
| Feature | makes assembly quick and easy |
| system | Flat wiping contact system |
| Color | Colored modular housings |
| Application | Electric vehicles;Medical equipment;Power supply;Electric equipment; |
| MQQ | 100 |
| Maximum wire insulation diameter | 0.44inches 11.2mm |
| Insulation withstanding test voltage | 2200v |
| Contact retention force | 50lbf |
| Avg.connection/disconnect | 7ibf |
| Operating temperature range |
-20°to105° -4°to221° |
| Flammability rating of housing material | UL94-VO |
1. About selecting terminals
The terminals can be selected according to the wire size. Each terminal has different aperture, which is convenient for customers. For example, 50A600V plug terminals have three models, respectively, 5915 terminals can be connected to 10/12AWG wire, 5952 terminals can be connected to 8AWG wire, 5900 terminals can be connected to 6AWG wire.
2. Plastic shell color selection

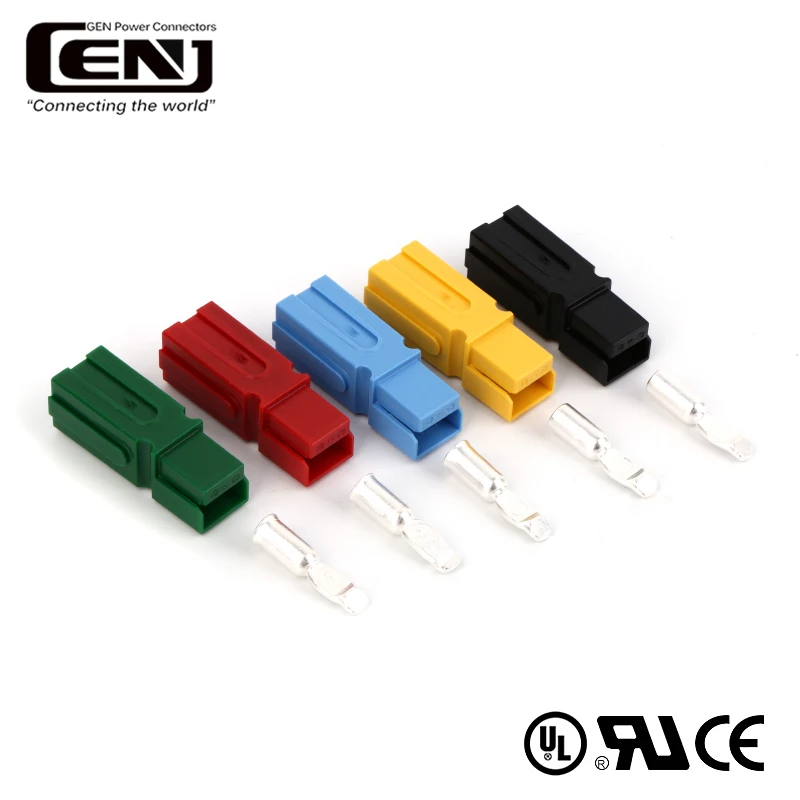

(Unipolar) color modular housing, providing intuitive identification of the correct matching connection; (bipolar) the same color can be inserted, while different color can not be inserted for the different interface design. Colored modular housings provides visual identification of proper mating connector. (Only Gray and Black can be matched).
3. About wire processing(OEM)
According to customer samples, we can provide OEM wire processing
4. Plug working life
No load (terminal insertion and removal times 10000) with load - 120V hot swap 250 times
5. Plug operating temperature range
-20°C105°C If you have special requirements, we can customize according to customer requirements
