| Rated current(Amperes) | 350A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
2/0 to 300mcm 67.4to 152mm |
| Maximum Wire Insulation Diameter[inches]mm |
1.1inches 27.9mm |
| AVG Contact Resistance(micro-ohms) | 50 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 500lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 100A |
| AVg.Connection/Disconnect (lbf) | 30lbf |
| operating Temperature Range℃ ℉ |
-20 "to 105" -4 "to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |
Introducing the Waterproof 350A Power Electrical Battery Connector! This top-of-the-line connector is a must-have for anyone looking for a reliable and durable power connection solution. Whether you are an automotive enthusiast, a DIYer, or a professional electrician, this connector is perfect for all your power needs.
The Waterproof 350A Power Electrical Battery Connector is designed to handle high currents up to 350A, making it ideal for a wide range of applications. Whether you are looking to power up your car audio system, connect your solar panels, or hook up an electric vehicle charger, this connector can handle the job with ease.

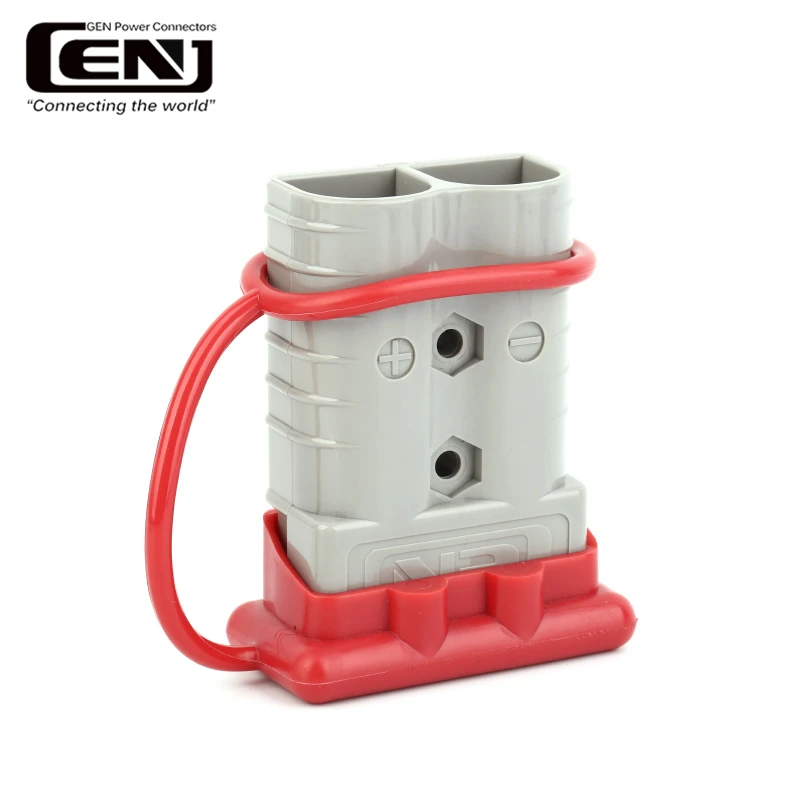

One of the standout features of the connector is its waterproof design. This connector is IP67 rated, which means it is completely protected against dust and can withstand immersion in water up to 1 meter deep for 30 minutes. This makes it perfect for outdoor use, as well as for use in high-moisture environments such as marine applications.
Installation of the Waterproof 350A Power Electrical Battery Connector is quick and easy. The connector features a simple plug-and-play design, with easy-to-use screw terminals that ensure a secure and reliable connection. The connector is also compact and lightweight, making it easy to install in tight spaces and carry with you on the go.
In addition to its high-quality construction and waterproof design, the connector is also built to last. Made from durable materials, this connector is designed to withstand the rigors of daily use and provide you with reliable power connections for years to come.
Whether you are looking to upgrade your current power connectors or need a reliable solution for a new project, the Waterproof 350A Power Electrical Battery Connector is the perfect choice. With its high current rating, waterproof design, and durable construction, this connector is sure to meet all your power connection needs. Upgrade to the connector today and experience the difference in quality and performance.

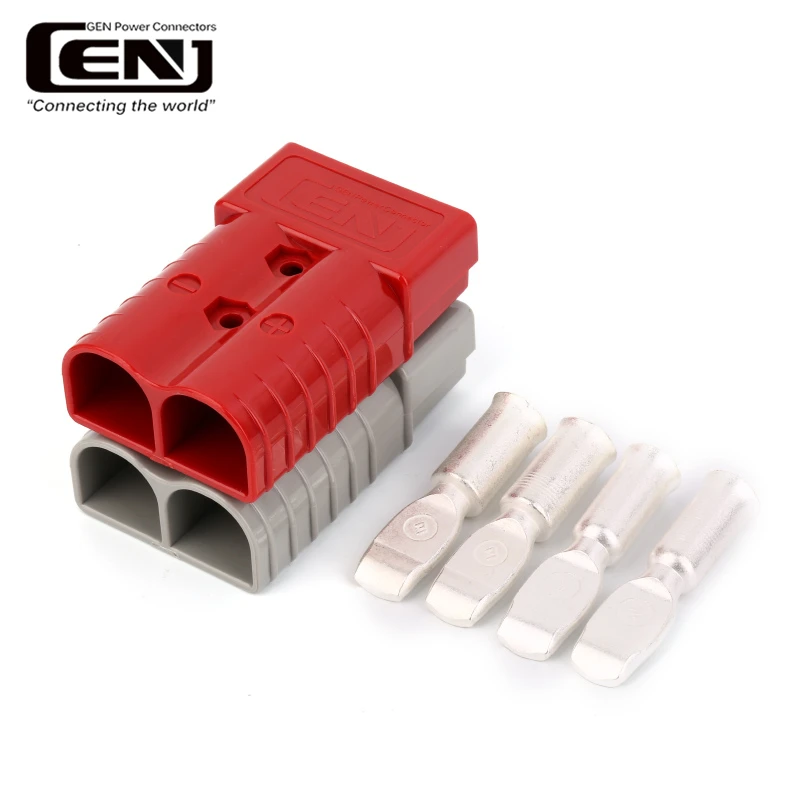

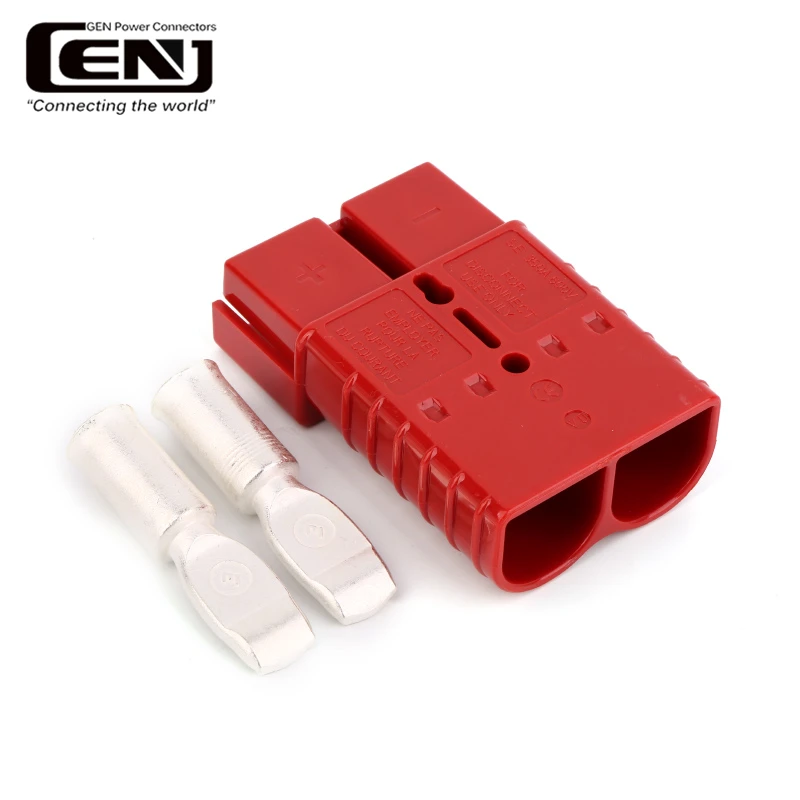

350A power waterproof electrical battery connector
| Application | Electric vehicles;Medical equipment;Power supply;Electric equipment; |
| Maximum wire insulation diameter | 1.1inches 27.9mm |
| Insulation withstanding test voltage | 2200v |
| Contact retention fo rce | 500lbf |
| Avg. connection/disconnect | 30lbf |
| Operating temperature range |
-20°to105° -4°to221° |
| Flammability rating of housing material | UL94-VO |

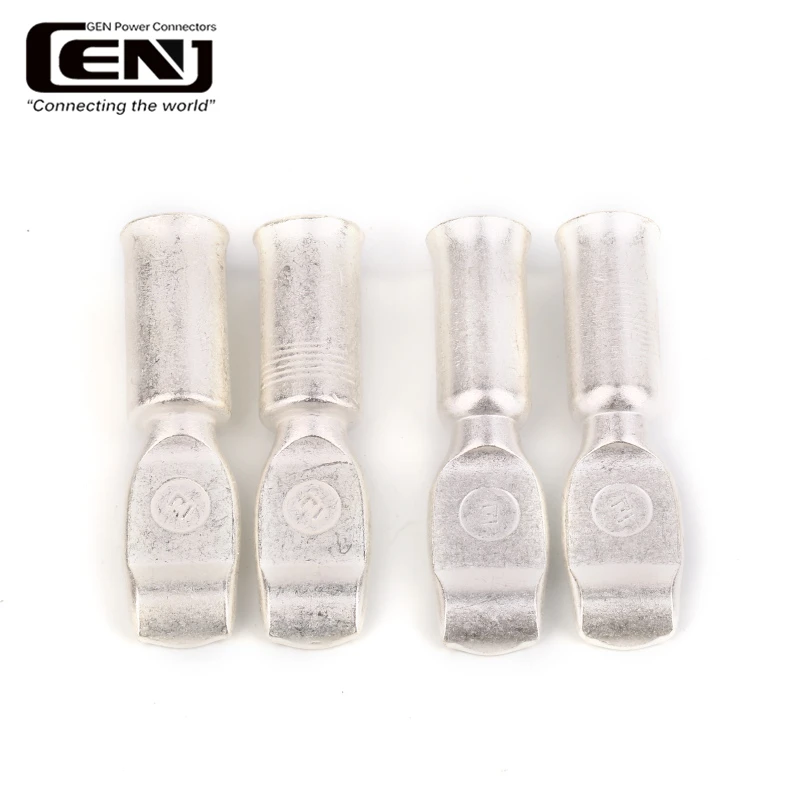

1. About selecting terminals
The terminals can be selected according to the wire size. Each terminal has different aperture, which is convenient for customers. For example, (50A600V plug terminals have three models, respectively, 5915 terminals can be connected to 10/12AWG wire, 5952 terminals can be connected to 8AWG wire, 5900 terminals can be connected to 6AWG wire
2. Plastic shell color selection
(Unipolar) color modular housing, providing intuitive identification of the correct matching connection; (bipolar) the same color can be inserted, while different color can not be inserted for the different interface design. Colored modular housings provides visual identification of proper mating connector
3. About wire processing OEM
According to customer samples, we can provide OEM wire processing
4. Plug working life
No load terminal insertion and removal times 10000) with load (120V hot swap 250 times
5. Plug operating temperature range
-20°C105°C If you have special requirements, we can customize according to customer requirements
