| Rated current(Amperes) | 15-45A |
| Voltage Ratings(Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
20-10AWG 0.75-5.3mm |
| Maximum Wire Insulation Diameter[inches]mm |
0.175inches 4.45mm |
| AVG Contact Resistance(micro-ohms) | <500 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force(lbf) | 25lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @120V) |
To 10,000 15-30A |
| AVg.Connection/Disconnect (lbf) | 3-5lbf |
| operating Temperature Range℃ ℉ |
-20"to 105° -4"to 221" |
| Flammability Rating of Housing Material | UL 94-V0 |
| Contact Material | Silver plated copper |
Introducing the Waterproof Power Electrical Battery Connector, a must-have accessory for all your power connection needs. Whether you're a marine enthusiast, an outdoor adventurer, or just looking for a reliable electrical connector, this product has you covered.
With its durable construction and innovative design, the Waterproof Power Electrical Battery Connector provides a secure and watertight connection for all your power needs. The connector is specifically designed to withstand the elements, making it perfect for use in a variety of environments. Whether you're on a boat, RV, motorcycle, or any other outdoor setting, you can trust that your power connections will remain safe and secure with this product.
The connector features a waterproof housing that ensures your electrical connections remain dry and protected at all times. This means you can confidently use your devices and equipment in any weather condition without having to worry about water damage or corrosion. With the Waterproof Power Electrical Battery Connector, you can enjoy peace of mind knowing that your power supply is always safe and reliable.
In addition to its waterproof design, the connector is also easy to install and use. The connector features a simple plug-and-play design that allows for quick and hassle-free connections. Whether you're a DIY enthusiast or a seasoned professional, you'll appreciate the ease of use that this product offers.
Furthermore, the Waterproof Power Electrical Battery Connector is built to last. Made from high-quality materials, this connector is designed to withstand heavy use and constant exposure to various elements. You can trust that this product will provide you with reliable power connections for years to come.
The Waterproof Power Electrical Battery Connector is a versatile and reliable accessory that is perfect for a wide range of applications. Whether you're powering up your boat, RV, motorcycle, or any other electrical device, this connector has you covered. Invest in the Waterproof Power Electrical Battery Connector today and experience the convenience and peace of mind that this product provides.

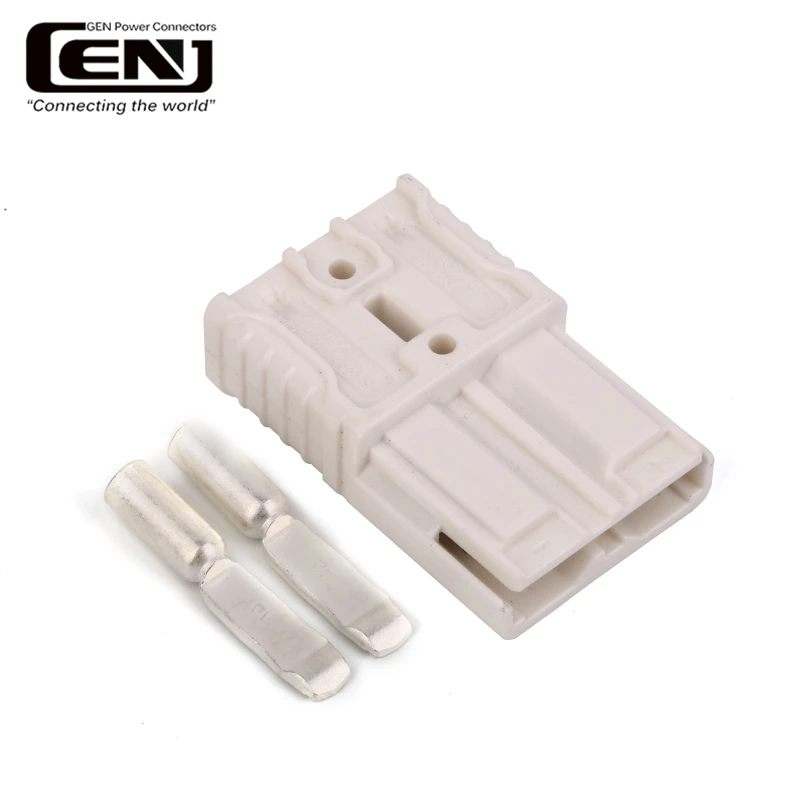

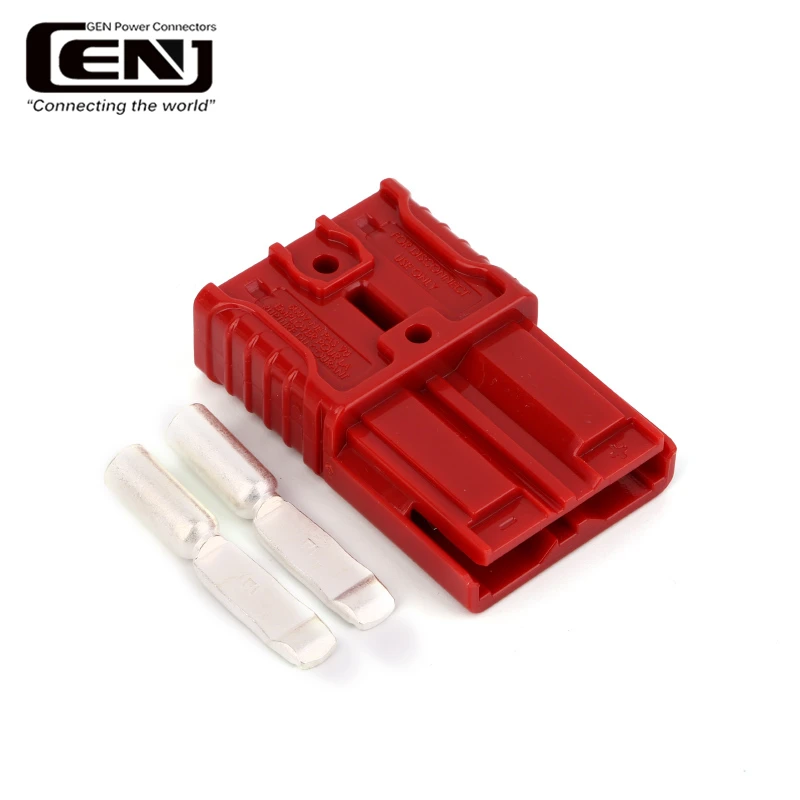

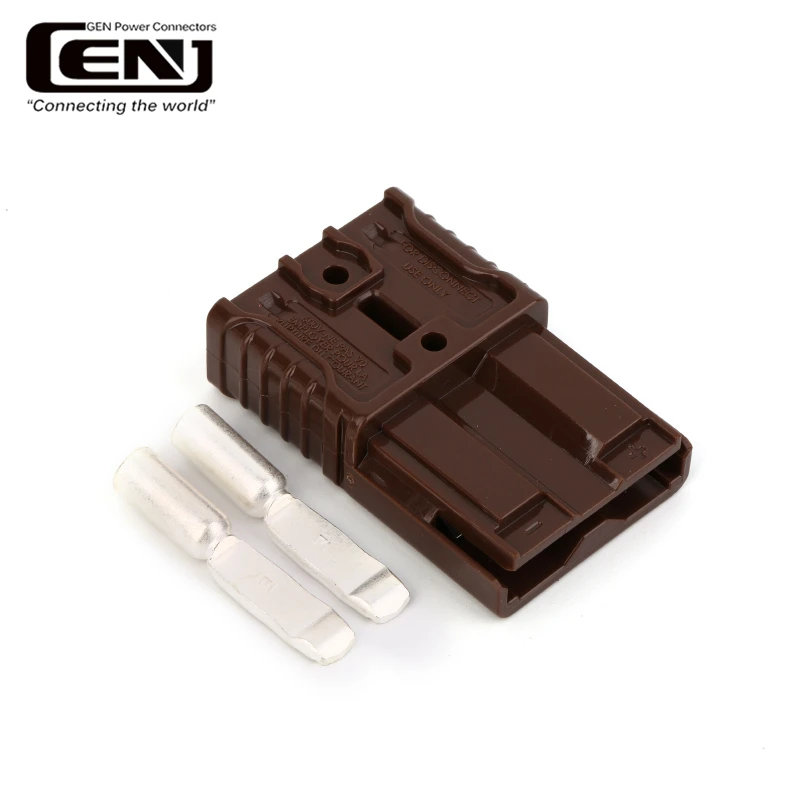

Waterproof power electrical battery connector
| Application | Electric vehicles;Medical equipment;Power supply;Electric equipment; |
| Maximum wire insulation diameter | 0.44inches 11.2mm |
| Insulation withstanding test voltage | 2200v |
| Contact retention force | 50lbf |
| Avg. connection/disconnect | 15lbf |
| Operating temperature range |
-20°to105° -4°to221° |
| Flammability rating of housing material | UL94-VO |

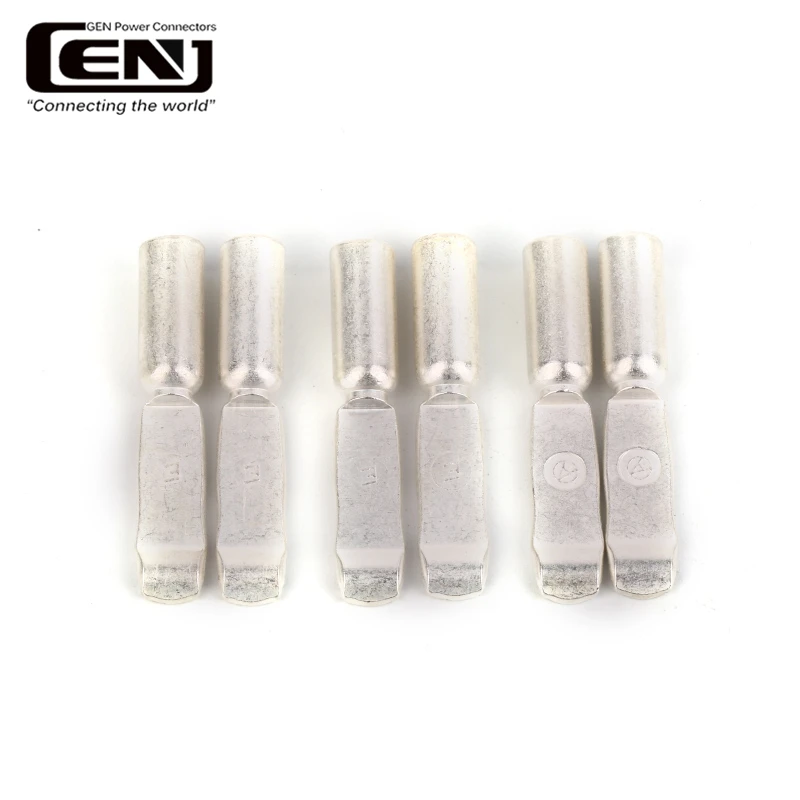

1. About selecting terminals
The terminals can be selected according to the wire size. Each terminal has different aperture, which is convenient for customers. For example, (50A600V plug terminals have three models, respectively, 5915 terminals can be connected to 10/12AWG wire, 5952 terminals can be connected to 8AWG wire, 5900 terminals can be connected to 6AWG wire

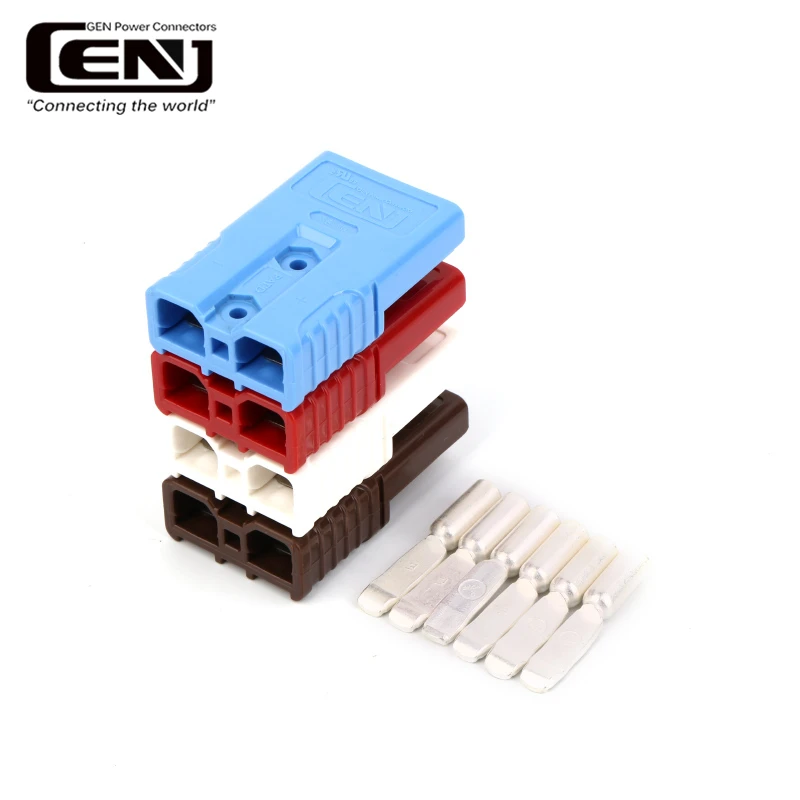

2. Plastic shell color selection
(Unipolar) color modular housing, providing intuitive identification of the correct matching connection; (bipolar) the same color can be inserted, while different color can not be inserted for the different interface design. Colored modular housings provides visual identification of proper mating connector
3. About wire processing OEM
According to customer samples, we can provide OEM wire processing
4. Plug working life
No load (terminal insertion and removal times 10000) with load (120V hot swap 250 times)
5. Plug operating temperature range
-20°C105°C If you have special requirements, we can customize according to customer requirements.
