| Rated current(Amperes) | 175A |
| Voltage Ratings (Volts) | 600V |
| Contact Barrel Wire Size[AWG]mm |
4-1/0AWG 21.1-53.5mm |
| Maximum Wire Insulation Diameter[inches] mm |
0.75inches 19.0mm |
| AVG Contact Resistance(micro-ohms) | 100 |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 2200V |
| Contact Retention Force (Ibf) | 300lbf |
|
Life a.No load (Contact/Disconnect Cycles) b.under Load (Hot Plug 250 cycles @ 120V) |
To 10,000 75A |
| AVg.Connection/Disconnect(Ibf) |
(SE 2Pole)251bf\ (SE 3Pole)35lbf |
| operating Temperature Range℃ ℉ |
-20 °to 105° -4°to 221° |
| Flammability Rating of Housing Material | UL 94-V0 |

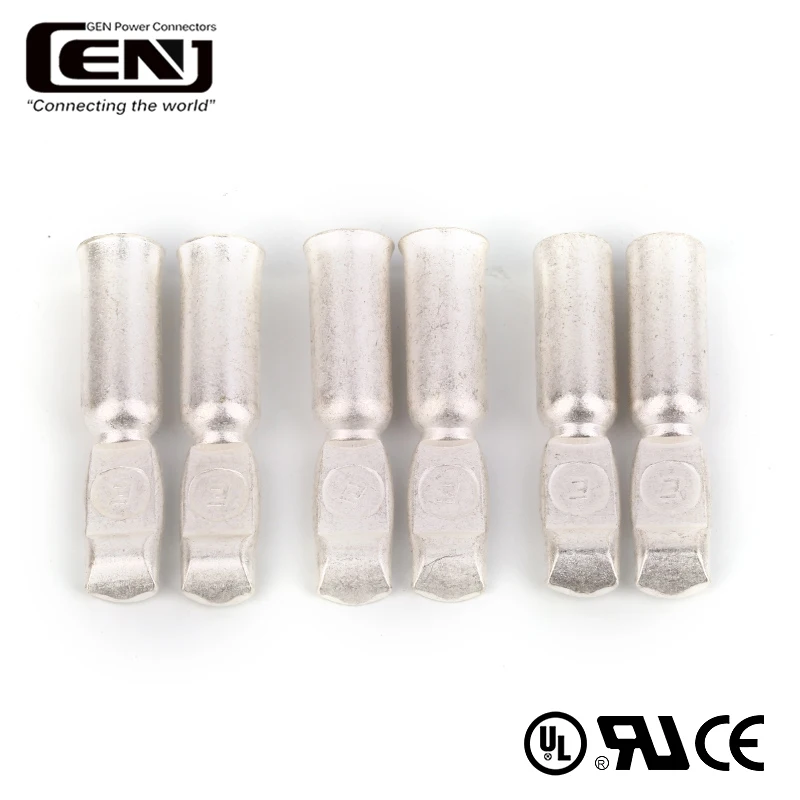

| Contact Material | Silver plated copper |

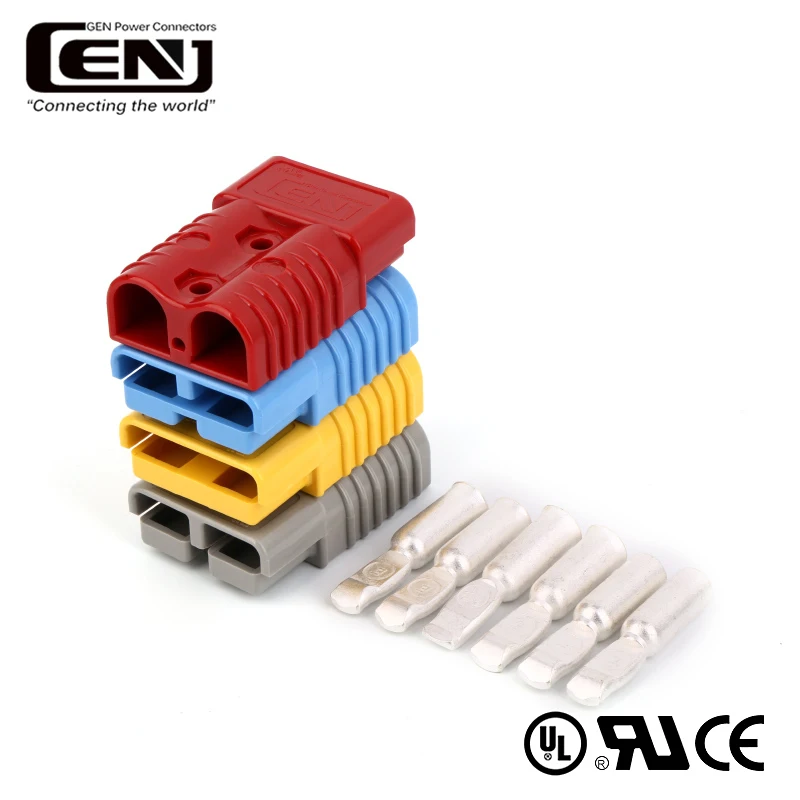

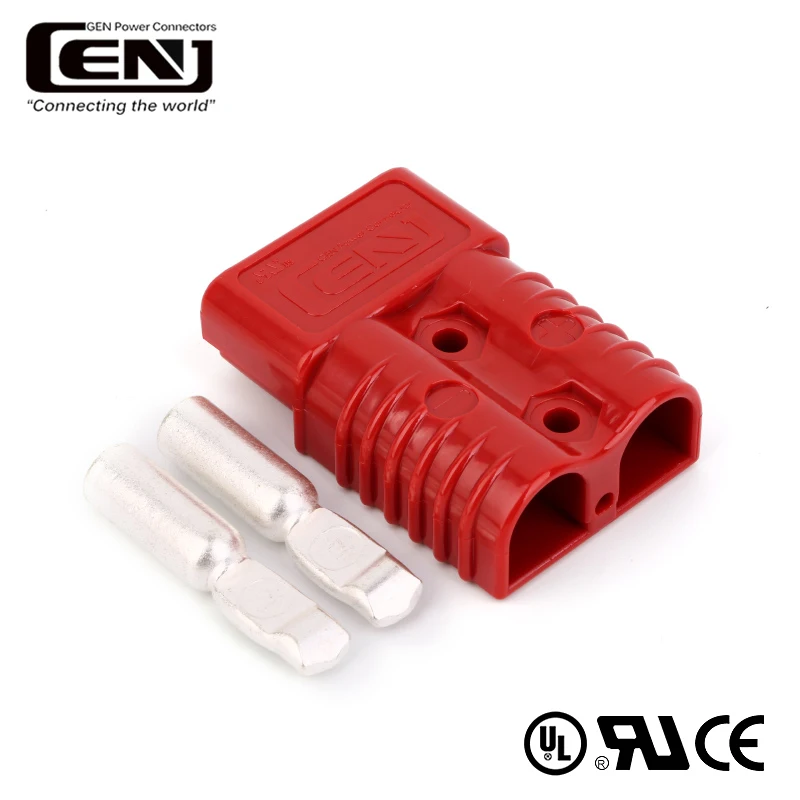

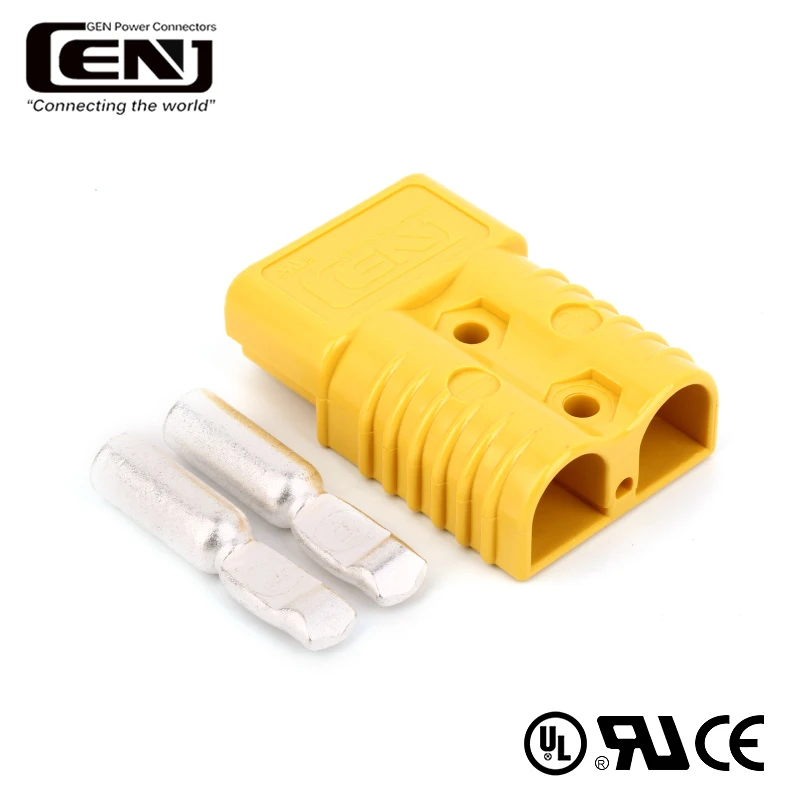

The SE175 Connector by is a heavy-duty solution for all your electric power needs. This 175A connector is perfect for applications requiring high current, such as forklifts, industrial machinery, and automotive vehicles. The 2 pin design allows for quick and easy connection, saving you time and effort on the job.Constructed from durable materials, the SE175 Connector is built to last. The 1/0 2/4 AWG gray Anderson style plug ensures a secure and reliable connection every time. This means you can trust this connector to deliver power consistently and safely, without any worries of loose connections or interruptions.Not only is the SE175 Connector reliable, but it is also user-friendly. The plug is designed for easy installation, with clearly marked terminals for a hassle-free setup. The connector features a rugged construction that can withstand the demands of industrial environments, making it a reliable choice for any job, big or small.The brand is known for its high-quality products, and the SE175 Connector is no exception. Designed with precision and expertise, this connector is built to meet the highest standards of performance and durability. You can trust to deliver a reliable and efficient product that will get the job done right every time.Whether you're a professional in need of a reliable connector for your fleet of forklifts, or a DIY enthusiast looking for a dependable solution for your automotive projects, the SE175 Connector by is the perfect choice. With its high current capacity, durable construction, and user-friendly design, this connector is sure to meet all your electric power needs with ease.The SE175 Connector by is a top-of-the-line product that offers unmatched performance and reliability. With its high current capacity, durable construction, and easy installation, this connector is the perfect solution for all your electric power needs. Trust to deliver a high-quality product that will exceed your expectations every time.
